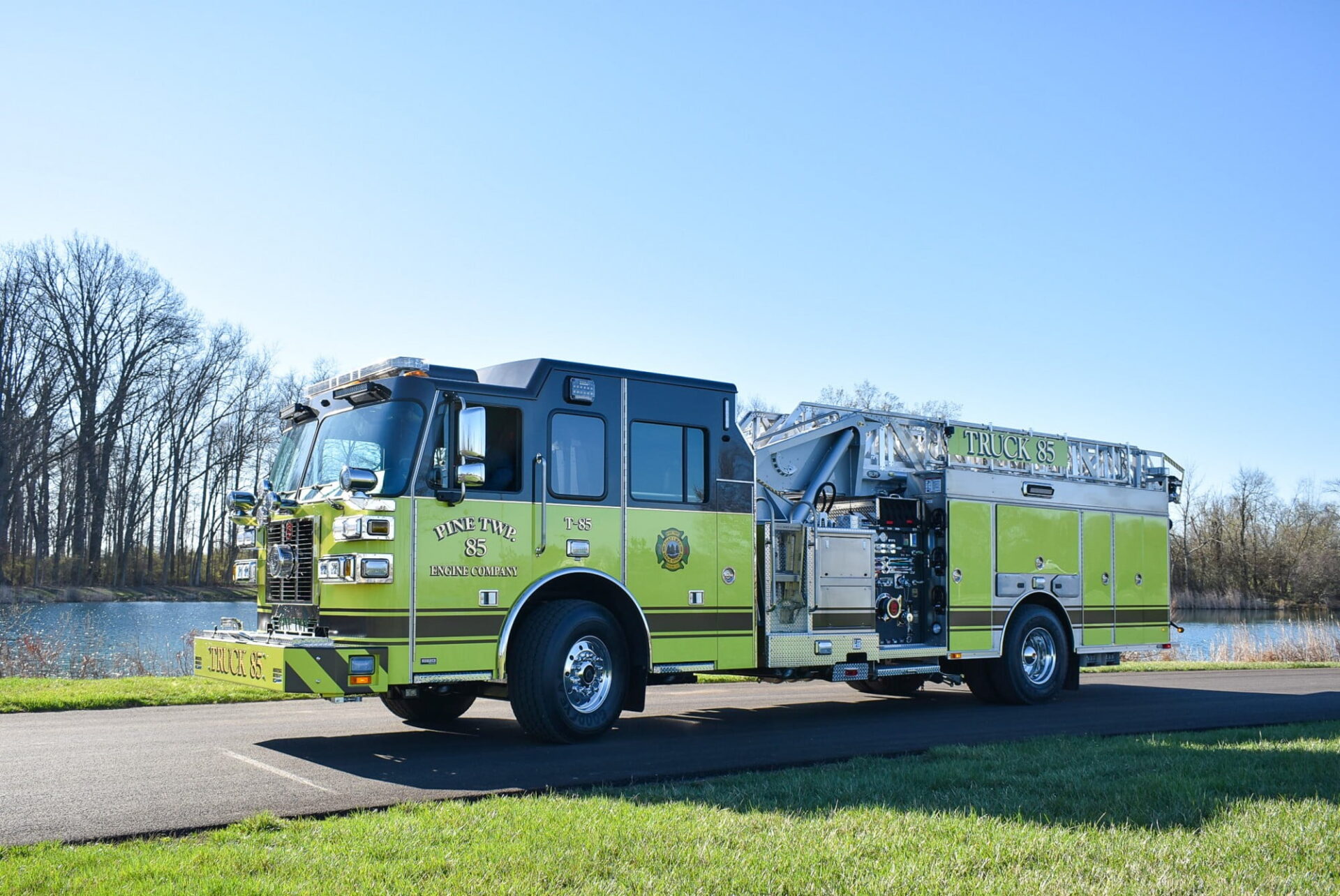

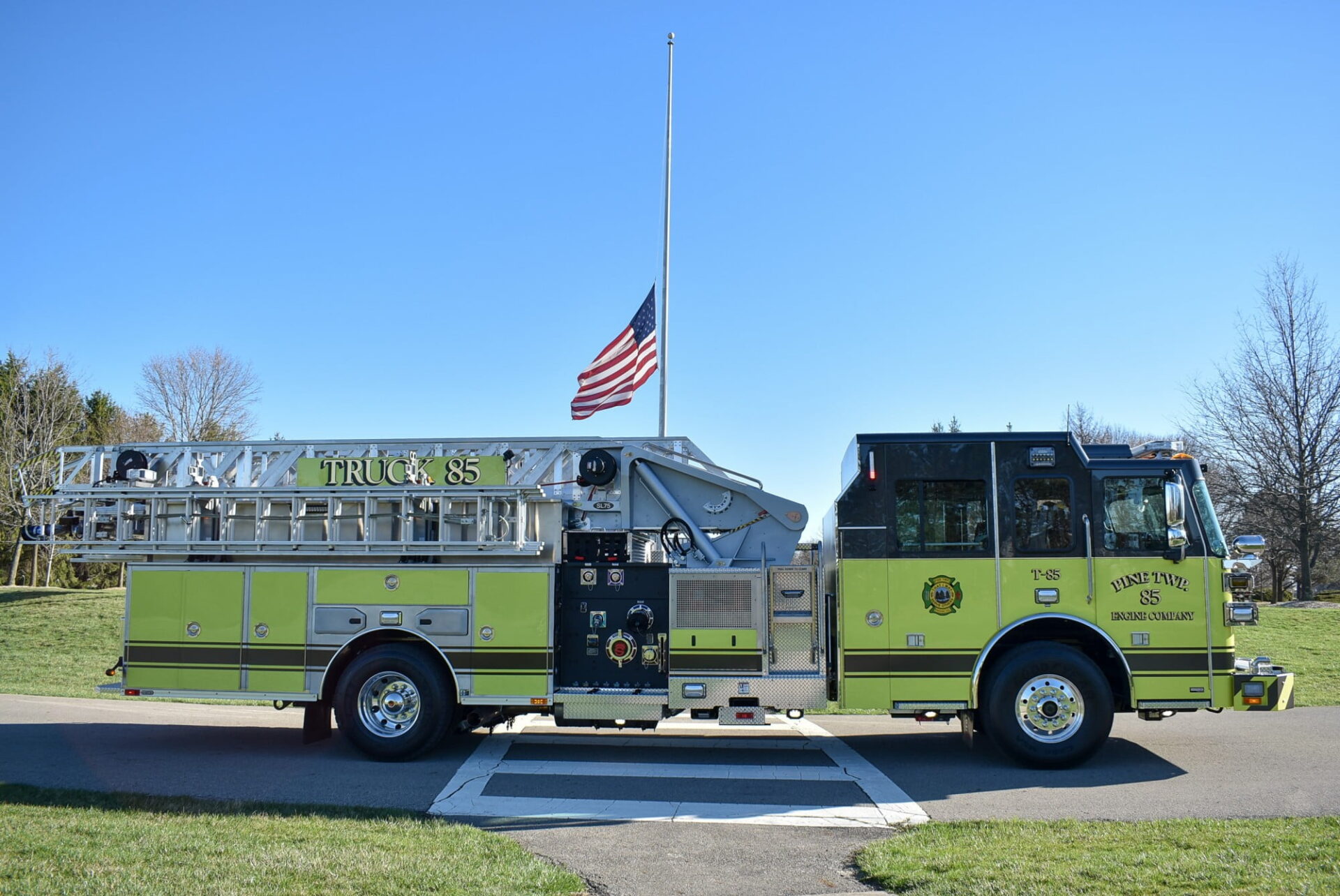

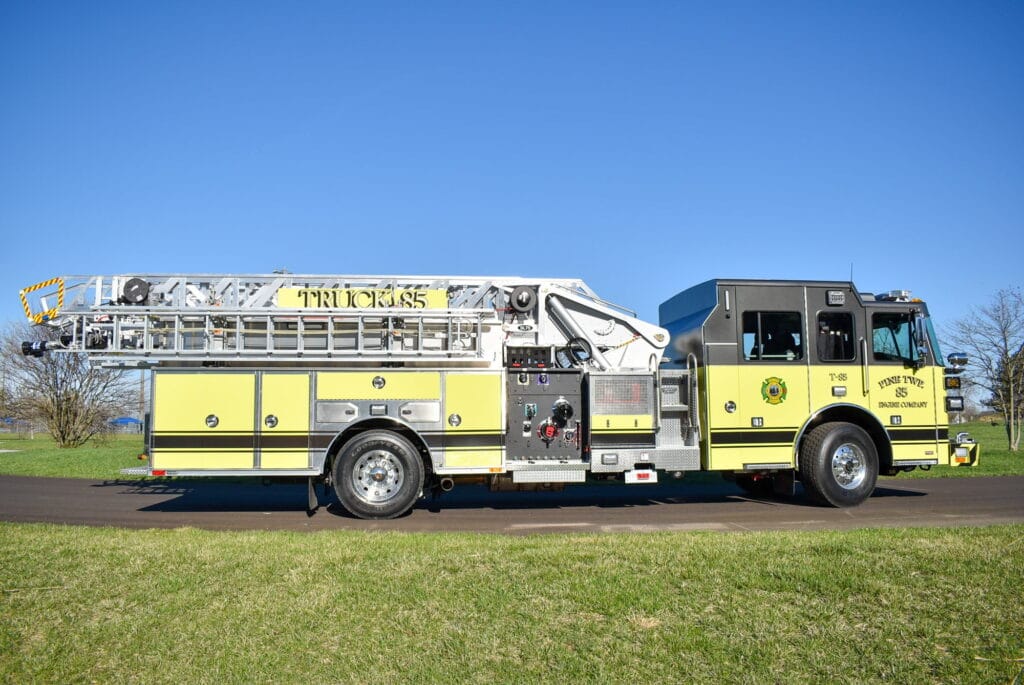

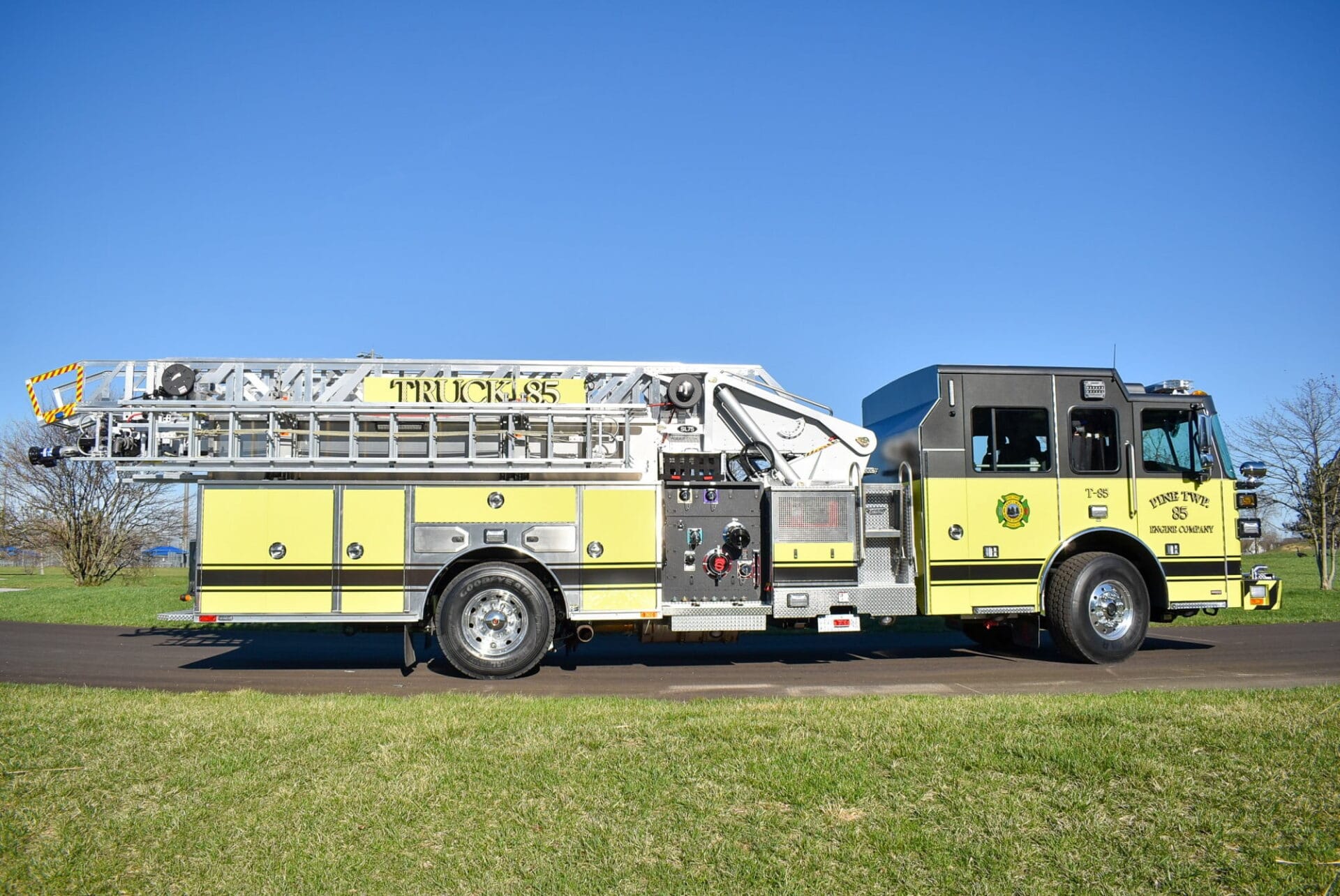

SL 75 – Pine Township Engine Company, PA

Truck Type:
SL 75 Aerial Ladder
Dealer:
Sutphen
Location:
Grove City, PA
Department:
Pine Township Engine Company

Specs

Cab
Four-door, six-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
31,000 lbs
Engine
Cummins X 12 500HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison GEN 5 EVS4000
Water Pump
Qmax-2000 gpm 6” suction, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (2) 2 ½” Upper Left Side Body, (1) 2 ½” to Front Bumper, (1) 2 ½” Tip of Ladder
Crosslay
(2) 2” Crosslays
Water Tank
500-gallon
Doors
Mix of roll-up and hinged compartment
Total Compartment Space
Over 192 cu. ft.
Ladder Package
Alco-Lite Quint (85’ 16R’, 24’ – 2 Sec, 35’ – 3 Sec, & 10’ F)
Body
SAA-4, Left High / Right Intermed / Trans
Bumper Extension
18” painted formed steel channel bumper
Siren
Federal q2b , grille mount
Camera System
FRC Inview 360 HD
Generator
Harrison, 6KW
Intercom System
FRC ACT 2-Station
Power
Hannay electric cord reel, 150’ (1)
Whelen Freedom 4
Lightbar
Firetech 12V LED
Brow lights
Firetech 12V Guardian
Elite scene lights
Mars 888 Lights
Included
FRC Optimum 240V
1,500 watt scene light
TFT Y5-E11A-L Typhoon
Elec w/m-erp-1500 nozzle
