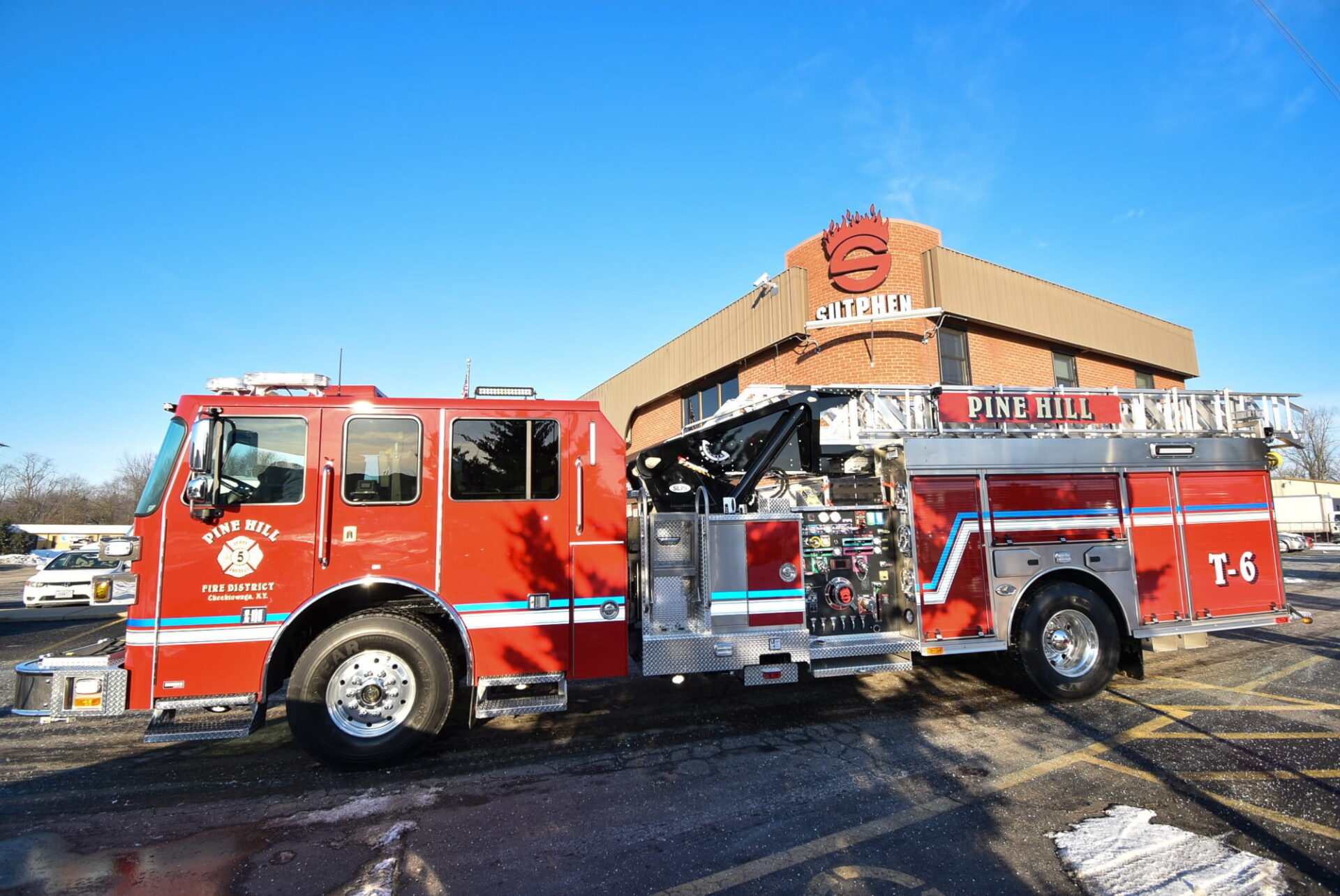

SL 75 – Pine Hills Fire District, NY

Location:
Cheektowaga, NY
Department:
Pine Hills Fire District

Specs

Cab
Four-door, eight-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
31,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax-2000 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front of Upper Left Side Body, (1) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper
Crosslay
(2) Crosslays 2” Valve-Piping 1 ½” Swivel
Water Tank
500-gallon
Water Tank
30-gallon foam tank
Foam System
Hale SmartFoam 2.1A
Doors
Amdor roll-up compartment
Total Compartment Space
Over 210 cu. ft.
Alco-Lite Custom Ladder Compliment
(FL-1 10
Folding; PRL-16 16’
Roof; prl-18 18’ roof; pel-24 24’ 2-section; pel-35 35’3-section)
Body
SAA-4, Left High / Right Intermed / Trans
Monitor
Elkhart 7205 Cobra EXM w/ SM1500E Nozzle
Bumper Extension
24” polished stainless steel bumper
Siren
Federal q2b , grille mount
Pike Pole Storage
Tubes (6)
Camera System
FRC, Inview Trueview, Two Cameras
Intercom System
FRC ACT 2-Station
Wheel Chocks
Ziamatic quic-lift electric ladder rack w/ 24’ ladder chute
Hi-Viz 3-Piece 12V
Led brow light
Whelen Freedom 4
Lightbar
Whelen MCFLED Beacons
Included
FireTech LED Scene
Light
