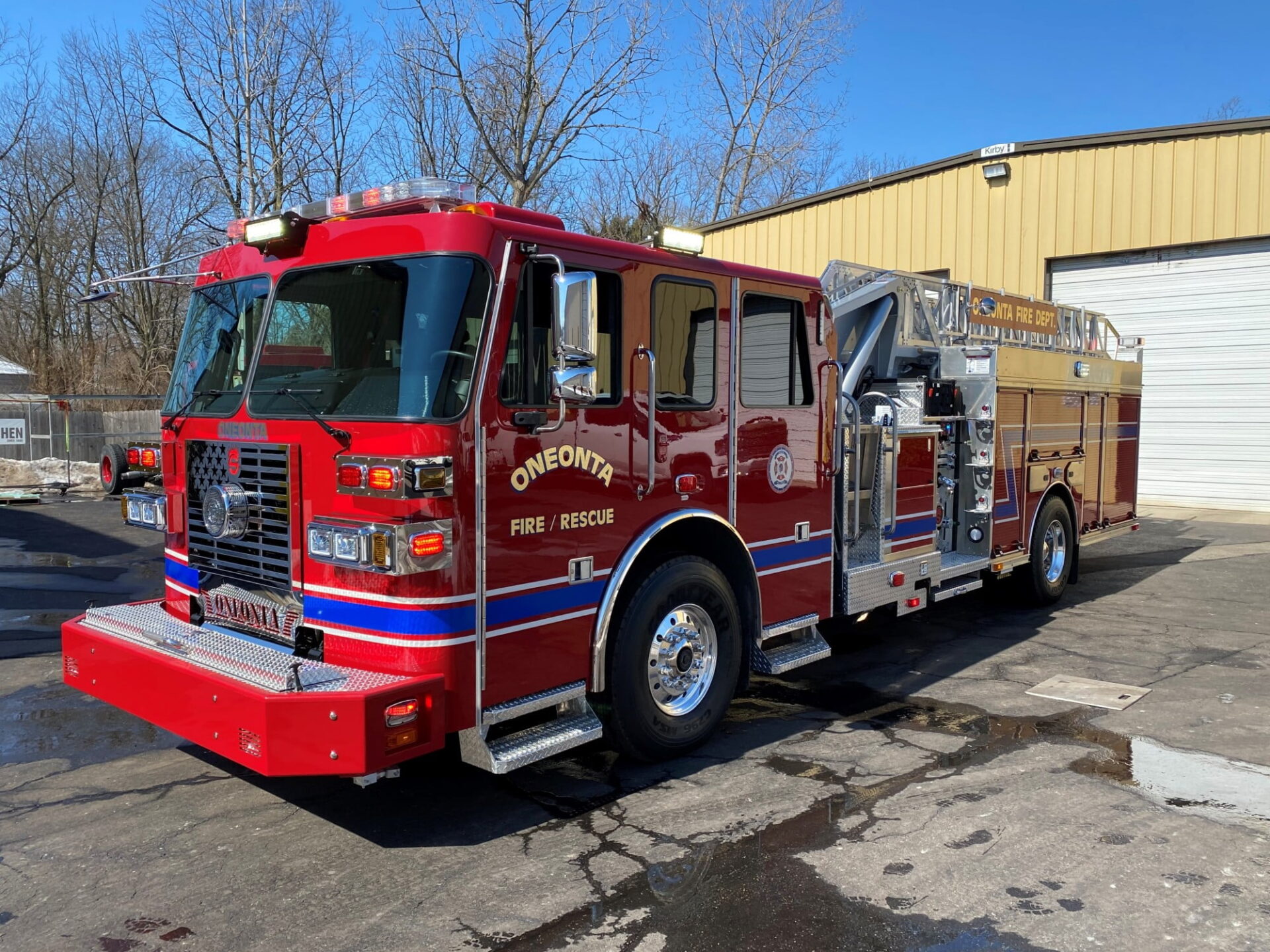

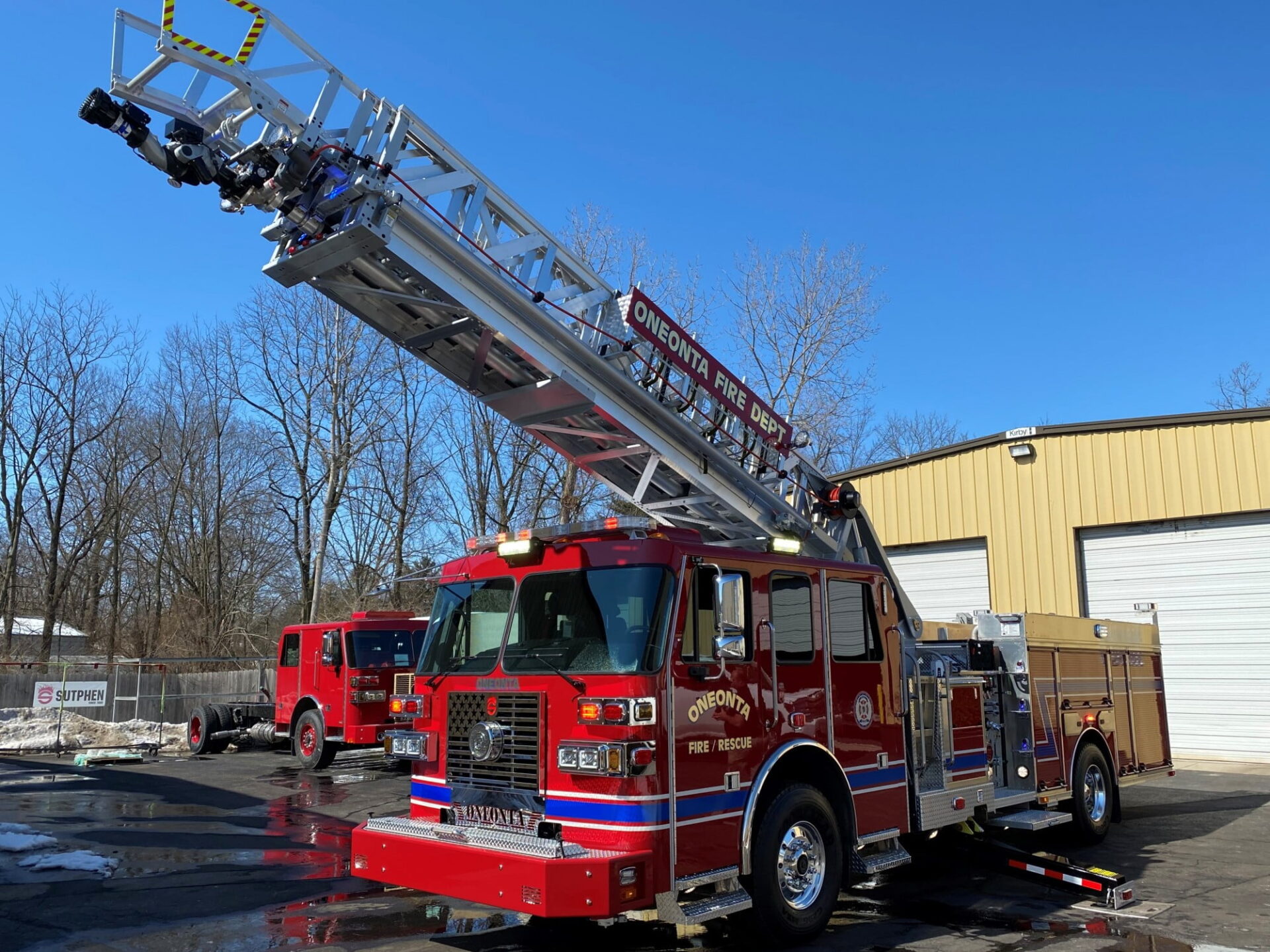

SL 75 – Oneonta Fire and Rescue, AL

Location:
Oneonta, AL
Department:
Oneonta Fire Department

Specs

Cab
Four-door, four-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
31,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side Body, (1) 1 ½” Front Bumper, (1) 2 ½” Discharge at the Tip
Crosslay
(2) Crosslays 2” Valve-Piping 1 ½” Swivel
Water Tank
500-gallon
Water Tank
20-gallon foam tank
Foam Supply System
Akron
Doors
Amdor roll-up compartment
Total Compartment Space
Over 190 cu. ft.
Duo-Safety Custom Ladder Compliment
(103’: 14’, 16’R, 28’ 2-Section,35’ 3-Section & 10’ F)
Body
SAA-4, Left High / Right Intermed / Trans
Monitor
TFT Y4-E11A-P-01 Monsoon Electric w/ M-ERP-1500 Nozzle
Bumper Extension
18” polished stainless steel bumper
Siren
Federal q2b , grille mount
Camera System
FRC, Inview Trueview, Two Cameras
Intercom System
FRC ACT 2-Station
Wheel Chocks
Ziamatic quic-lift electric ladder rack w/ 35’ ladder chute
Whelen PFH2 12V
Led brow light
Whelen Freedom 4
Lightbar
Whelen PFH2 12V
Led scene light
Whelen M9 12V
Scene light
