SL 75 – Murfreesboro, TN

Truck Type:
SL 75 Aerial Ladder
Dealer:
Sutphen
Location:
Murfreesboro, TN
Department:
Murfreesboro Fire Rescue

Specs

Cab
Four-door, five-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
31,000 lbs
Engine
Cummins X 12 500hp
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS4000

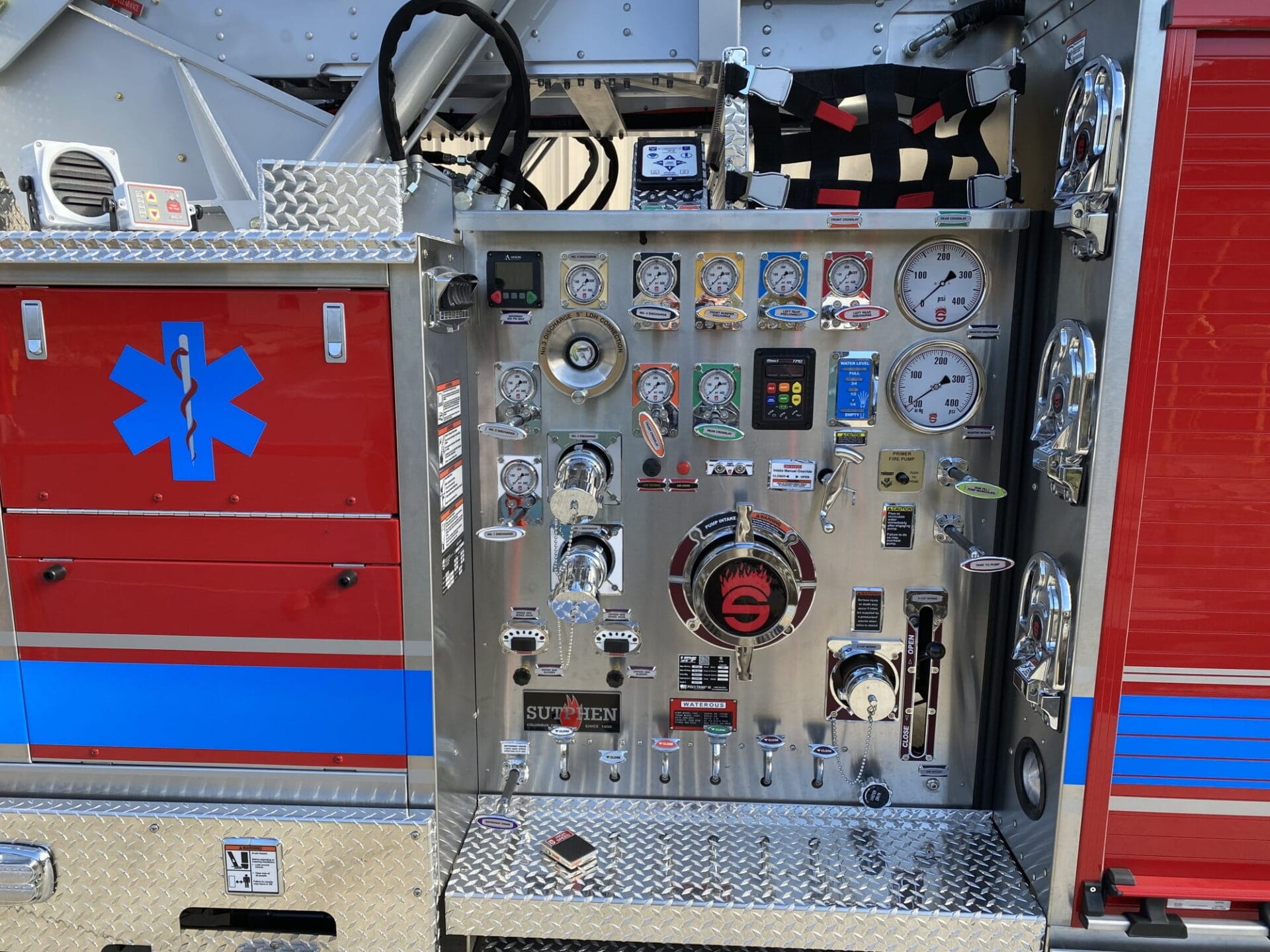

Water Pump
Csu-2000 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½“ Pipe to Left of Rear, (1) 2 ½” Upper Left Side Body, (1) 2 ½” Front Bumper
Crosslay
(2) Crosslays 2” Valve-Piping 1 ½” Swivel
Water Tank
500-gallon
Doors
Rom roll-up compartment
Total Compartment Space
Over 162 cu. ft.
Duo-Safety Custom Ladder Compliment
(115’: 14’C, 16’R, 24’ 2-Section, 35’ 3-Section & 10’ F)
Body
SAA-3, Left High / Right Low / Trans Rear
Monitor
TFT Y4-E11A-P-01 Monsoon Electric w/ M-ERP-1500 Nozzle
Bumper Extension
24” formed steel bumper
Siren
Federal q2b , grille mount
Camera System
FRC, Inview Trueview, Two Cameras
Intercom System
FRC ACT 2-Station
Power
Hannay electric cord reel, 150’ (1)
Generator
Smart Power 8KW
Whelen Pioneer Summit
72” lightbar
Whelen Freedom IV
Mini lightbars
Whelen 120V Scene
Light
