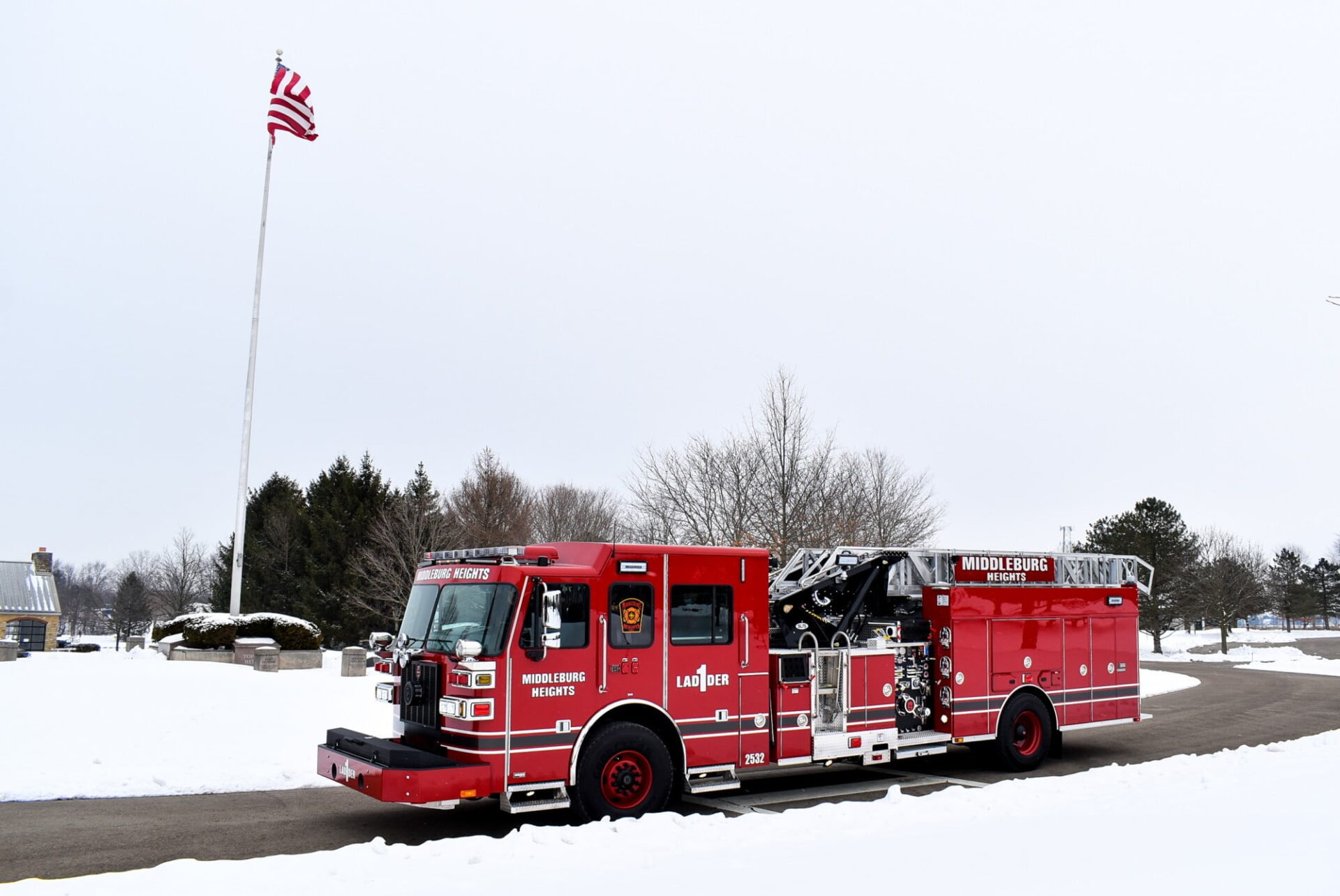

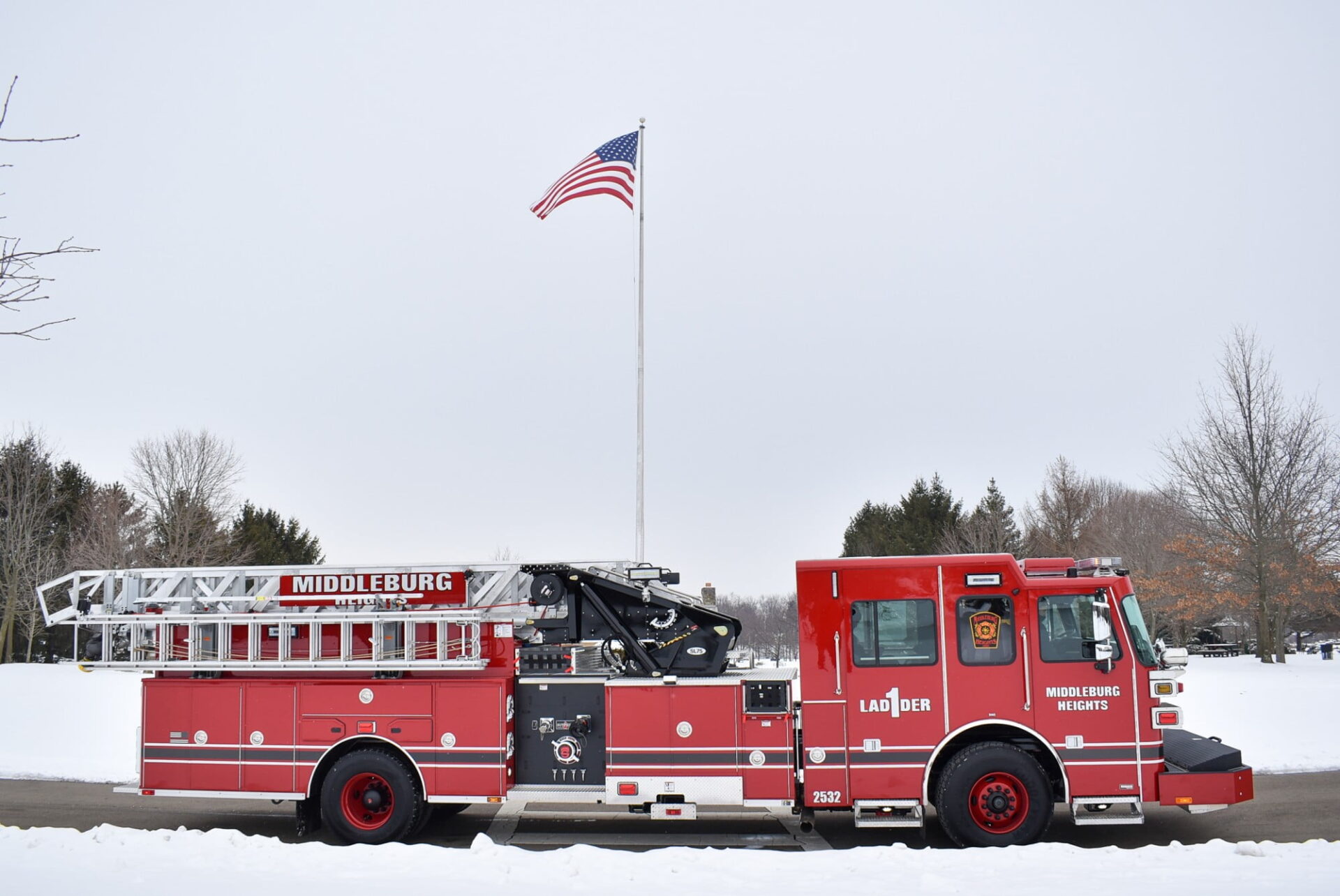

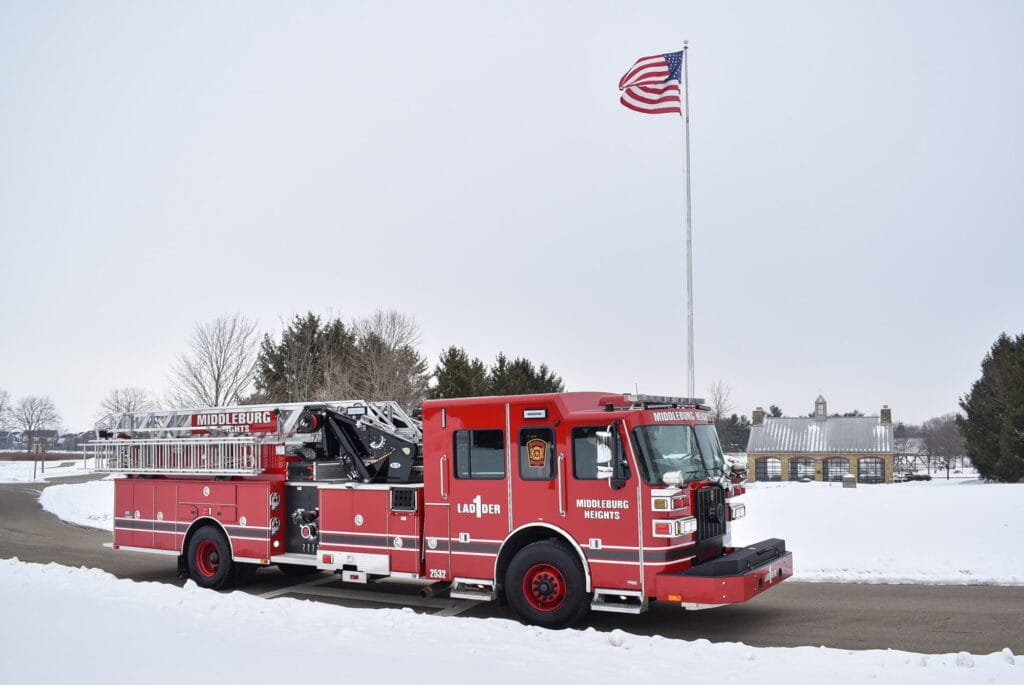

SL 75 – Middleburg Heights Fire Department, OH

Location:
Middleburg Heights, Ohio
Department:
Middleburg Heights Fire Department

Specs

Cab
Four-door, six-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
31,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Valve 2 ½” Pipe to Left Rear
Crosslay
(2) 2” Crosslays Behind Cab w/ Compartments
Deadlays
(2) 250’ of 2” Hose and 50’ of 5” Hose
Water Tank
500-gallon
Doors
Mixed roll-up and compartment , satin finish
Total Compartment Space
Over 230 cu. ft.
Duo-Safety Quint Ladder Compliment
(585-A 10’ Folding, 875-A 16’ Roof, 775-A 14’ Roof, 900-A 24’ 2-Section, 1225-A 35’ 3-Section)
Body
SAA-4, Left High / Right Intermed / Trans
Monitor
Elkhart 7250 Cobra EXM w/ SM1500E Nozzle
Bumper Extension
30” formed steel channel bumper
Siren
Federal q2b , grille mount
Pike Pole Storage
Tubes (3)
Camera System
FRC, Inview Trueview, Two Cameras
Intercom System
Firecom 5100D Single Radio 6 Position
FireTech 3-Piece 12V
Led brow light
FireTech LED Boom
Spotlights
Mars Lights (2)
Included
Whelen Freedom 4
81” rotabeam lightbars
FRC Spectra 12V
Scene light
