SL 75 – Lindsay Fire Department

Truck Type:
SL 75 Aerial Ladder
Dealer:
Sutphen
Location:
Lindsay, OK
Department:
Lindsay Fire Department

Specs

Cab
Four-door, six-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
31,000 lbs
Engine
Cummins ISL 9, 450 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS3000

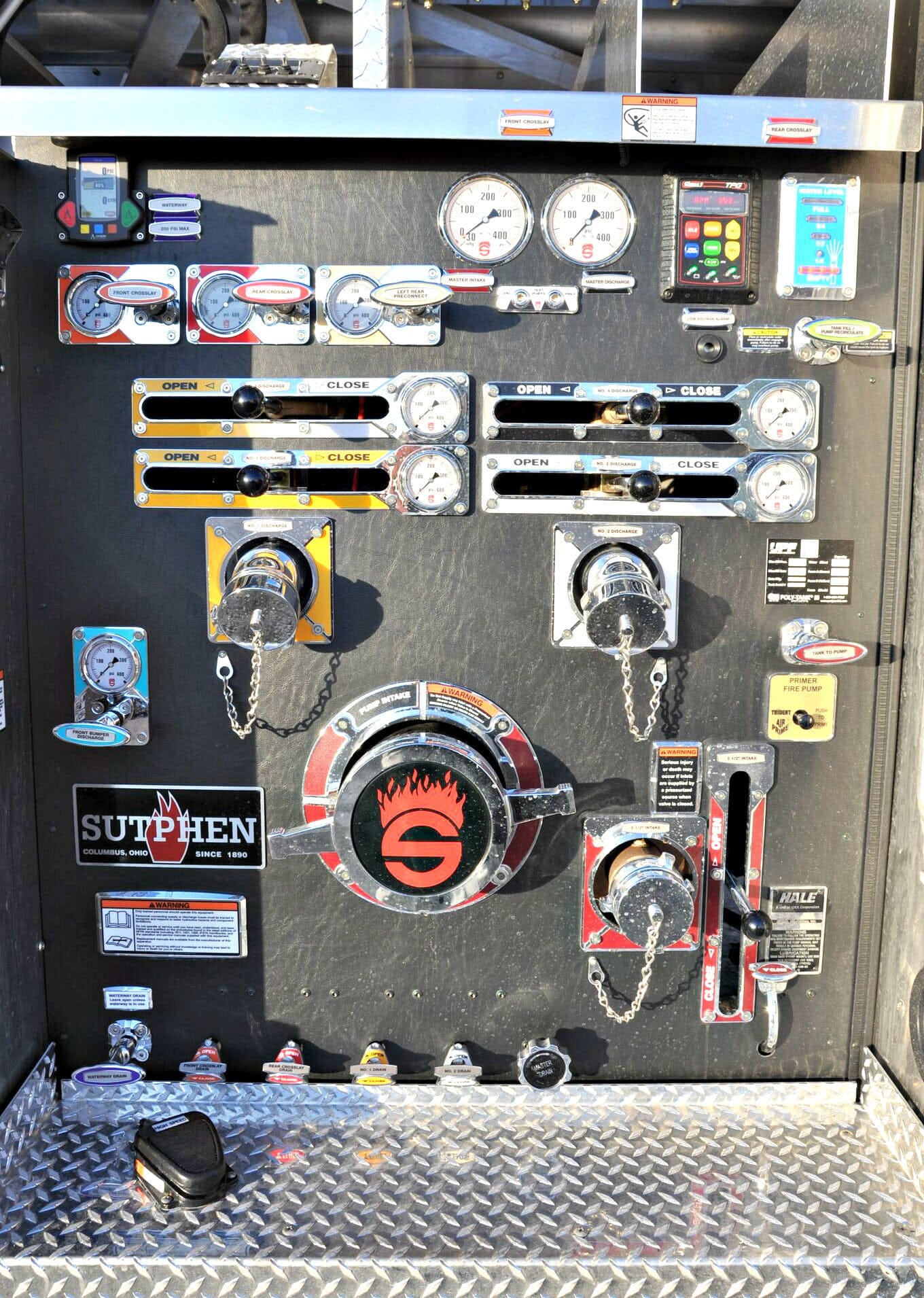

Water Pump
Qmax-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side, (1) 1 ½” Front Bumper
Crosslay
(2) 2” Valve-Piping, 1 ½” Swivel
Monitor, Akron 3480
Stream master2 electric rf with 5178 nozzle
Water Tank
500-gallon
Construction
Huck bolted #304 stainless steel
Doors
Rom roll-up compartment
Total Compartment Space
75 cu. ft. of
Ladder Compliment
Alco-lite ladders quint (85’, 16r’, 24’ 2-section, 35’ 3-section and 10’ folding)
Body SAA-4, Left
High/ right intermed
Bumper Extension
18” , 4” raised lid, and full-width, deep-center trough
Safety Vision SV-CLCD0-70
Camera system
Siren
Federal q2b
Power
Smart 6kw generator
Power
Hannay electric cord reel, 200’ (1)
Pike Pole Storage
Tube (3)
Wheel Chocks
Ziamatic sac-44 folding wheel chicks mtd
