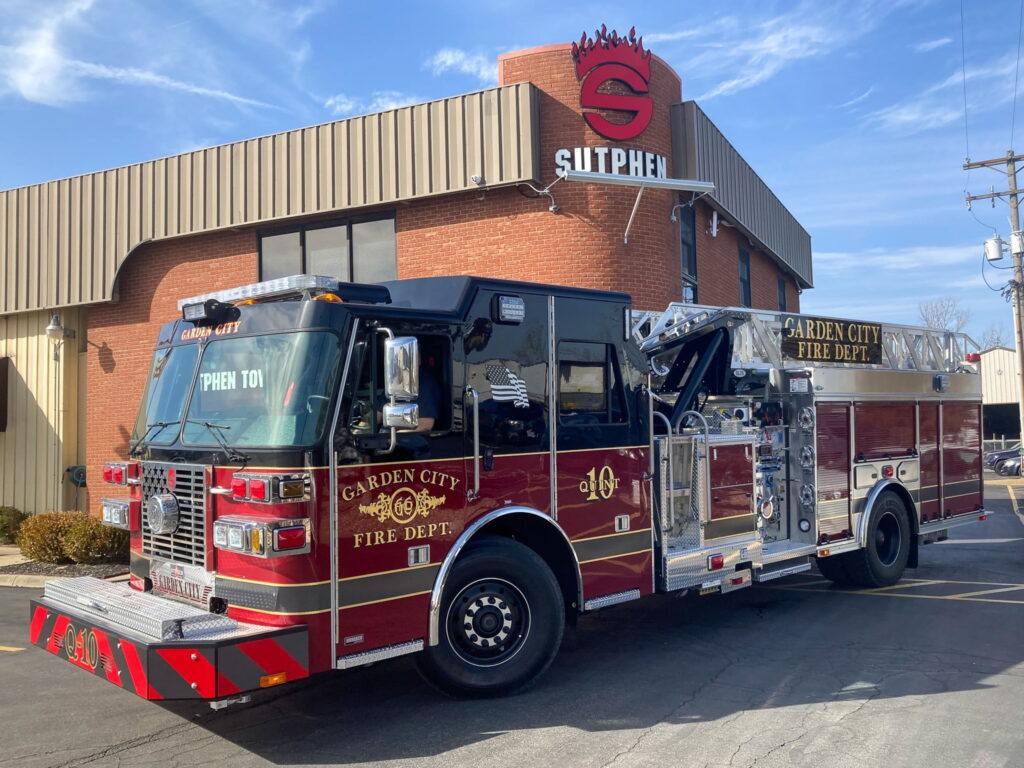

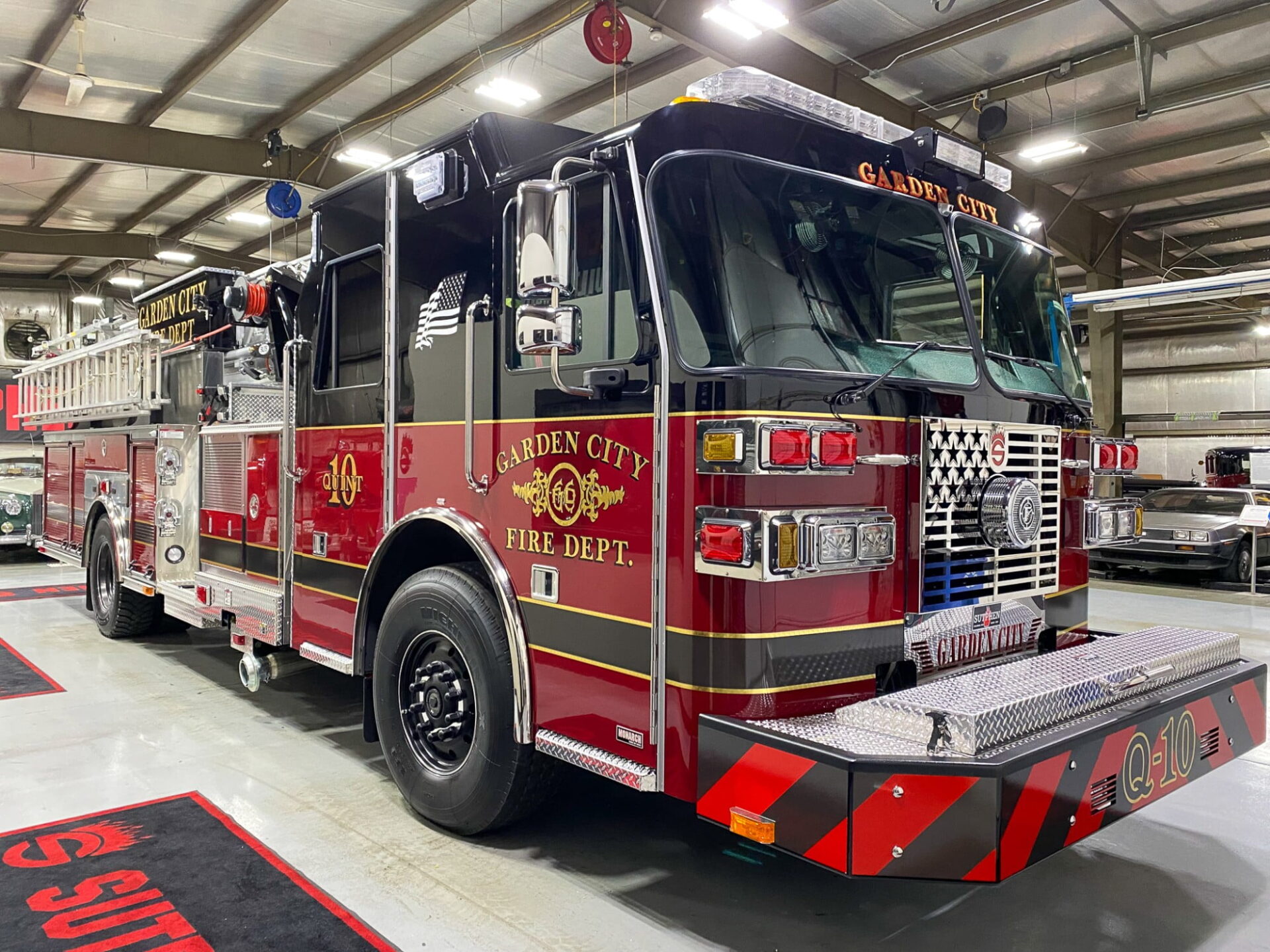

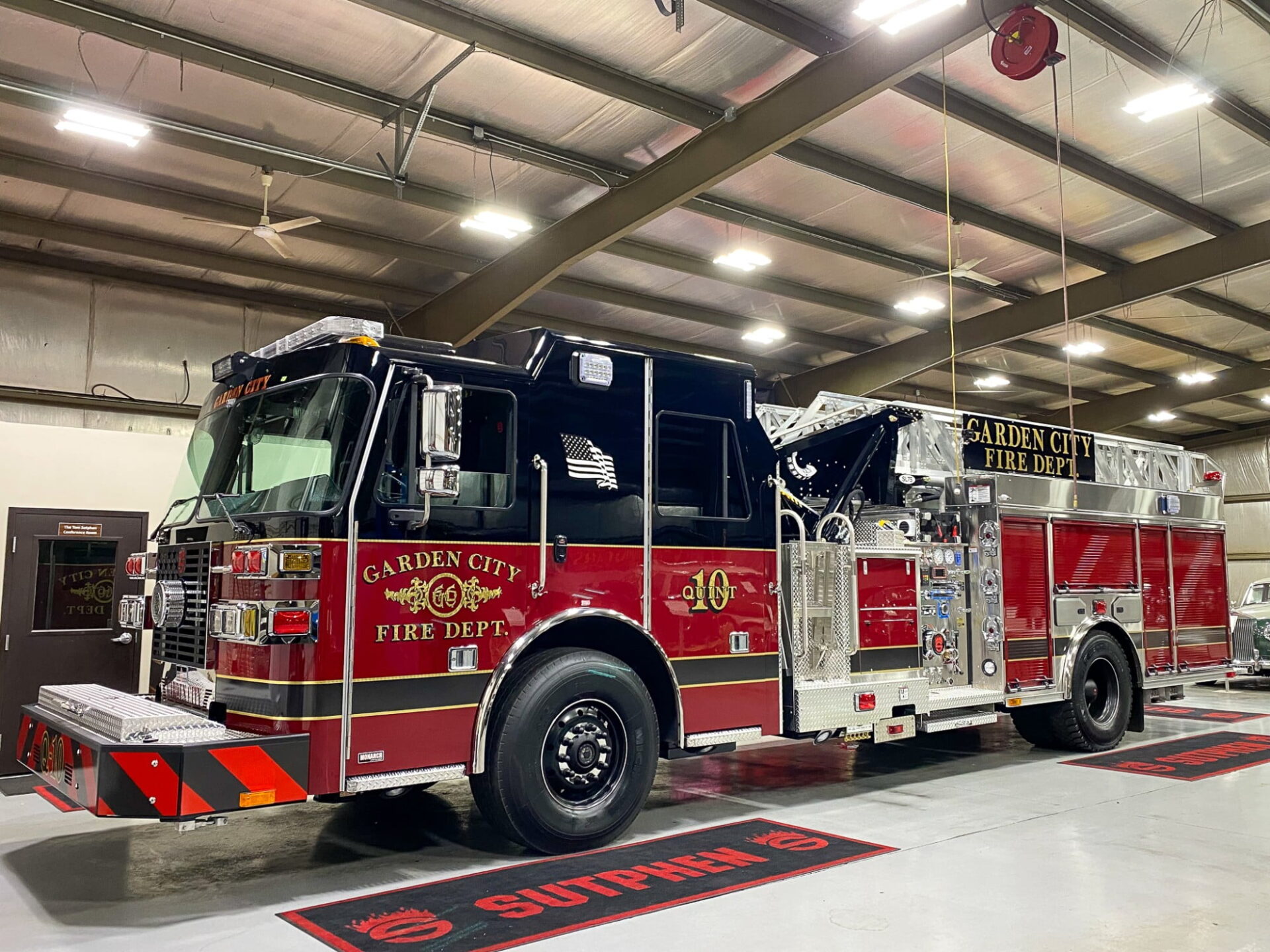

SL 75 – Garden City Fire Department, MI

Specs

Cab
Four-door, four-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
31,000 lbs
Engine
Cummins L 9, 450HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax-2000 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side, (1) 1 ½” Front Bumper, (1) 2 ½” Auxiliary Waterway

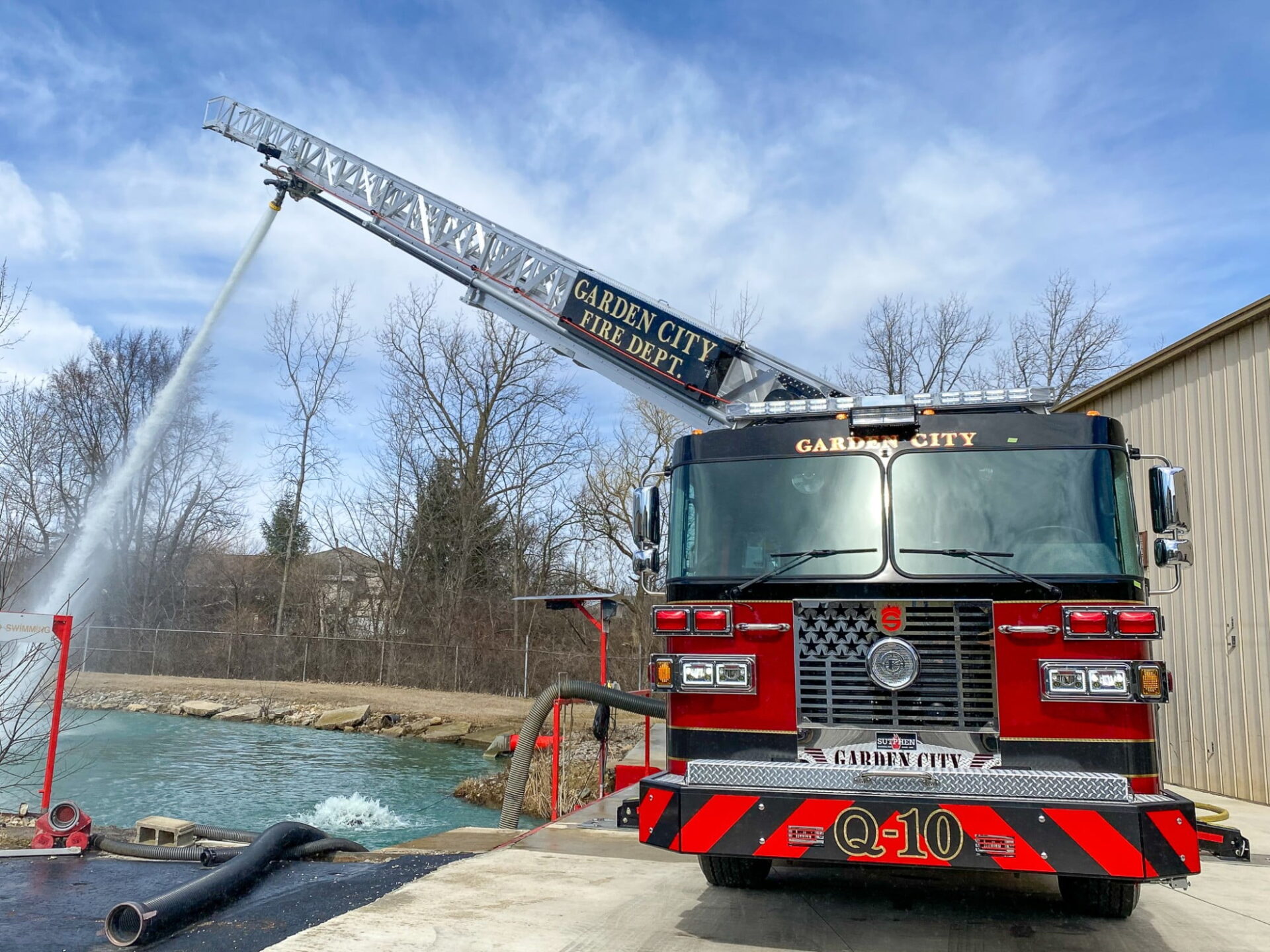

Monitor
Elkhart 7205 Cobra EXM w/ SM1500E Nozzle
Crosslays
(2) 2” Valve-Piping 1 ½” Swivel
Water Tank
500-gallon
Water Tank
20-gallon foam tank
Foam System
Hale Smartfoam 2.1A
Construction
Huckbolt #304 stainless steel
Doors
Amdor roll up compartment
Total Compartment Space
Over 190 cu ft.
Alco-Lite Ladder Package
85’: 16’ R; 24’ 2-Section; 35’ 3-Section & 10’F
Body
SAA-4, Left High / Right Intermed / Transverse
Bumper Extension
24” formed steel channel,
Siren
Federal q2b , grille mount
Intercom System
Wired Firecom 5100D, Single Radio, 3 Position
Power
Hannay electric cord reel, 175’ (1)
Generator
Smart Power 6KW HYD
Camera System
Brigade, Backeye 360
Whelen Freedom 4
Lightbar
Whelen PFH2 LED
Brow light
Whelen TAM65 Traffic
Advisor
HI-VIZ 12V LED
Scene light
FRC Spectra Max
120v led scene light
