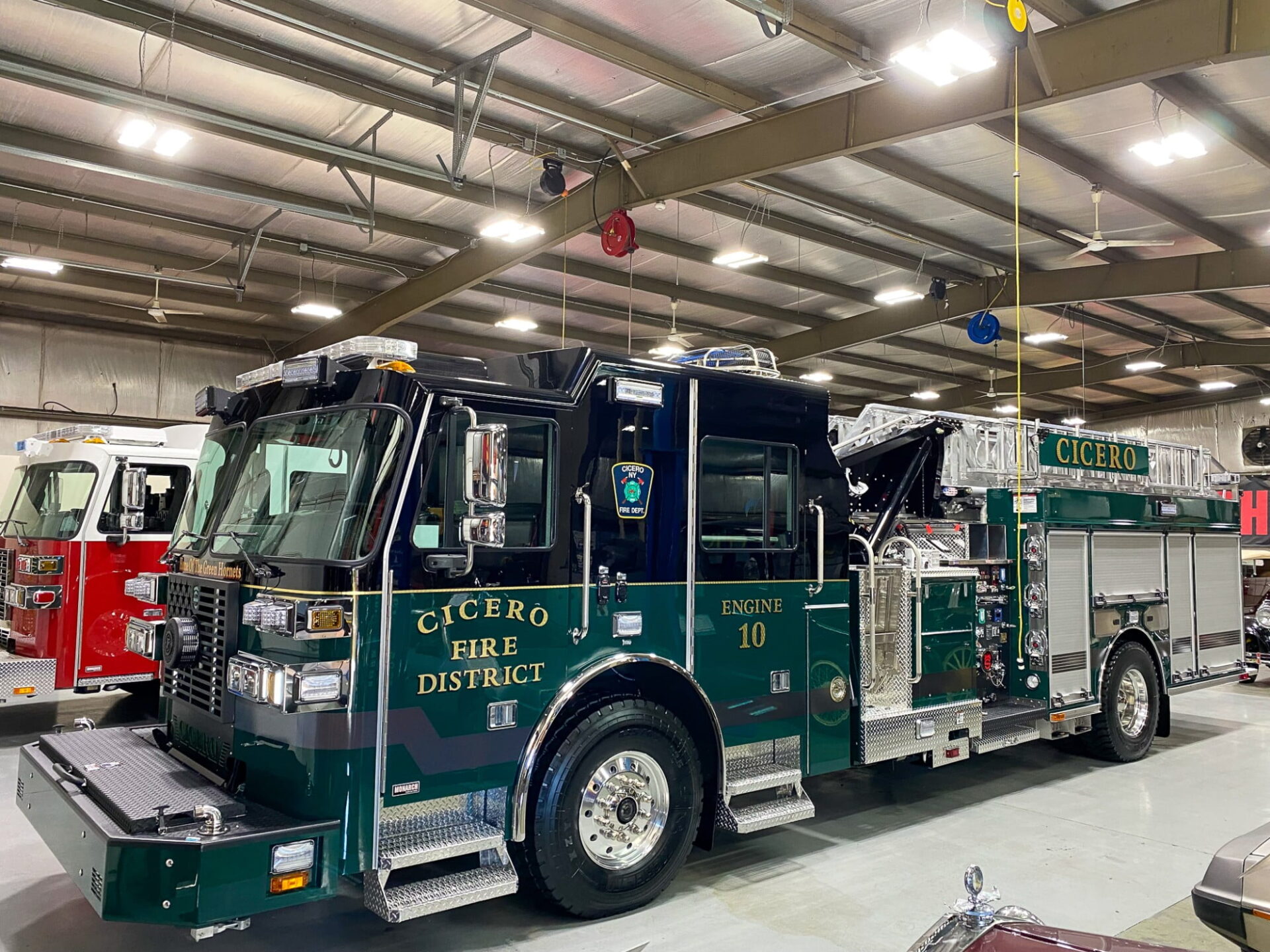

SL 75 – Cicero Fire Department, NY

Specs

Cab
Four-door, five-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
31,000 lbs
Engine
Cummins L 9 450hp
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax-2000 gpm, single stage pump
Discharges
(1) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side Body, (2) 1 ½” Front Bumper
Crosslay
(2) 2 ½” Crosslays, 2 ½” Swivel & (2) 2” Crosslay w/ 1 ½” Swivel
Water Tank
500-gallon
Water Tank
25-gallon foam tank
Foam System
FoamPro 2002, 5.0 GPM
Doors
Amdor roll-up compartment
Total Compartment Space
Over 192 cu. ft.
Duo-Safety Ladder Compliment
(14’-DR, 16’-DR, 16’-DR, 24’ 2-Section, 28’ 2-Section & 10’ F)
Body
SAA-4, Left High / Right Intermed / Trans
Monitor
TFT Y5-E11A-L Typhoon Elec w/ M-ERP-1500 Nozzle
Bumper Extension
24” formed steel channel
Siren
Federal q2b , grille mount
Camera System
FRC, Inview Trueview, Single Camera
Intercom System
FRC ACT 2-Station
Generator
10KW Harrison
Power
Hannay electric cord reel, 150’ (1)
Whelen Freedom 4
Lightbar
Whelen M9 Scene
Light
FRC Spectra Scene
Light
