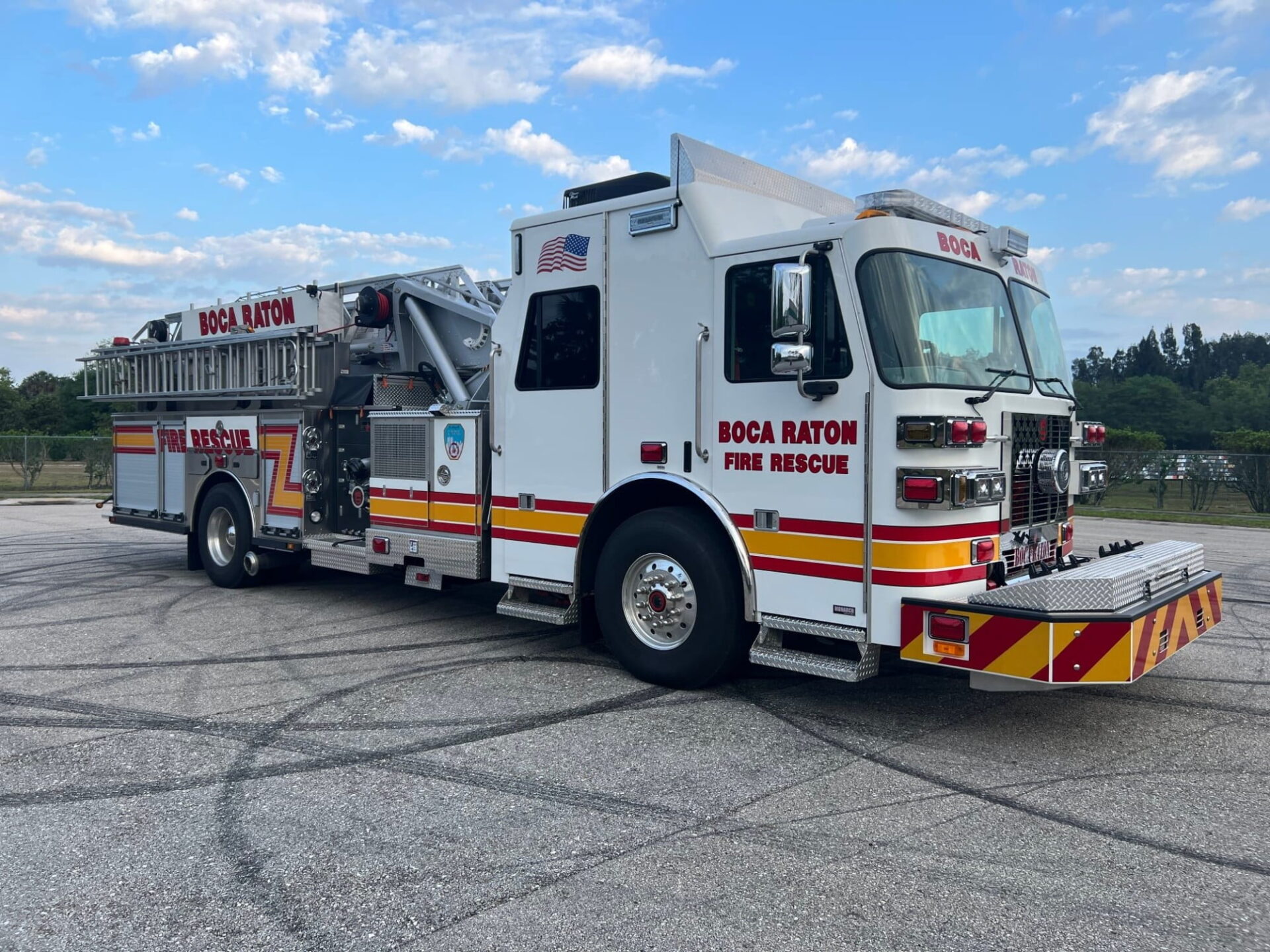

SL 75 Aerial Ladder – Boca Raton, FL

Specs

Cab
Four-door, four-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
31,000 lbs
Engine
Cummins X 12, 500HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS4000
Water Pump
Qmax – 2000 gpm 6” suction, single stage pump

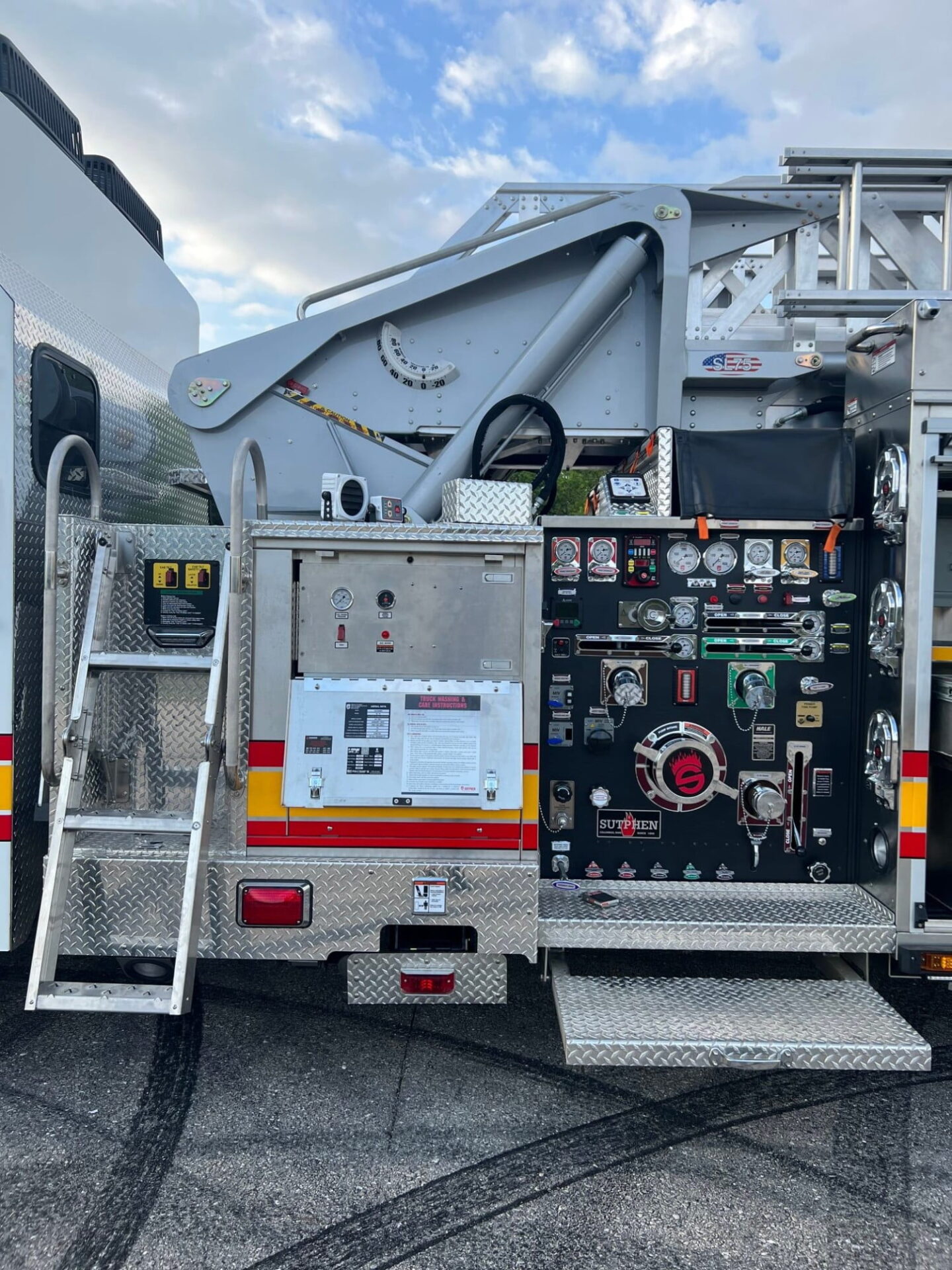

Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side Body, (1) 2” Upper Left Side Body
Crosslays
(2) 2” Valve-Piping w/ 1 ½” Swivel
Water Tank
500-gallon
Water Tank
40-gallon foam tank
Foam System
Elkhart w/ Flush
Construction
Huckbolted #304 stainless steel
Doors
Rom roll-up compartment
Total Compartment Space
Over 192 cu ft.
Duo-Safety Ladders
(1) 16’ Roof, (1) 24’ 2-section, (1) 35’ 3-section & 10’ Folding
Body
SAA – 4, Left High / Right Intermed / Trans
Bumper Extension
30” formed steel channel,
Siren
Federal q2b , grille mount
Whelen Freedom 4
Lightbar
FRC Spectra 12V
Brow light
FRC Spectra 12V
Scene light
Hannay Reel w/
100’ 10/3 (1)
Camera System
Brigade 360
Intercom System
FRC ACT 2 - Station
