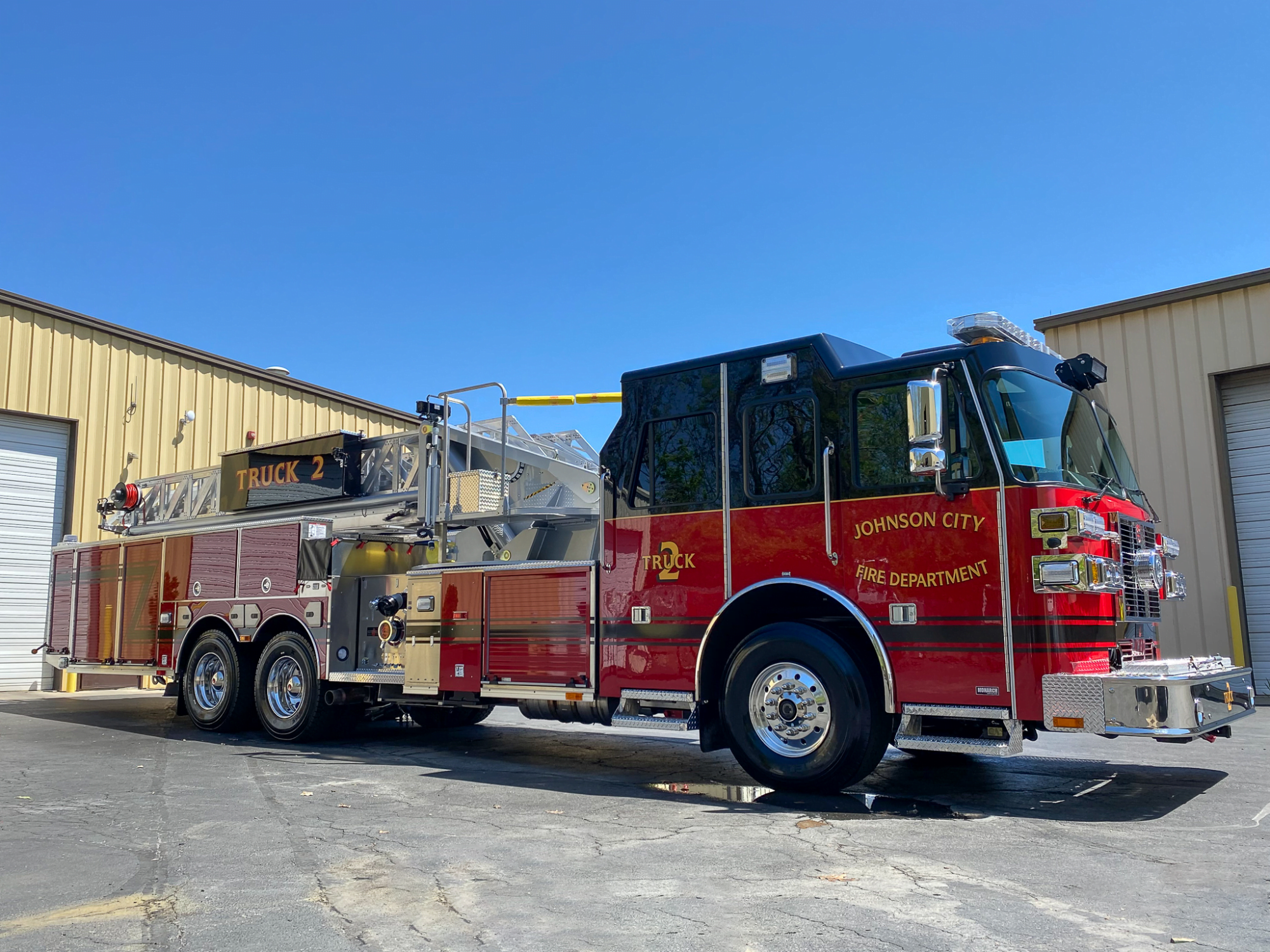

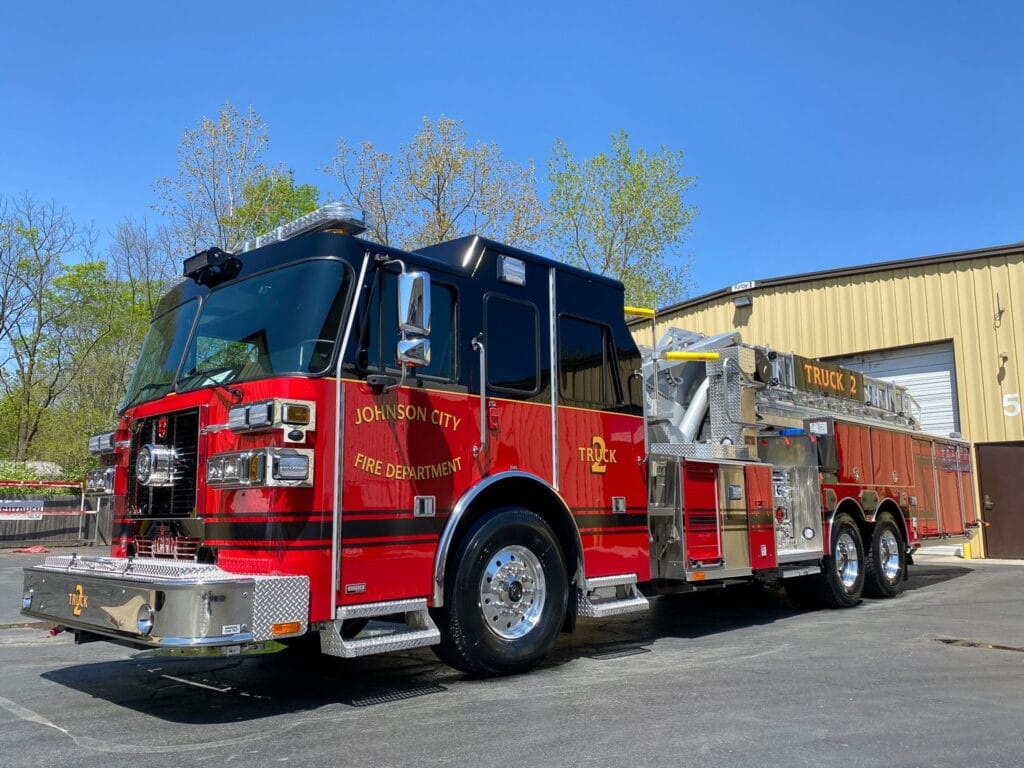

SL 100 – Johnson City Fire Department, TN

Truck Type:
SL 100 Aerial Ladder
Dealer:
Sutphen
Location:
Johnson City, TN
Department:
Johnson City Fire Department

Specs

Cab
Four-door, four-person
10” Double Domex
Frame rails, tandem axle - aerial (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
48,000 lbs
Engine
Cummins X 12 500HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 5, EVS4000
Water Pump
Qmax-2000 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
Crosslay
(2) (1) 2” Valve-Piping 1 ½” Swivel, (1) 2 ½” Valve-Piping 2 ½” Swivel
Water Tank
300-gallon
Construction
Huckbolted #304 stainless steel
Doors
Rom roll up compartment
Total Compartment Space
Over 260 cu ft.
Alco-Lite Ladder Package
105’
Body
SL 100-2, Left High / Right High
Bumper Extension
18” polished stainless steel,
Siren
Federal q2b , grille mount
Camera System
Brigade Three Camera System
Intercom System
FRC ACT 2-Station
Power
Hannay electric cord reel, 150’ (1)
Generator
Smart Power, 6KW HYD
Whelen PFH2 12V
Led brow light
Whelen Freedom IV
92” lightbar
Whelen PFP2 120V
Led tripod light
Opticom GTT795 Installed
In lightbar
Monitor
Elkhart 7205 Cobra EXM w/ SM1500E Nozzle
