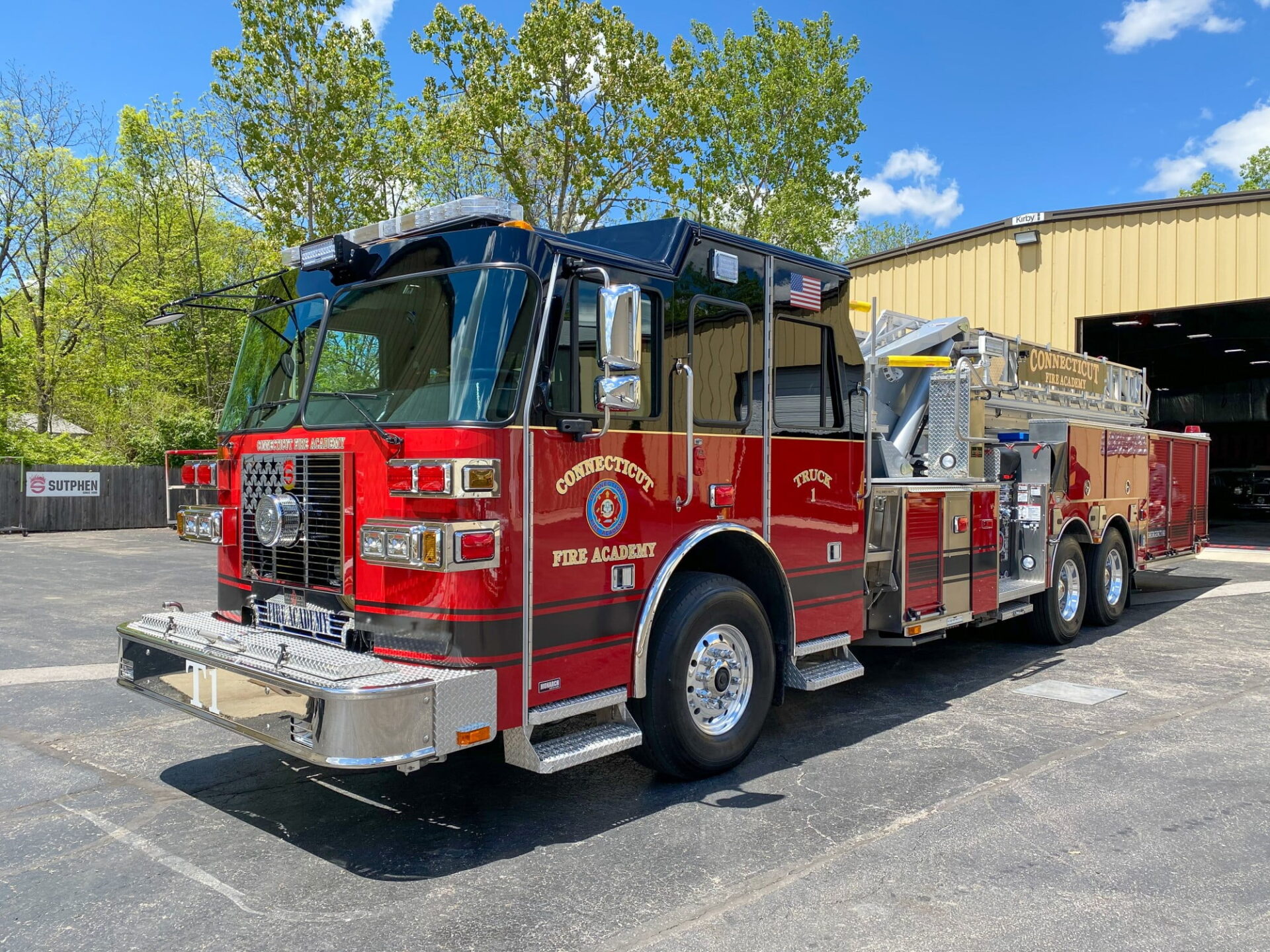

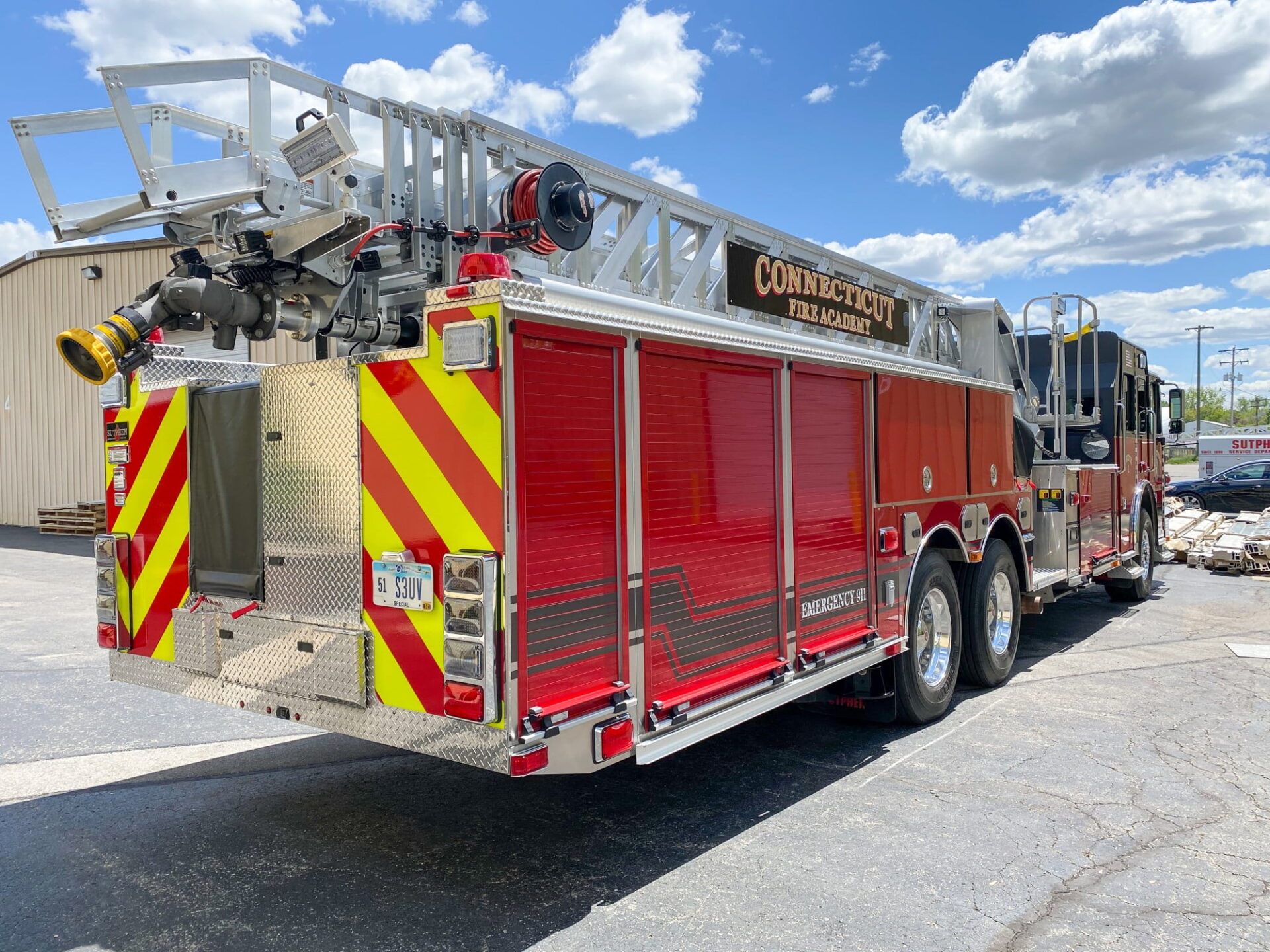

SL 100 – Connecticut Fire Academy, CT
Truck Type:
Dealer:
Location:
Windsor Locks, CT
Department:
Connecticut Fire Academy, CTSpecs
Cab
Four-door, six-person
10” Double Domex
Frame rails, tandem axle - aerial (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
44,000 lbs
Engine
Cummins X 12 500HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS4000
Water Pump
Qmax-2000 gpm 6” suction, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
Crosslay
(1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
Water Tank
300-gallon
Doors
Rom roll-up compartment
Total Compartment Space
Over 235 cu. ft.
Duo-Safety (Aerials)
115’: 14’R, 16’R, 16’R, 24’-2Sec, 35’-2Sec & 10’F
Body
SL 100-2, Left High / Right High
Bumper Extension
18” polished stainless-steel bumper
Siren
Federal q2b , grille mount
Camera System
FRC, Inview Trueview, Single Camera
FRC ACT 2-Station
Intercom system
Generator
Smart Power 6KW
Power
Hannay electric cord reel, 150’ (1)
FRC Spectra 12V
15k led brow light
FRC Spectra 240V
20k led telescoping light
FRC Spectra 900
Scene light
Whelen Freedom 4
Lightbar
Elkhart 7250 Cobra
Exm w/ sm1500e nozzle
