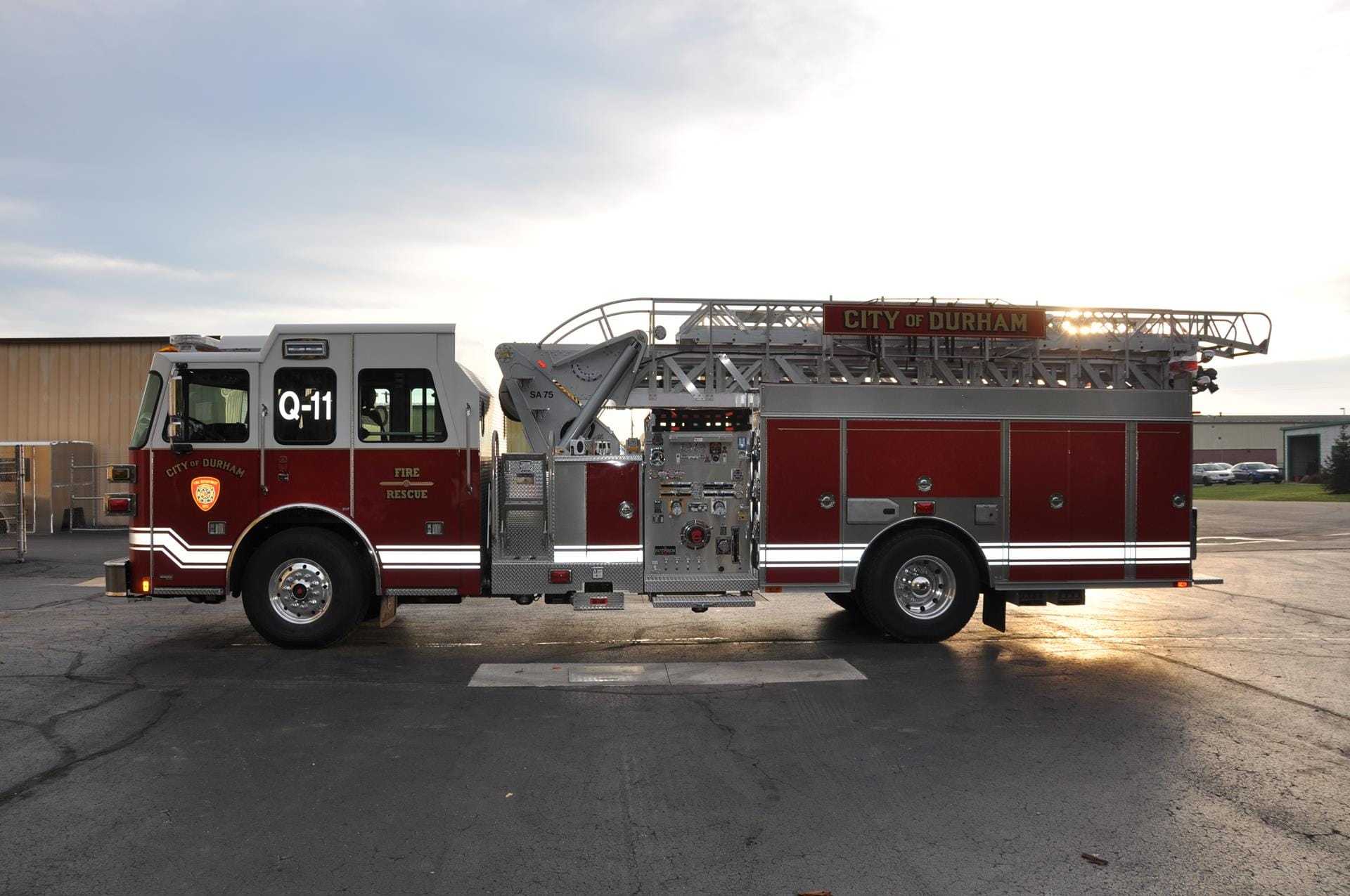

SA 75 – Durham Fire Department, NC

Truck Type:
SA 75 Aerial Ladder
Dealer:
Sutphen
Location:
Durham, NC
Department:
Durham Fire Department

Specs

Cab
Four-door, four-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
31,000 lbs
Engine
Cummins X12, 450 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS4000

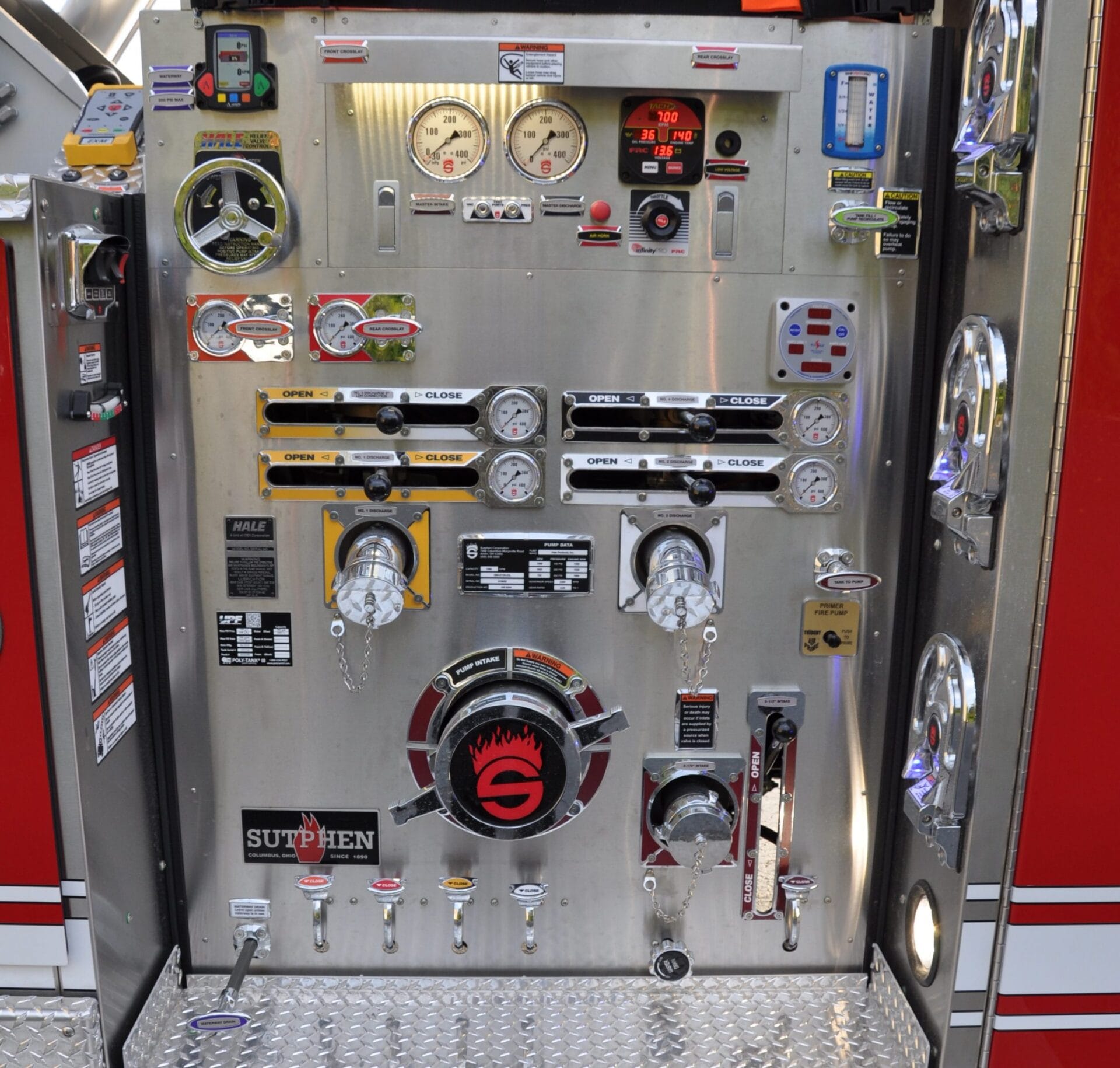

Water Pump
Qmax-1500 gpm single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
Monitor
Elkhart 7205 Cobra EXM w/ SM1500E Nozzle
Crosslays
(2) 2” Valve-Piping 1 ½” Swivel
Water Tank
500-gallon
Construction
Huck bolted #304 stainless steel
Doors
Hinged compartment
Total Compartment Space
162 cu. ft. of
Ladder Compliment
Alco-lite aerial
Left Hight/ Right
Low
Bumper Extension
12”
Power
6kw smart generator
Pike Pole Storage
Tubes (6)
David Clark Intercom
System
Ladder Compliment
Ladder lighting system, rigid, led
Whelen PFP2, Brow
12v led
