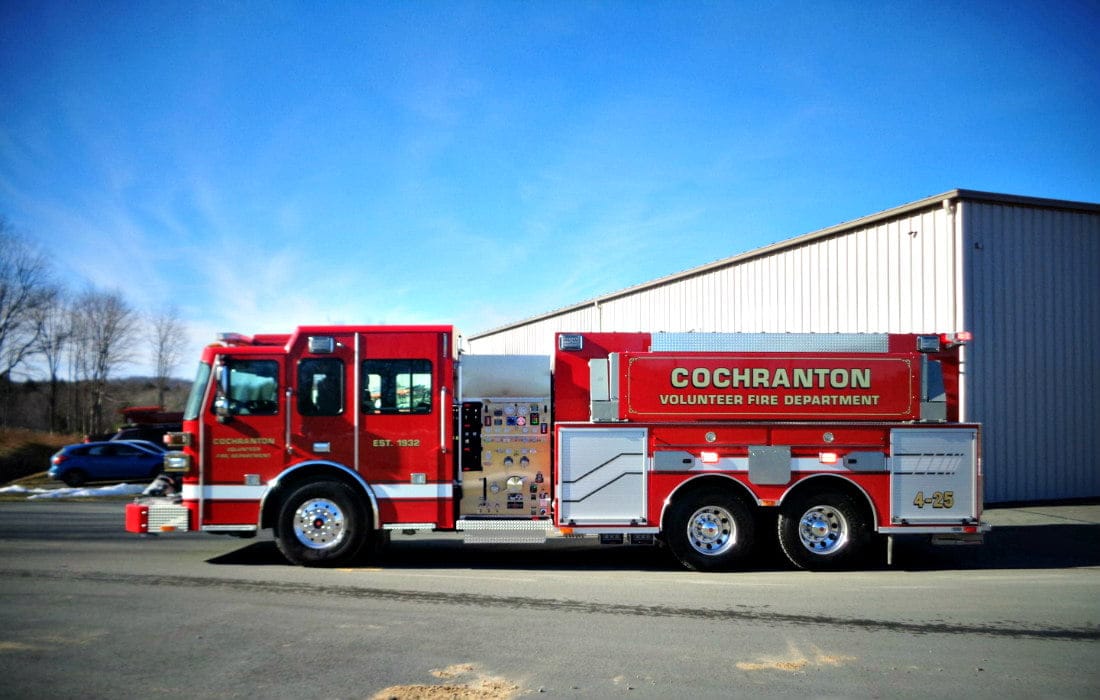

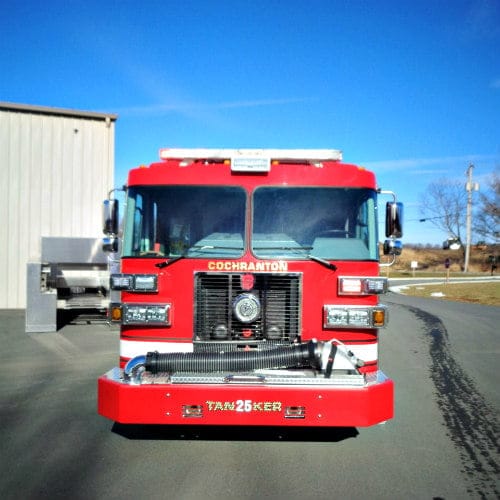

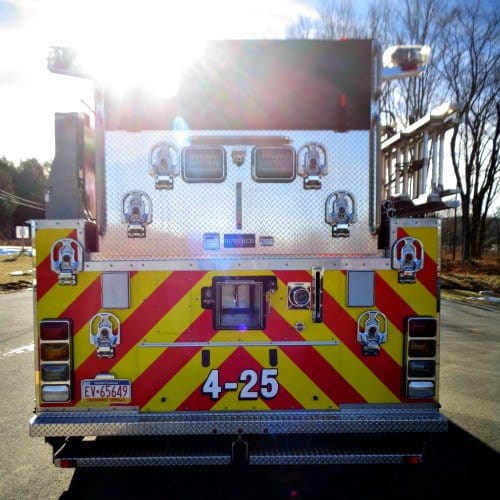

Custom Wetside Tanker – Cochranton Volunteer Fire Department, PA

Specs

Cab
Four-door, six-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
48,000 lbs
Engine
Cummins ISX 12, 500 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS4000
Water Pump
Qmax-1500 gpm
Discharge
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper
Water Tank
30-gallon foam tank
Foam System Foam
Pro 2001
Water Tank
2,500-gallon
Construction
Huck bolted #304 stainless steel
Doors
Rom roll-up compartment door
Total Compartment Space
127 cu. ft.
Ladder Compliment
Alco-lite ladders (35’, 3-section, 18’ rf, 10’ fold with two pike poles)
Bumper Extension
24”
Voyager 3 Camera
System
Siren
Federal q2b
Power
10kw onan generator
Power
Hannay electric cord reel, 200’ (1)
Whelen 72” Freedom
Lightbar
FR Spectra Brow
Light
Wheel Chocks
Ziamatic quic-lift electric ladder rack
