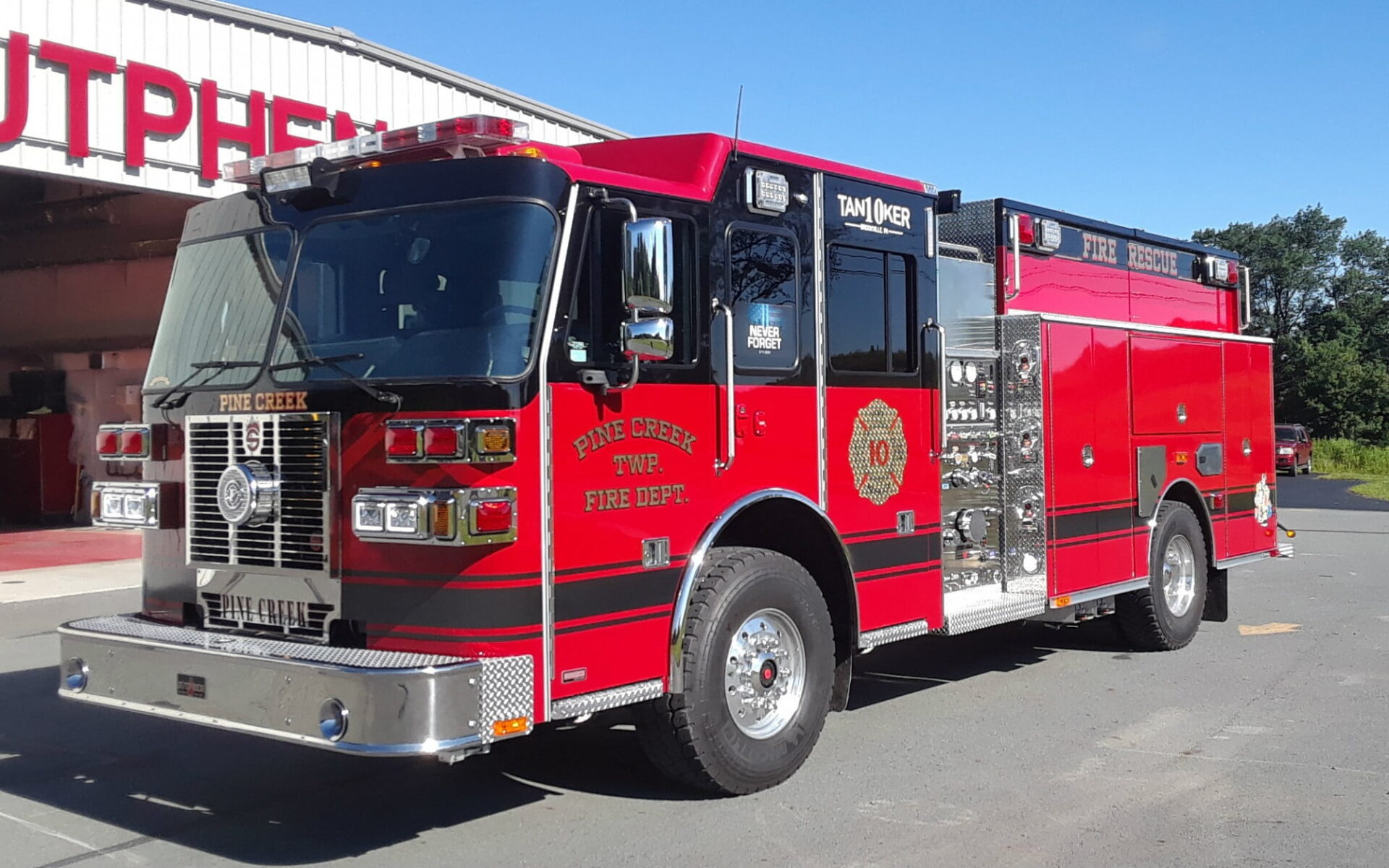

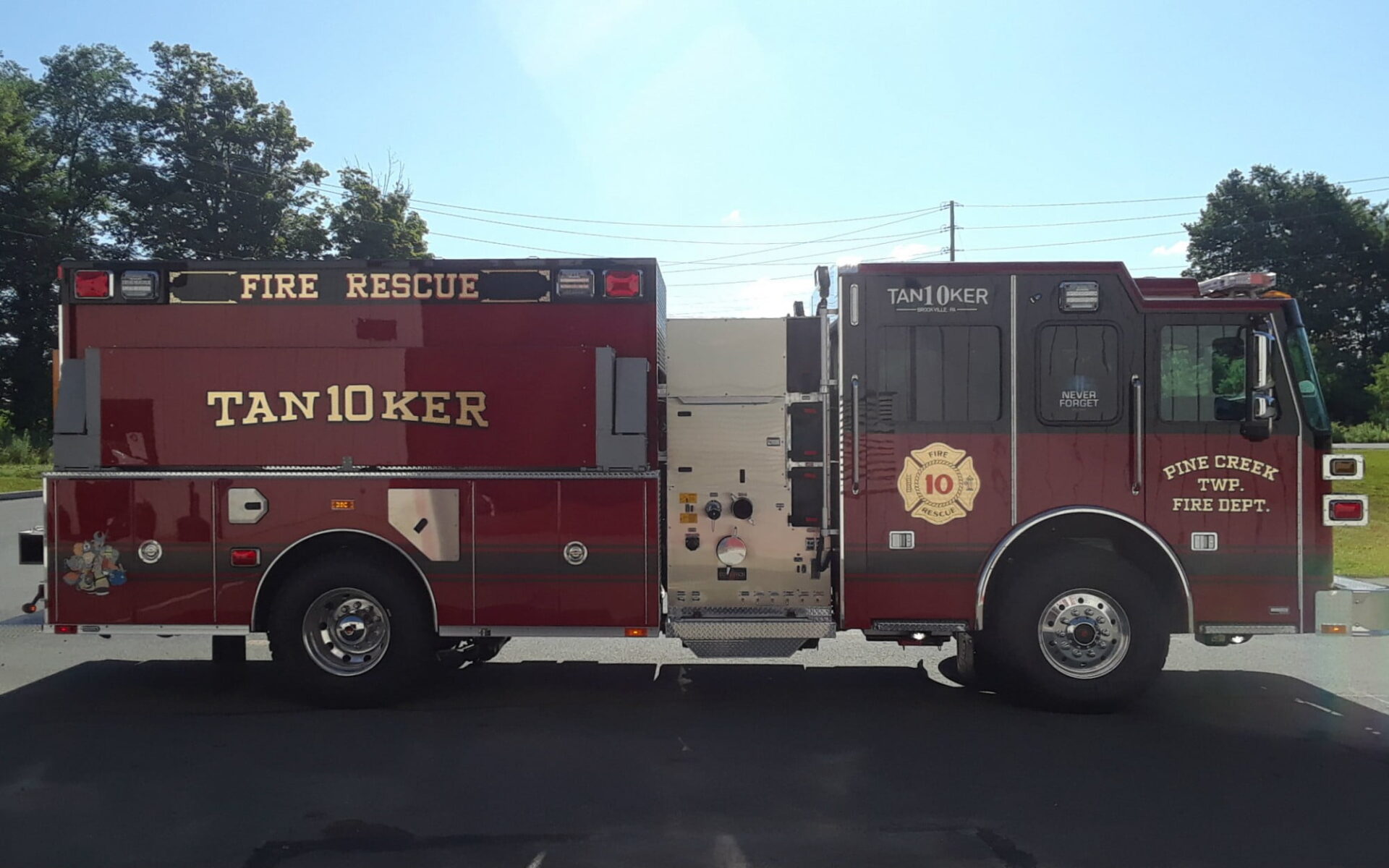

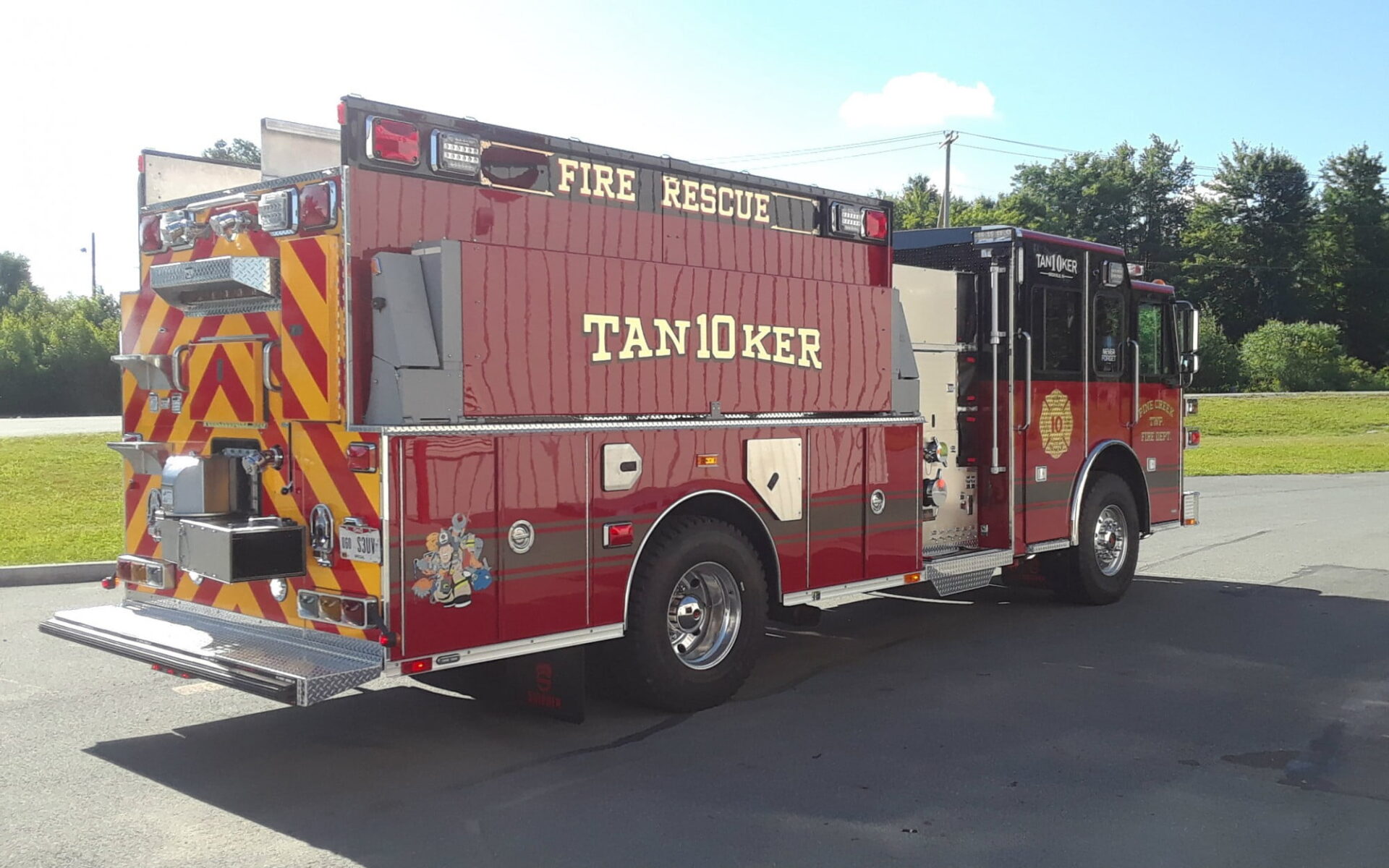

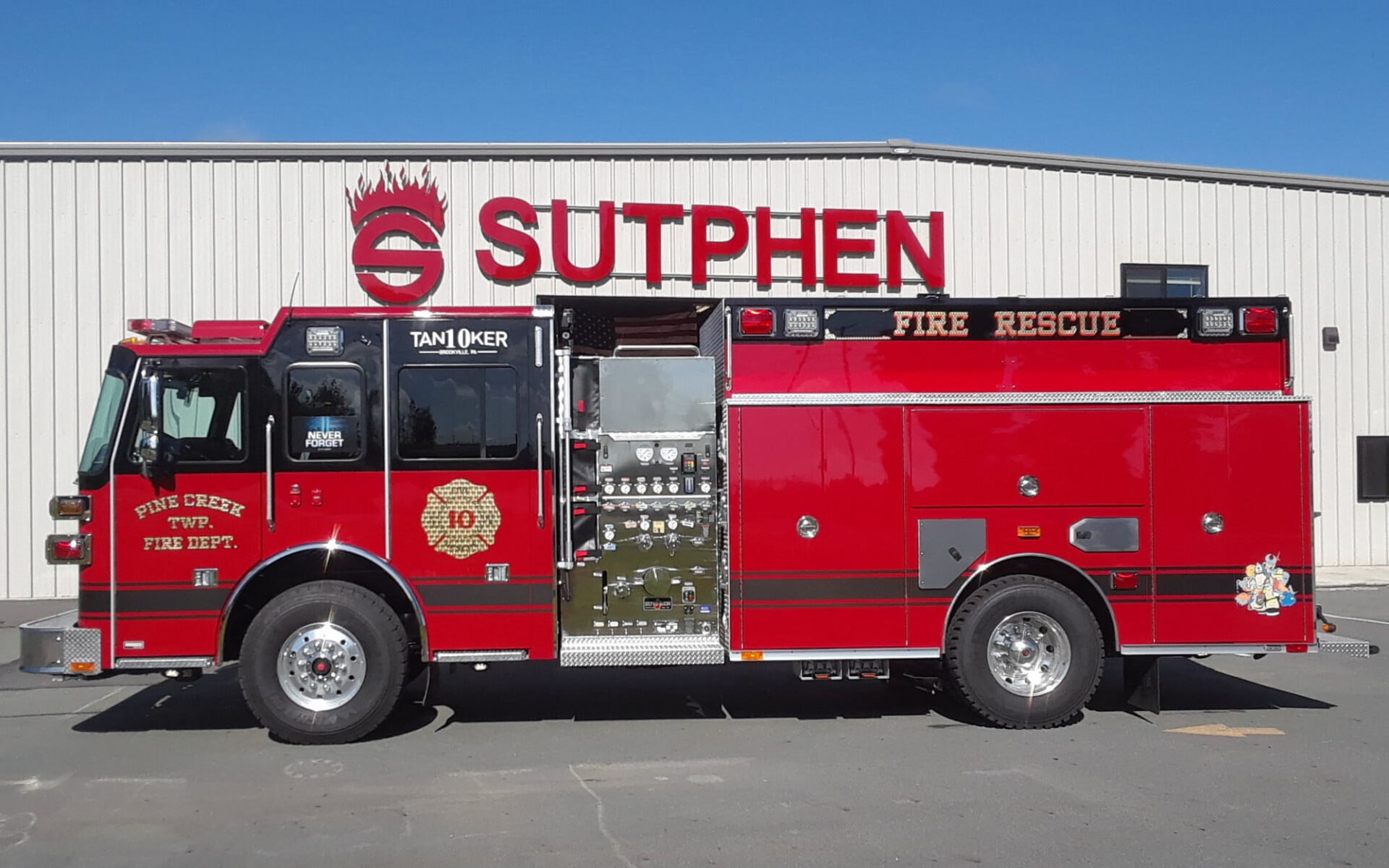

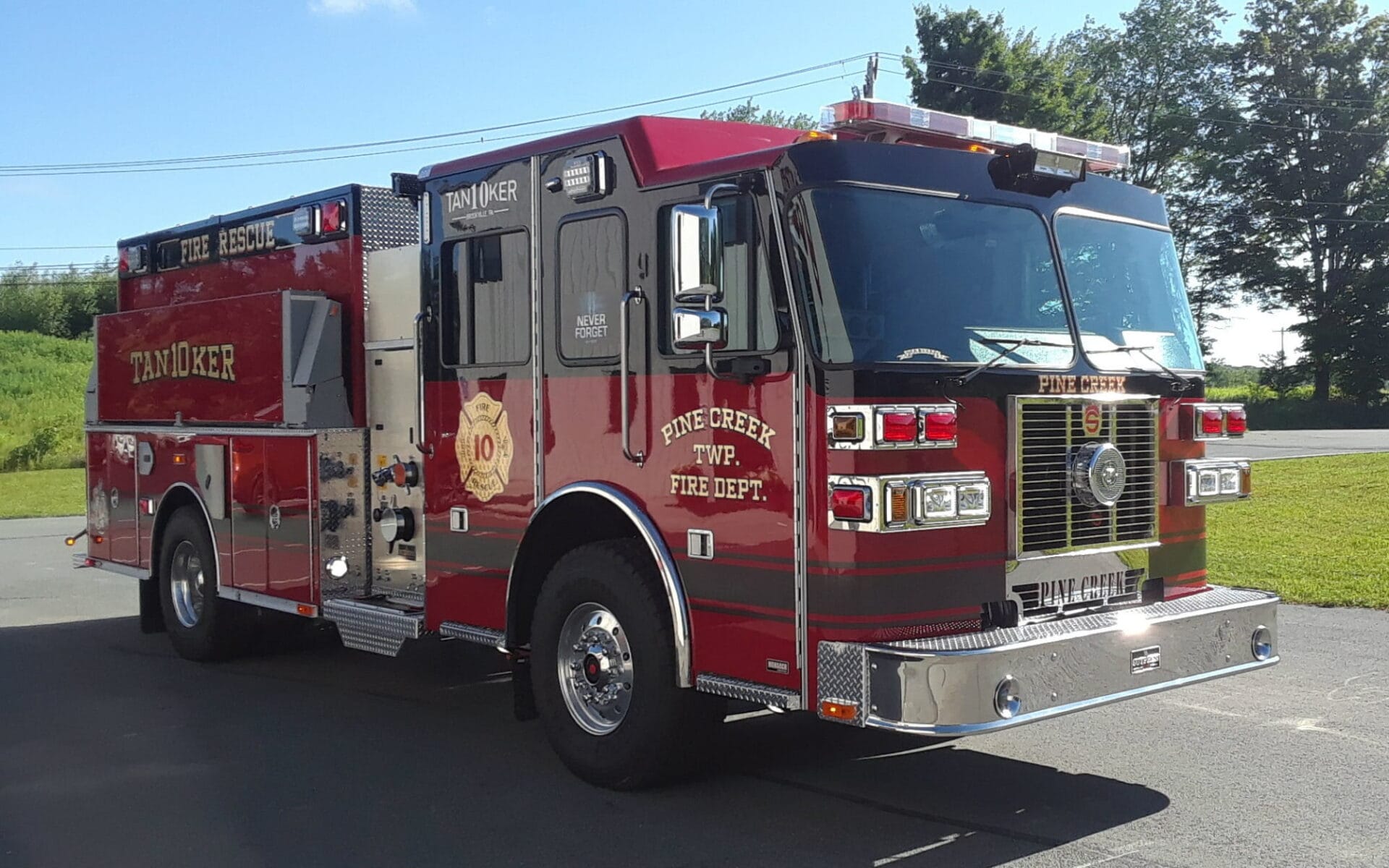

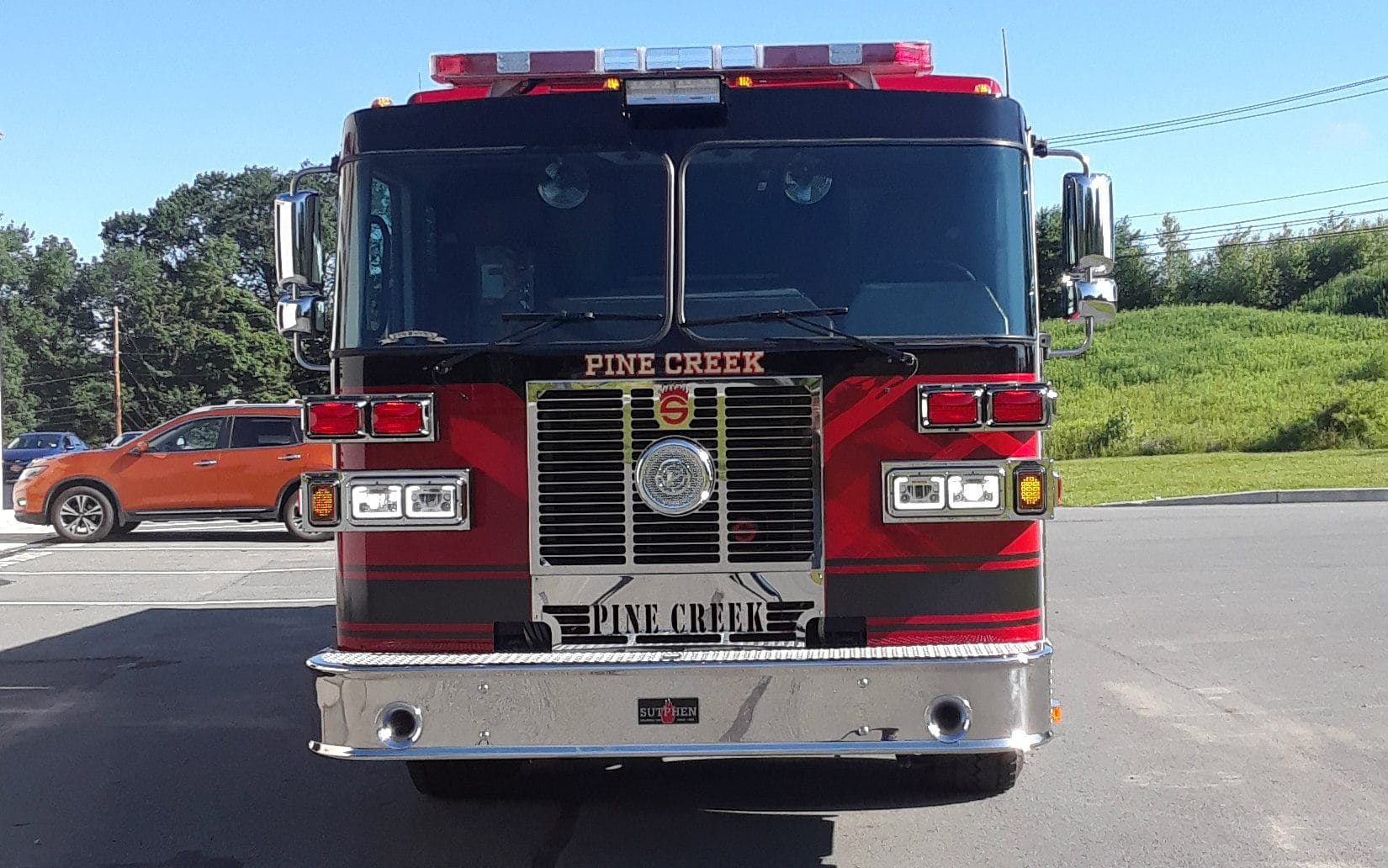

Custom Tanker – Pine Creek Fire Department, PA

Truck Type:
Wet Side Tankers
Dealer:
Sutphen
Location:
Brookville, PA
Department:
Pine Creek Fire Department

Specs

Cab
Four-door, six-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
35,000 lbs
Engine
Cummins X 12, 500 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS4000
Water Pump
Qmax-xs-1,500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Left Rear, (1) 2 ½” Pipe to Right Rear
Crosslay
(1) 2 ½”
Speedlay
(2) 1 ½” w/ Lift-Out Tray
Water Tank
2,000-gallon
Doors
Hinged aluminum compartment
Total Compartment Space
50 cu. ft. compartment space
Ladder Compliment
Alco-lite ladder package (24’ 2-section & prl-14 14’ roof & 10’ folding)
Body
TA-01 Tanker 56/53 / High/Low – Ladder Chute
Bumper Extension
12” polished stainless-steel bumper
Siren
Federal q2b , grille mount
Camera System
Voyager 3
Zico Electric/Hydraulic Rack
Portable tank storage
Whelen 72” Freedom
Lightbar
Whelen PFP2 Brow
Light
HiViz Guardian Scene
Light (8)
Whelen 900 Warning
Lights
Whelen 600 Warning
Lights
Whelen Tele Lights
(2)
