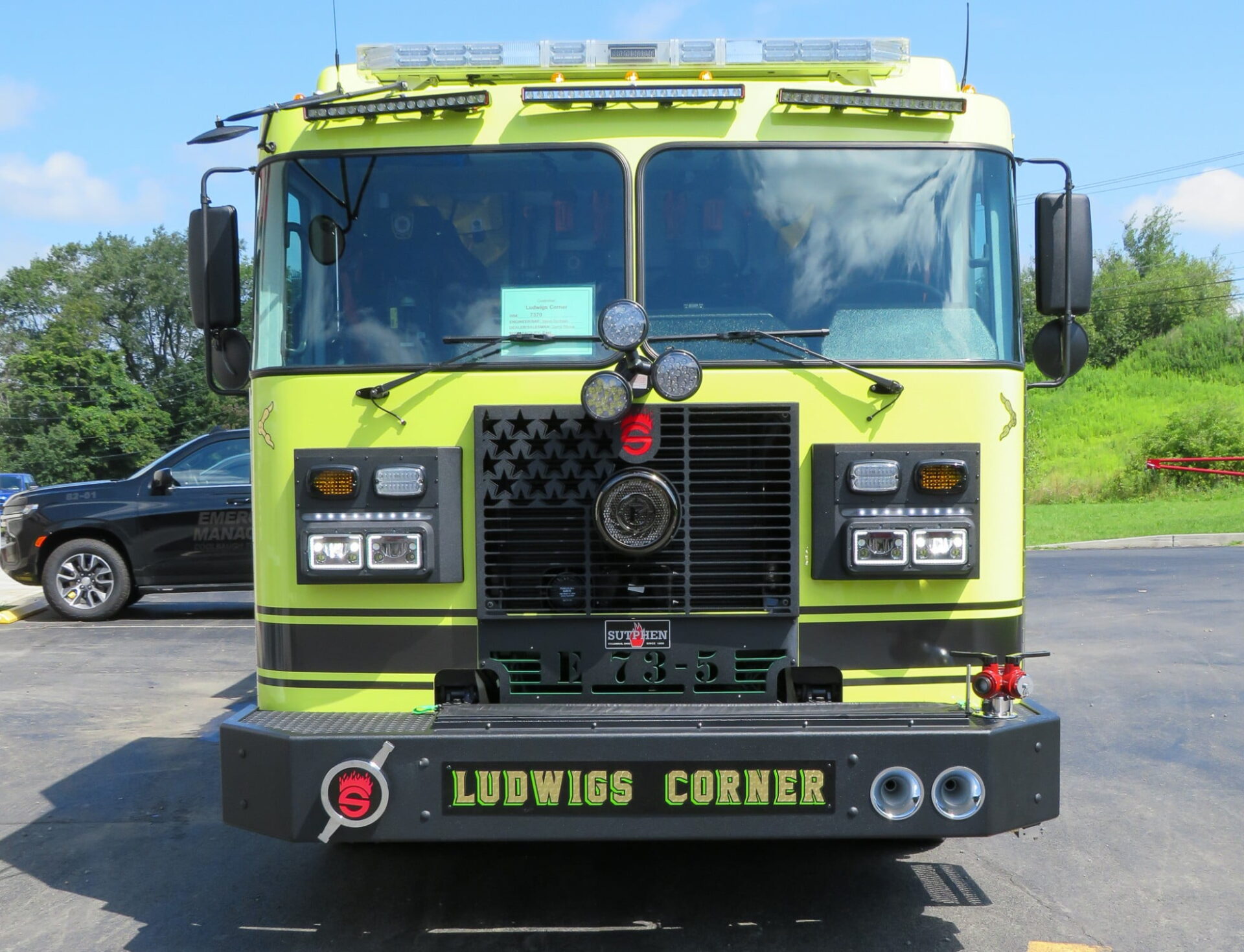

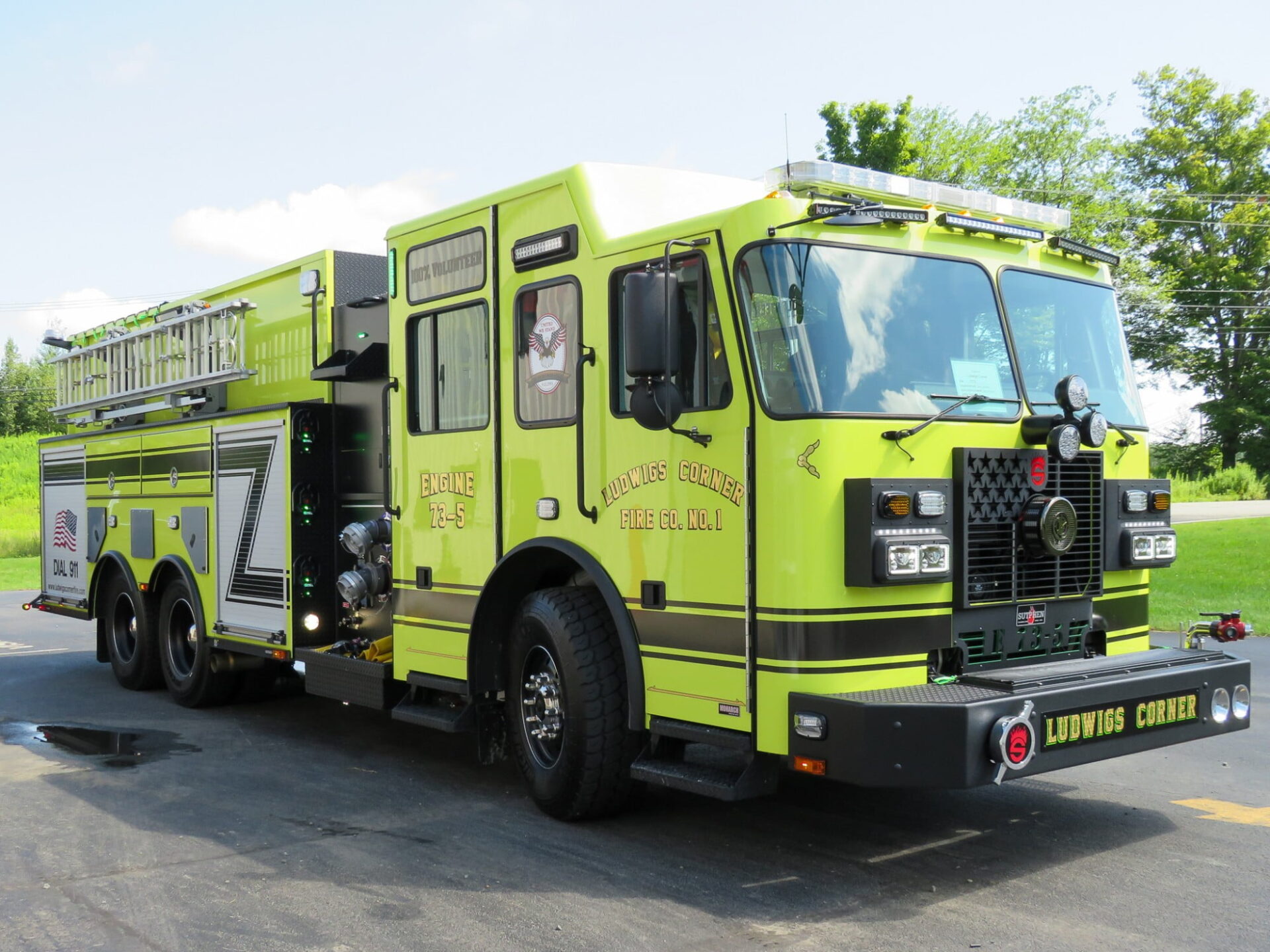

Custom Tanker – Ludwigs Corner FC #1, PA
Truck Type:
Dealer:
Location:
Glennmoore, PA
Department:
Ludwigs Corner FC #1Specs
Cab
Four-door, six-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
23,000 lbs.
Rear Axle and Suspension
52,000 lbs.
Engine
Cummins X 12, 500HP
Alternator
C.E. Niehoff 360 AMP
Transmission
Allison Gen 5, EVS4500
Water Pump
Qmax-xs-2000 gpm, single stage pump
Discharge
(2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Right Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
Crosslays
(2) 1 ½” & (1) 2 ½” w/ Swivels
Water Tank
3500-gallon
Water Tank
30-gallon foam tank
Foam System
FoamPro 2002, 5.0 GPM
Construction
3/16” extruded aluminum
Doors
Rom roll-up compartment
Alco-Lite Ladder Package
PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
Total Compartment Space
174 cu. ft.
Body
TA-05 Alum Tanker High/High – Ladder Rack
Bumper Extension
18” formed steel channel,
Siren
Federal q2b , grille mount
Camera System
Brigade, Single Camera
Ladder Compliment
Zico extended down ladder rack
Roto-Ray Warning Light
Included
FireTech 72” Brow
Light
Whelen 72” Freedom
Lightbar with opticom
FireTech Recessed Scene
Lights
Gallery
