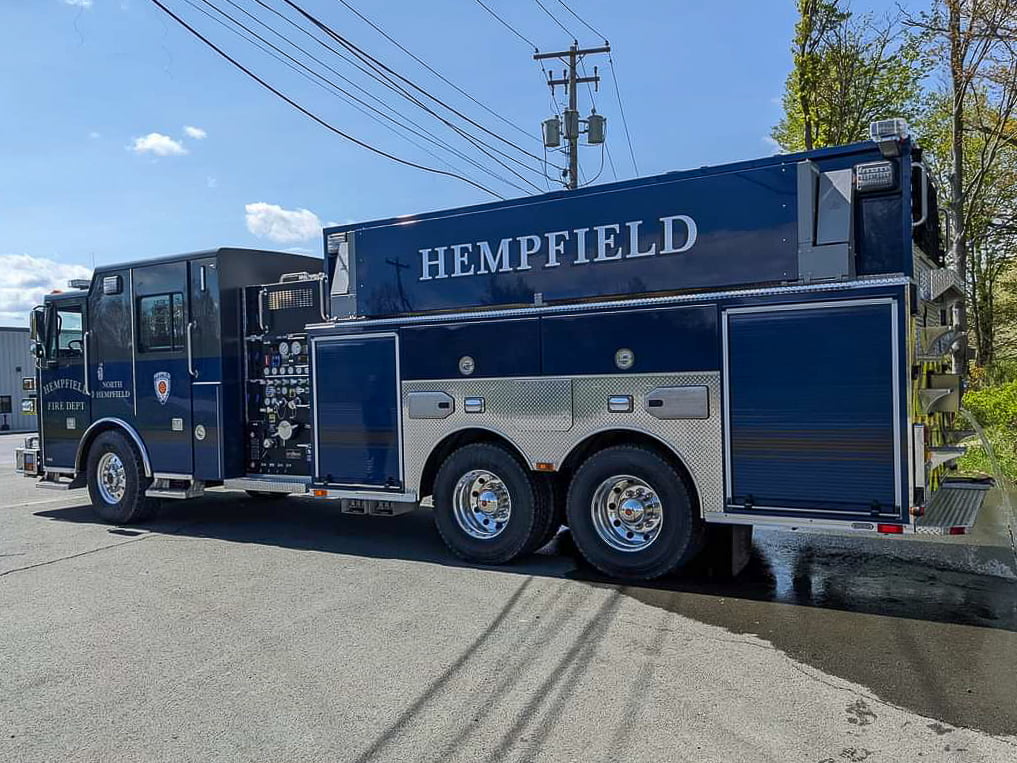

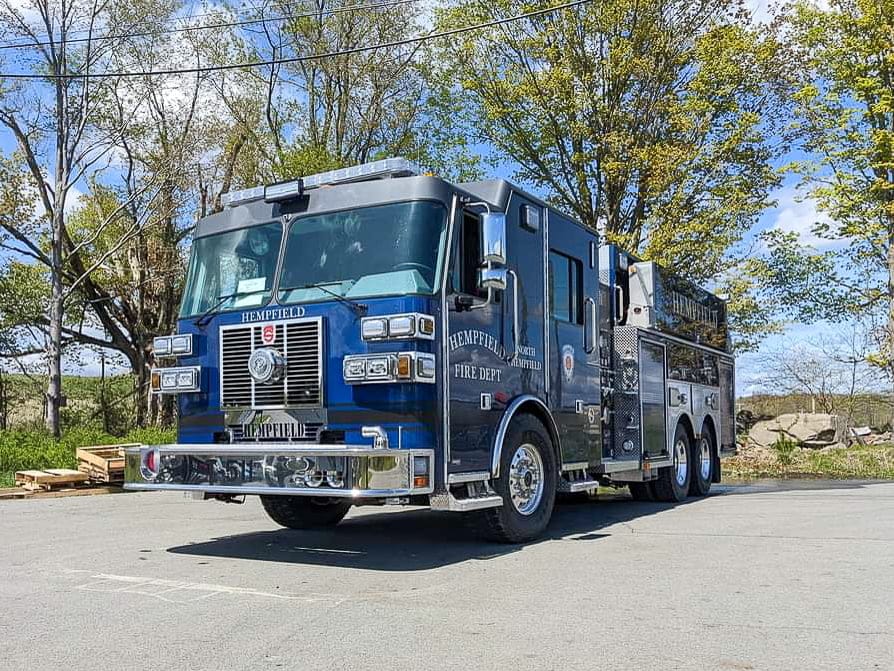

Custom Tanker – Hempfield Township Fire Department, PA

Specs

Cab
Four-door, six-person
13” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
48,000 lbs
Engine
Cummins X 12 500HP
Alternator
Leece Neville 420 AMP
Transmission
Allison Gen 5, EVS4000
Water Pump
Qmax-xs-2000 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front/Right of Main Hosebed, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
Water Tank
2,500-gallon
Water Tank
30-gallon foam tank
Foam System
FoamPro 2001, 2.6 GPM
Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment
Total Compartment Space
Over 150 cu. ft.
Alco-Lite Ladder Package
PEL3-35 35’ 3-Section & PRL-14 14’ Roof & 10’ Folding
Body
TA-05 Tanker 56/53, High/High – Ladder Rack
Bumper Extension
18” polished stainless steel bumper
Siren
Federal q2b , grille mount
Camera System
Brigade, Backeye 360
Intercom System
Combination Wireless and Wired
Hannay Electric Cord Reel
150’ (1)
Portable Tank
3,000 Gallon, Hypalon, Aluminum Frame
Wheel Chocks
Ziamatic quic-lift electric ladder rack
Whelen Freedom 72”
Led lightbar
FR Spectra Brow
Light
Whelen 900 Scene
Lights
Whelen 36” Traffic
Advisor
Wilburt Light Tower
Included
