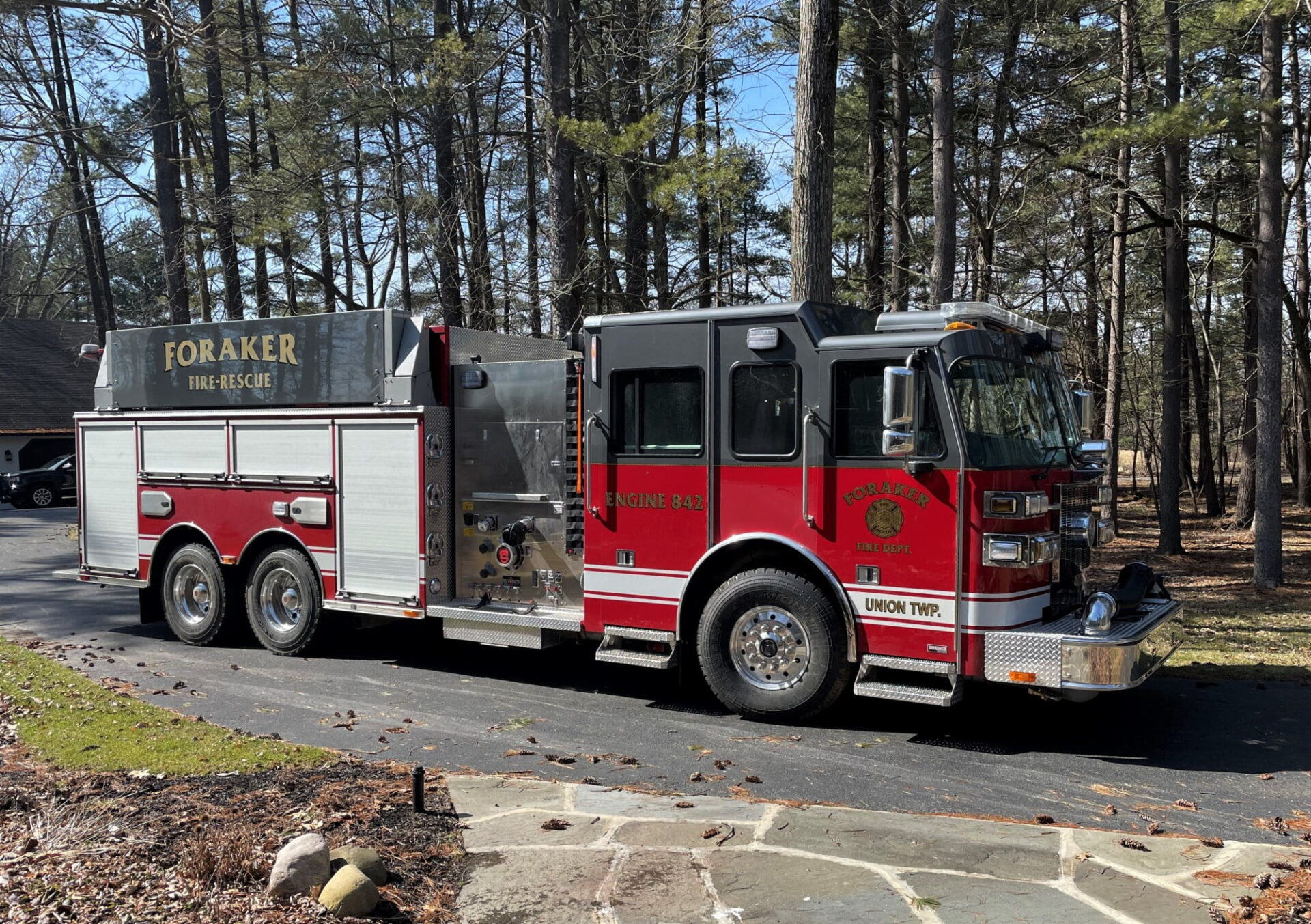

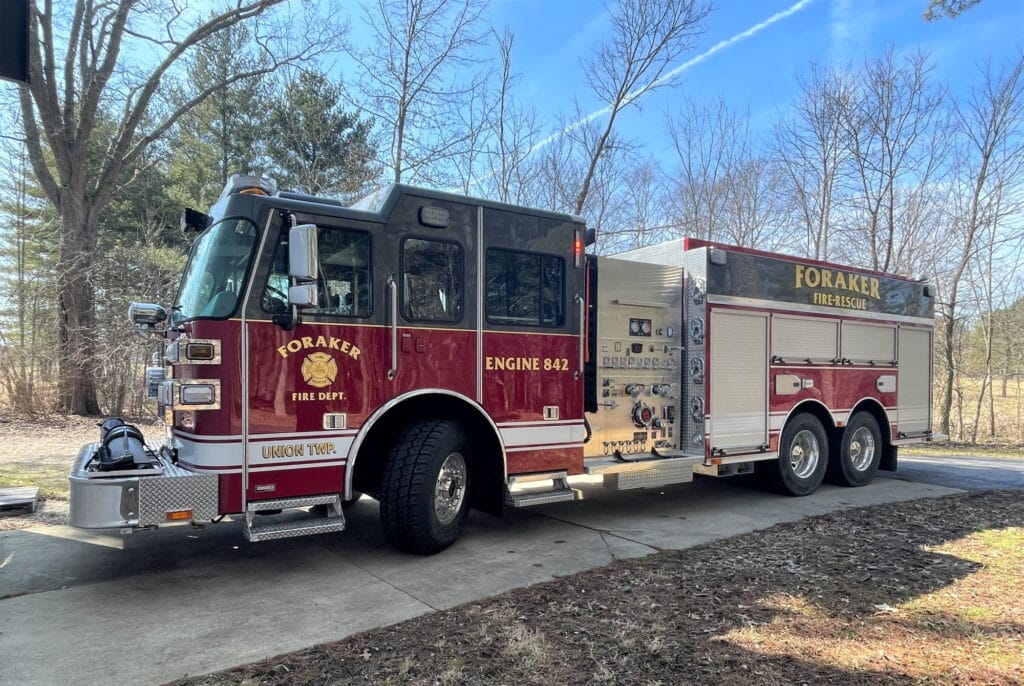

Custom Tanker – Foraker Volunteer Fire Department, IN

Location:
Foraker, IN
Department:
Foraker Volunteer Fire Department

Specs

Cab
Four-door, six-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
48,000 lbs
Engine
Cummins L 9 450HP
Alternator
Leece Neville 320 AMP
Transmission
Allison Gen 5, EVS 3000
Water Pump
Qmax-1500 gpm single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Left Rear, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Speedlay
(2) 1 ½” w/ Liftout Poly Trays
Crosslay
(1) 2 ½”
Water Tank
2,500-gallon
Construction
3/16” extruded aluminum
Doors
Rom roll-up compartment
Total Compartment Space
Over 170 cu. ft.
Alco-Lite Ladder Package
PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
Body
TA-05 Tanker 56/53 High/High – Ladder Rack
Bumper Extension
24” polished stainless steel bumper
Siren
Federal q2b , grille mount
Newton 10 x
10 electric, with swivel dump
FR Spectra Max
Brow light
Whelen 72” Freedom
Lightbar
Whelen M9 Scene
Lights
Whelen 36” Traffic
Advisor
FR Spectra Tele
Lights
