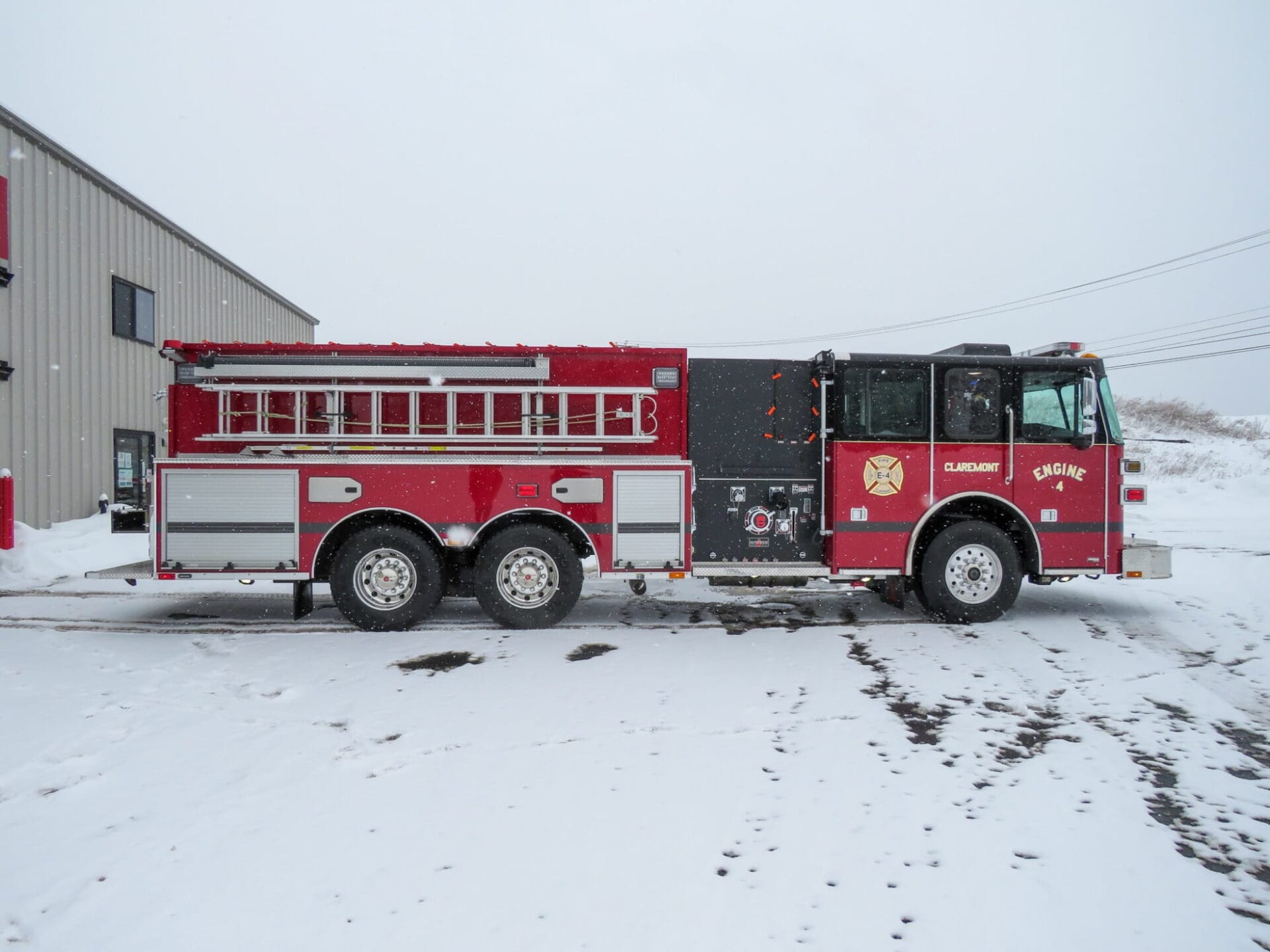

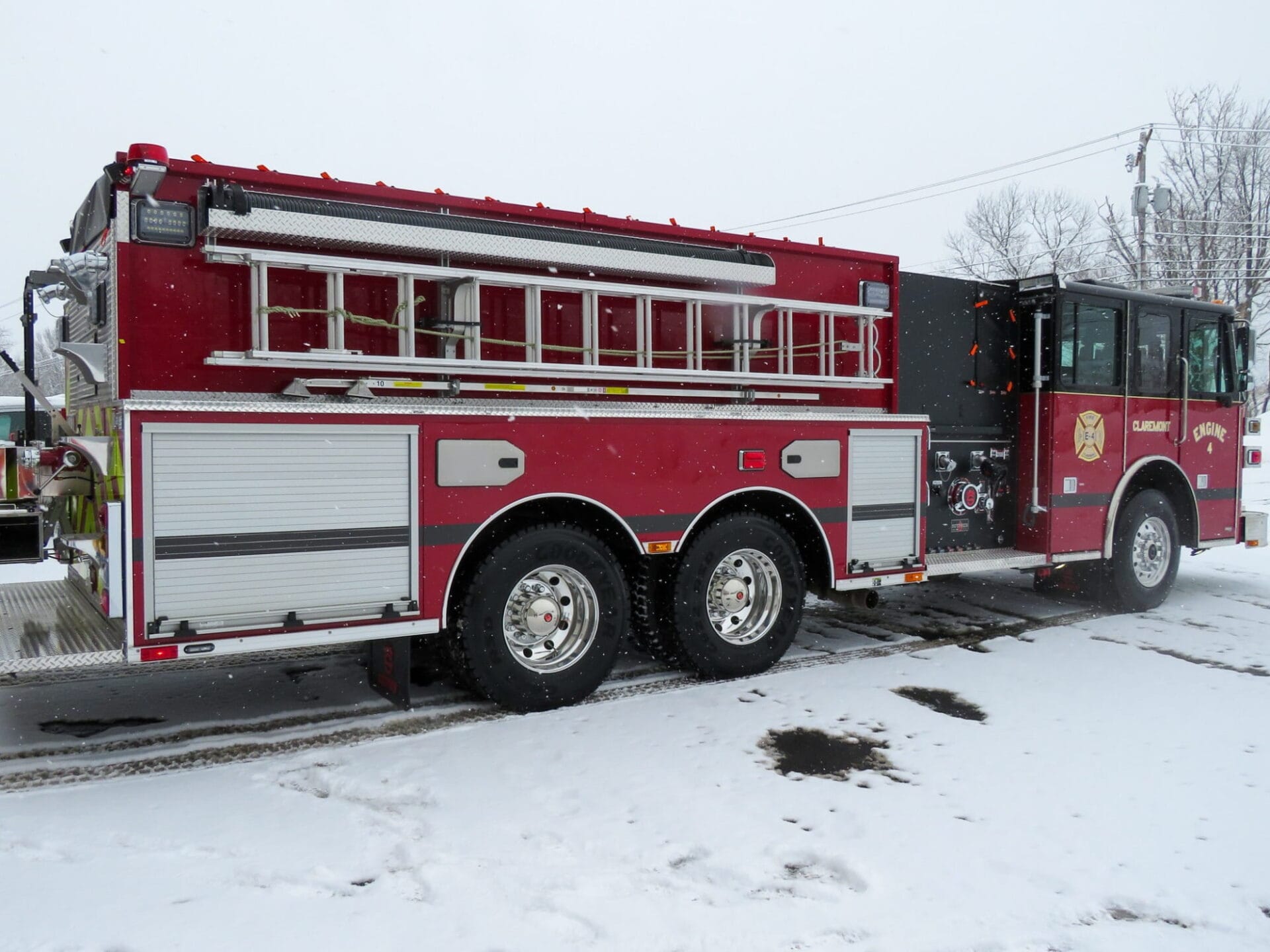

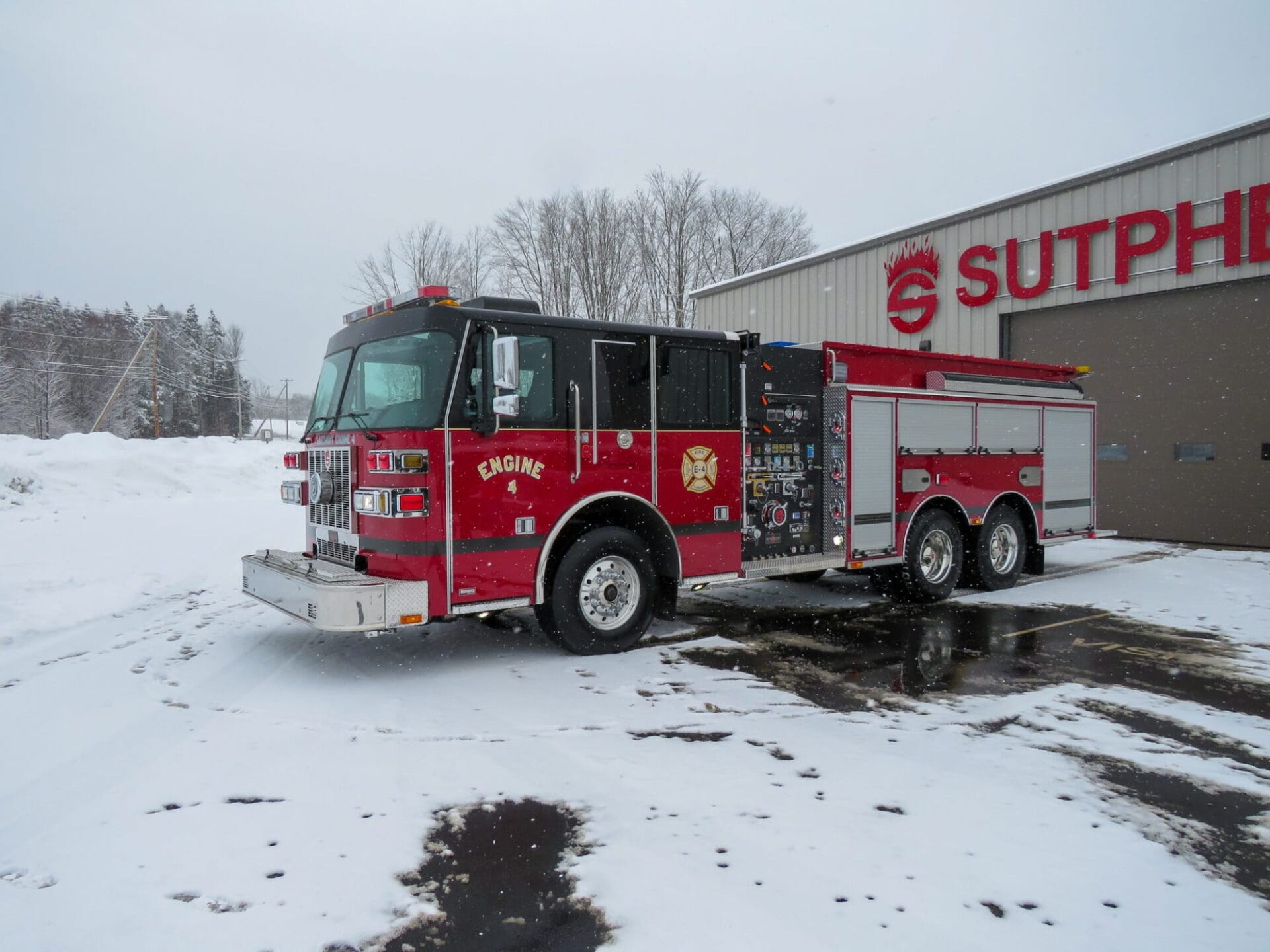

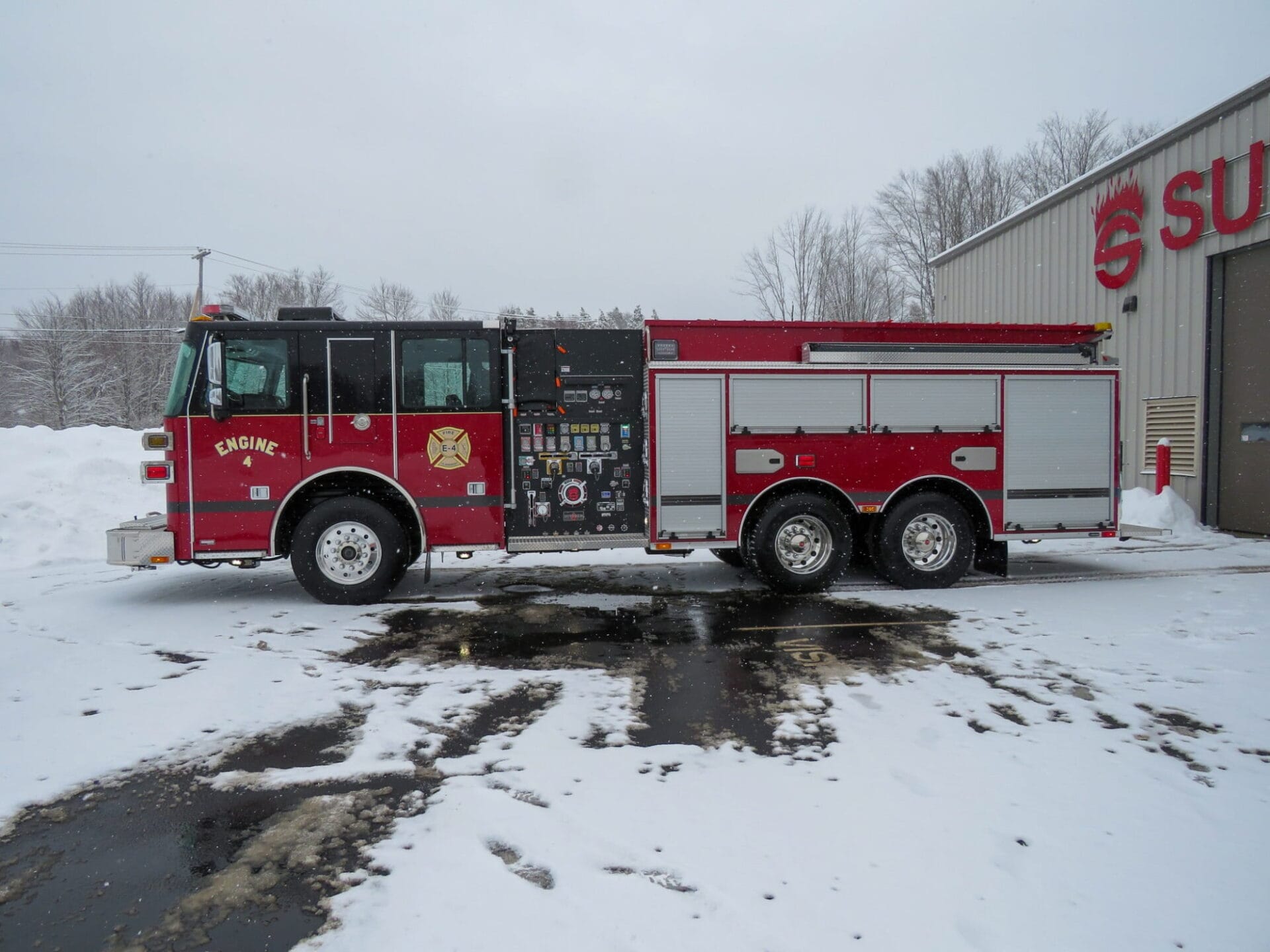

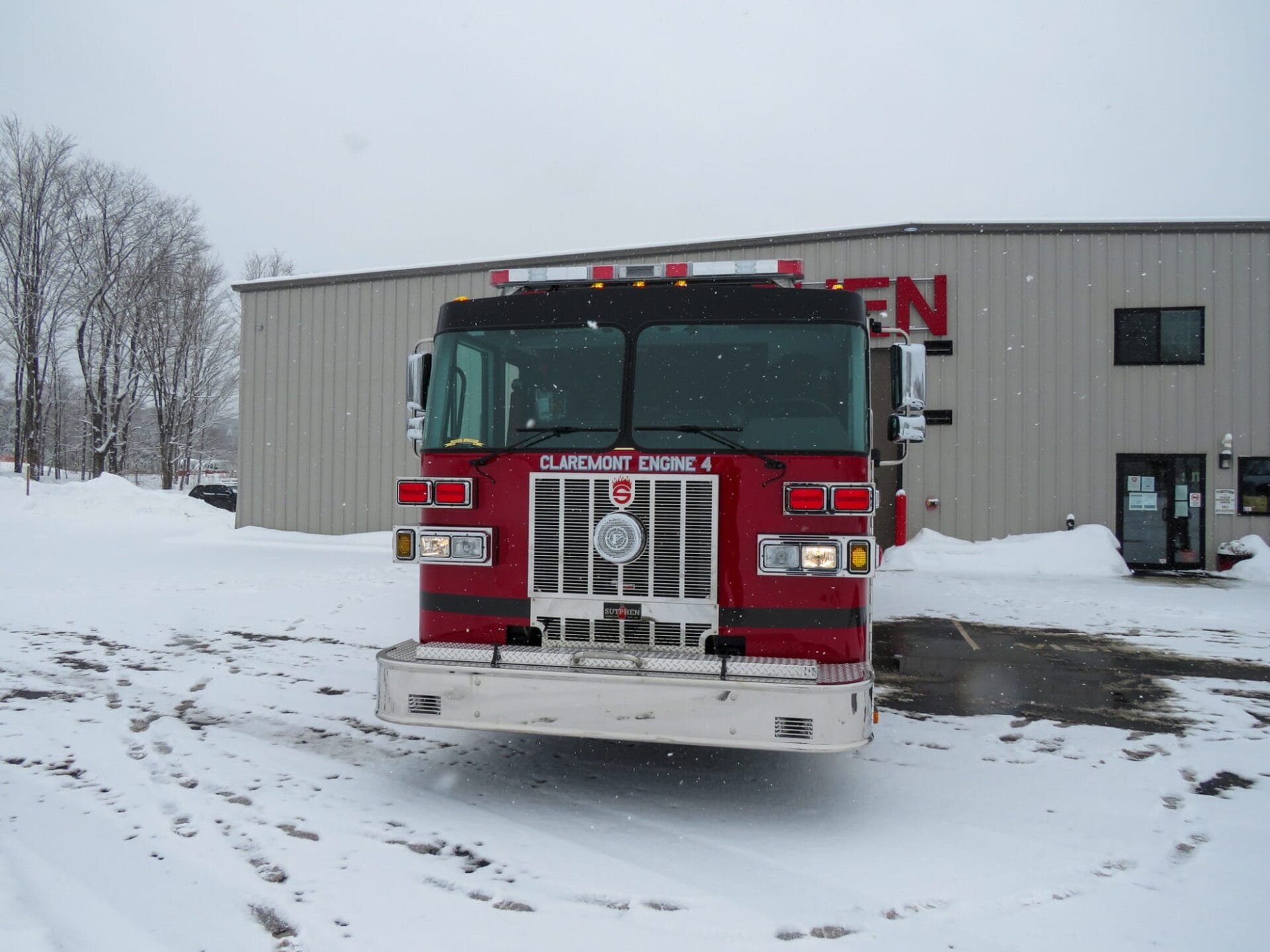

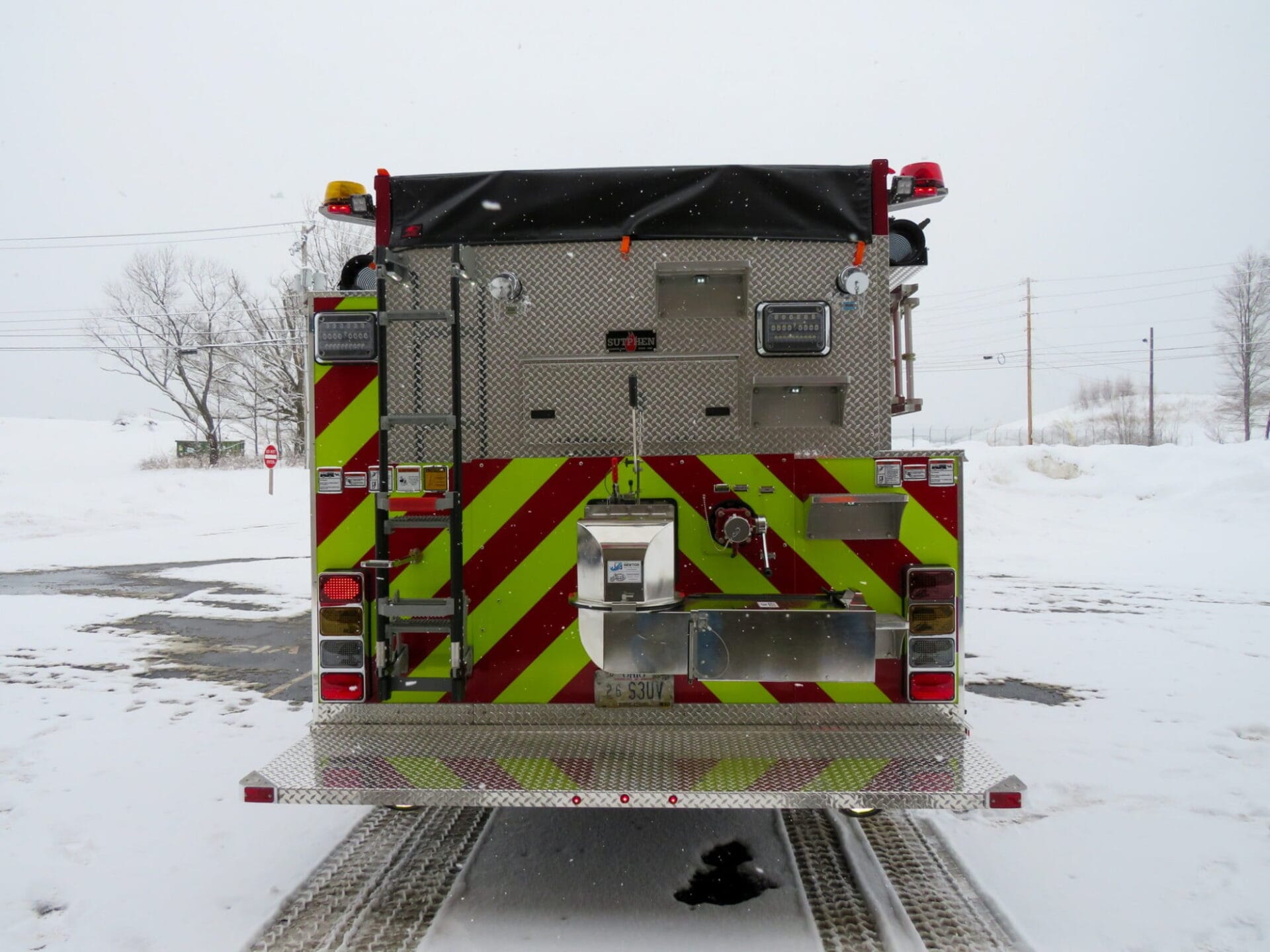

Custom Tanker – Claremont Fire Department, NH

Location:
Claremont
Department:
Claremont Fire Department

Specs

Cab
Four-door, five-person
10” Double Rails
Tandem axle (110k psi)
Front Suspension 20,000
Lbs.
Rear suspension 52,000lbs
.
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville 270 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax-1,500 gpm 6” suction, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½ Pipe to Left Rear, (1) 2 ½ Pipe to Right Rear, (1) 1 ½ Front Bumper
Crosslays
(1) 2 ½ Crosslay, 2 ½” Swivel & (2) 2” Crosslays with 1 ½ Swivel
Water Tank
2000-gallon
Water Tank
30-gallon foam tank
Foam System
FoamPro 1600, 1.7 GPM
Construction
3/16” extruded aluminum
Doors
Rom roll-up compartment
Total Compartment Space
Over 120 cu. ft.
Ladder Compliment
Alco-lite ladder package (pel-24 24’ 2-section & prl-14 14’ & 10’ folding)
Body
TA-02 Tanker 30/53 High/Low
Bumper Extension
18” polished stainless-steel bumper
Siren
Federal q2b , grille mount
Newton Swivel Dump
With extension chute
Whelen Freedom IV
72” led light bar
Whelen PFH Tele
Lights
Whelen 600 LEDs
Included
Whelen L31 Beacons
Included
