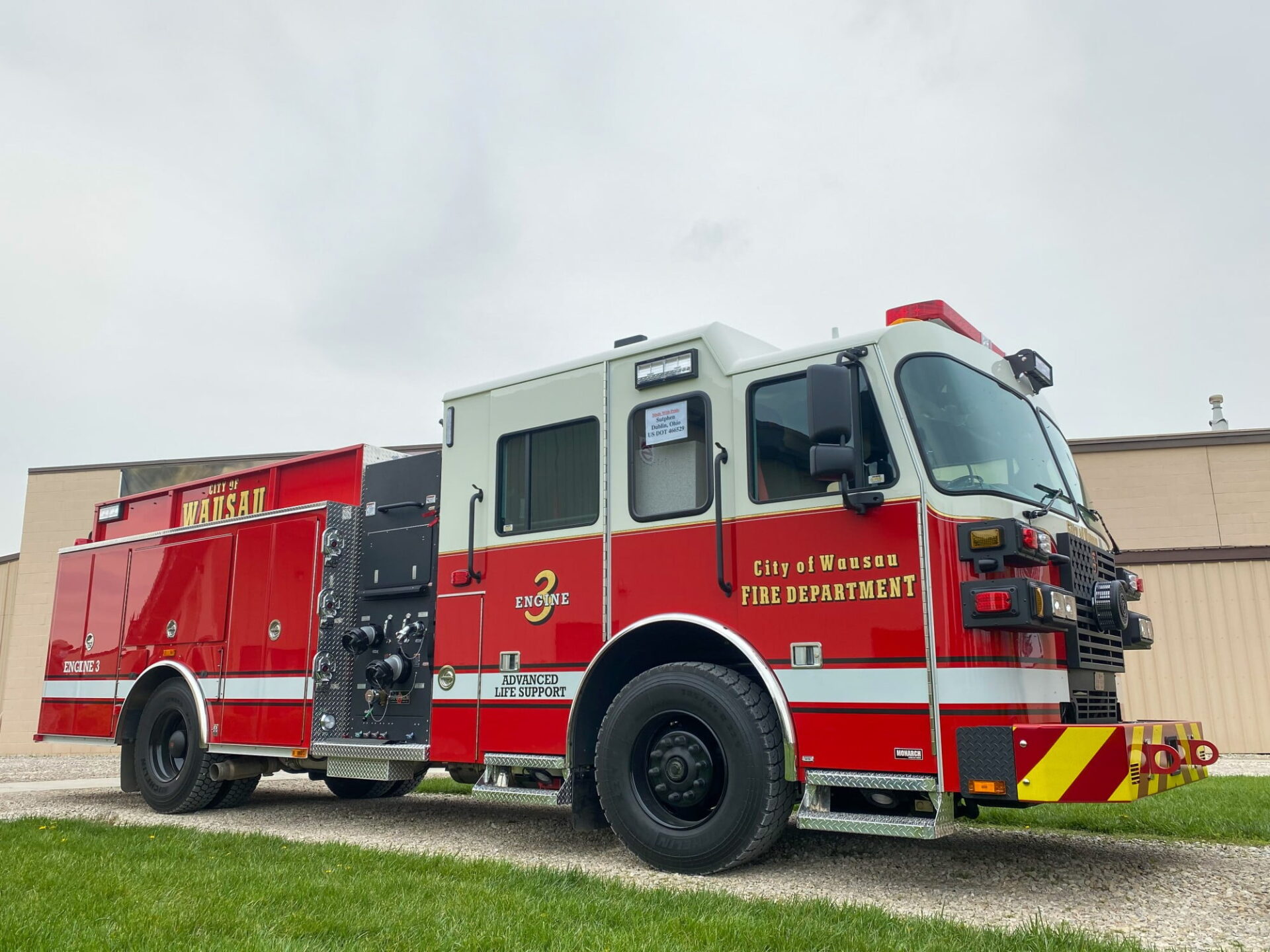

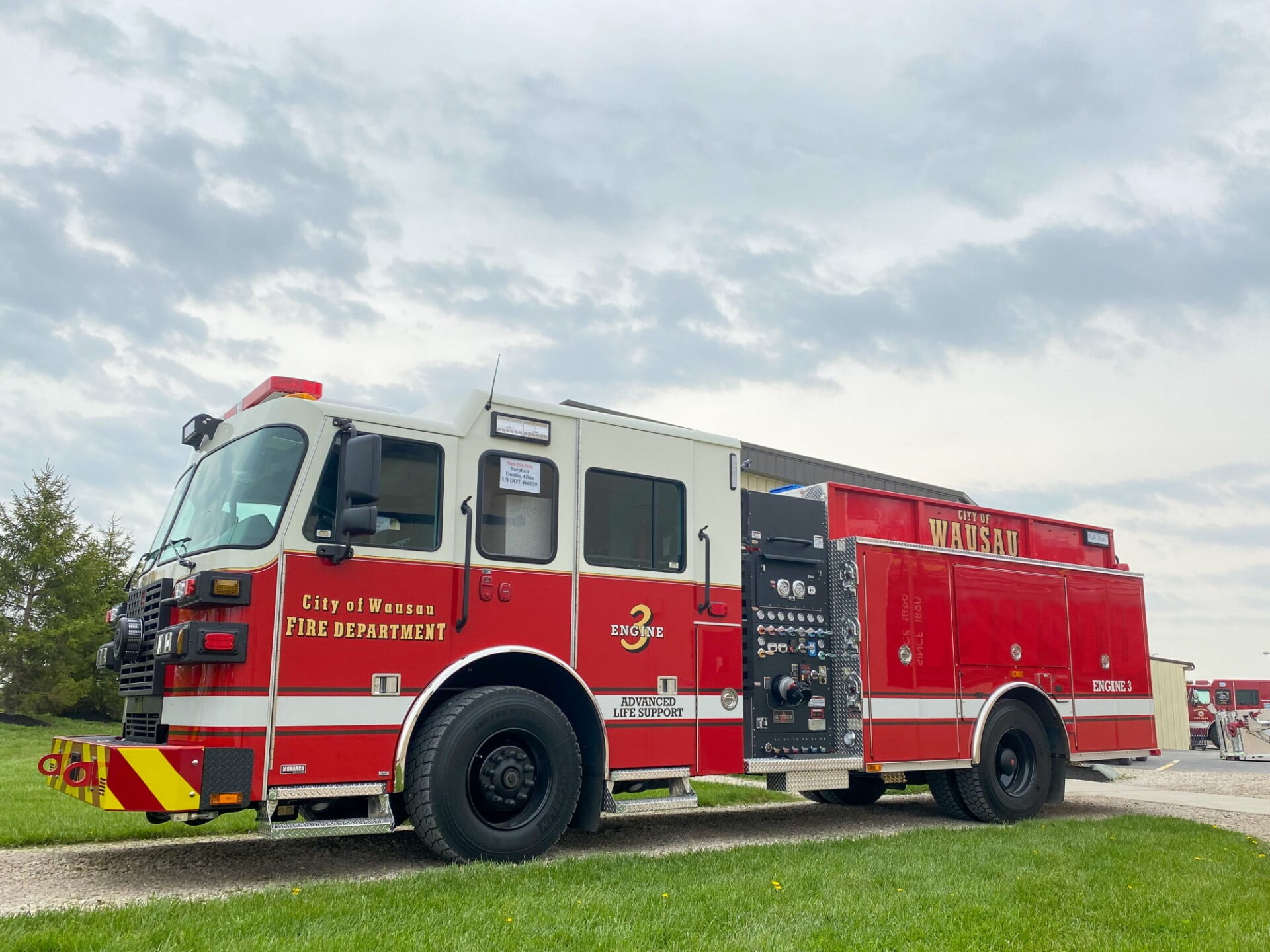

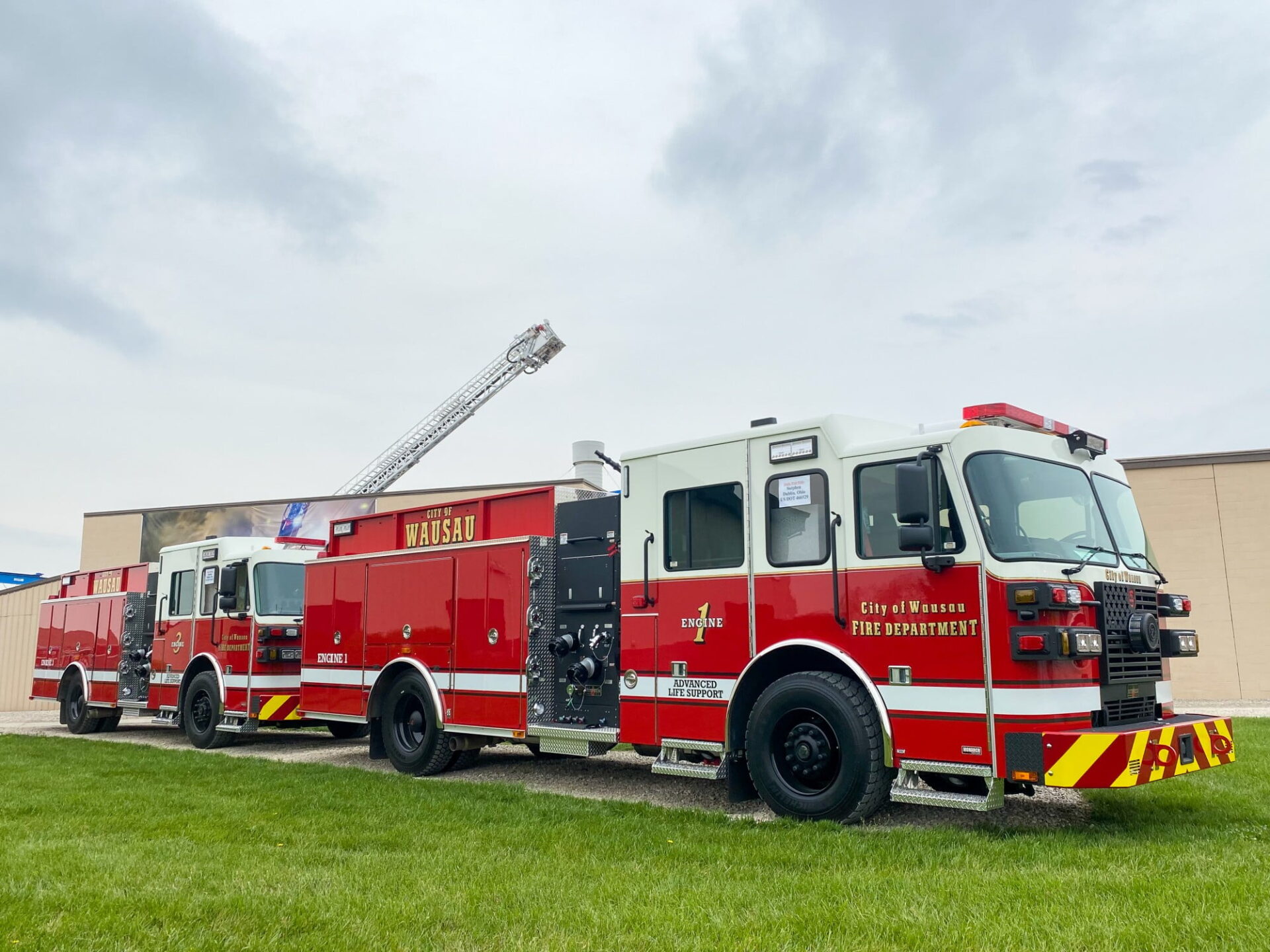

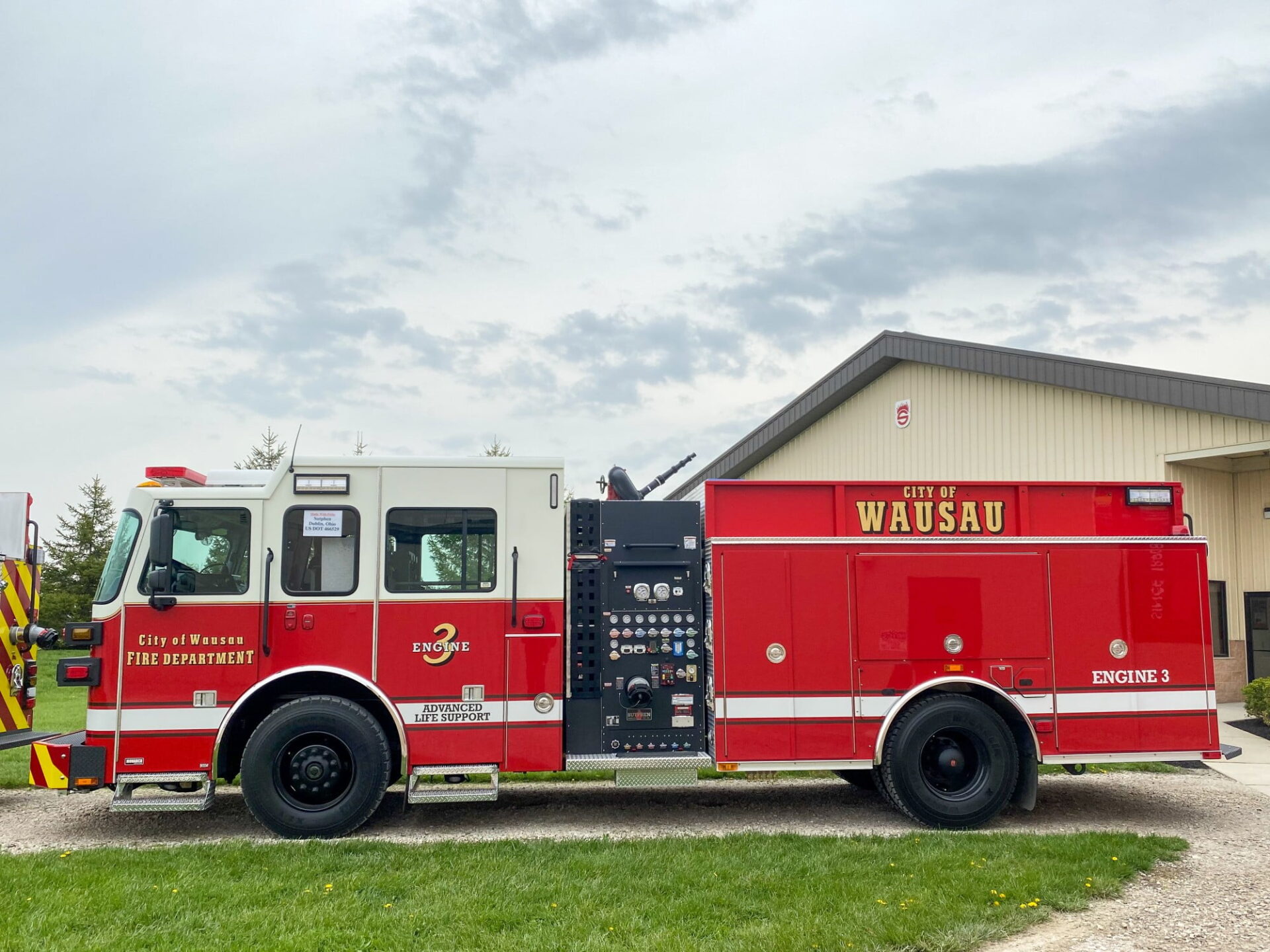

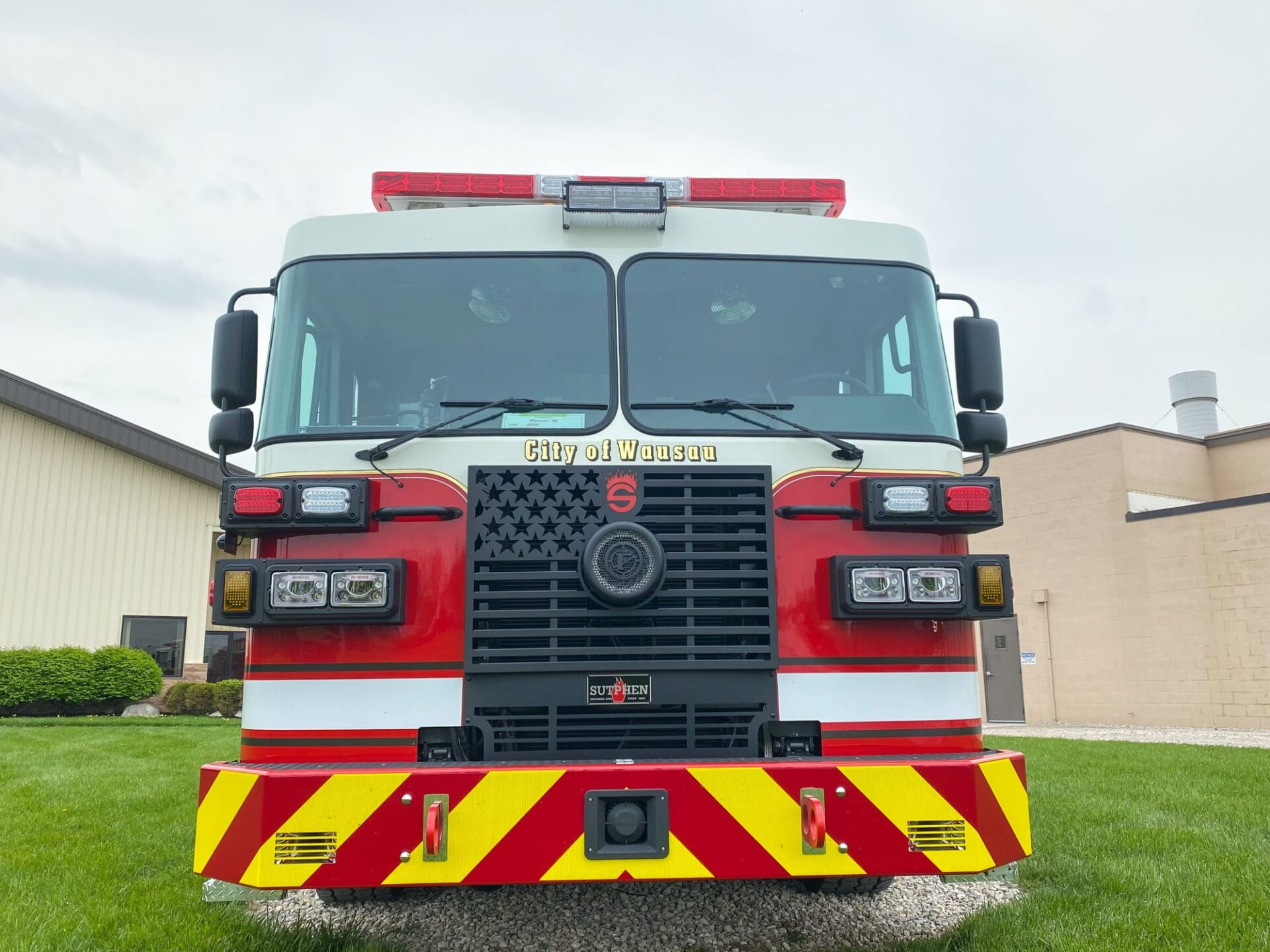

Custom Pumpers – Wausau Fire Department, WI

Specs

Cab
Four-door, four-person
10” Double Domex
Frame rails (110k psi)
Front Suspension 20,000
Lbs.
Rear Suspension 27,000lbs
.
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville 320 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
S101 1500-gpm, single stage pump
Discharges
(1) 2 ½” Left, (1) 3” Right w/ 4” outlet, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½ Front/Right of Main Hosebed, (1) 3” Deck Gun
Crosslays
(1) 2 ½”
Speedlays
(2) 2” w/ Swivels and Poly Lift-Out Trays
Water Tank
750-gallon
Construction
3/16” extruded aluminum
Doors
Aluminum hinged compartment

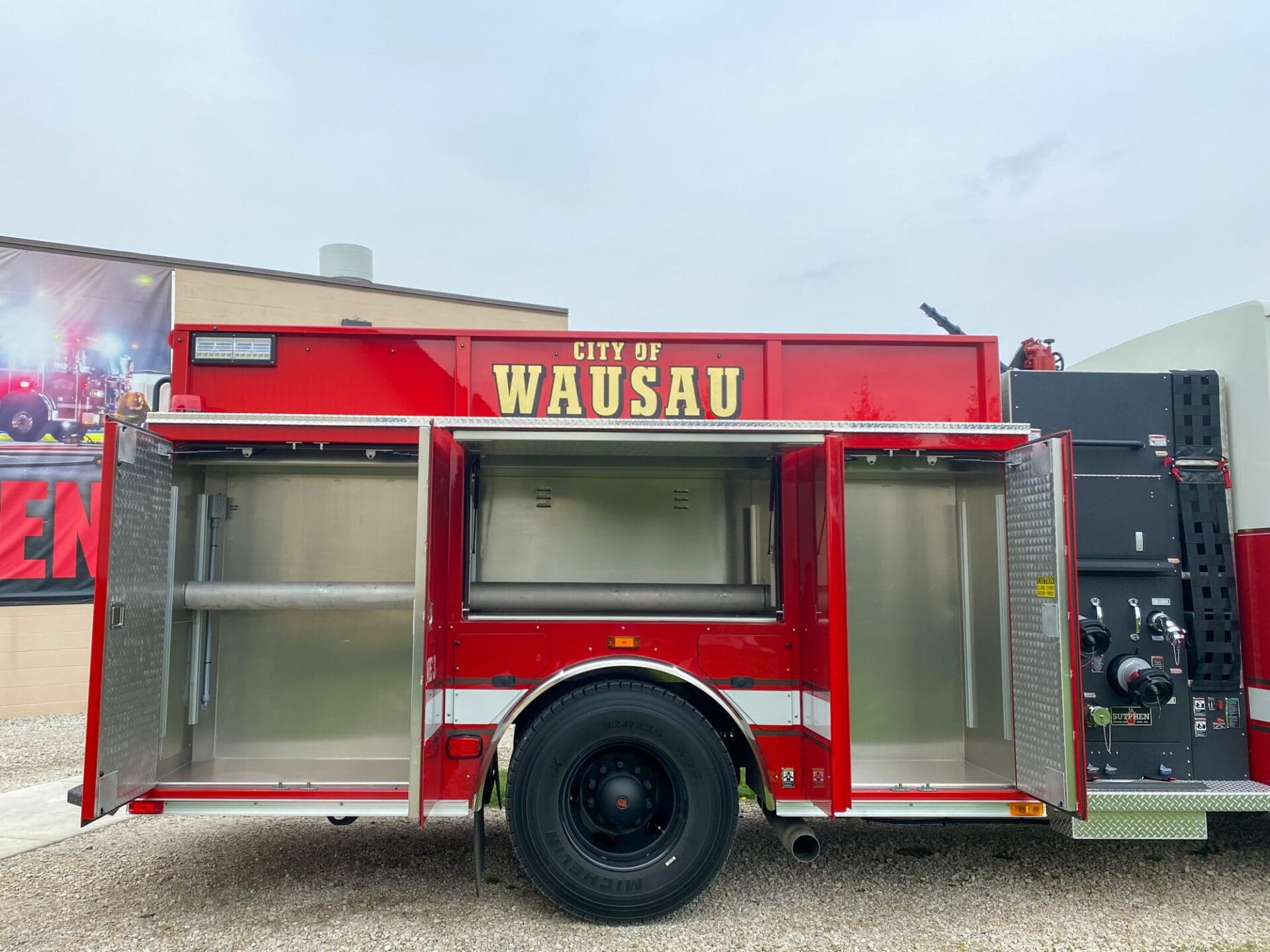

Total Compartment Space
Over 245 cu. ft.
Duo-Safety Ladder Package
900A 24’ 2-Sec & 775A 14’ Roof & 10’ Folding
Body
G9 – Alum 40/51 Ladders Thru Tank
Bumper Extension
12” formed steel channel painted
Siren
Federal q2b , grille mount
Camera System
RC, Inview Trueview, Two Cameras
Whelen PFH2 LED
Brow light
Whelen Freedom LED
Lightbar
Whelen PCPSM2 Scene
Light
Whelen M9 Scene
Lights
TANF65 Traffic Advisor
Included
