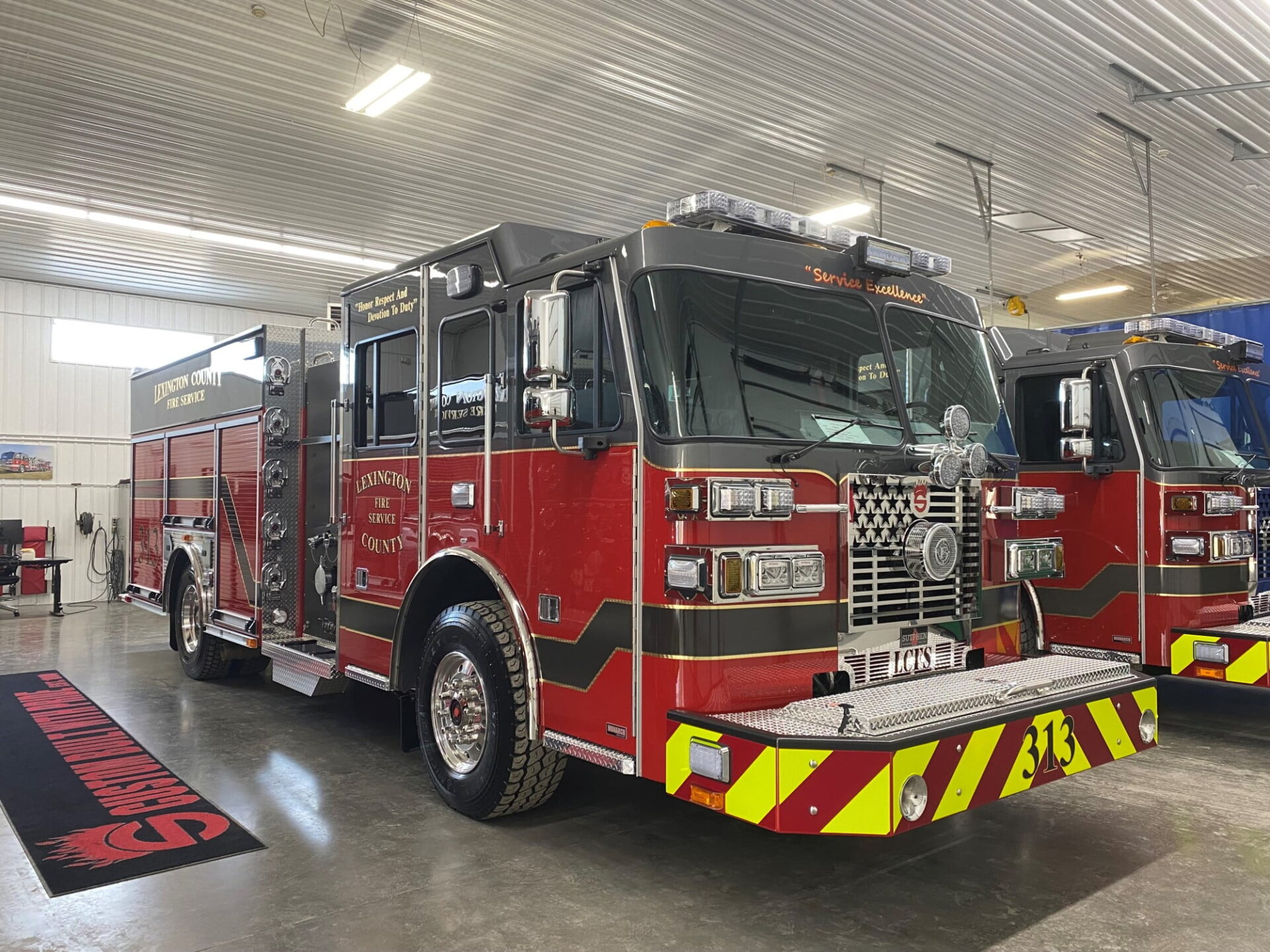

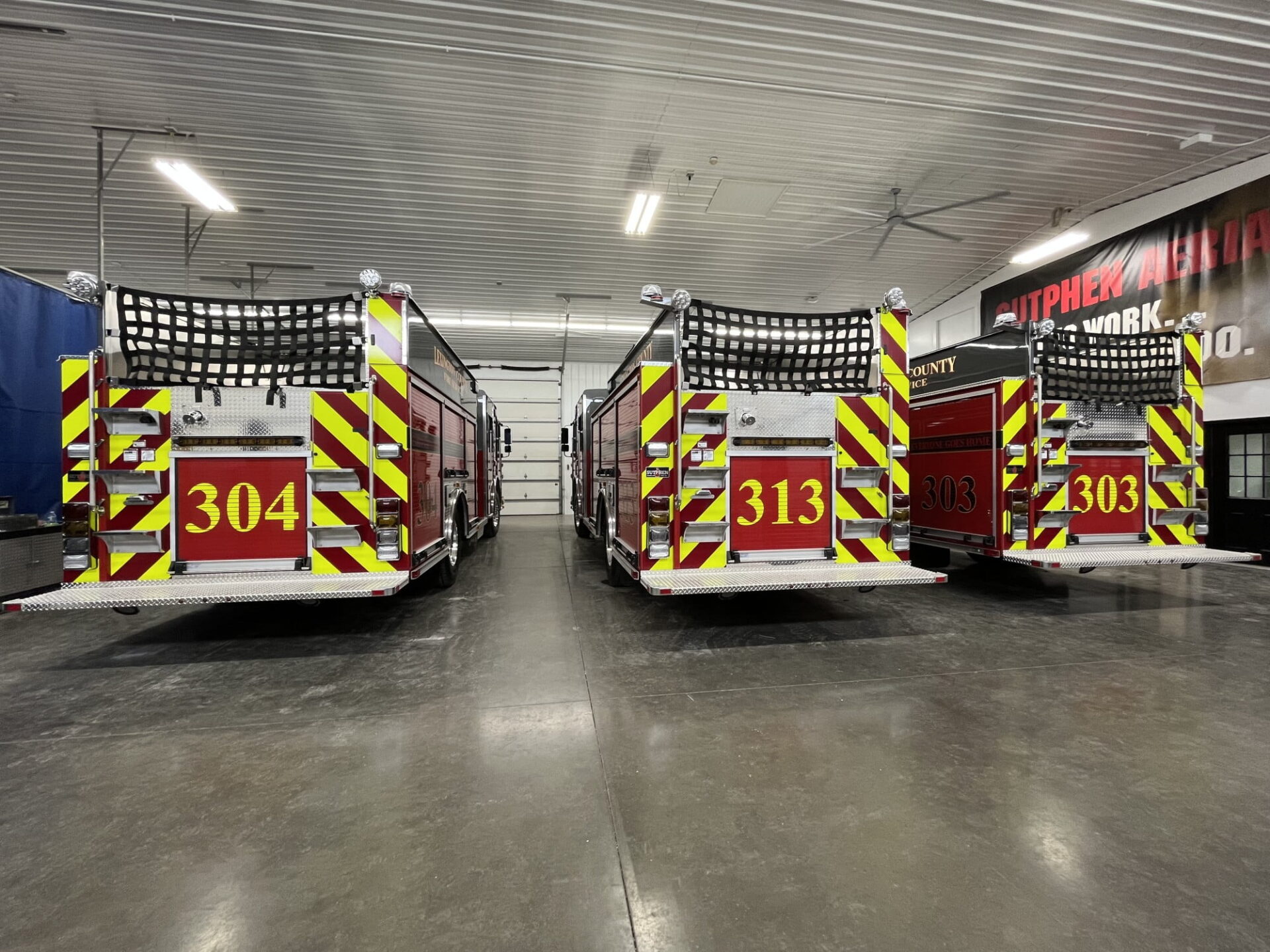

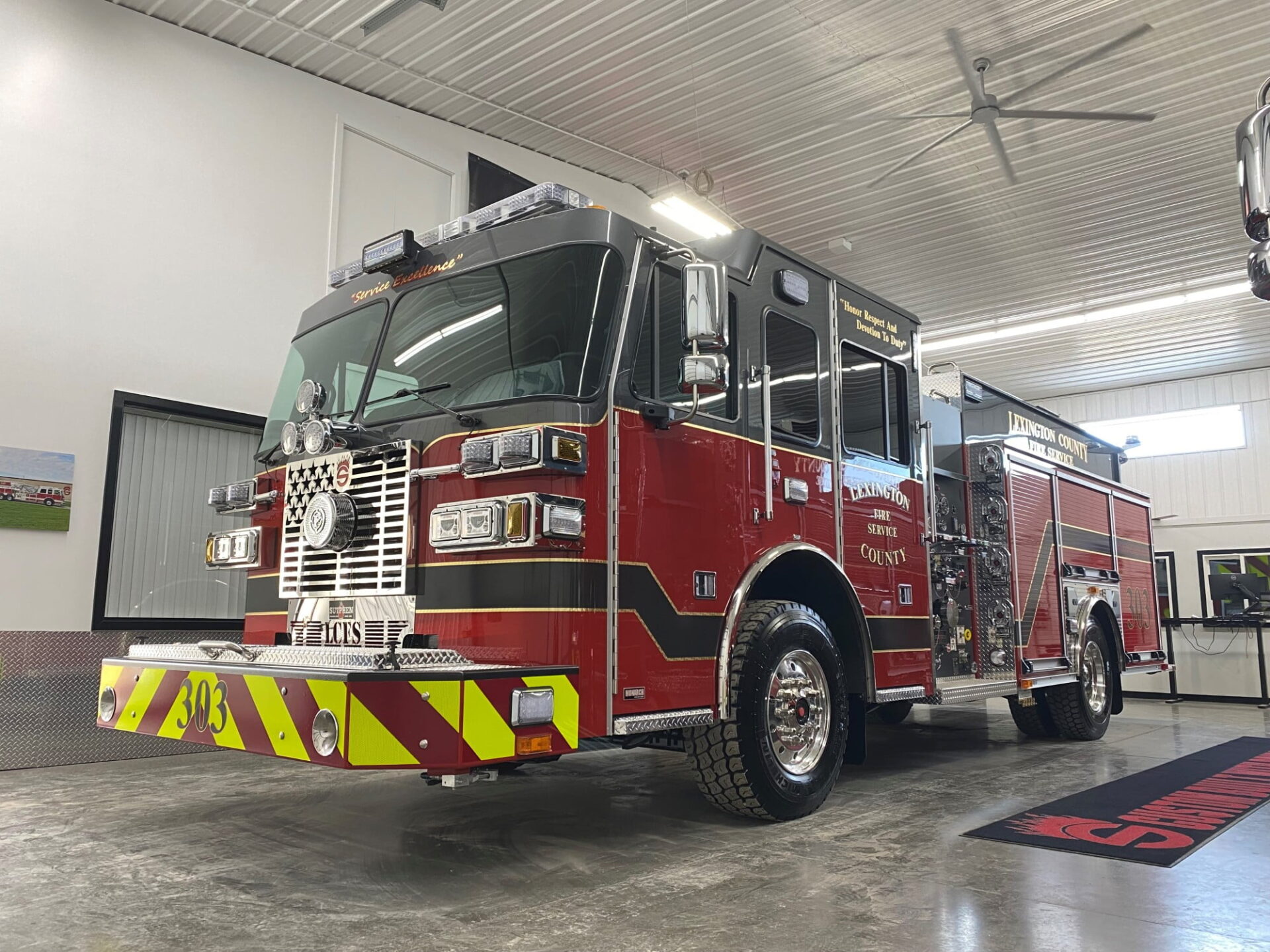

Custom Pumpers – Lexington County Fire Services, SC

Specs

Cab
Four-door, four-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9 450HP
Alternator
Leece Neville 320 AMP
Transmission
Allison Gen 5, EVS 3000

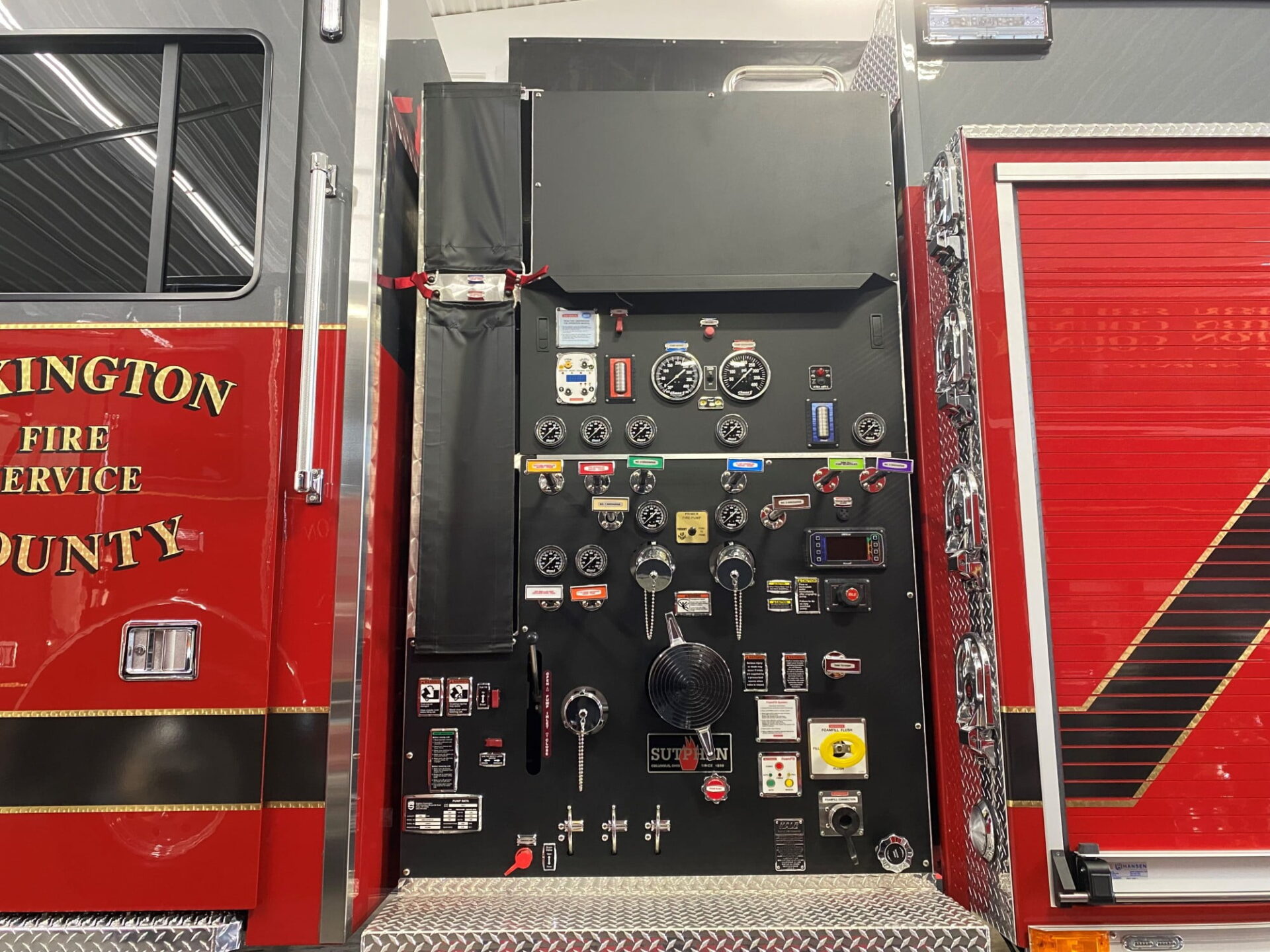

Water Pump
Qmax 1500 gpm single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
Speedlays
(2) 2” w/ 1 ½” Swivels and Poly Lift-Out Trays
Crosslay
(1) 2 ½“
Water Tank
1,000 gallon
Water Tank
20 gallon foam tank
Foam System, Waterous
Aquis 3
Construction
3/16” extruded aluminum
Doors
Rom roll-up compartment , painted
Total Compartment Space
Over 233 cu. ft.
Duo-Safety Ladder package
900A 24’ 2 Section and 775A 14’ Roof & 10’ Folding
Body
S2 – Aluminum 43/53 Ladder Chute
Bumper Extension
24” formed steel, painted bumper
Siren
Federal q2b , grille mount
Camera System
FRC, Inview Trueview, Two Cameras
FRC Spectra 12V
Led brow light
Whelen Freedom 72”
Led lightbar
Whelen M9V Red
Leds scene
Whelen LED, TAL65
36” traffic advisor
