Custom Pumpers – Frenchtown Fire Department, MI

Specs

Cab
Four-door, four-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
19,000 lbs
Rear Axle and Suspension
24,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 270 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Xs qmax-1500 gpm, single stage pump
Discharges
(1) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Front Left, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Speedlay
(2) 2” w/ 1 ½” Swivels and Poly Lift-out Trays
Water Tank
750-gallon
Water Tank
20-gallon foam tank
Foam System
Hale Smartfoam 2.1A

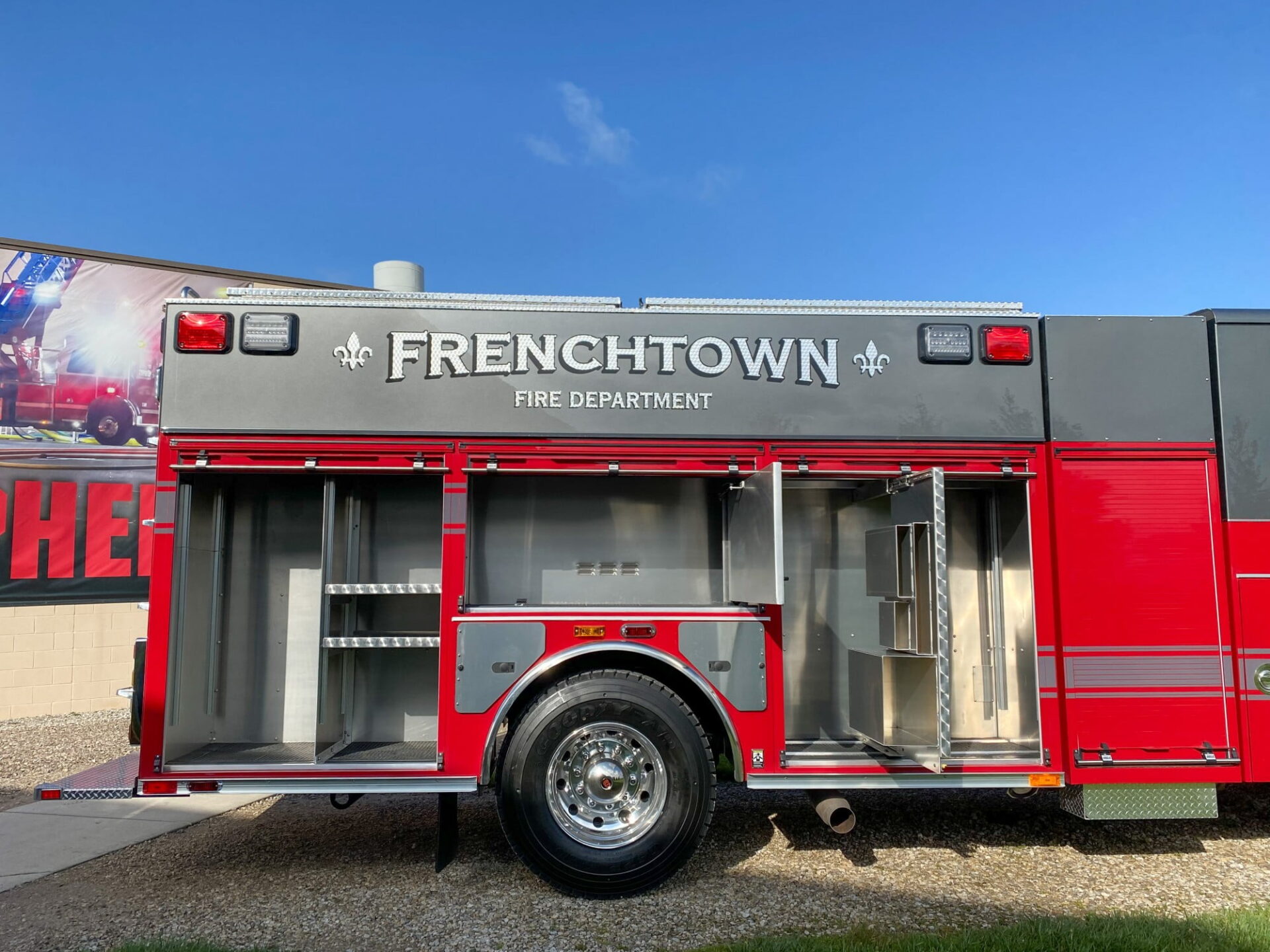

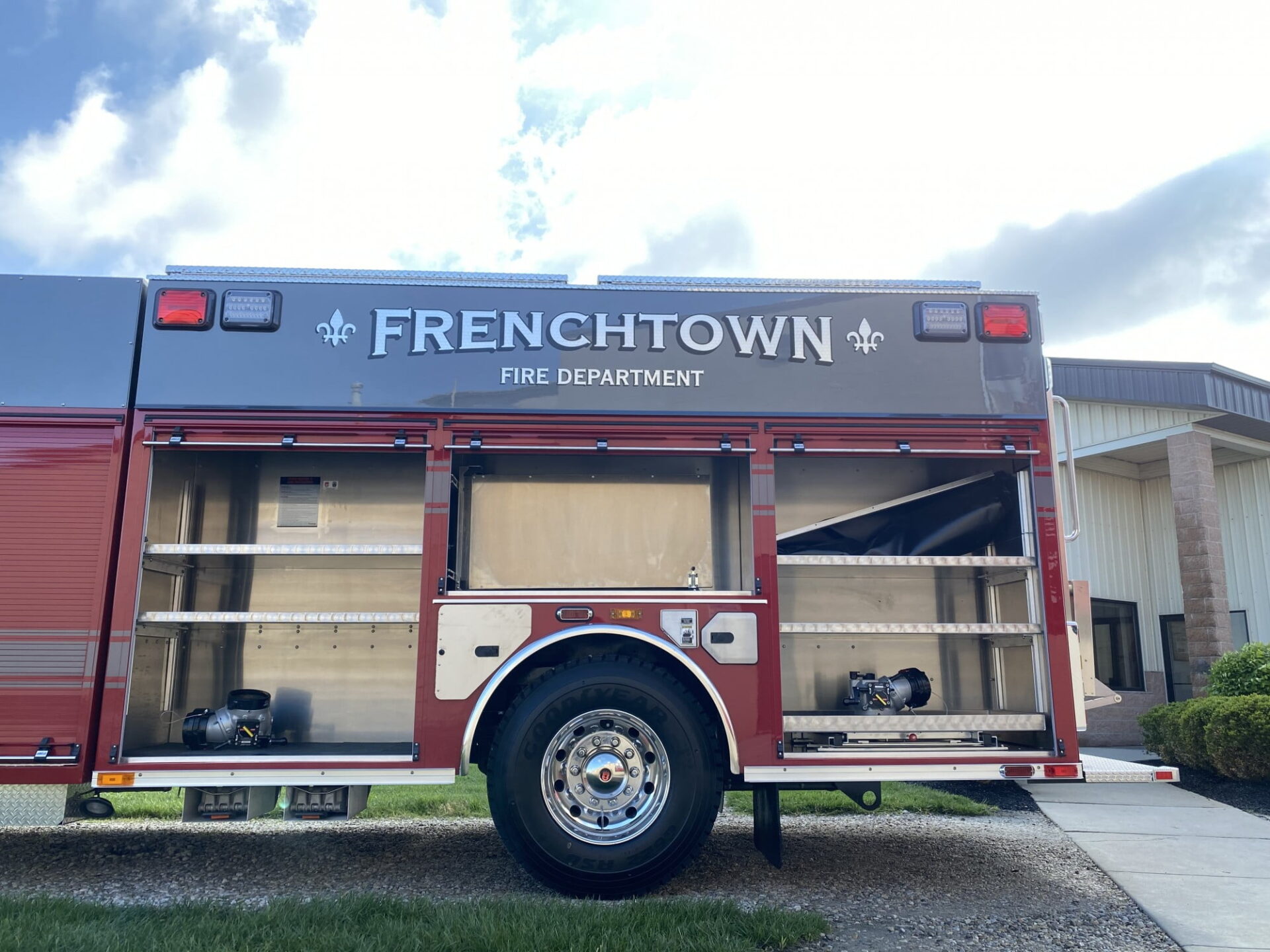

Doors
Amdor roll-up compartment
Total Compartment Space
Nearly 400 cu. ft.
Ladder Compliment
Alco-lite ladder package (pel-24 24’ 2-section & prl-14 14’ roof & 10’ folding)
Body
S8 – 56/53 Lad Thru Water Tank on Beam and Double Hatch
Bumper Extension
18” formed steel
Siren
Federal q2b , grille mount
Intercom System
Wireless, Setcom Liberatormax Single Radio
Camera
FRC, Inview Trueview, Single Camera
Whelen Justice 62”
Led light bar
Whelen 900 12V
Led scene light
Whelen 500 LEDs
Included
Firetech 12 3
Piece led brow light
