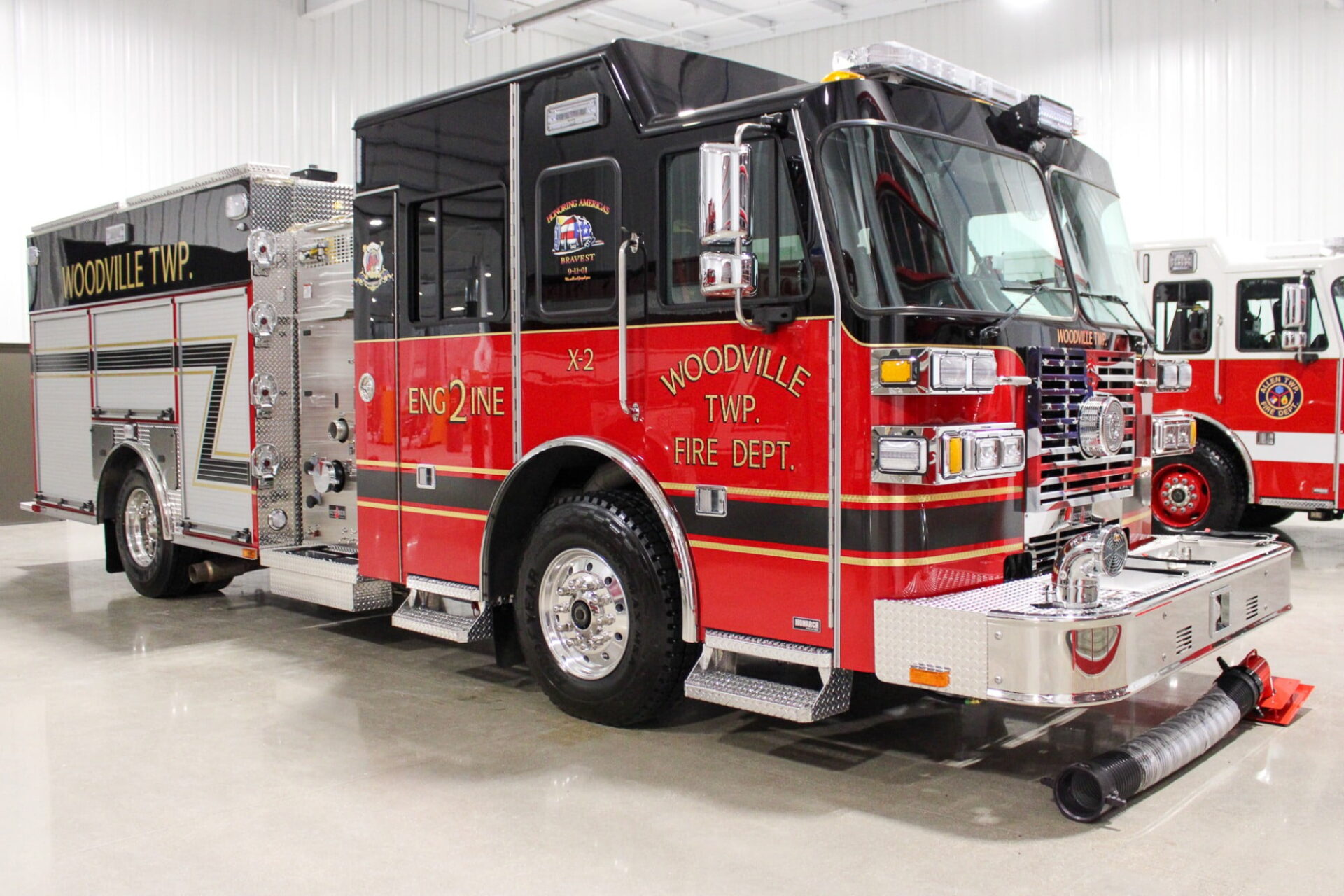

Custom Pumper – Woodville Township Fire Department, OH

Location:
Woodville Township, Ohio
Department:
Woodville Township Fire Department

Specs

Cab
Four-door, six-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs.
Rear Axle and Suspension
27,000 lbs.
Engine
Cummins L 9, 450HP
Alternator
Leece Neville 320 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax-xs-1500 gpm, single stage pump
Discharge
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front/Left of Main Hosebed, (1) 1 ½” Front Bumper, 3” Deck Gun
Crosslays
(1) 2 ½” & Speedlays, (2) 2” w/ Swivels & Poly Lift-Out Trays
Water Tank
1,000-gallon
Water Tank
30-gallon foam tank
Foam System
Hale Smartfom 2.1 A
Construction
3/16” extruded aluminum
Doors
Rom roll-up compartment
Total Compartment Space
294 cu. ft.
Alco-Lite Ladder Package
PEL-24 24’ 2-Sec & PRL-14 14’ Roof & 10’ Folding
Body
G9 – Alum 40/51 Ladders Through Tank
Bumper Extension
24” polished stainless steel,
Siren
Federal q2b , grille mount
Power
Hannay electric cord reel, 150’ (1)
Generator
Smart Power, 6KW TM HYD
FRC Spectra Brow
Light
Whelen Freedom LED
Lightbar
FRC Spectra LED
Scene
Whelen M9 Red
Leds
