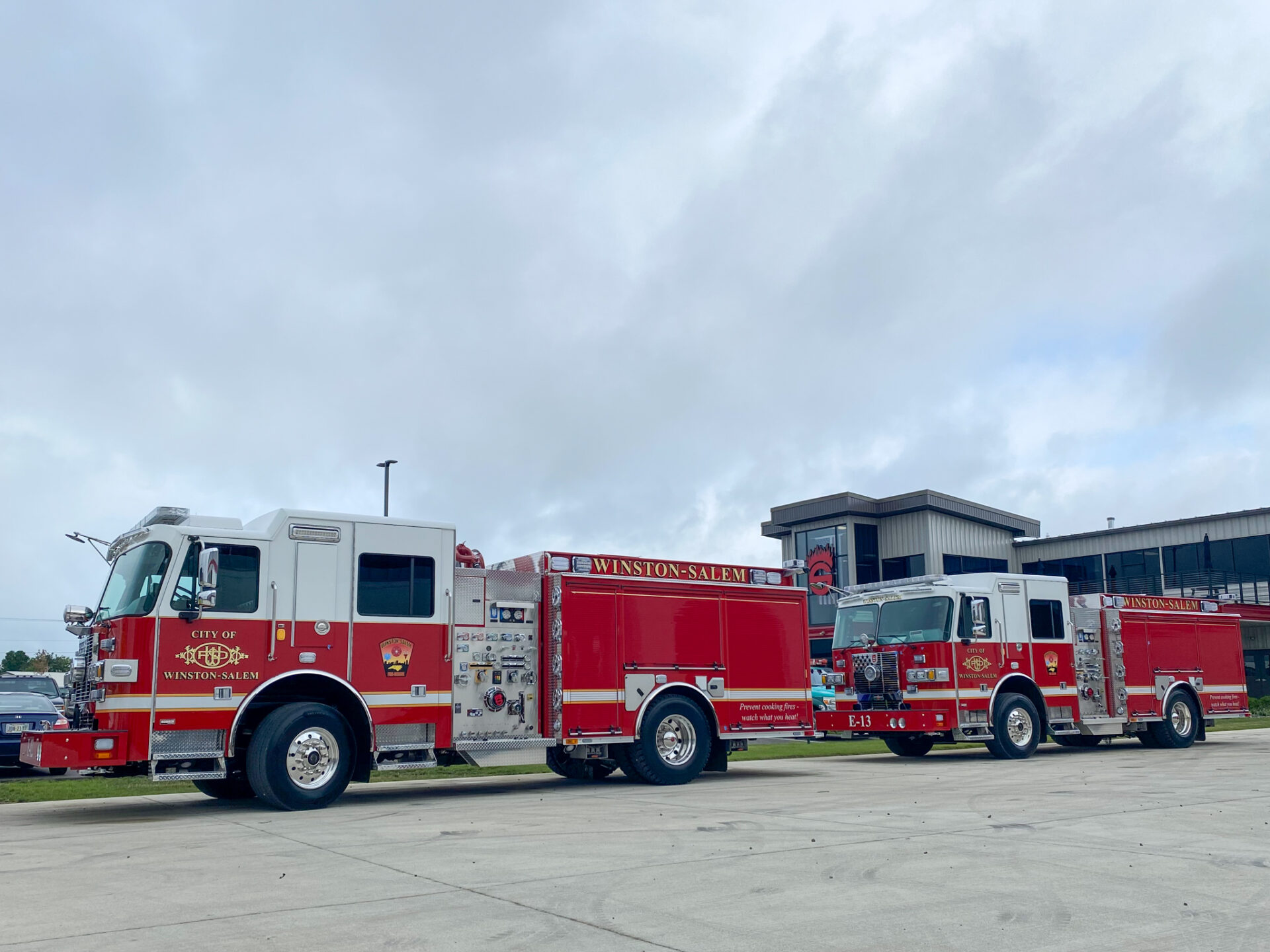

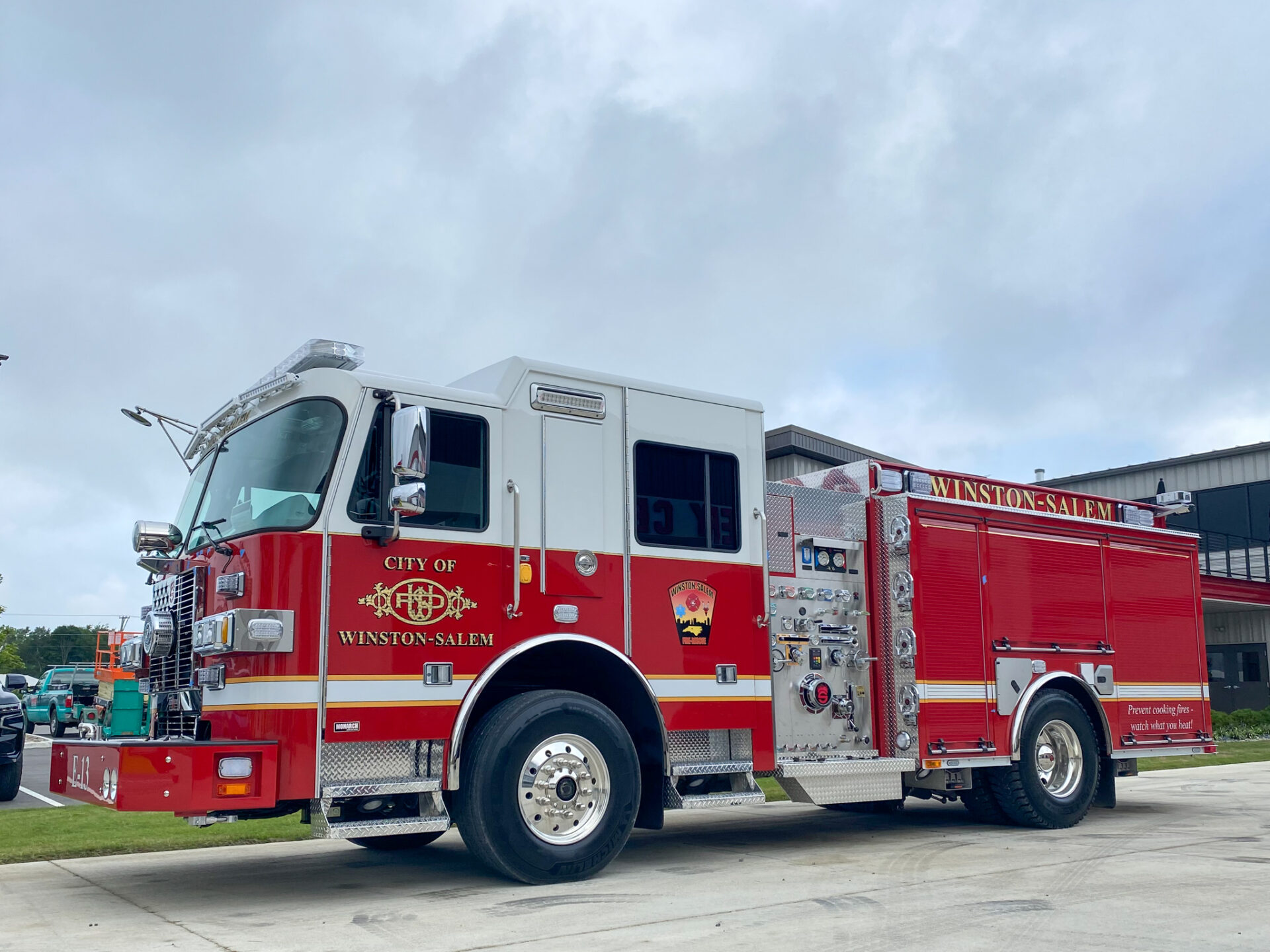

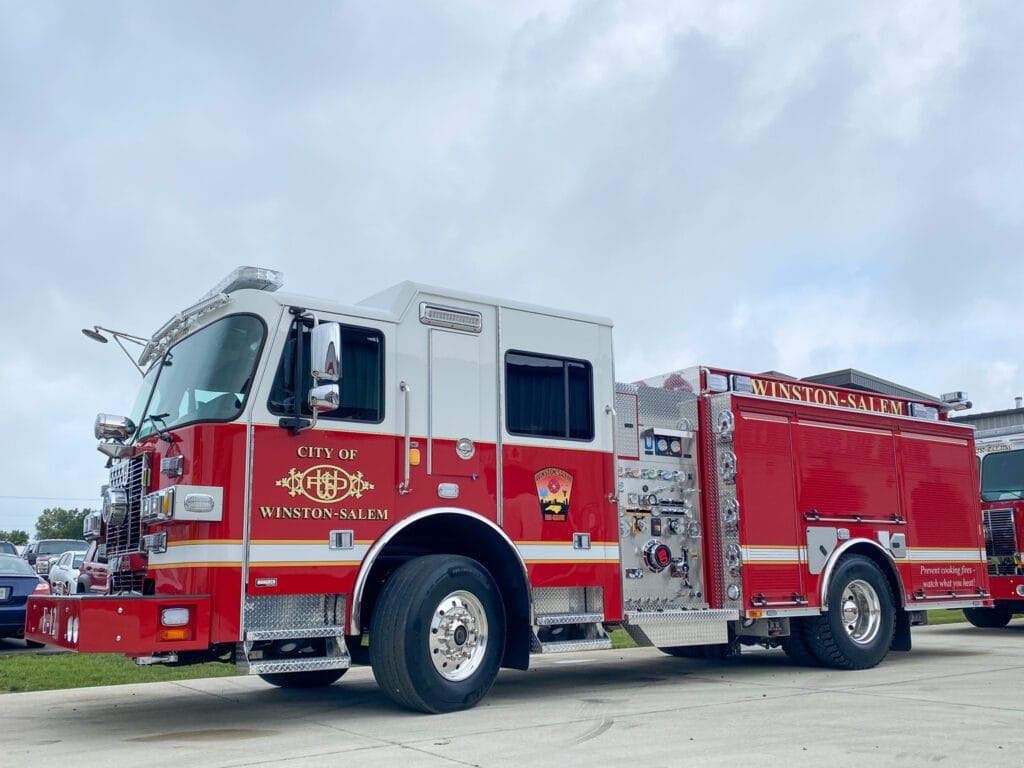

Custom Pumper – Winston-Salem Fire Department, NC

Specs

Cab
Four-door, five-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs.
Rear Axle and Suspension
27,000 lbs.
Engine
Cummins X 12, 455 HP
Alternator
Leece Neville 420 AMP
Transmission
Allison Gen 5, EVS4000
Water Pump
Qmax-2000 gpm, single stage pump
Discharge
(2) 2 ½” Left, (1) 4” Right, (1) 3” Right, (3) 2 ½” Pipe to Left Rear, (2) 2 ½” Pipe to Right Rear, (1) 1 ½” Front Bumper, 3” Deck Gun
Water Tank
500-gallon
Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment
Total Compartment Space
Over 165 cu. ft.
Duo-Safety Ladder Package
900A 24’ 2-Sec & 775A 14’ Roof & 10’ Folding
Body
PA-11 Res 31/53 Low Right, 12” D Upper Compt., Chrome Ladder Brackets, No R2 Compt., Modified R1/R3
Bumper Extension
18” formed steel channel,
Siren
Federal q2b , grille mount
Camera System
FRC, Inview Trueview, Two Cameras
Mars TB8-P Pedestal
Mount
Whelen Freedom IV
81” led lightbar
FireTech 3-Piece 12V
Brow
FireTech 12V Scene
Led
Whelen M9 Red
Led
FRC 12V Spectra
Led brow light
