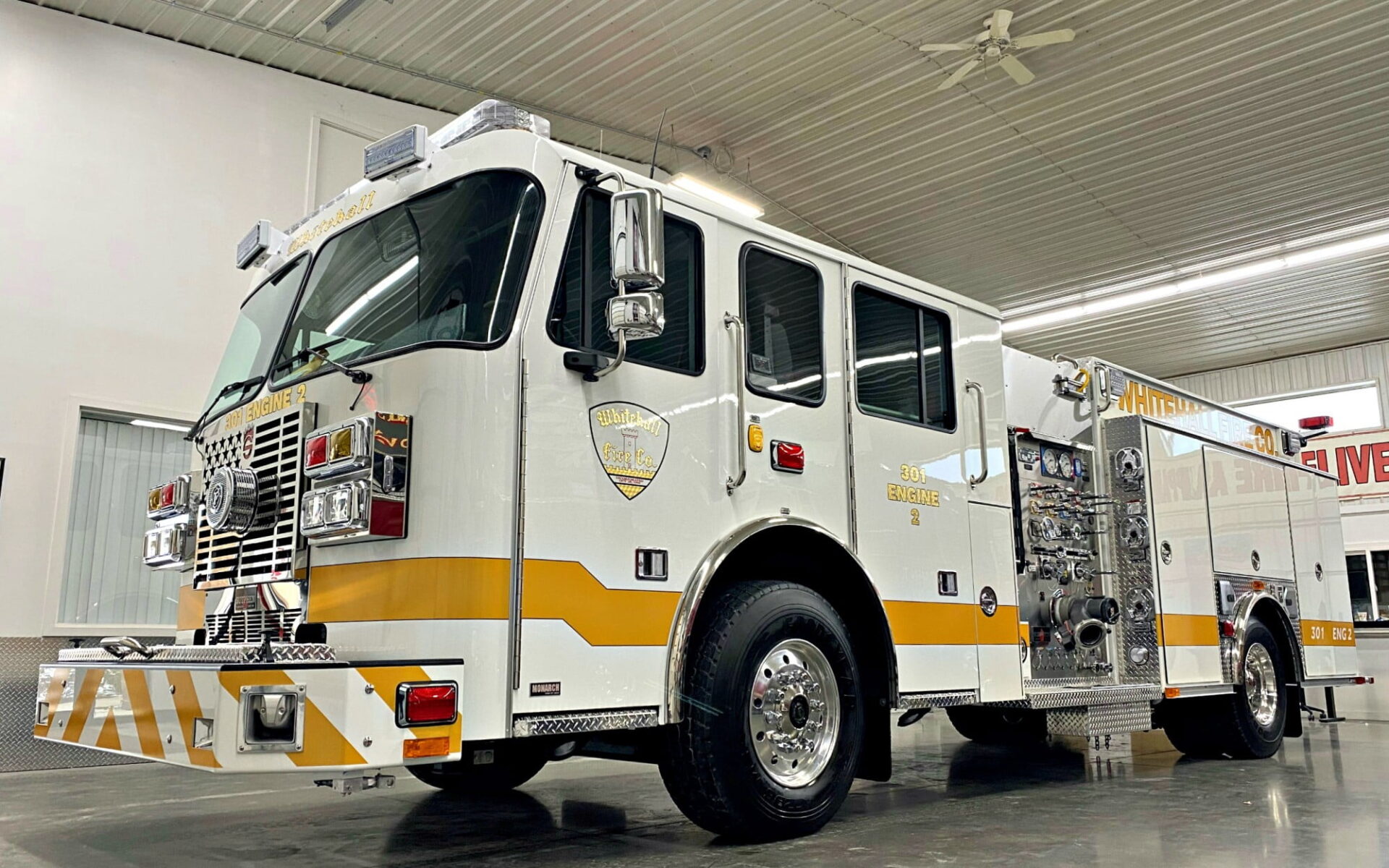

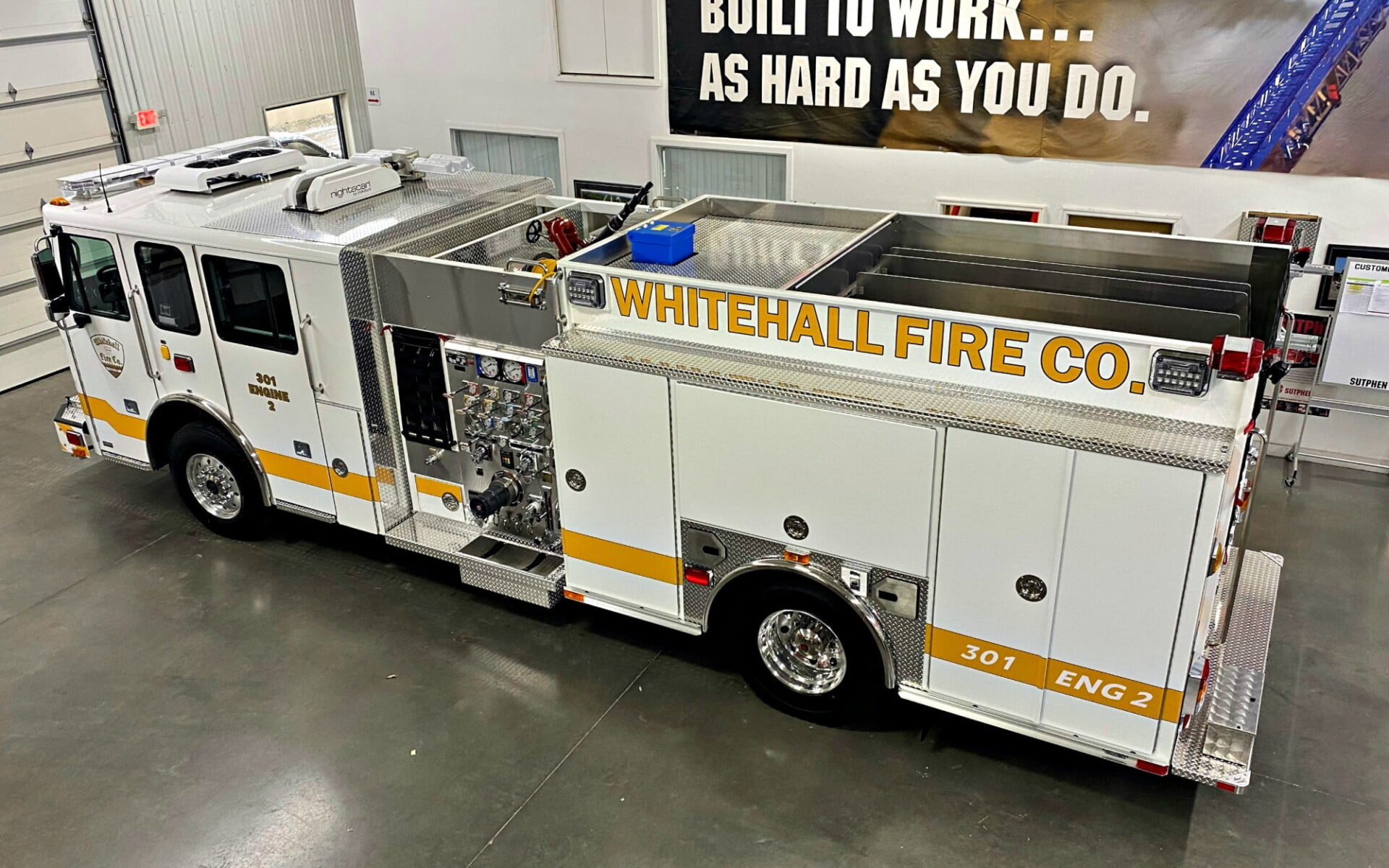

Custom Pumper – Whitehall Fire Department, PA

Truck Type:
Sutphen Heavy-Duty Custom Pumper
Dealer:
Sutphen
Location:
Pittsburgh, PA
Department:
Whitehall Fire Department

Specs

Cab
Four-door, seven-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
24,000 lbs
Engine
Cummins L 9, 450HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 5, EVS3000

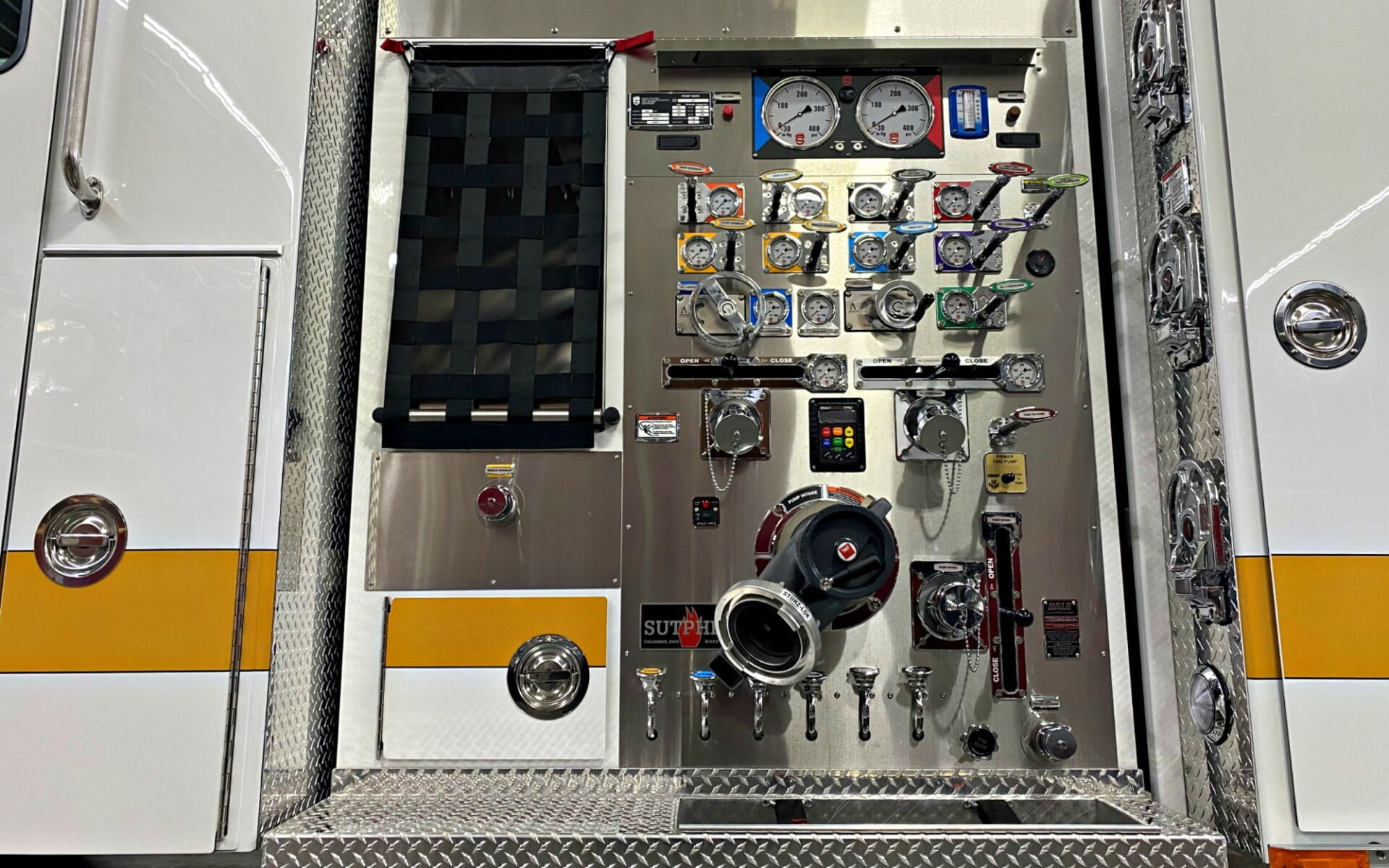

Water Pump
Qmax-2000 gpm, single stage pump
Discharges
(2) 2 ½” Left, 4” Right, (2) 3” Right, (1) 1 ½” Left, (1) 1 ½” Right, (1) 3” Front/Right of Main Hosebed, (1) 3” Right Rear, (1) 3” Deck Gun
Speedlays
(2) 1 ½” w/ Lift Out Tray & (1) 2 ½” Speedlay w/ Lift Out Tray
Water Tank
750-gallon
Construction
3/16” extruded aluminum

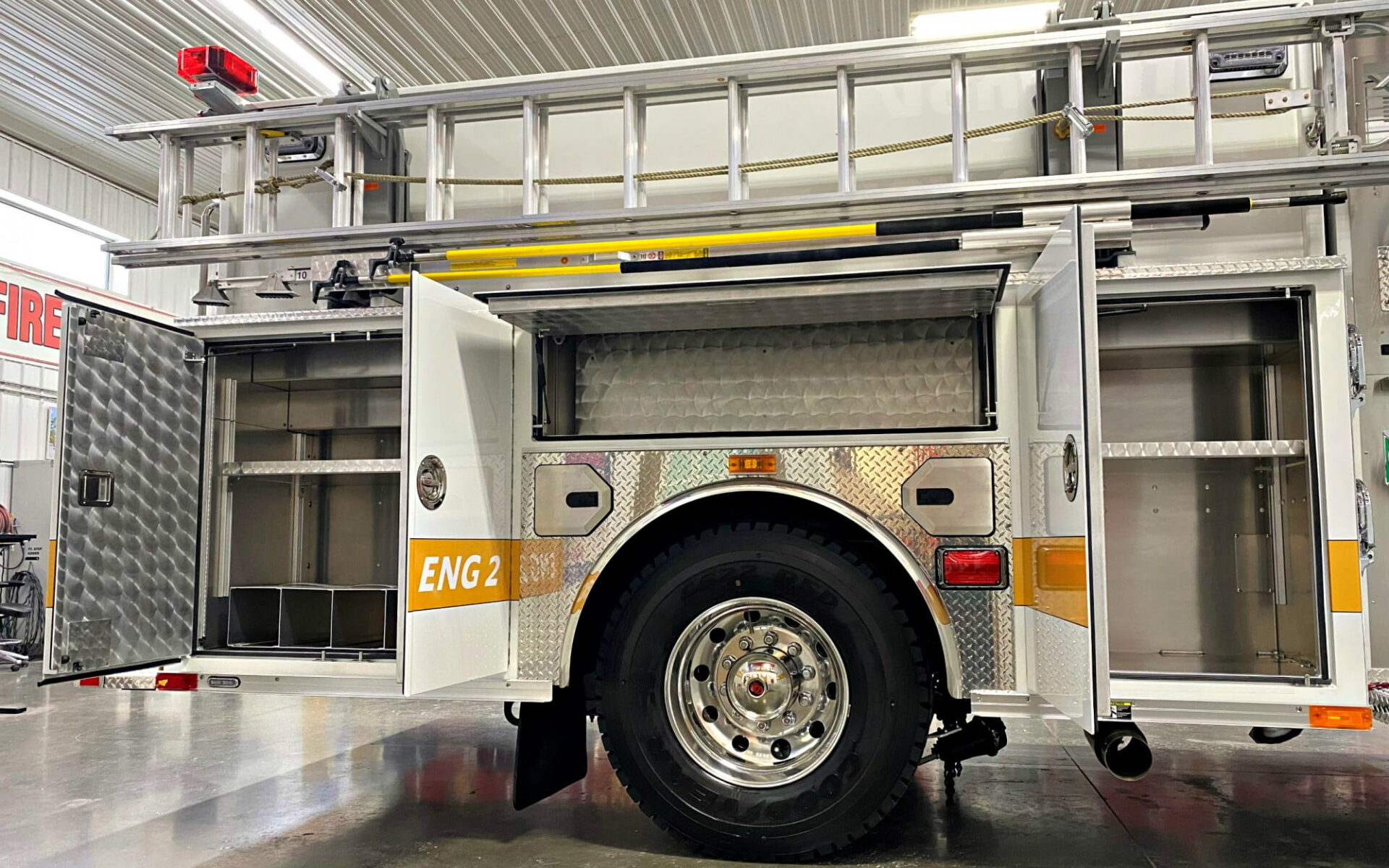

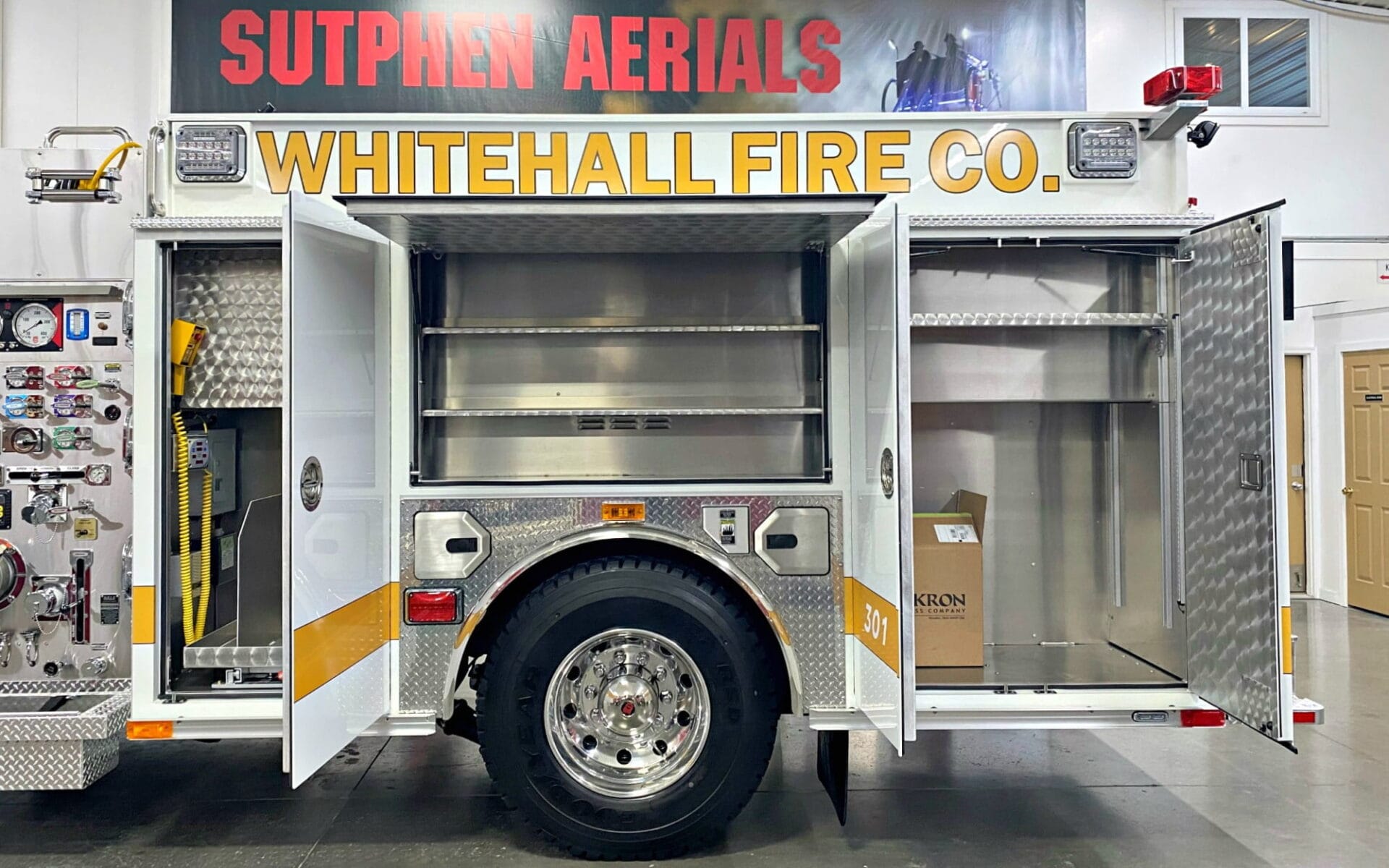

Doors
Hinged compartment
Total Compartment Space
Over 215 cu. ft.

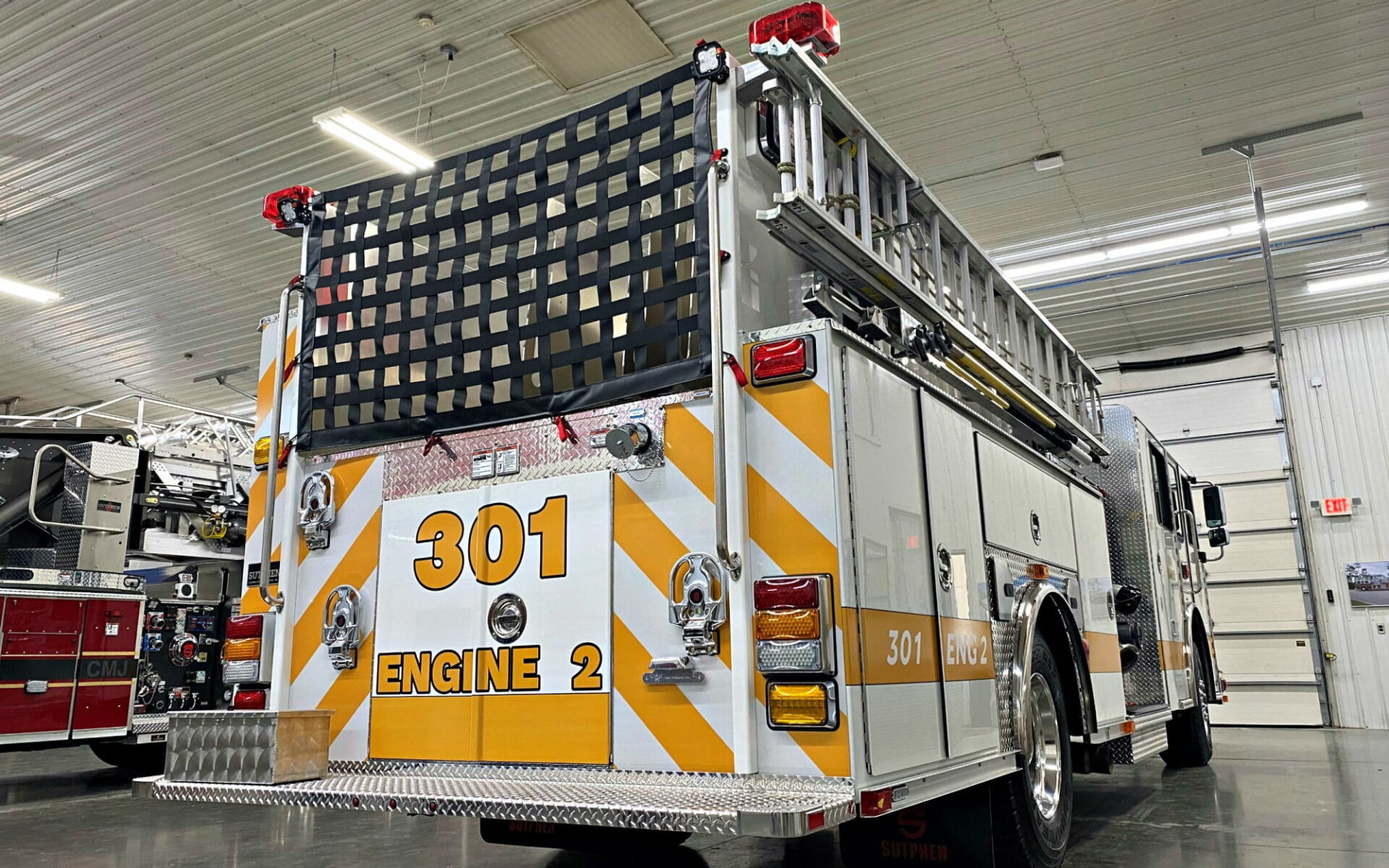

Ladder Compliment
Alco-lite ladder package (pel-24 24’ 2-section & prl-14 14’ roof &10’ folding)
Body
PA-08 – 35/48 MID RGT (Elec Rack/BRKT)
Bumper Extension
18” formed steel channel
Siren
Federal q2b , grille mount
Power
Hannay electric cord reel, 150’ (2)
Wheel Chocks
Ziamatic quic-lift electric ladder rack
Generator
Smart Power 10KW
Light Tower
Will Burt NS2.3-6000 w/ 4 FRC 1500-Watt Optimum Lamps
Whelen Freedom 81”
Light bar
Whelen McFled Beacons
Included
FR Spectra Brow
Lights
HiViz GESM Scene
Lights
