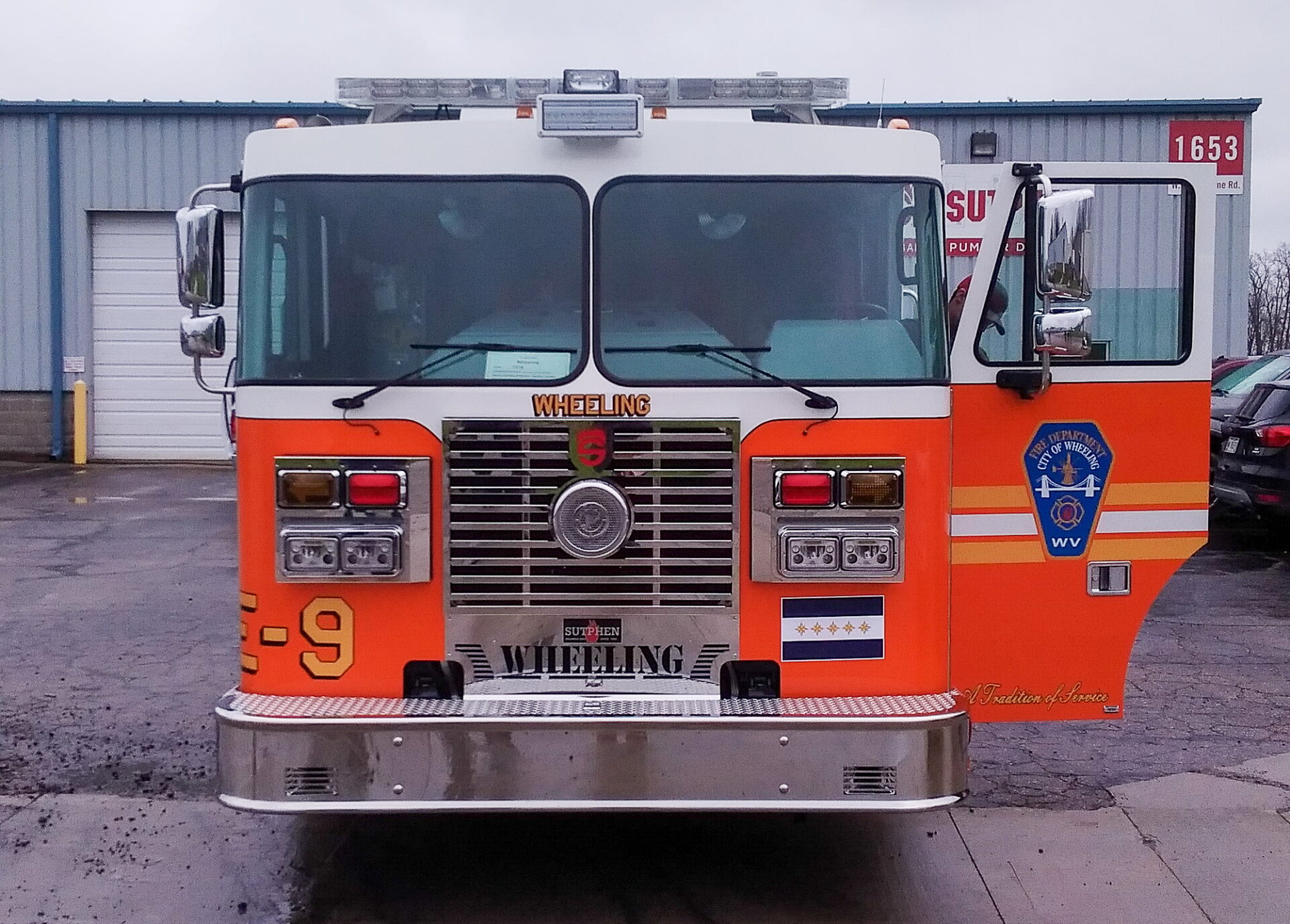

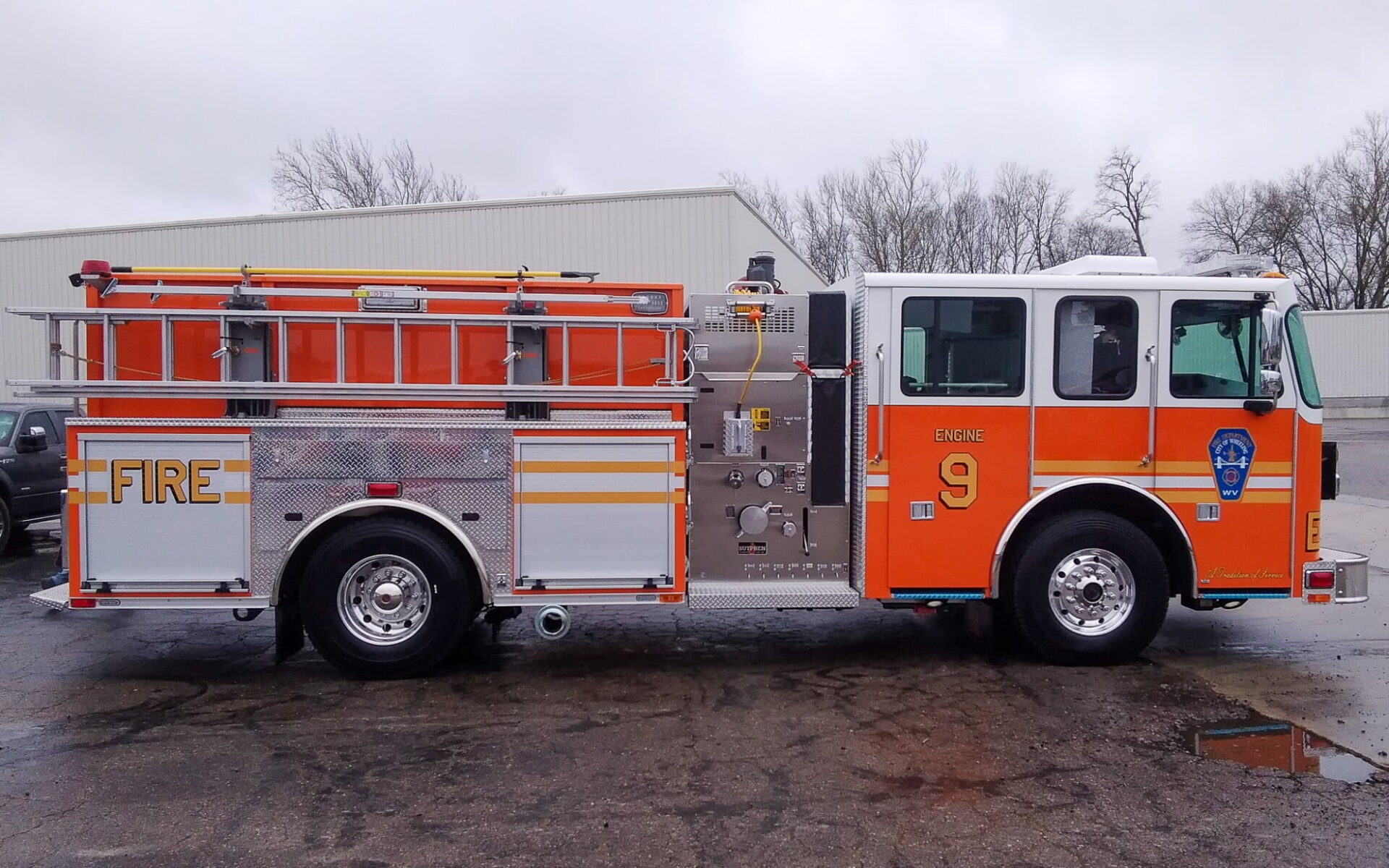

Custom Pumper – Wheeling Fire Department, WV

Specs

Cab
Four-door, four-person
10” Single Frame
Rails (50k psi)
Front Axle and Suspension
18,000 lbs
Rear Axle and Suspension
24,000 lbs
Engine
Cummins L 9 450HP
Alternator
Leece Neville 270 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Xs-qmax 1,750 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Right of Main Hosebed, (1) 3” Deck Gun
Water Tank
500 -gallon
Construction
3/16” extruded aluminum
Doors
Rom roll-up compartment
Total Compartment Space
150 cu. ft.
Duo-Safety Ladder Package
900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
Body
G5 – 43/43
Bumper Extension
12” polished stainless steel bumper
Siren
Federal q2b , grille mount
Hannay Electric Cord Reel
150’ (1)
Generator
Smart Power 6KW
Wheel Chocks
Ziamatic quick lift electric ladder rack
FRC Spectra Brow
Light
FRC Spectra 240V
Led scene lights
Whelen Freedom LED
Lightbar
Whelen M9 Scene
Lights
Whelen LED Traffic
Advisor
