Custom Pumper – Westerville Division of Fire, OH

Truck Type:
Sutphen Heavy-Duty Custom Pumper
Dealer:
Sutphen
Location:
Westerville, OH
Department:
Westerville Division of Fire

Specs

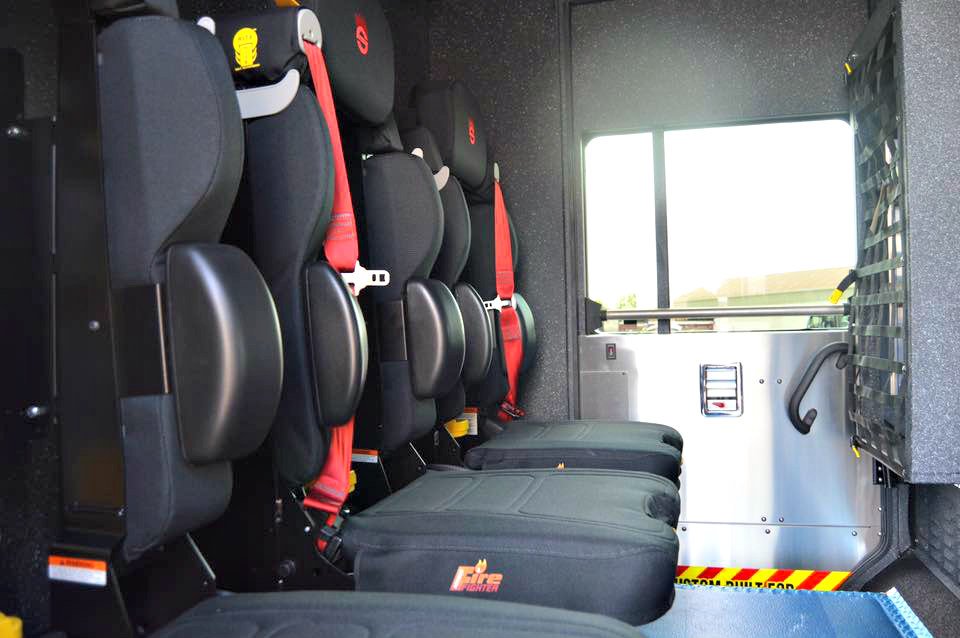

Cab
Four-door, five-person
10” Double Rails
(50k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
31,000 lbs
Engine
Cummins ISX 12, 500 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS4000
CSU-1500 GPM, Single
Stage
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Water Tank
600-gallon
Water Tank
30-gallon foam tank
Waterous Aquis 3.0
Foam system
Construction
3/16” extruded aluminum
Doors
Rom roll-up compartment
Total Compartment Space
Over 460 cu. ft. of compartment space
Ladder Compliment
Alco-lite ladders (24’ 2-section, 14’ roof, 10’ folding
Bumper Extension
30” , 6” raised lid
Safety Vision SV-CLCD0-70
Camera system
Whelen Traffic Advisor
Included
Siren
Federal q2b
Power
Harrison 10kw generator
Power
Hannay electric cord reel, 150’ (2)
Pike pole Storage
Tubes (3)
Siren
Whelen 295hfs2
