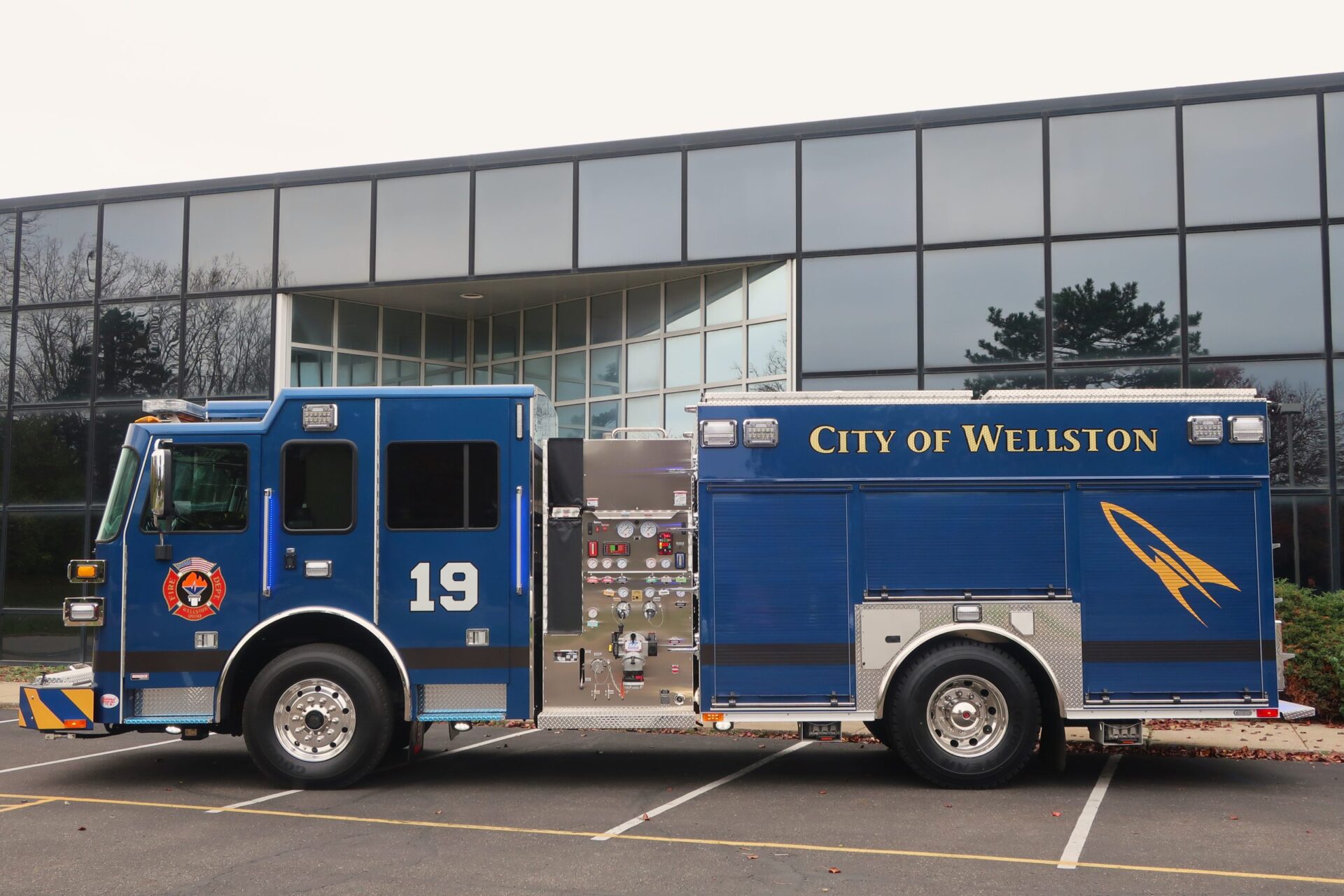

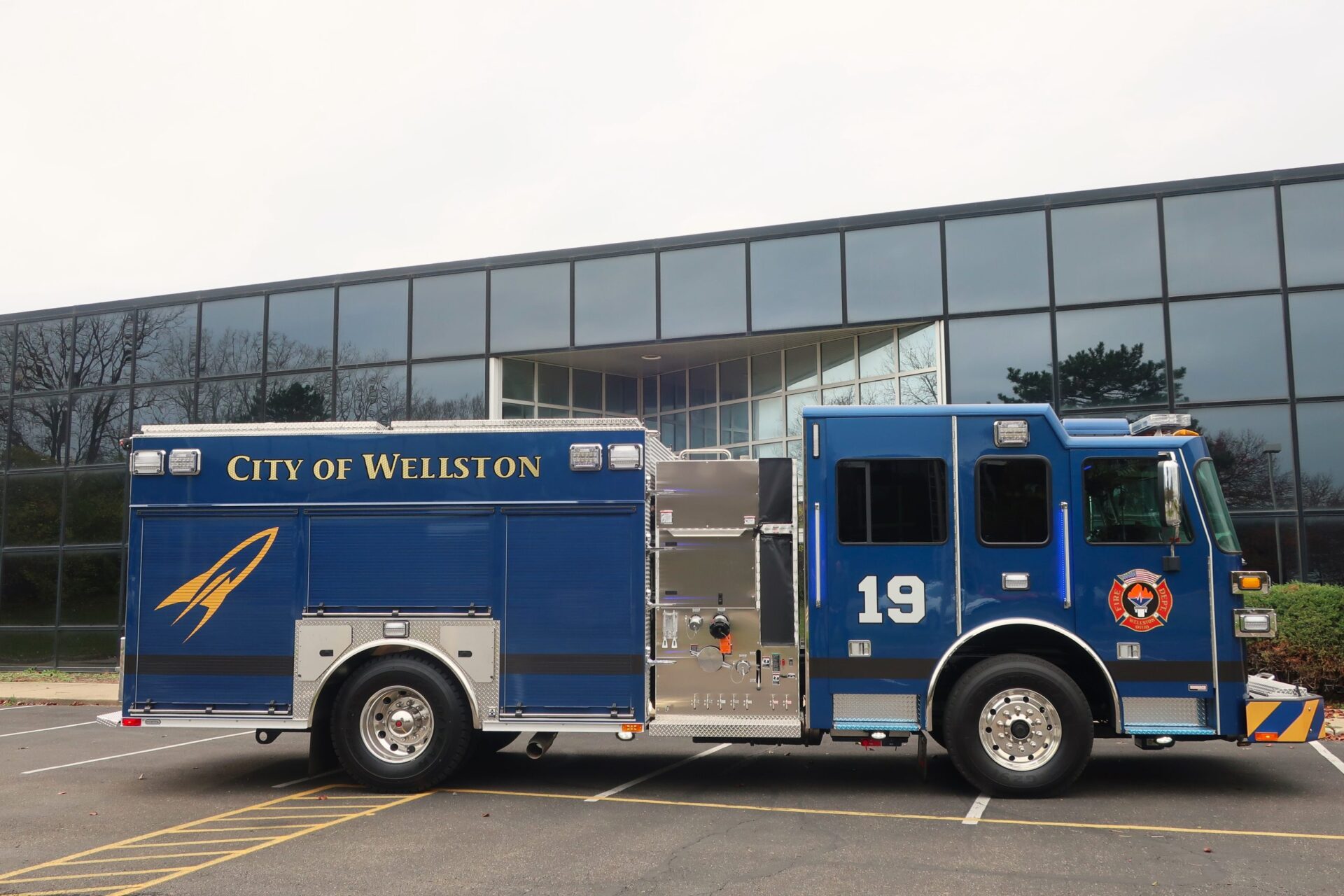

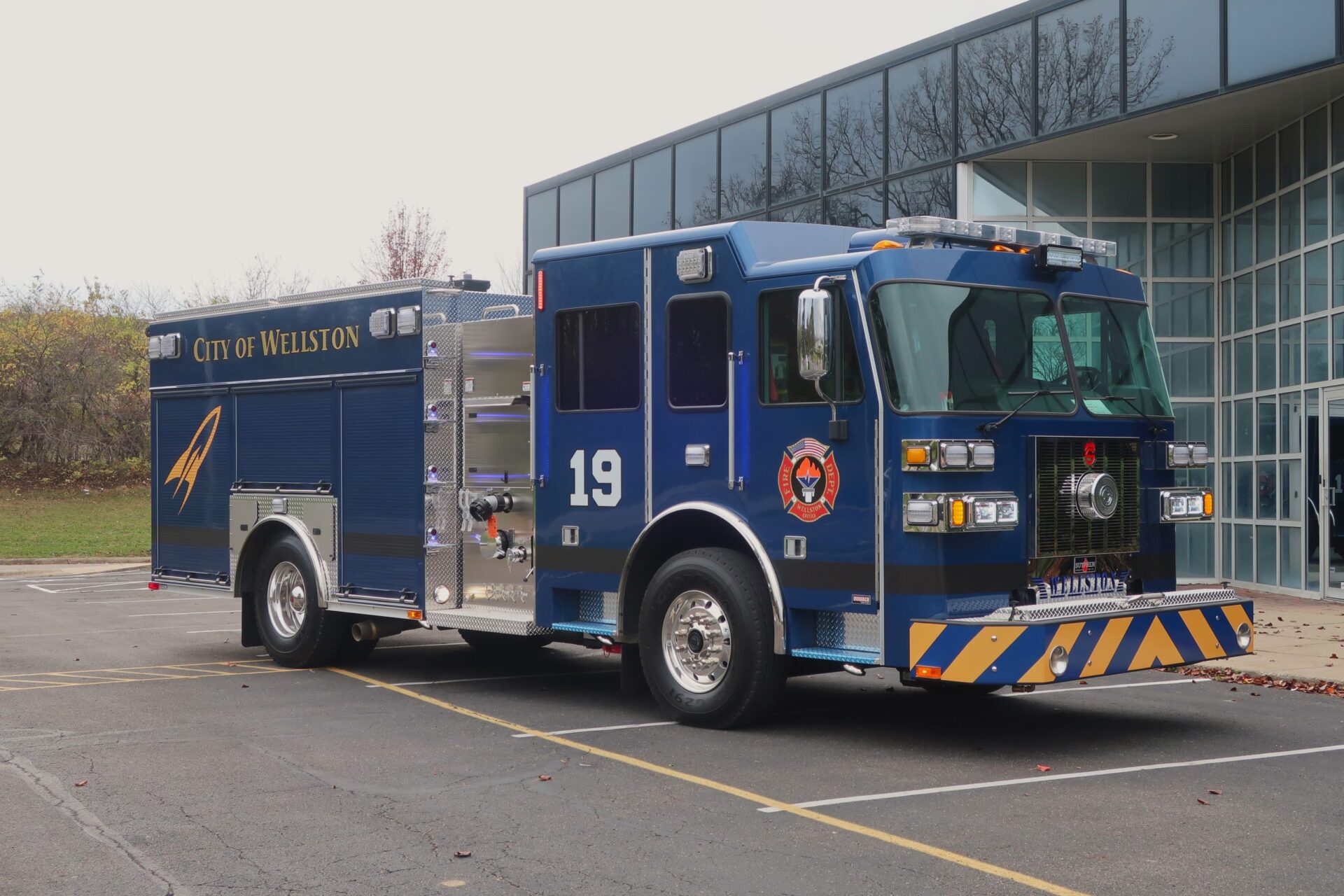

Custom Pumper – Wellston Fire Department, OH

Specs

Cab
Four-door, five-person
10” Double Frame
Rails, single axle (50k psi)
Front Axle and Suspension
18,000 lbs w/ (3) 56” leafs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9, 450HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax xs 1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper w/ 2” Plumbing, (1) 3” Deck Gun
Crosslay
(1) 2 ½”
Speedlays
(2) 2” w/ Swivels & Poly Lift-Out Trays
Water Tank
1000-gallon
Water Tank
20-gallon foam tank
Foam System
Hale SmartFoam 2.1 A
Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment
Total Compartment Space
Nearly 300 cu ft.
Duo-Safety Ladder Package
900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
Body
G2 – Alum 40/51 Lad Chute
Bumper Extension
18” formed steel channel bumper
Siren
Federal q2b , grille mount
Camera System
FRC, Inview Trueview, Single Camera (Wired)
Whelen Freedom LED
Lightbar
FireTech Hosebed Lights
Included
FRC Spectra Brow
Light
FireTech Guardian Scene
Lights
