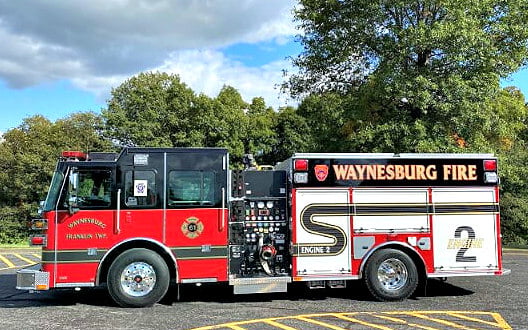

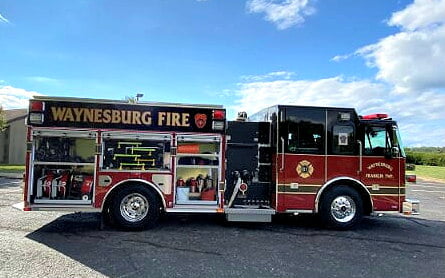

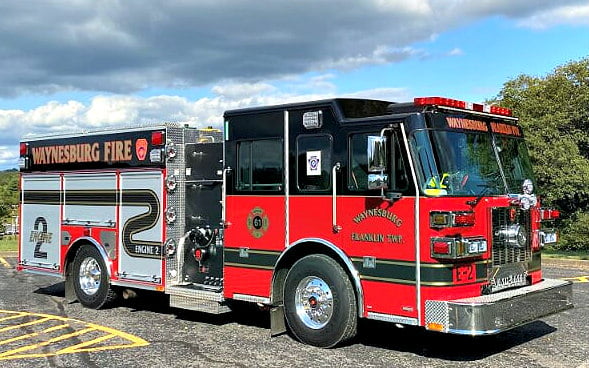

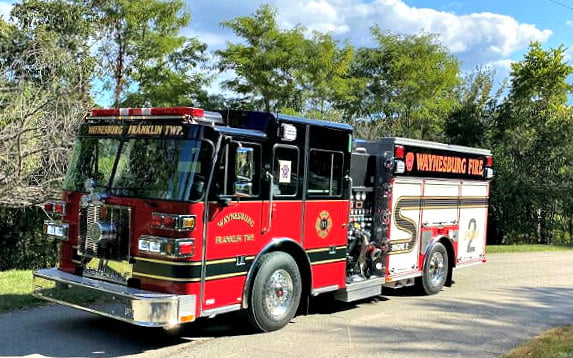

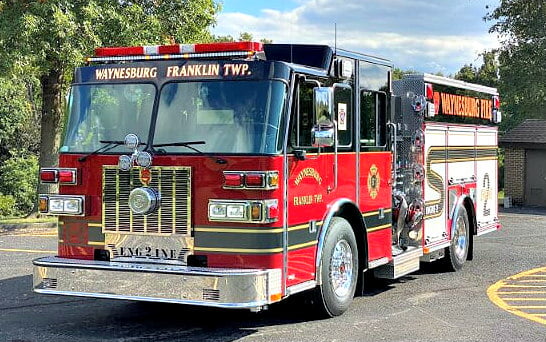

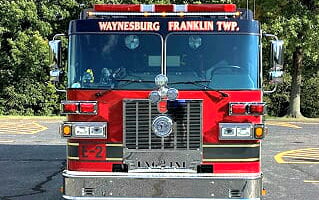

Custom Pumper – Waynesburg VFD, PA

Specs

Cab
Four-door, six-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 5, EVS 3000
Water Pump
Xs qmax 2000 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (2) 2 ½” Front/Left of Main Hosebed, (1) 3” Deck Gun
Crosslay
(1) 2 ½”
Speedlay
(2) 2” w/ Swivels and Poly Lift-Out Trays
Monitor
Elkhart Cobra EXM Monitor Package
Water Tank
1,000-gallon
Water Tank
30-gallon foam tank
Water Tank
20-gallon foam tank
Foam System
Hale Smartfoam 5.0 – Class A & B
Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment
Total Compartment Space
222 cu. ft.
Ladder Compliment
Alco-lite ladder package (pel-24 24’ 2-section & prl-14 14’ roof & 10’ folding)
Ladder Compliment
Ladder chute with backboard storage
Body
G2-Alum 40/51 Ladder Chute
Bumper Extension
12” polished stainless steel
Siren
Federal q2b , grille mount
Camera System
FRC, Inview Trueview, Single Camera
Intercom System
Firecom Two-Position Wireless
Roto-Ray Warning Light
Included
Whelen Freedom IV
72” led lightbar
Whelen 900 Warning
Light
Whelen LED Traffic
Advisor
Hi-Viz FT-B 72”
Brow light
Hi-Viz FT-GESM Scene
Light
