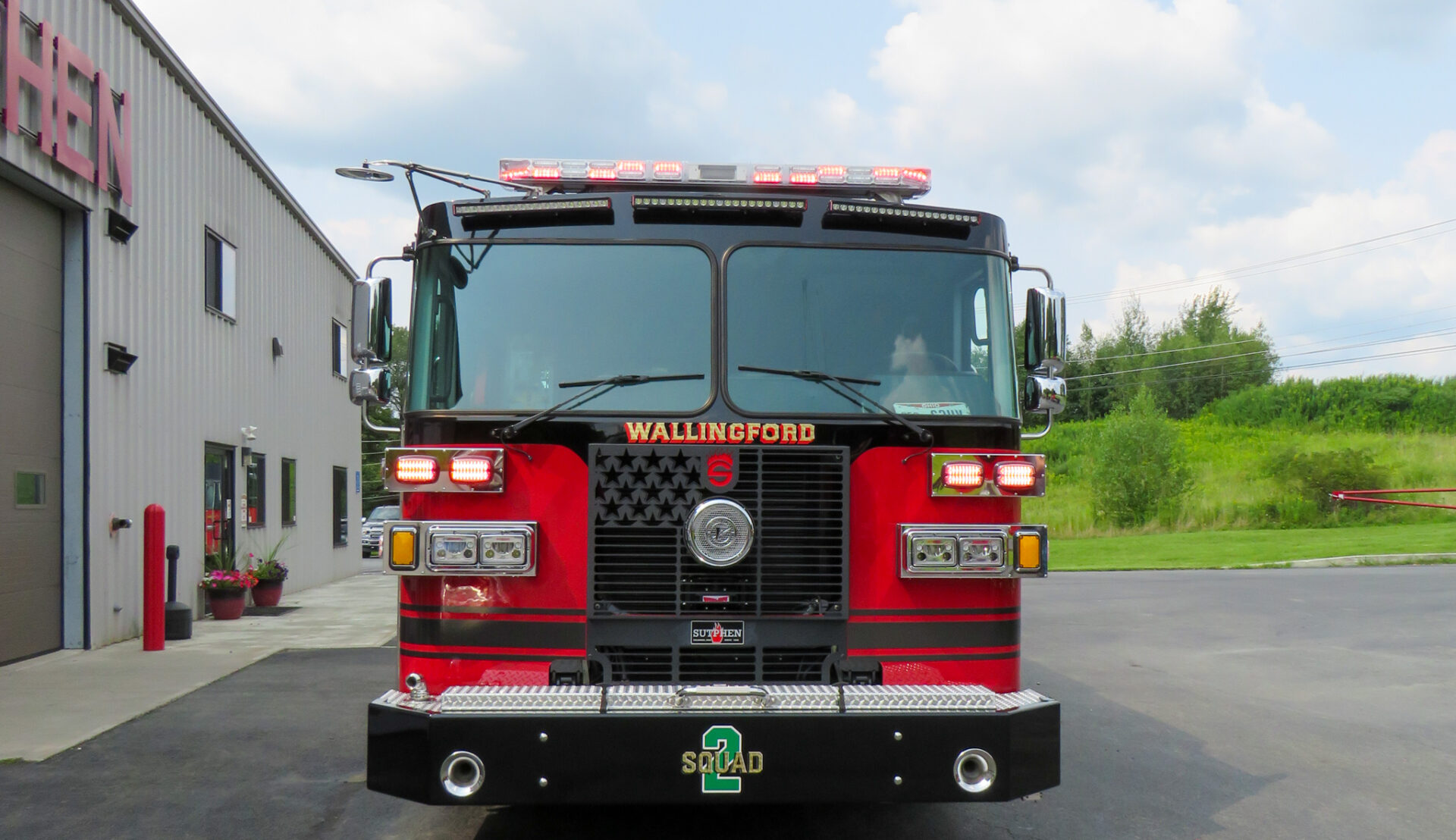

Custom Pumper – Wallingford Fire Department, CT

Location:
Wallingford, CT
Department:
Wallingford Fire Department

Specs

Cab
Four-door, four- person
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins X 12 455HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 5, EVS4000
Water Pump
Qmax-xs-1500 gpm, 6” suction single stage pump
Discharges
(1) 2 ½” Left, (1) 2 ½” Right, (1) 4” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Speedlay
(2) 1 ¾” Speedlay w/ Lift Out Tray & (1) 2 ½” Speedlay w/ Lift Out Tray
Water Tank
750-gallon
Construction
3/16” extruded aluminum
Doors
Amdor roll up compartment
Total Compartment Space
Over 460 cu. ft. of compartment space
Alco-Lite PEL-24 24’
2-section & prl-14 14’ roof & 10’ folding
Body
PA-16 RES 56/53 Lad Under Hosebed & Double Hatch
Bumper Extension
18” formed steel channel,
Siren
Federal q2b , grille mount
Camera System
FRC, Inview Trueview, Single Camera
Whelen Freedom IV
72” led lightbar
Opticom Mounted in
Lightbar
FireTech 3-Piece 72”
Led brow light
Whelen EZM9 LED
Scene lights
