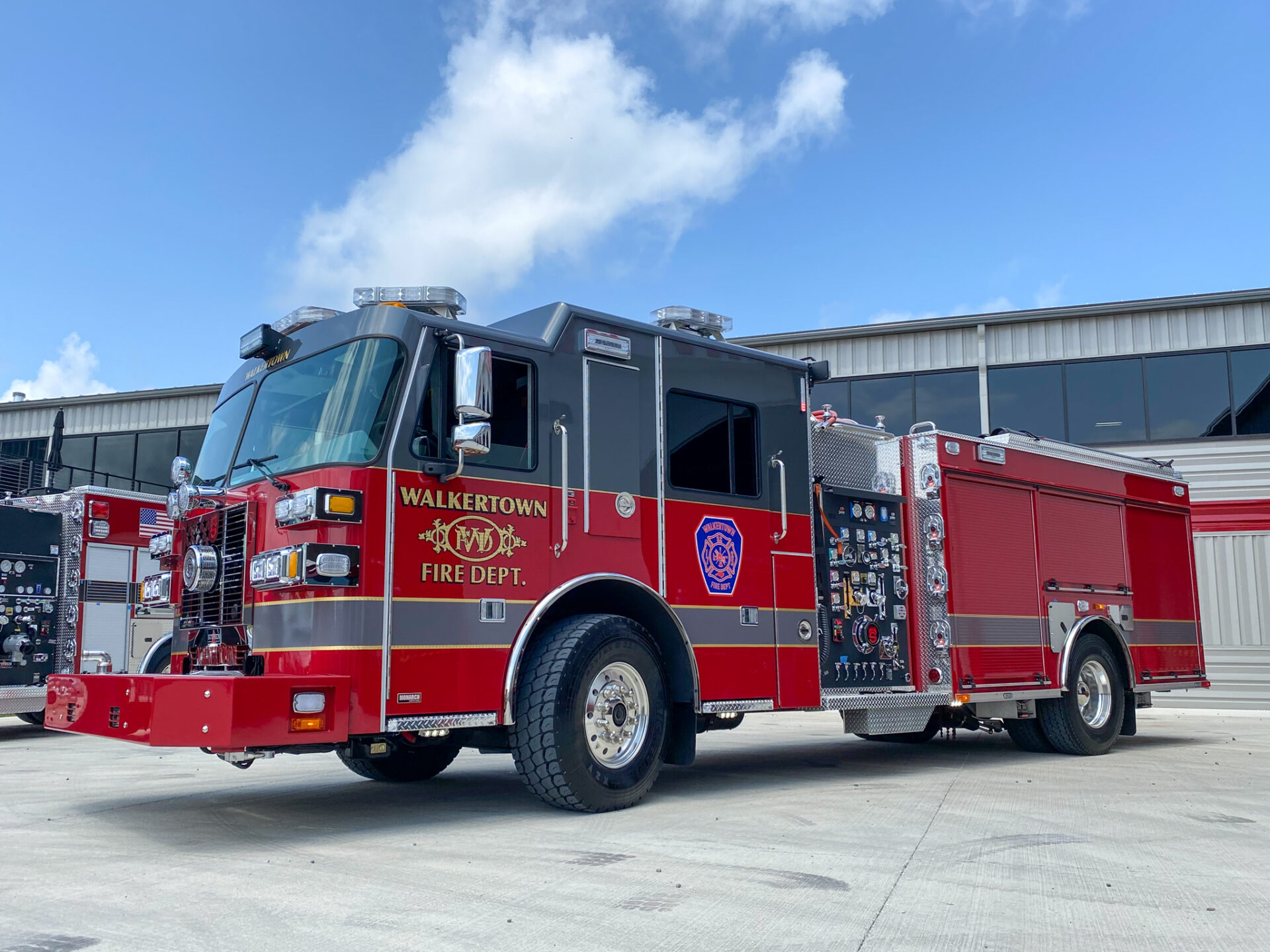

Custom Pumper – Walkertown Fire Department, NC

Specs

Cab
Four-door, five-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
21,000 lbs.
Rear Axle and Suspension
31,000 lbs.
Engine
Cummins X 12, 500HP
Alternator
Leece Neville 320 AMP
Transmission
Allison Gen 5, EVS4000

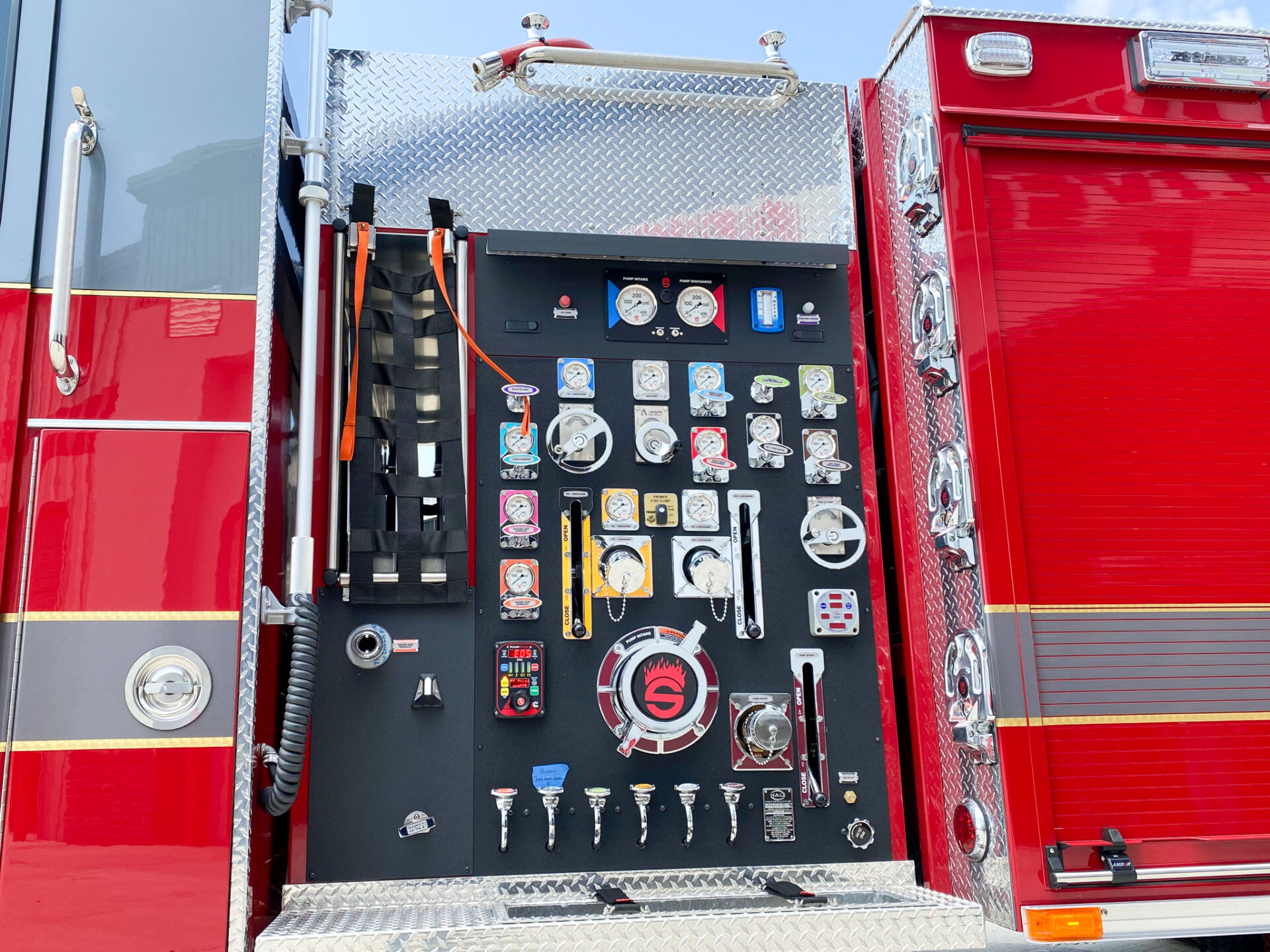

Water Pump
Qmax-xs-1500 gpm, single stage pump
Discharge
(2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (2) 2 ½” Front/Right of Main Hosebed, (2) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front Bumper, 3” Deck Gun
Speedlay
(2) 1 ½” Speedlays w/ Lift-Out Trays
Water Tank
1,000-gallon
Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment
Total Compartment Space
Over 198 cu. ft.
Duo-Safety Ladder Package
900A 24’ 2-Sec & 775A 14’ Roof & 10’ Folding
Body
PA-11 Res 54/53 Low Right, Electric Rack, Modified Heights for Side Compartments Both Sides
Bumper Extension
24” formed steel channel,
Siren
Federal q2b , grille mount
Power
Hannay electric cord reel, 175’ (1)
Generator
Smart Power, 6KW TM HYD
Camera System
Brigade, Two Camera
Roto Ray Warning
Light
(3) Whelen Freedom
Iv 23.25” led light bars
FRC 12V Spectra
Led brow light
FRC 12V Spectra
Tele lights
