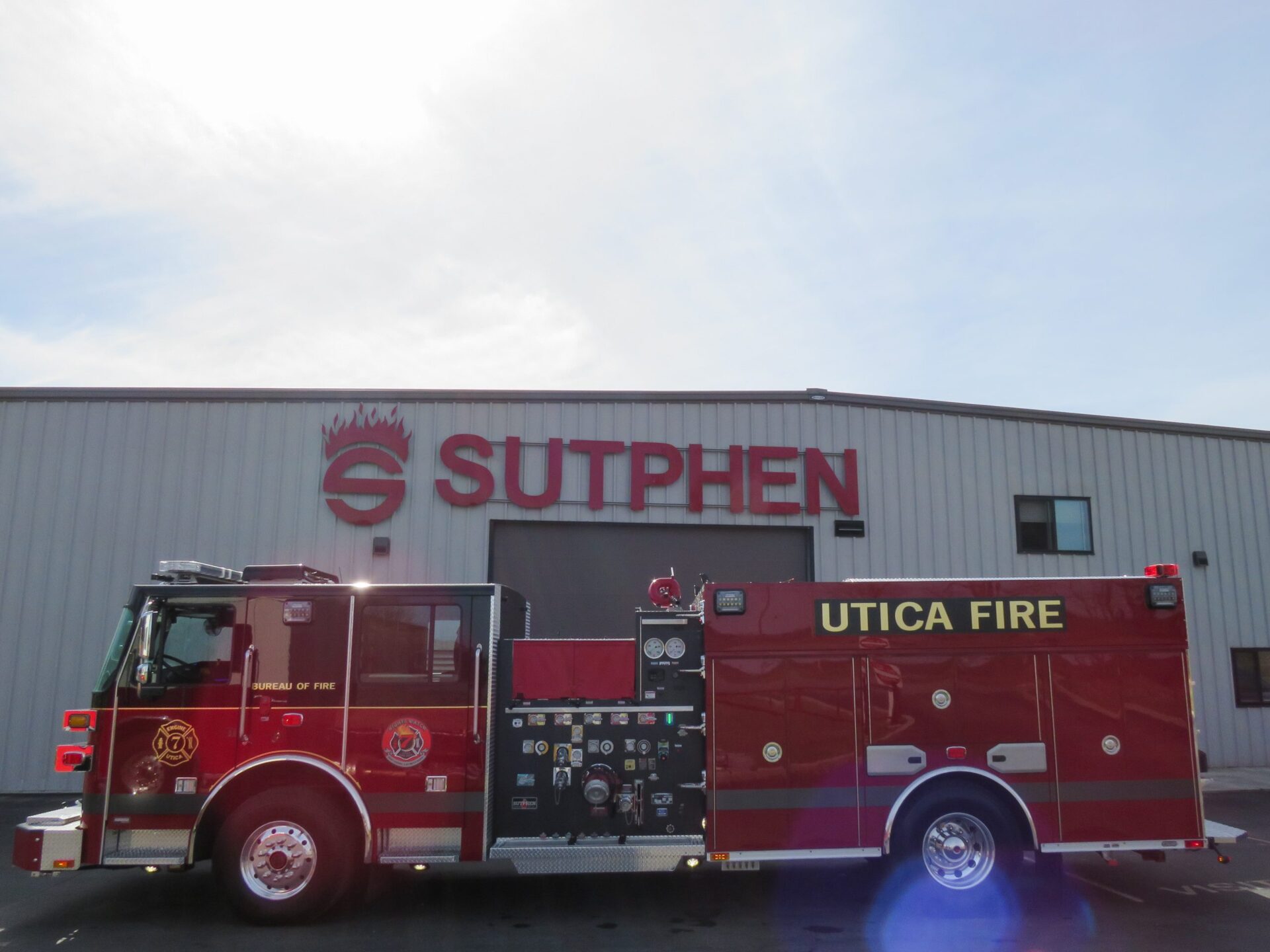

Custom Pumper – Utica Fire Department, NY

Specs

Cab
Four-door, four-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9, 450HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 5, EVS3000
CSU-1500 GPM, Single
Stage
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Crosslays
(4) 2 ½” Crosslay, 2 ½” Swivel
Water Tank
750-gallon
Construction
Huckbolt #304 stainless steel
Doors
Hinged compartment , painted
Total Compartment Space
Over 290 cu ft.
Duo-Safety Ladder Package
900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
Body
PA-09 RES 50/47 Ladder Chute & Hatch
18” Formed Steel
Channel, painted
Siren
Federal q2b , grille mount
Camera System
Intec, Single Camera
Whelen Freedom IV
72” led lightbar
Whelen LED MCFLED
Beacons
FireTech 1-Piece 72”
Led brow light
FireTech Guardian Elite
12v scene lights
FireTech Guardian Junior
Scene lights
