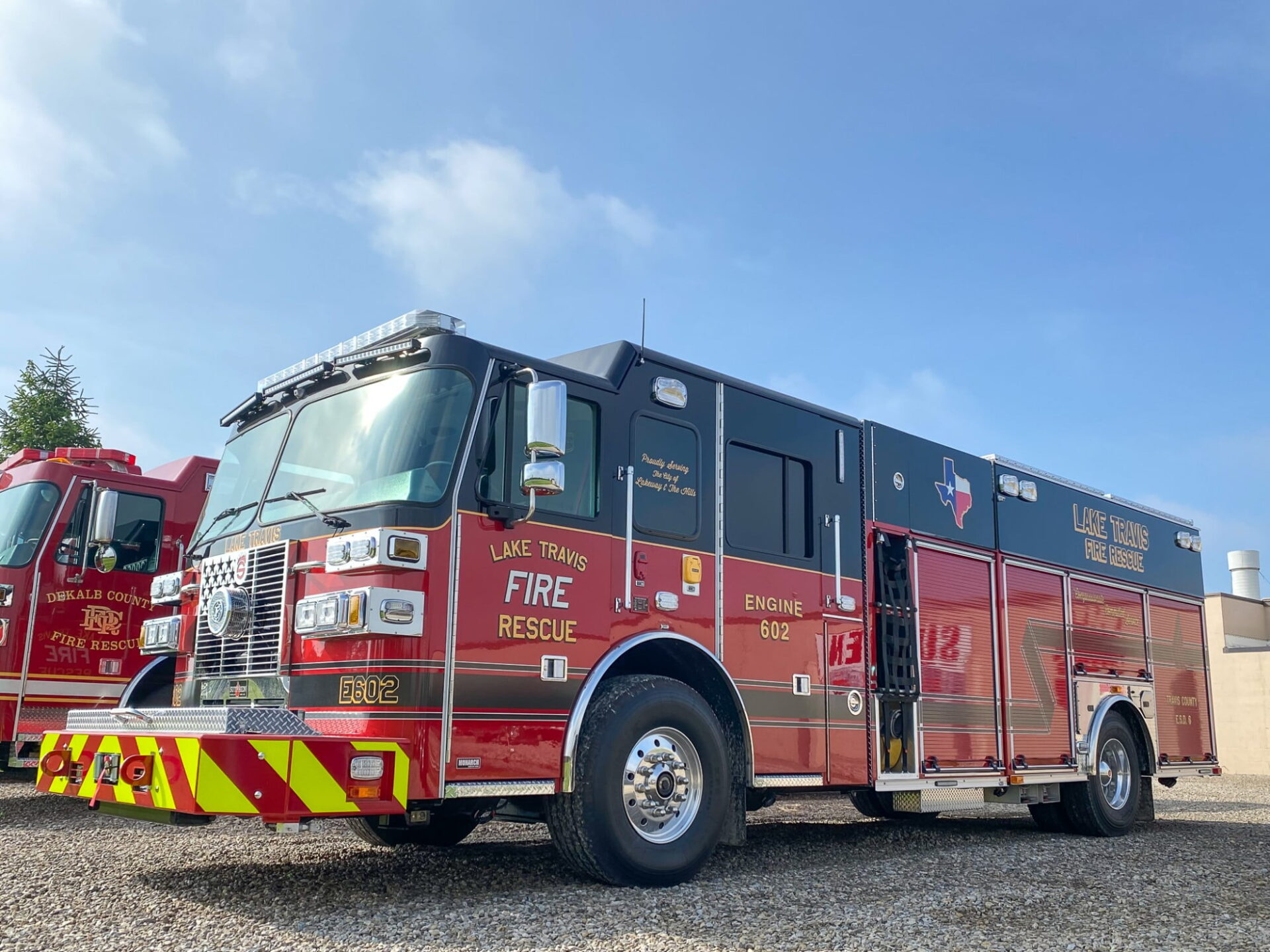

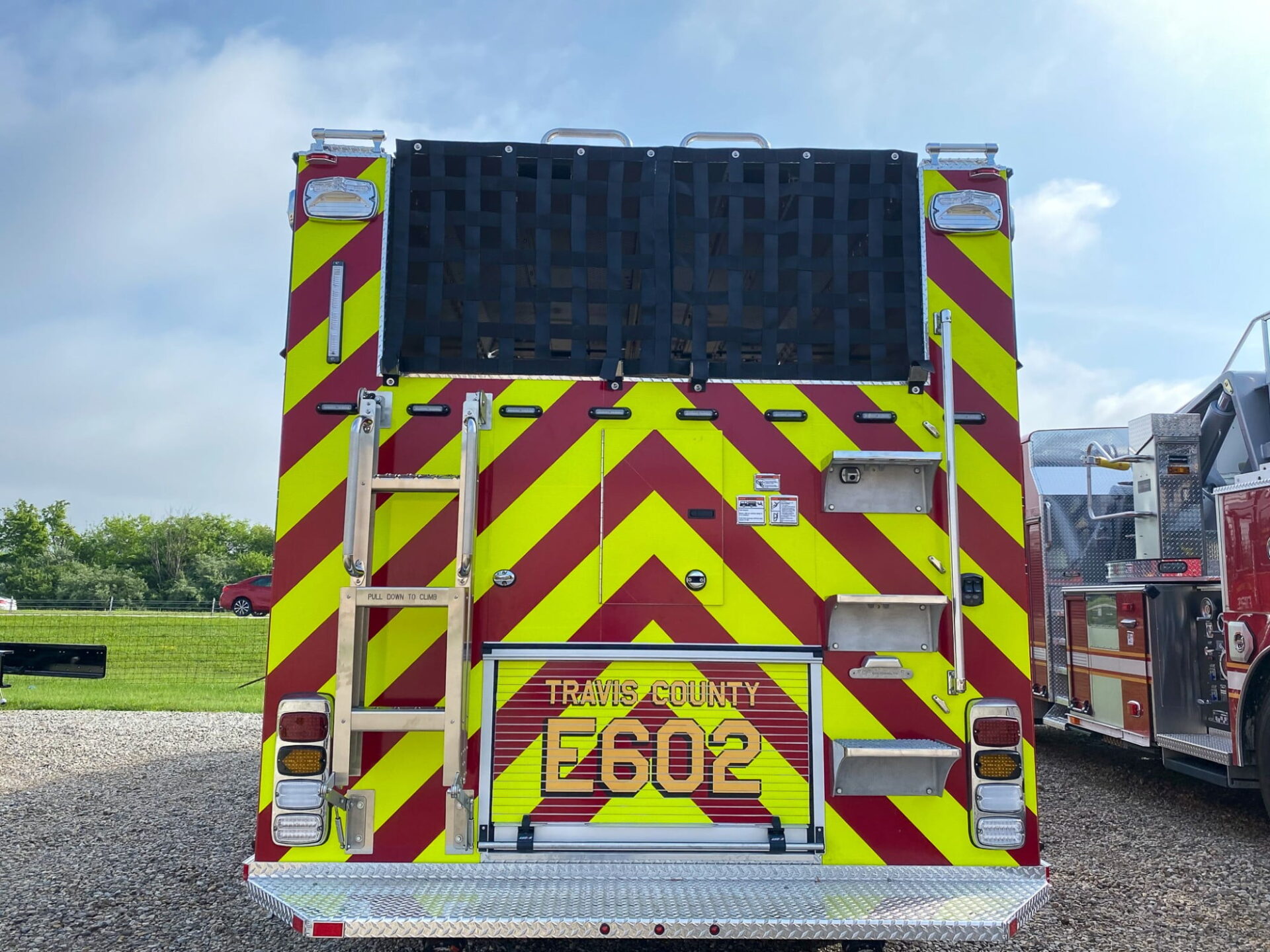

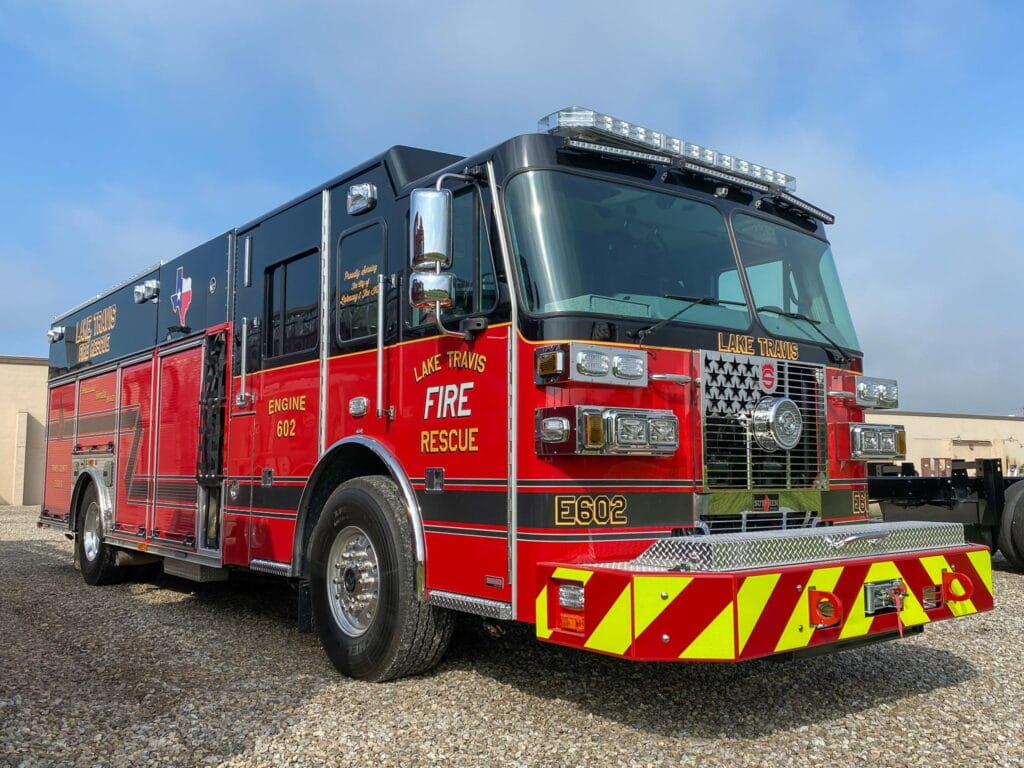

Custom Pumper – Travis County ESD #6, TX

Truck Type:
Sutphen Heavy-Duty Custom Pumper
Dealer:
Sutphen
Location:
Austin, TX
Department:
Travis County ESD #6

Specs

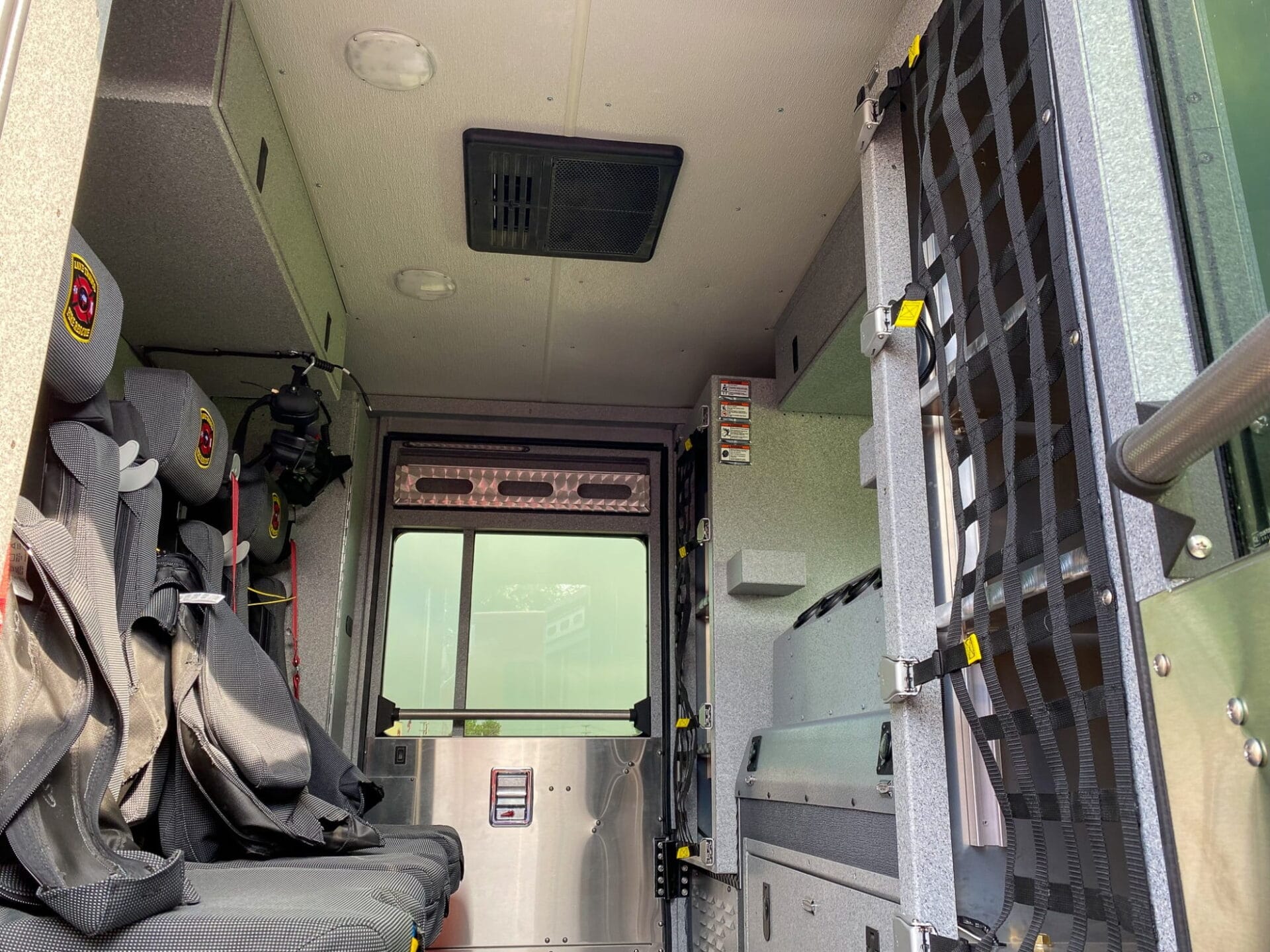

Cab
Four-door, five-person
10” Double Frame
Rails, domex (110k psi)
Front Axle and Suspension
21,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins X 12, 500HP
Alternator
C.E. Niehoff 360 AMP
Transmission
Allison Gen 5, EVS4000

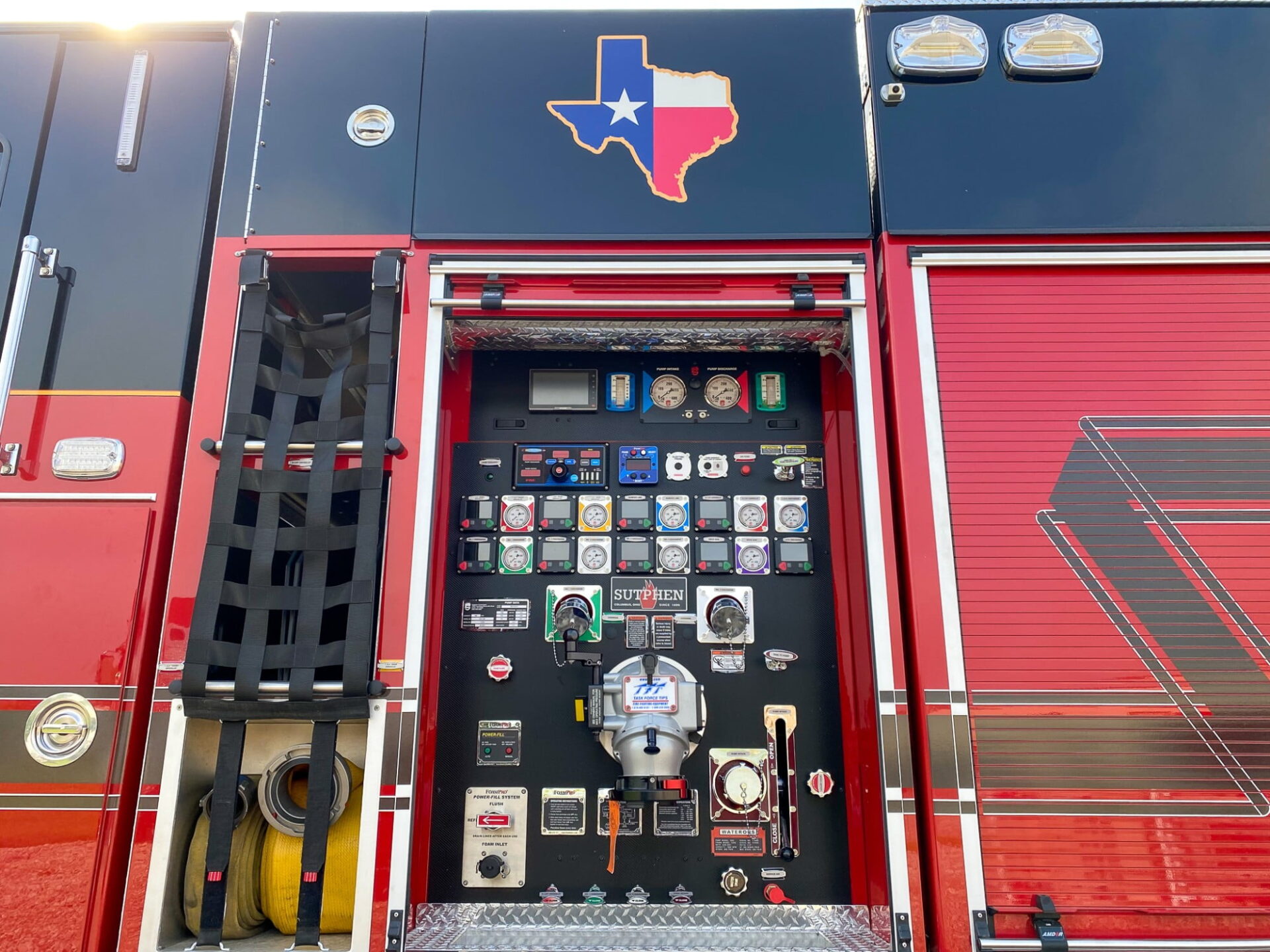

Water Pump
Csu-1500 gpm single stage pump
Discharges
(2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Speedlays
(2) 1 ½ ” w/ Liftout Tray & (1) 2 ½” w/ Liftout Tray (SM)
Water Tank
750-gallon
Water Tank
20-gallon foam tank
Foam System
Foampro 2002, 5.0 GPM
Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment , painted finish
Total Compartment Space
Over 295 cu. ft.
Alco-Lite Ladder Package
Pel-24 24’ 2-Section & DRL-14 14’ Roof & 10’ Folding
Body
PA-19 Res 43/53 Ladder Chute Through Tank, Upper Hatch Body Compts
24” Formed Steel
Channel, painted
Siren
Federal q2b , grille mount
Camera System
Brigade, Backeye 360, Wired
Intercom System
Wireless, Setcom, 5 Position
Whelen Freedom IV
(16) 72” led lightbar
Whelen Ion Trio
Traffic advisor
Firetech 72” 3-piece
12v brow
Whelen M9V2 12V
Led scene
