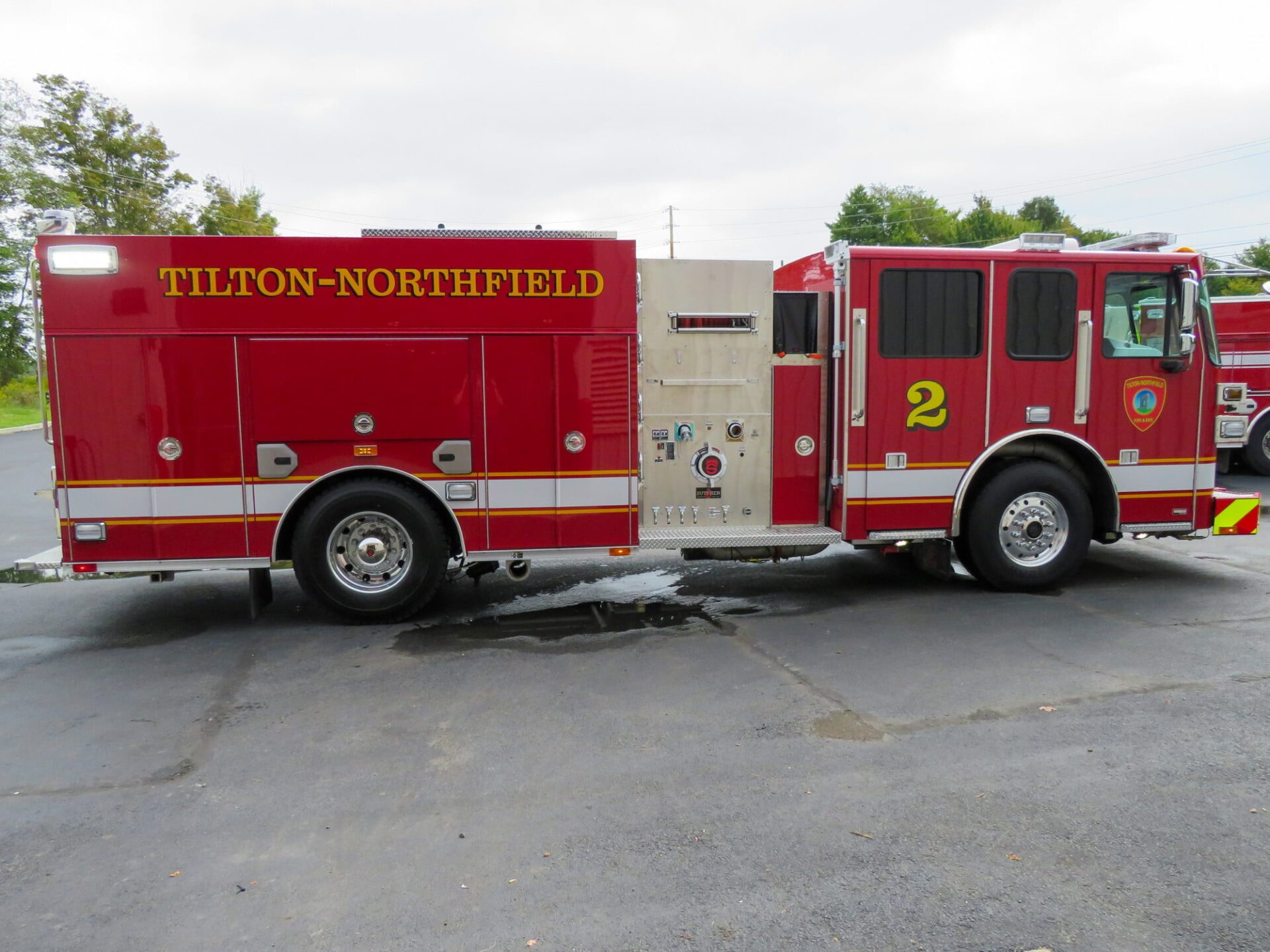

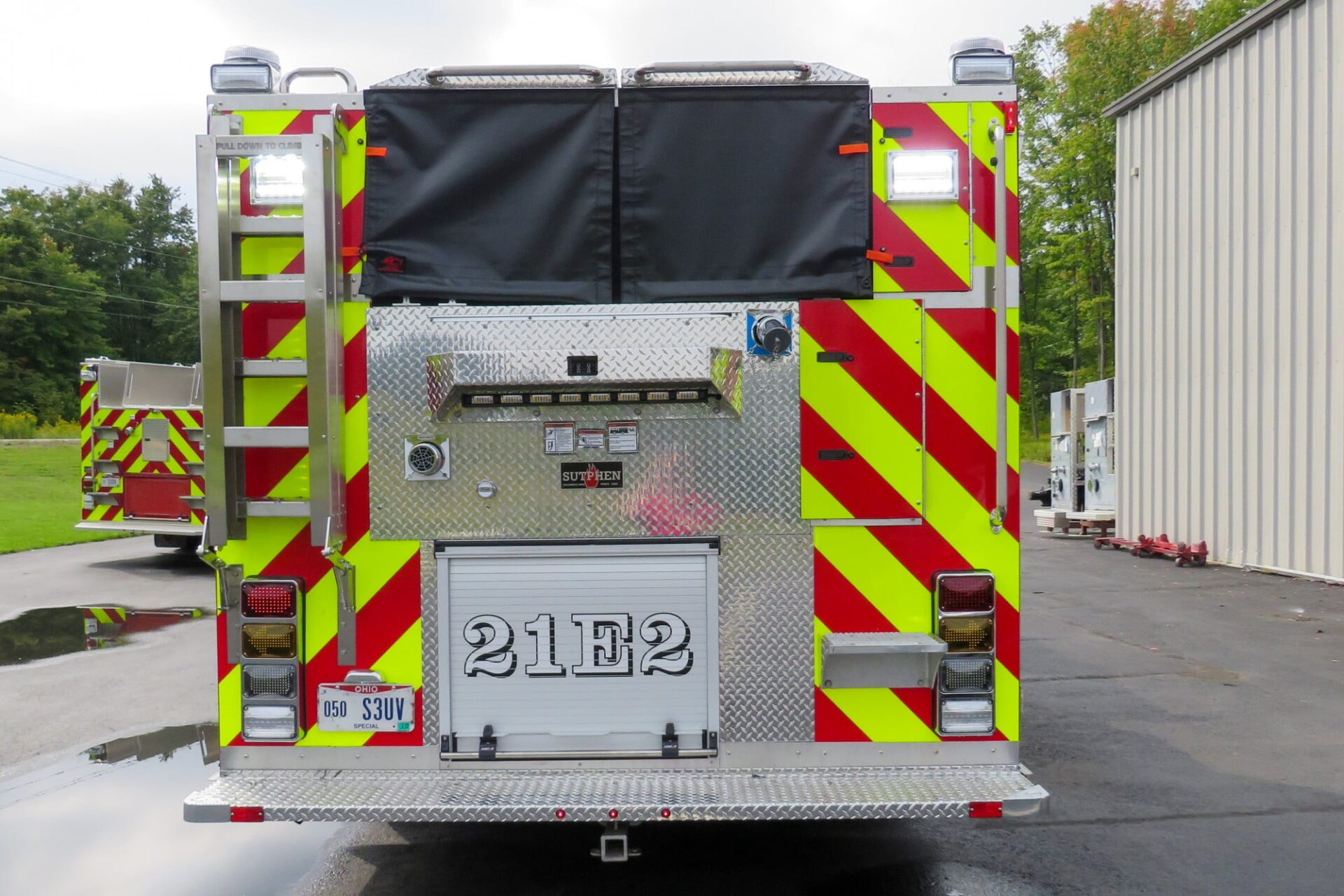

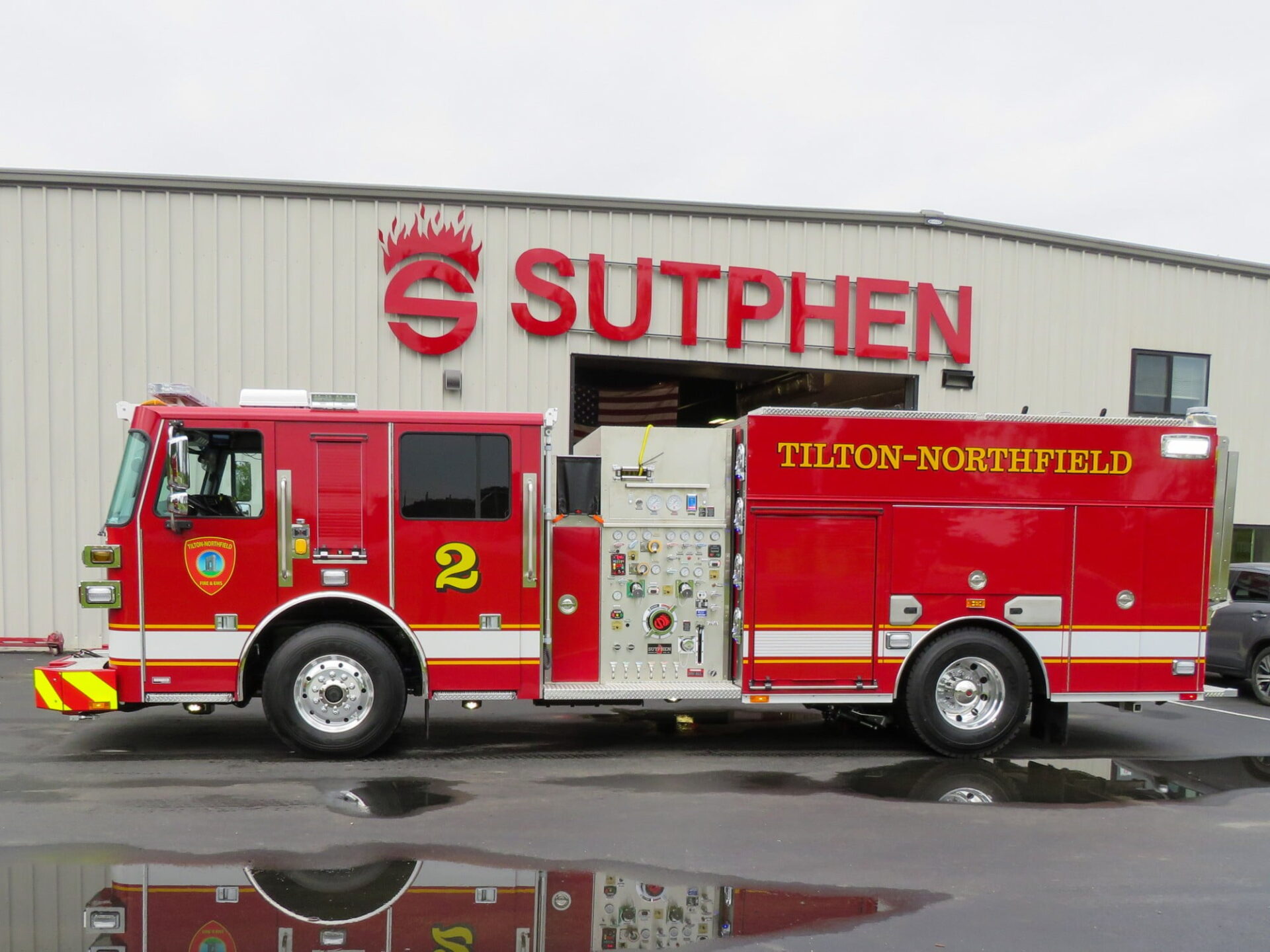

Custom Pumper – Tilton-Northfield Fire and EMS, NH

Location:
Tilton, NH
Department:
Tilton Fire Department

Specs

Cab
Four-door, five-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins X 12, 500 HP
Alternator
Delco-Remy 420 AMP
Transmission
Allison Gen 5, EVS 4000
CSU-1750 GPM, Single
Stage
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Pipe Right Rear, (2) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front/Right of Main Hosebed, (1) 3” Deck Gun
Crosslays
(2) 2” Valve-Piping 1 ½” Swivel
Water Tank
1,000-gallon
Construction
#304 huckbolted stainless steel
Doors
Amdor roll-up compartment
Total Compartment Space
Over 245 cu. ft.
Ladder Compliment
Alco-light (pel-24 24’ 2-section & prl-14 14’ roof & 10’ folding)
Body
PS-06 Res 45/47 Ladder Chute and Hatch Compartment
Bumper Extension
18” formed steel channel,
Bumper Extension
Federal q2b, flush bumper mount
Power
Hannay electric cord reel, 150’ (1)
Generator
Harrison 6KW
Camera
FRC, Inview Trueview
Whelen PFH2 Brow
Lights (2)
Whelen 72” Freedom
Lightbar with opticom
Whelen Tele Lights
Included
