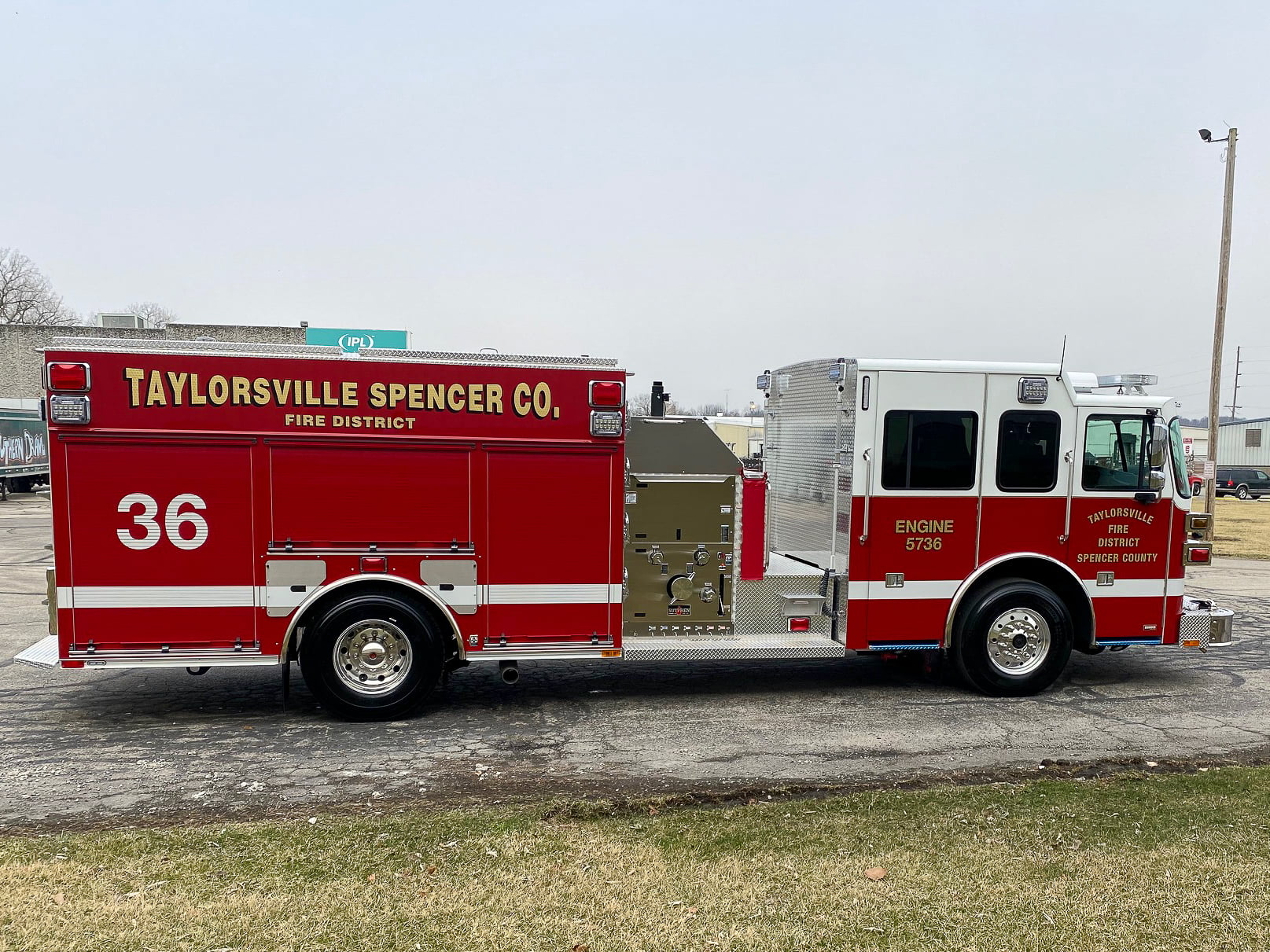

Custom Pumper – Taylorsville Spencer County Fire District, KY

Specs

Cab

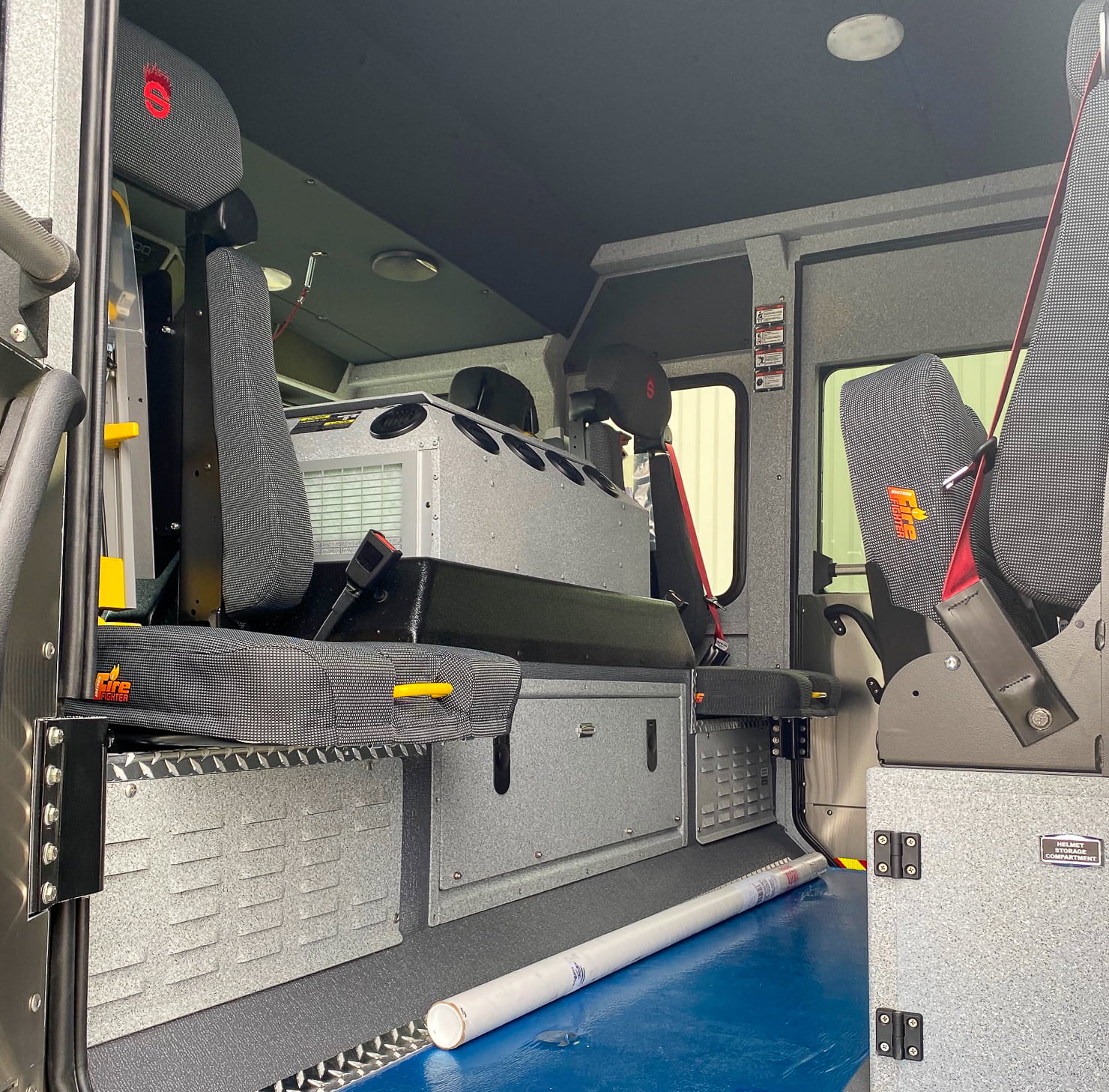

Four-door, six-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
19,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9 450HP
Alternator
Leece Neville 420 AMP
Transmission
Allison Gen 5, EVS 3000
Water Pump
Qflo-1250 gpm single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Speedlay
(2) 2” w/ 1 ½” Swivel
Water Tank
1,000-gallon
Water Tank
20-gallon foam tank
Foam System
FoamPro 2001, 2.6 GPM
Construction
3/16” extruded aluminum
Doors

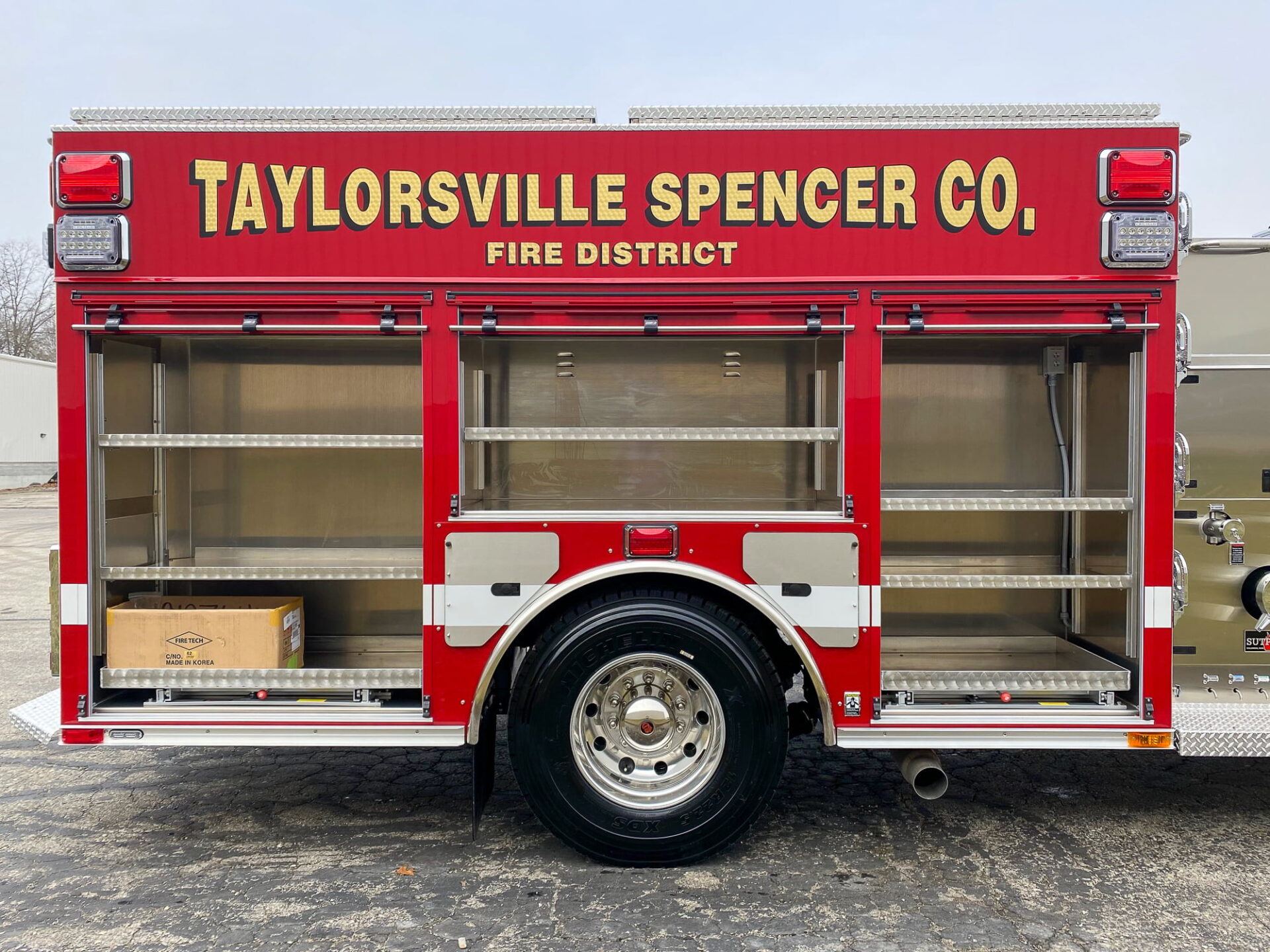

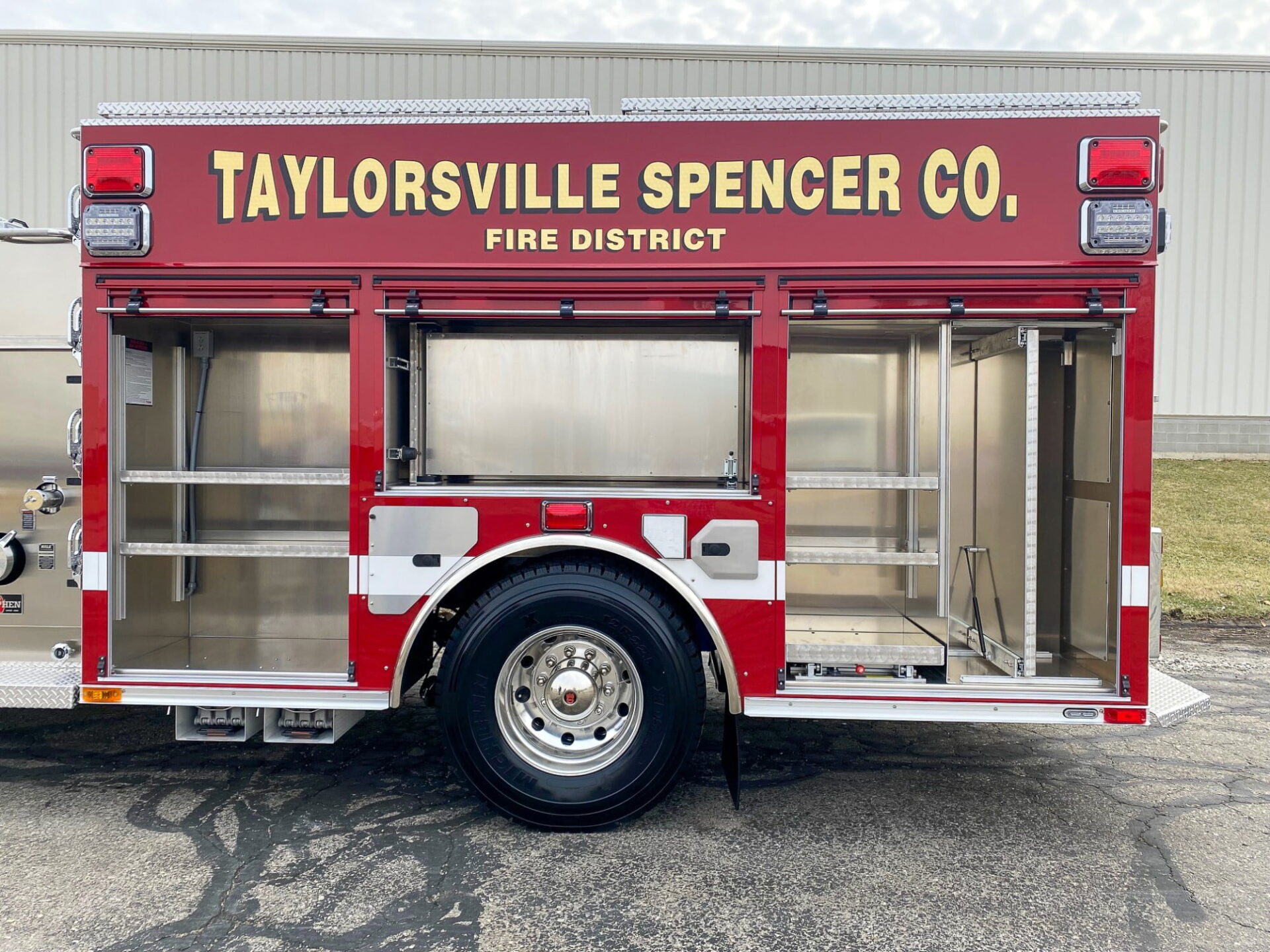

Amdor roll-up compartment
Total Compartment Space
294 cu. ft.
Alco-Lite Ladder Package
PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
Ladder Compliment
Ladder chute w/ suction hose storage
Body
G9 – Aluminum 40/51 Ladders through the Tank
Bumper Extension
18” polished stainless steel bumper
Siren
Federal q2b , grille mount
Camera System
FRC, Inview Trueview, Two Cameras
Hi-Viz 72” Brow
Light
Whelen Freedom LED
Lightbar
FRC Spectra Telescopic
Lights
FireTech Guardian Scene
Lights
Whelen LED Traffic
Advisor
