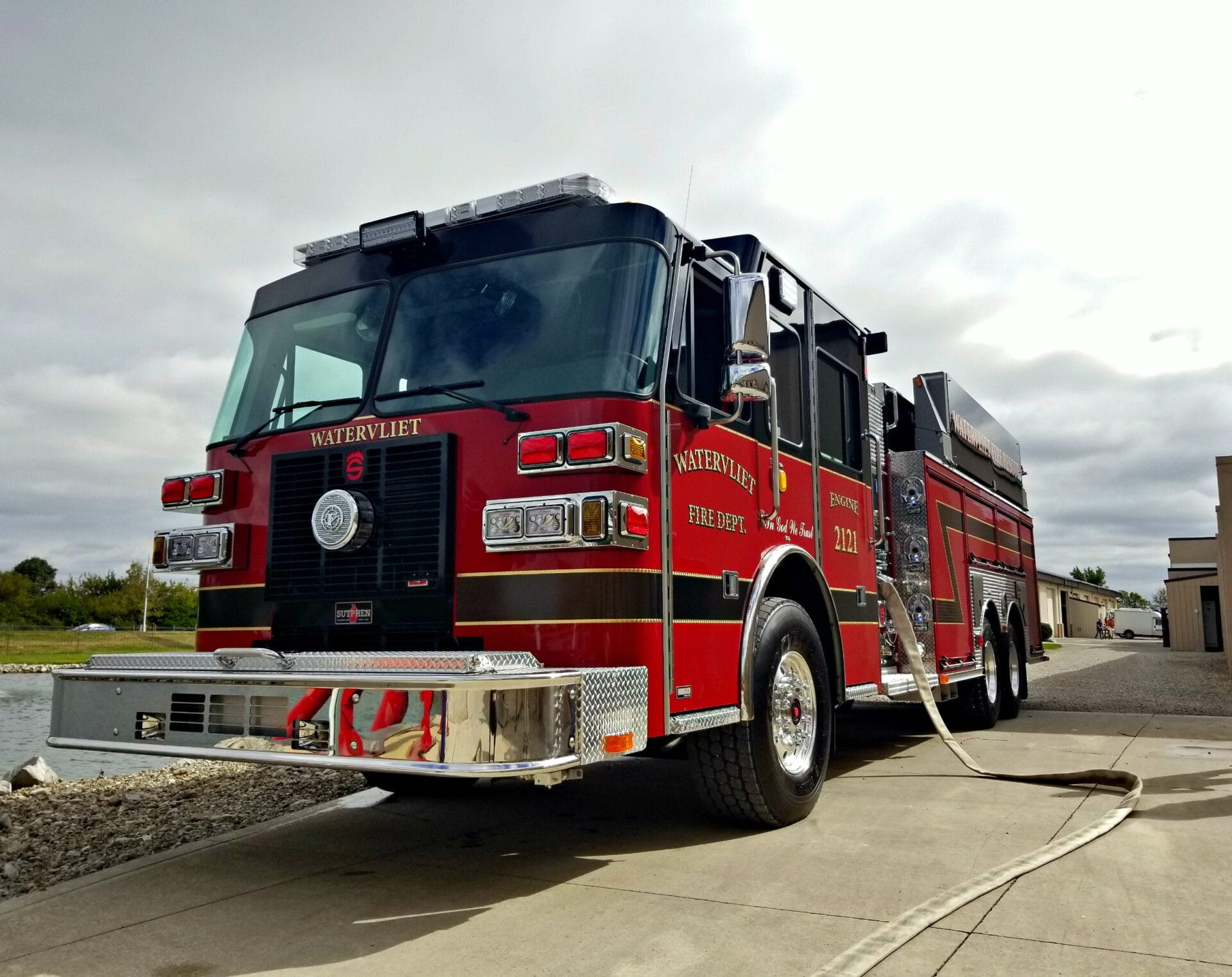

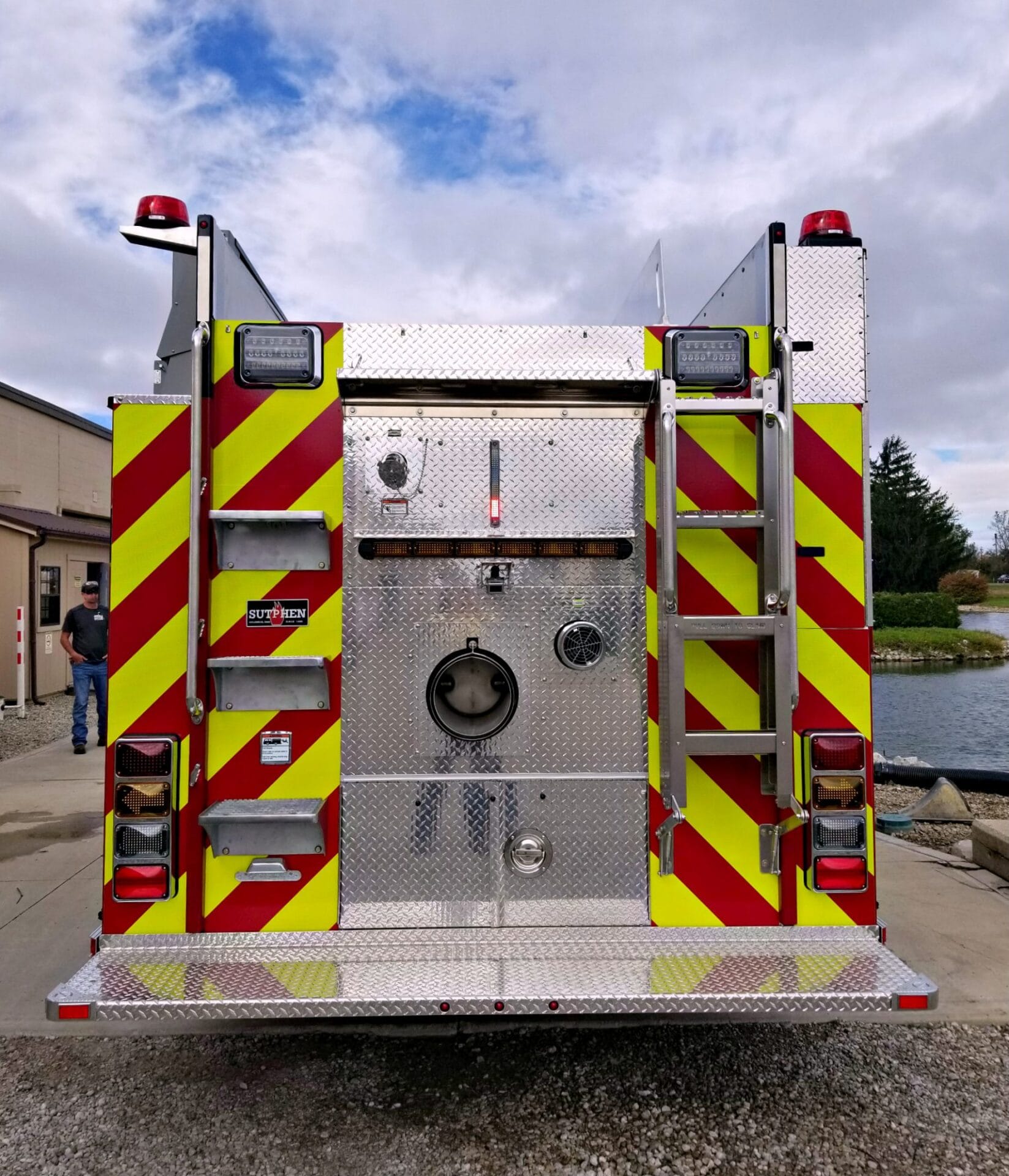

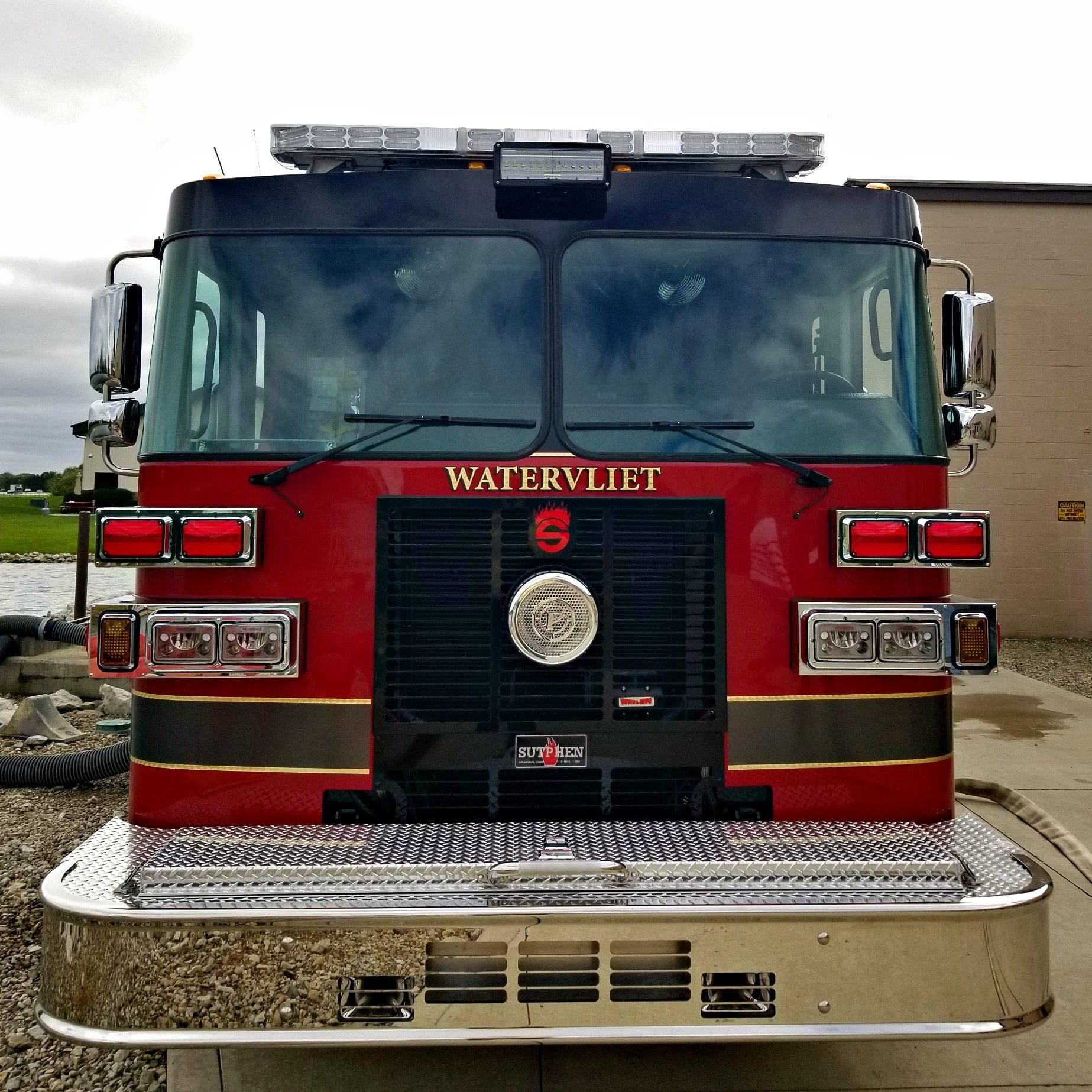

Custom Pumper/Tanker – Watervliet Fire Department, MI

Specs

Cab
Four-door, six-person cab
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
48,000 lbs
Engine
Cummins ISX 12, 500 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS4000

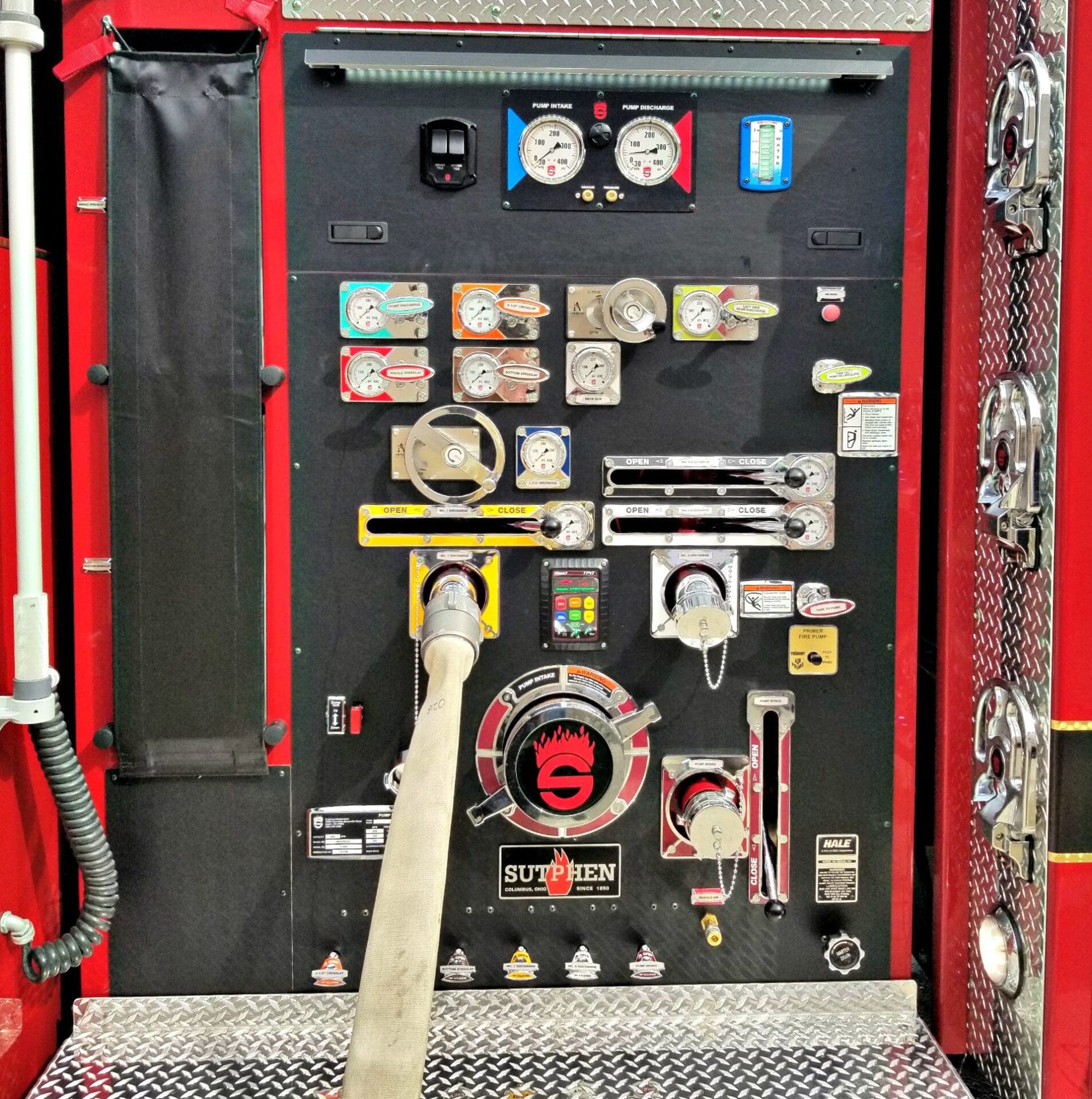

Water Pump
Qmax-2000 gpm single stage
Discharges
(2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Monitor
Akron 3423 Apollo
Crosslays
(2) 1 ½” Speedlays with Lift Out Tray and (1) 2 ½” Crosslay
Water Tank
3,000-gallon
Construction
3/16” extruded aluminum body
Doors
Amdor roll-up compartment
Total Compartment Space
153 cu. ft.
Alco-Lite PEL-24 (24’
2-section & prl-14 14’ roof & 10’ folding)
Bumper Extension
24” , 2” raised lid, and full-width, deep-center storage well
Camera System
Intec, Single Camera
Siren
Federal q2b
Ladder Compliment
Ladder mounting in ladder chute
Whelen Freedom IV
72” led light bar
Whelen Traffic Advisor
Included
Whelen 900 LED
Scene lights
