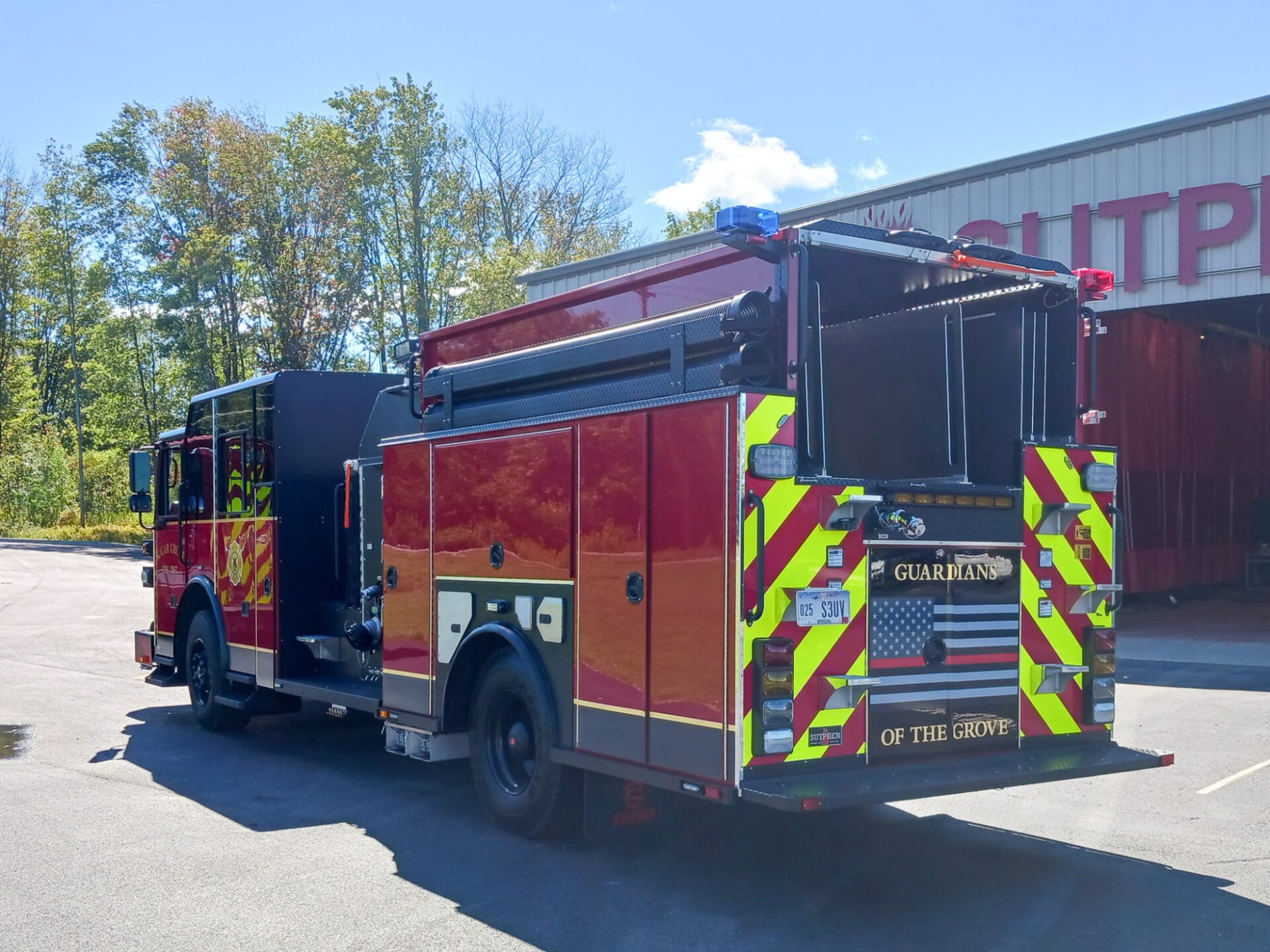

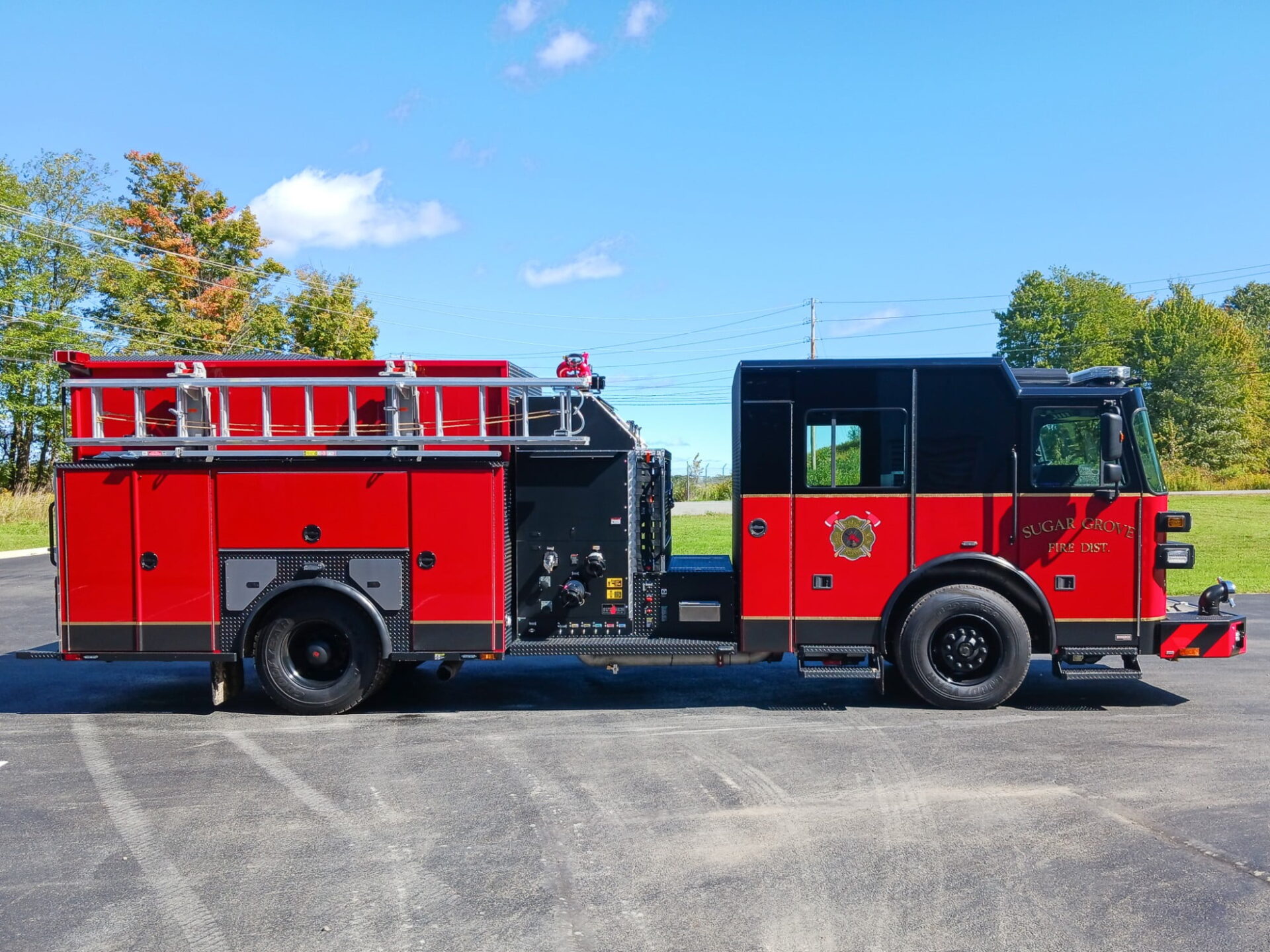

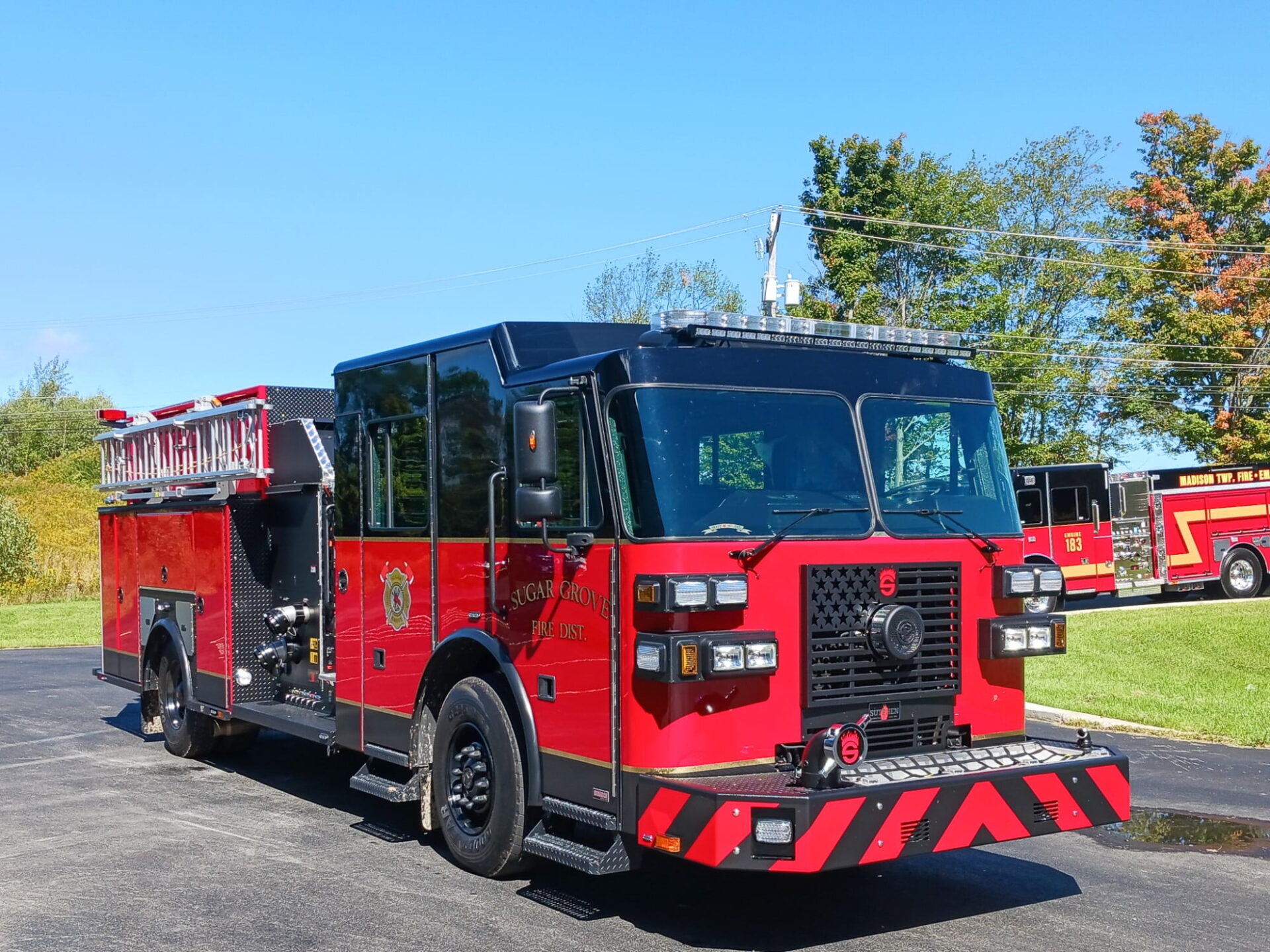

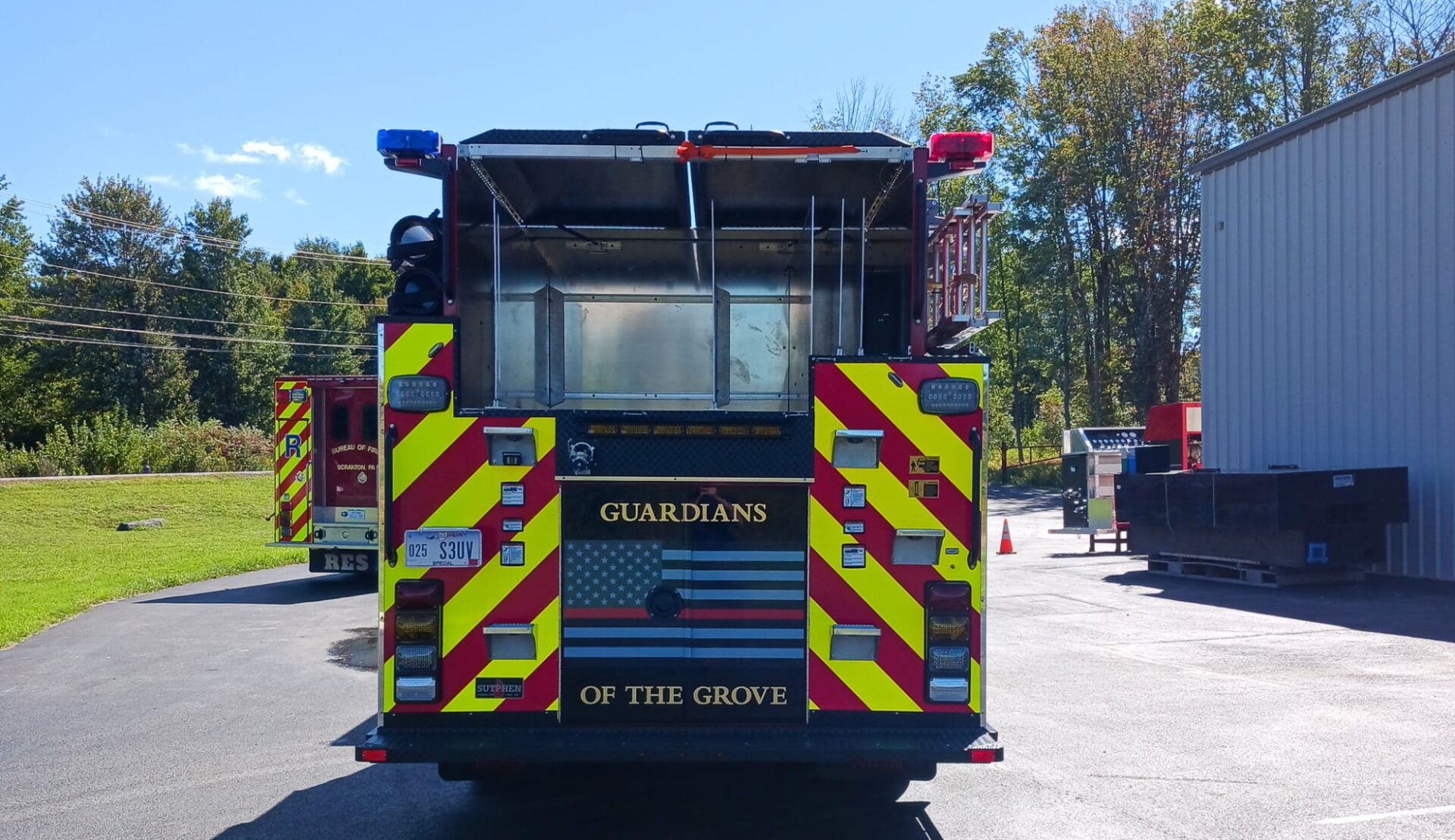

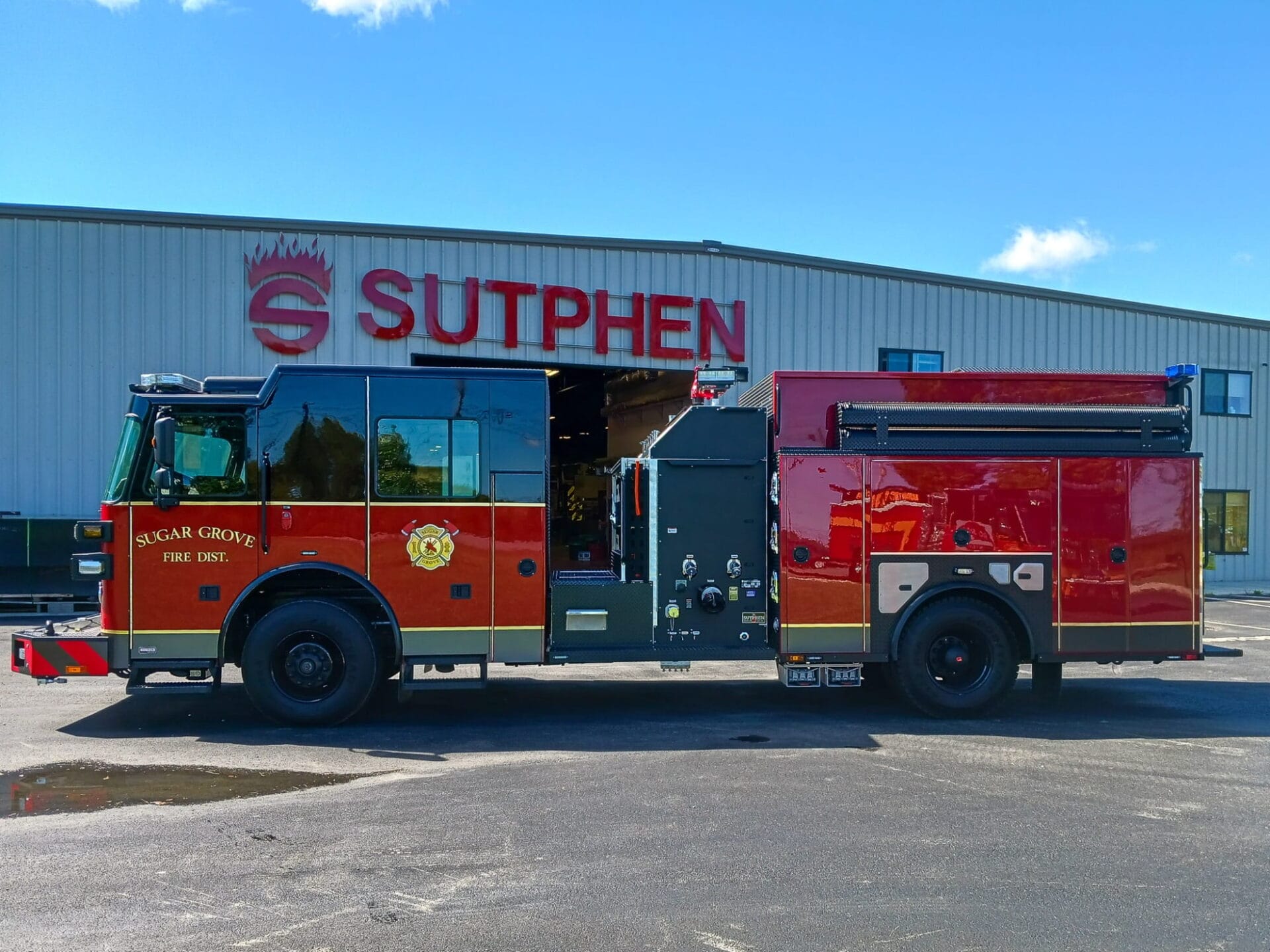

Custom Pumper – Sugar Grove Fire Protection District, IL

Specs

Cab
Four-door, four-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS 3000
Water Pump
Qmax-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Speedlays
(2) 2” w/ 1 ½” Swivel
Water Tank
1,000-gallon
Construction
3/16” extruded aluminum
Doors
Hinged compartment
Total Compartment Space
249 cu. ft.
Body
S4 – Aluminum 31/53 Electric Ladder Rack
Bumper Extension
24” formed stainless steel bumper channel
Siren
Federal q2b , grille mount
Camera System
FRC Inview Trueview Single Camera
Wheel Chocks
Ziamatic quic-lift electric ladder rack
Whelen 72” Freedom
Lightbar
Whelen 72” Summit
Brow light
Whelen Micro Freedom
Beacons
Whelen 36” Traffic
Advisor
Whelen M9 Scene
Lights
