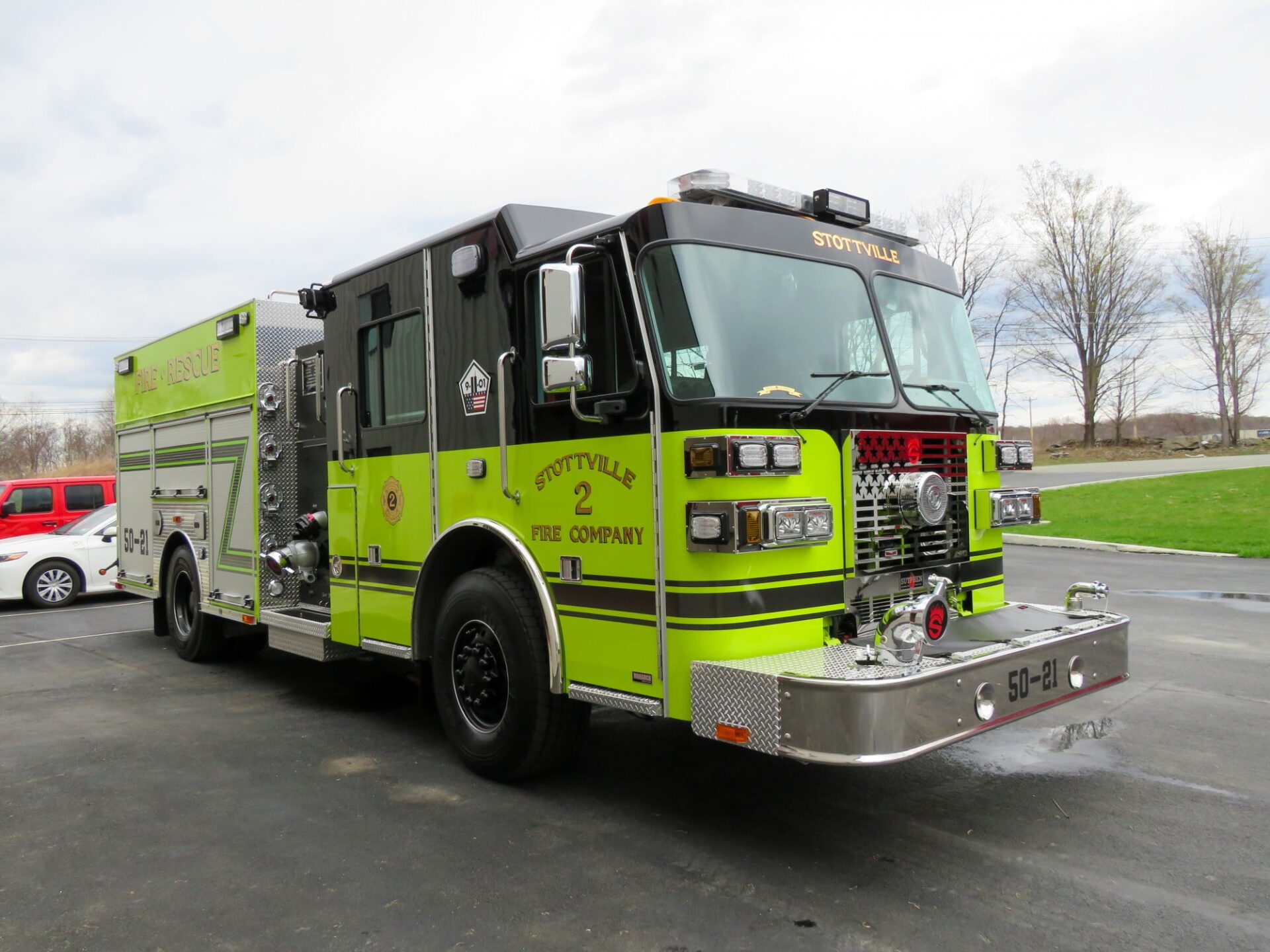

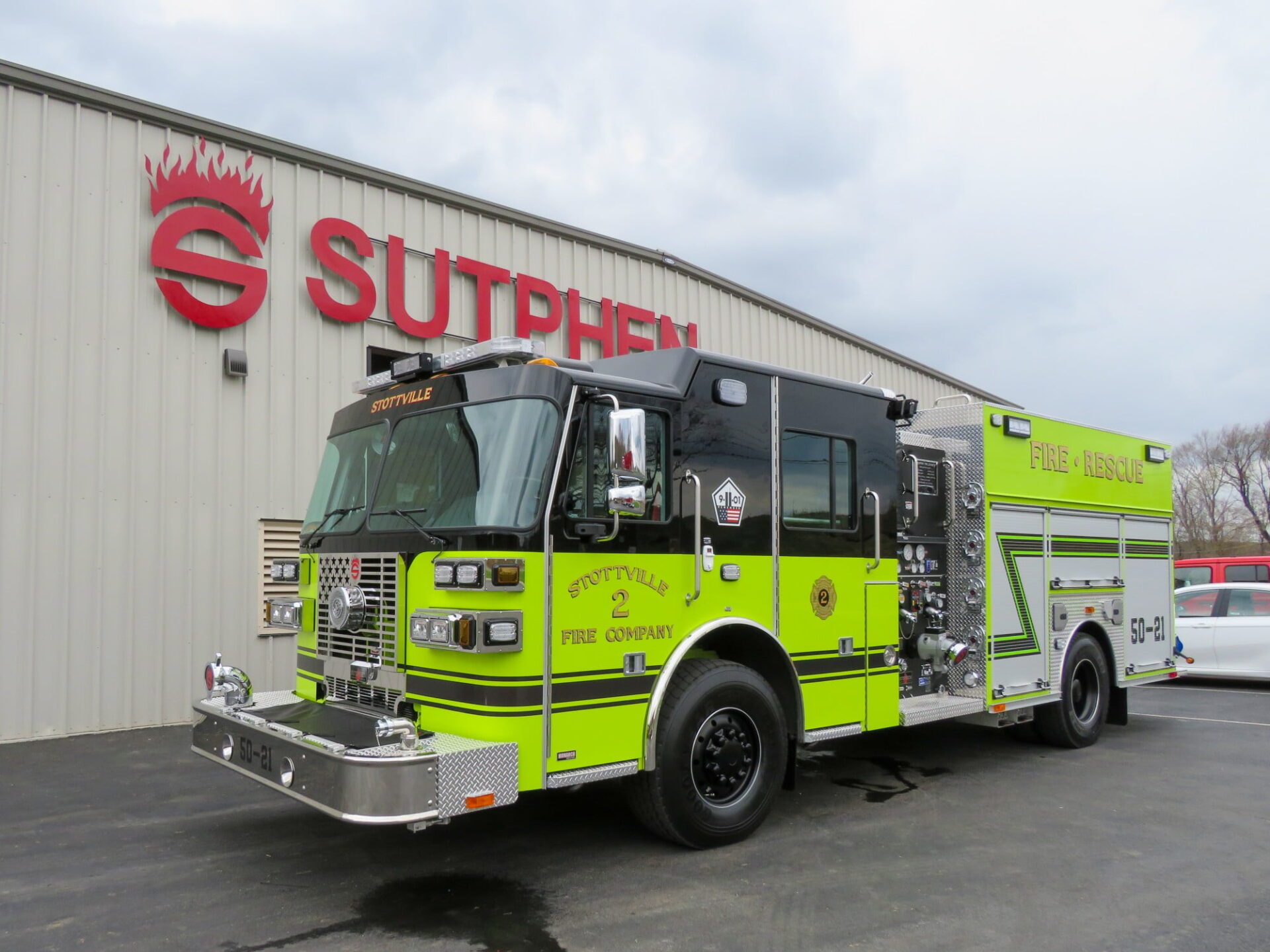

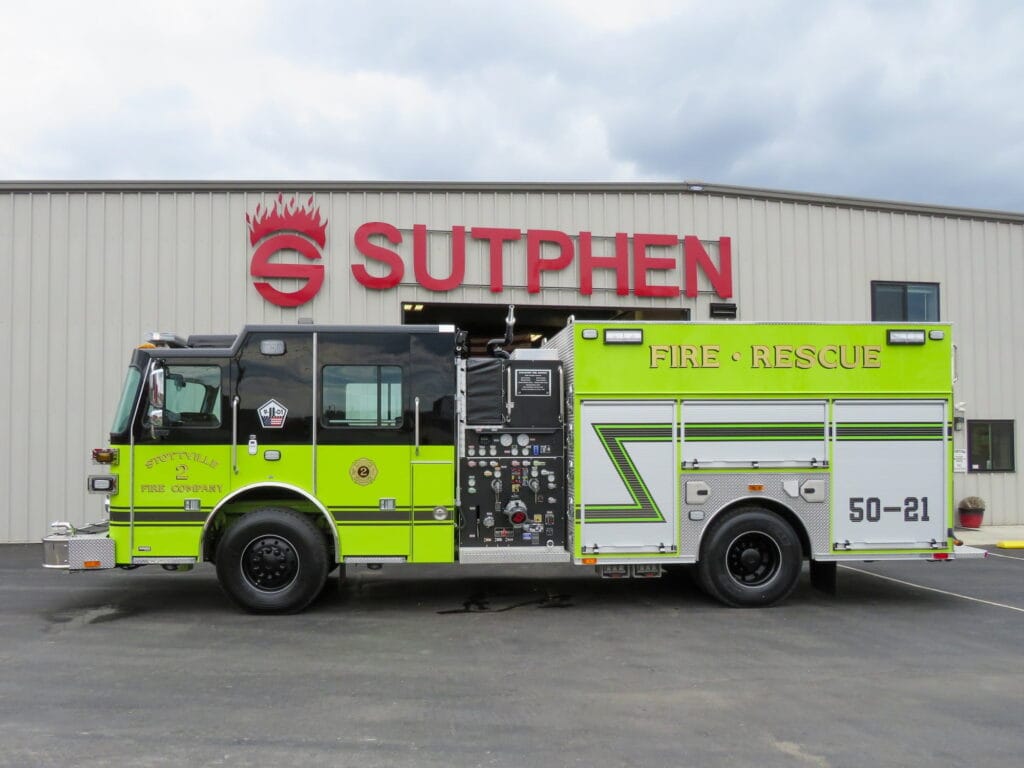

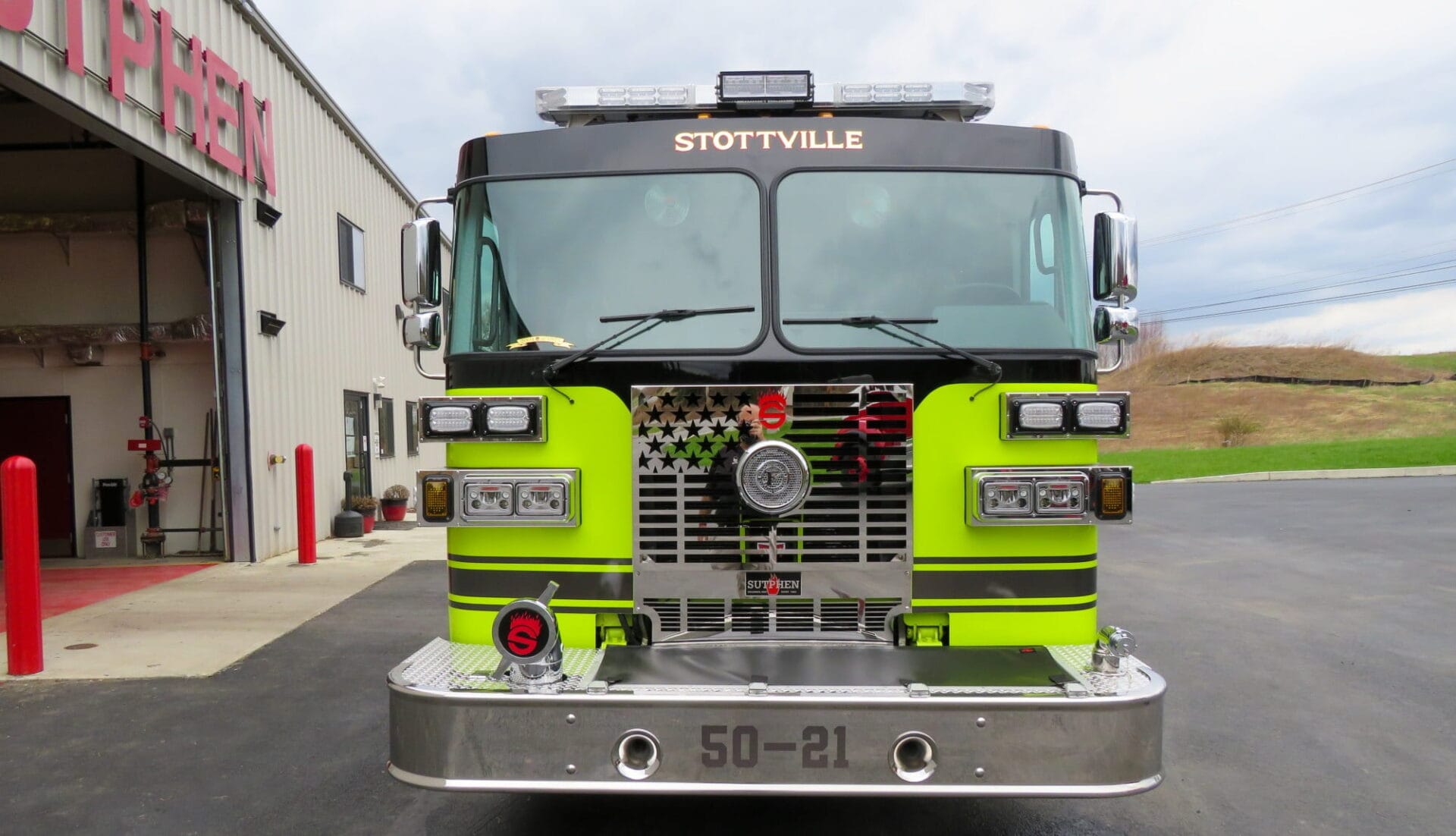

Custom Pumper – Stottville Fire Company, NY

Specs

Cab
Four-door, eight-person
10” Double Rails
Single axle (110k psi)
Front Suspension 23,000
Lbs.
Rear Suspension 31,000lbs
.
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville 420 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax-2,000 gpm single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
Crosslay
(2) 2” w/ 1 ½” Swivel
Water Tank
1000-gallon
Construction
3/16 extruded aluminum
Doors
Amdor roll-up compartment satin finish
Total Compartment Space
Over 280 cu. ft.
Body
S-9 – Aluminum 43/853 Ladder through Tank
Bumper Extension
24” polished stainless-steel bumper
Siren
Federal q2b , grille mount
Generator
8KW Harrison
Power
Hannay electric cord reel, 150’ (1)
Whelen PFH2 Brow
Light
Whelen 72” Freedom
Lightbar
Whelen PFH2 Tele
Lights
Whelen PCP2 Scene
Lights
Whelen M9 Scene
Lights
