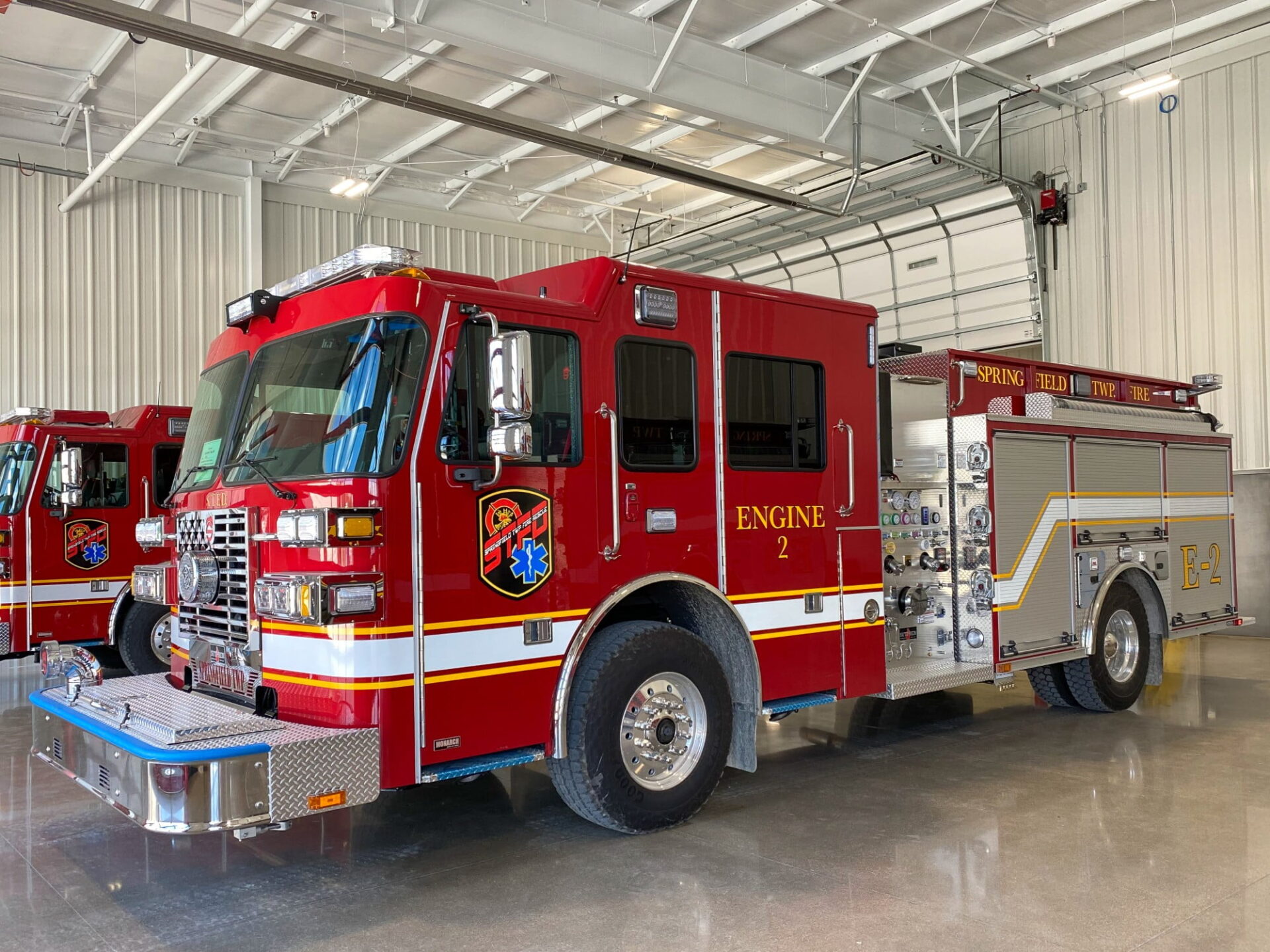

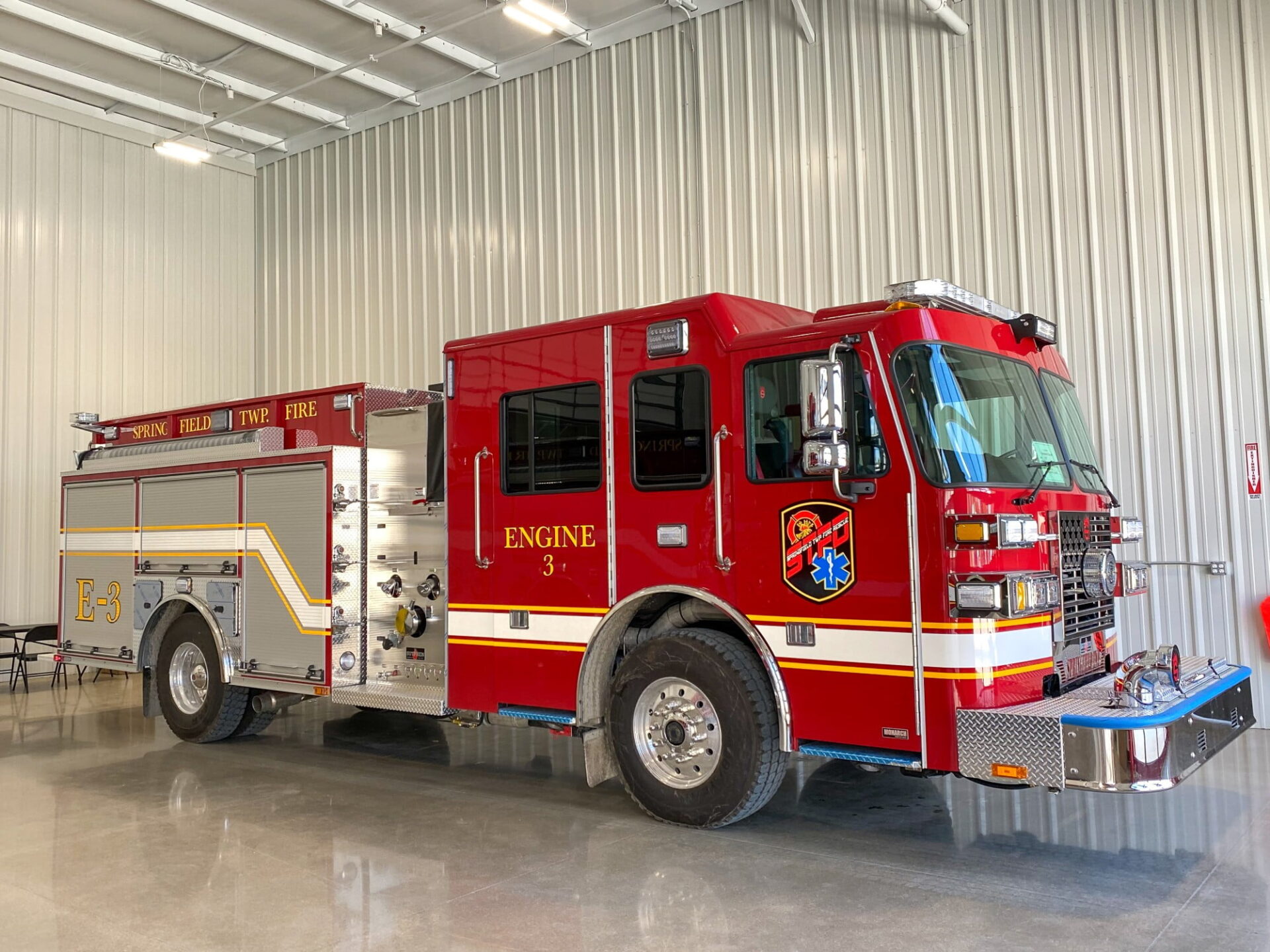

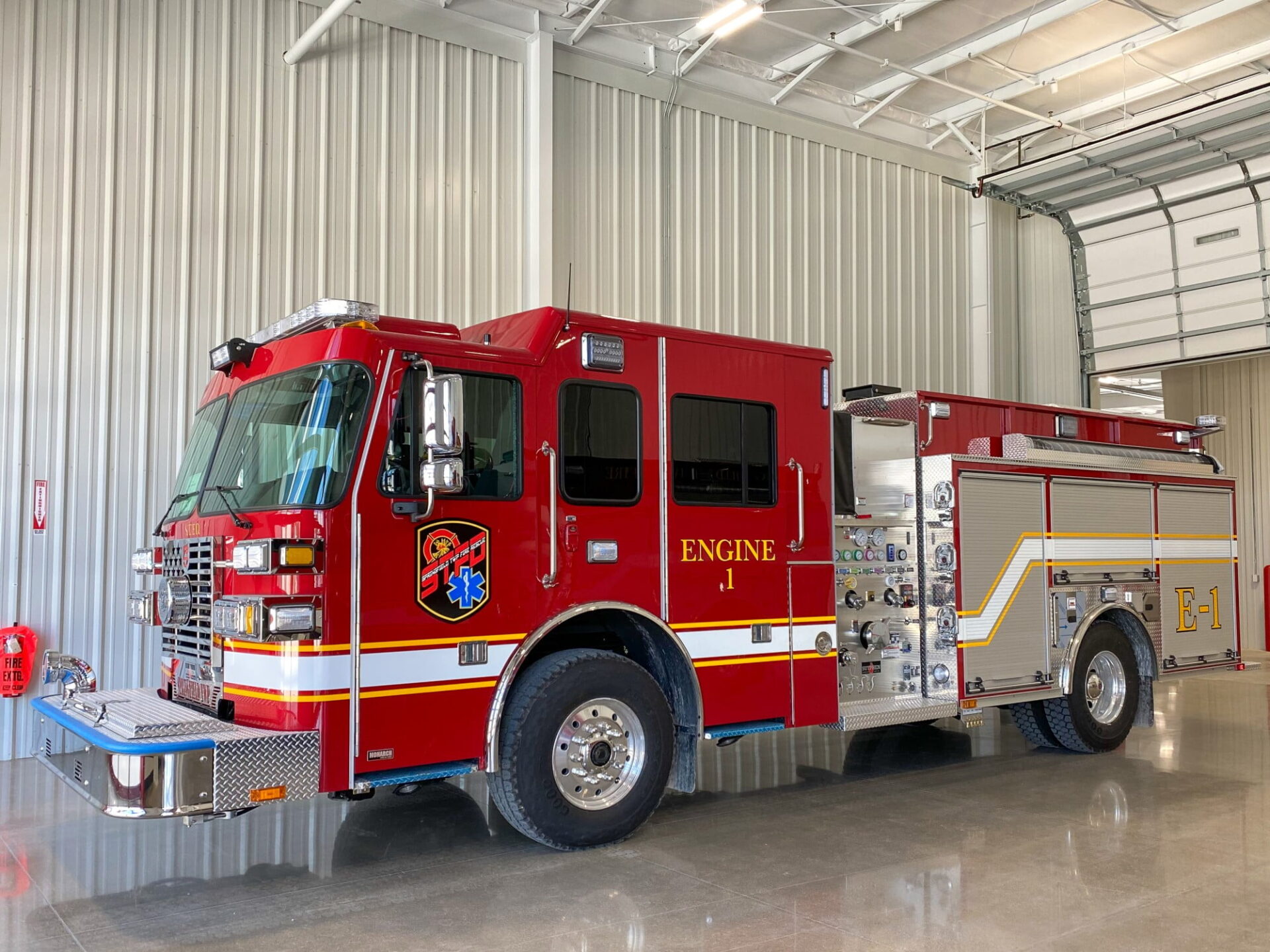

Custom Pumper – Springfield Township Fire Department, MI

Specs

Cab
Four-door, six-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs.
Rear Axle and Suspension
27,000 lbs.
Engine
Cummins L 9, 450HP
Alternator
Leece Neville 420 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax-1500 gpm, single stage pump
Discharge
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Front/Left of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Crosslays
(2) 2” w/ 1 ½” Swivel
Water Tank
1,000-gallon
Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment
Total Compartment Space
222 cu. ft.
Alco-Lite Ladder Package
PEL-24 24’ 2-Sec & PRL-14 14’ Roof & 10’ Folding
Body
G2 - Alum 40/51 Ladder Chute
Bumper Extension
24” polished stainless steel,
Siren
Federal q2b , grille mount
Camera System
FRC, Inview Trueview, Single Camera
Triple Air Bottle
Compartments
Whelen PFH2 LED
Brow light
Whelen Freedom LED
Lightbar
Command Light
Included
