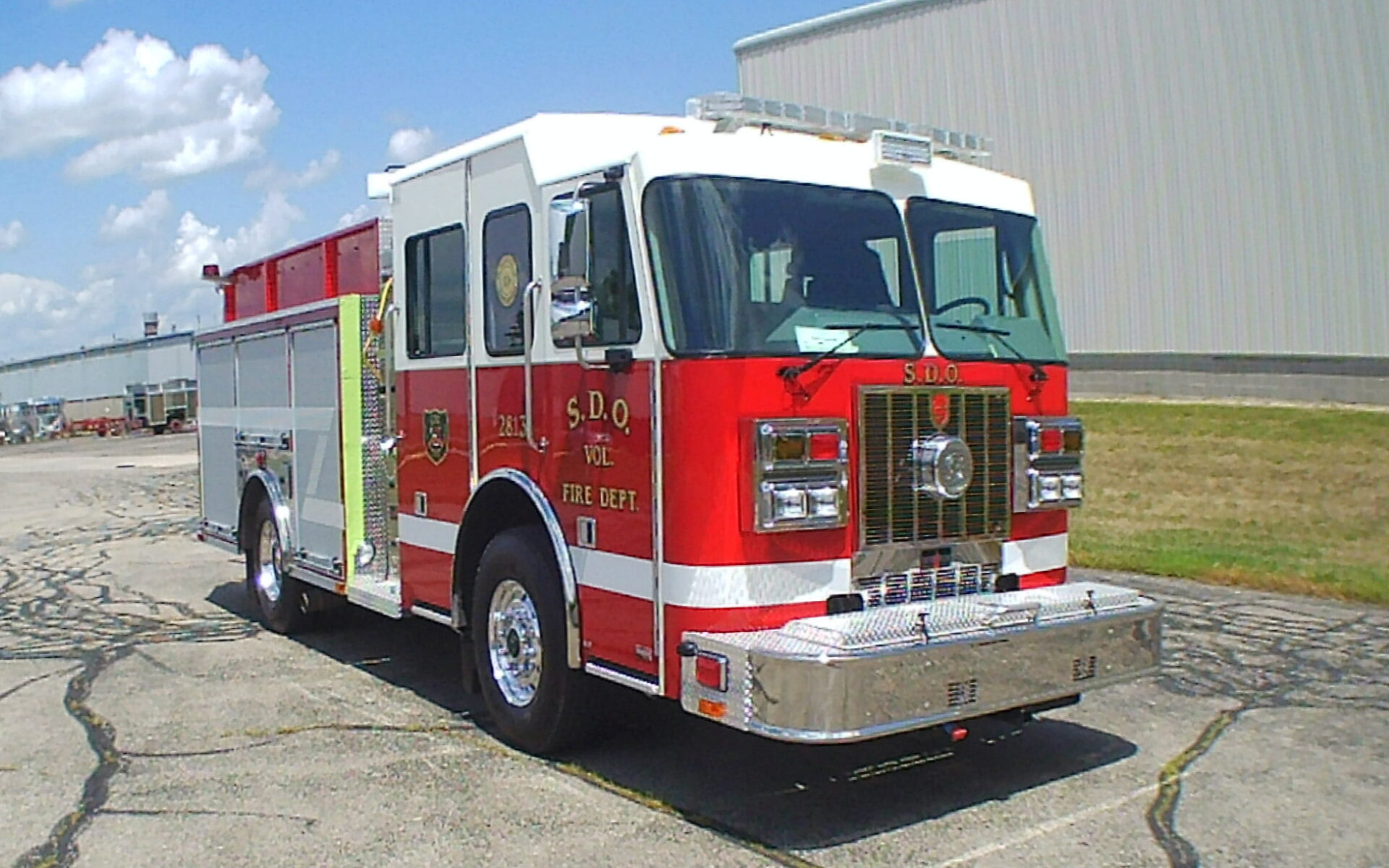

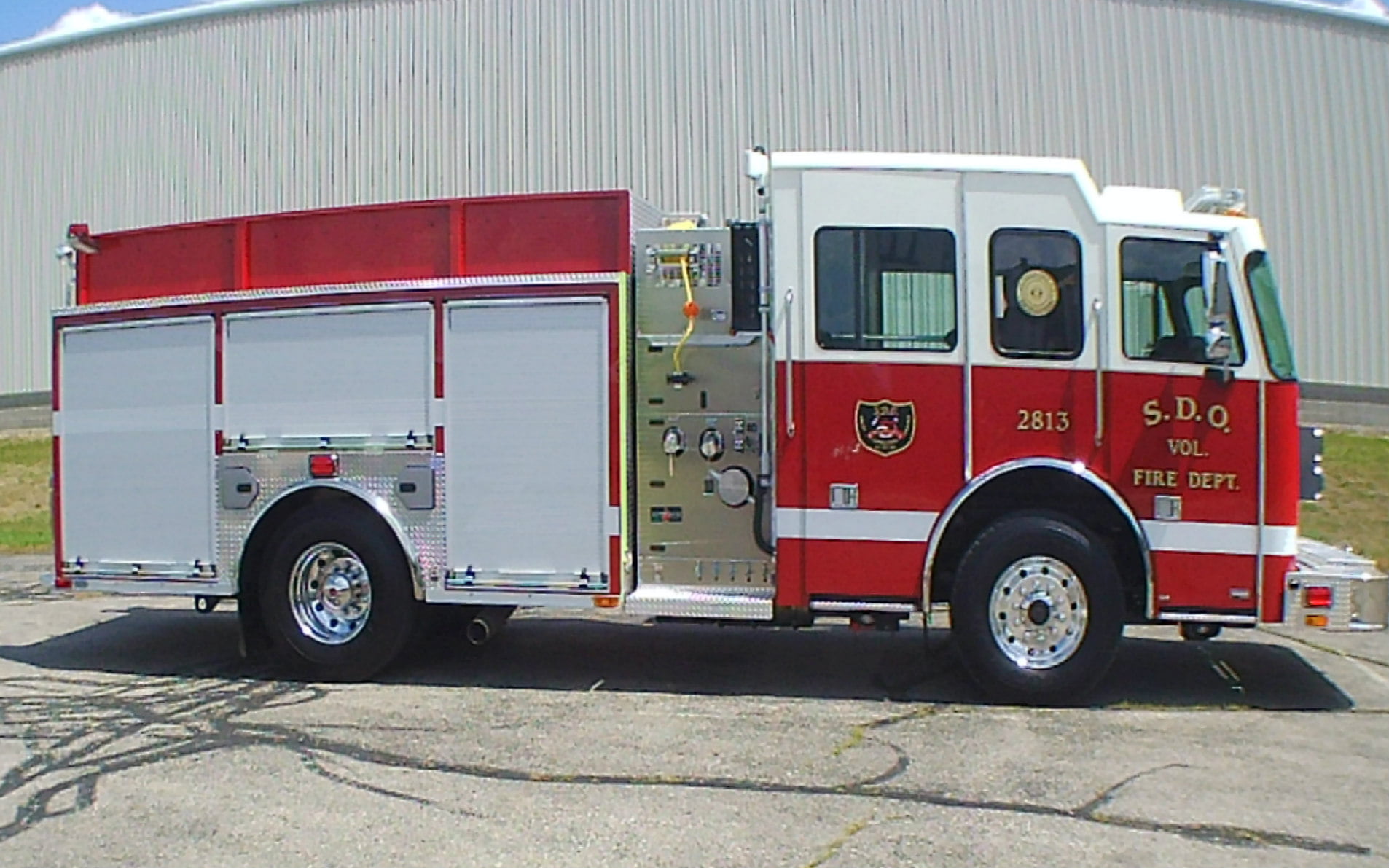

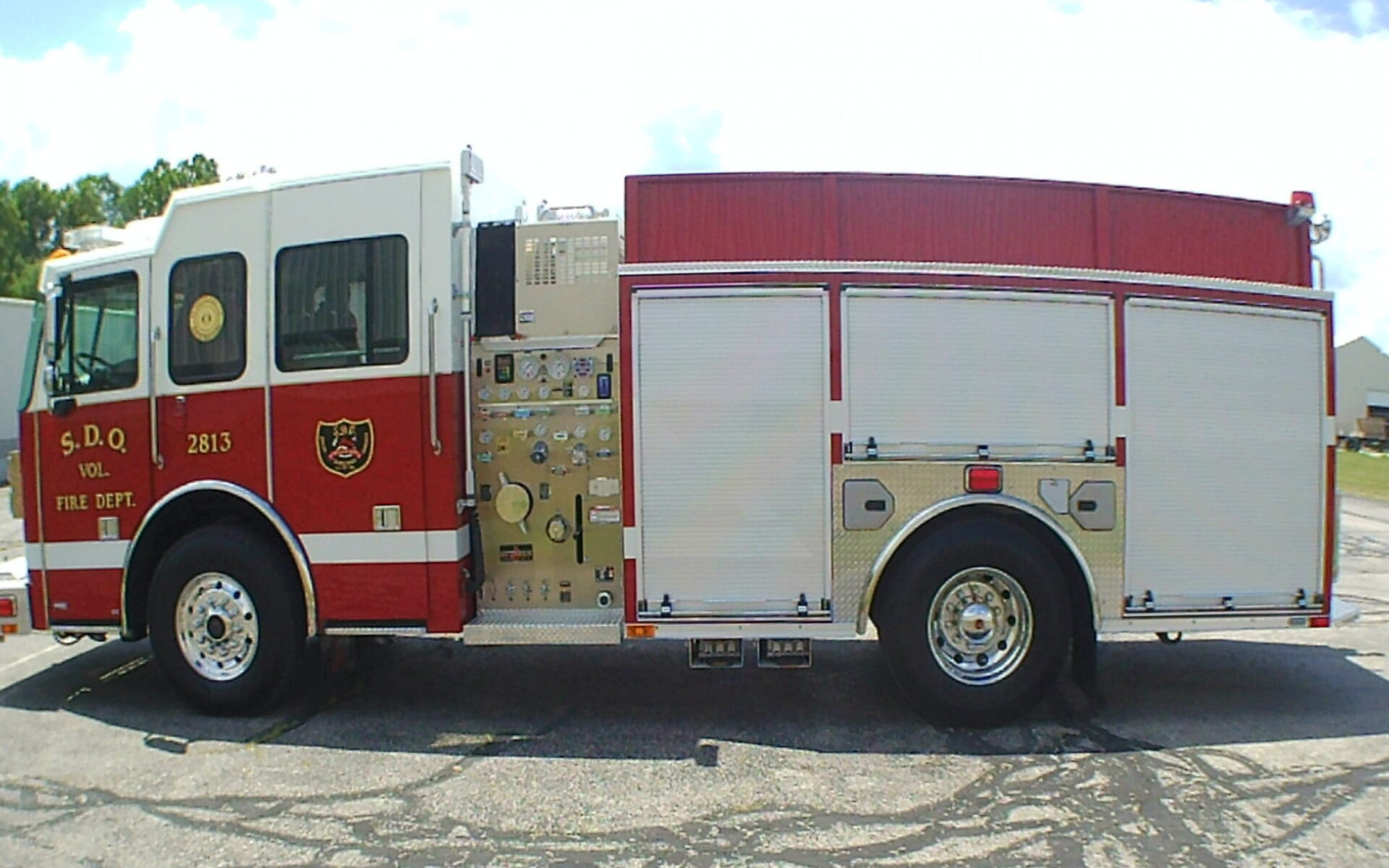

Custom Pumper – Shiloh Danieltown Fire Department, NC

Specs

Cab
Four-door, four-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
18,000 lbs
Rear Axle and Suspension
24,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 270 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Dsd-1,250 gpm, single stage pump
Discharges
(2) 2 ½” Left, (2) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Crosslay
(2) 2” Valve-Piping w/ 1 ½” Swivel
Water Tank
500-gallon
Doors
Amdor roll-up compartment
Total Compartment Space
246 cu. ft. base compartment space
Ladder Compliment
Alco-lite ladder package (24’ 2-section, 14’ roof and 10’ folding)
Body
G9-Alum 40/51

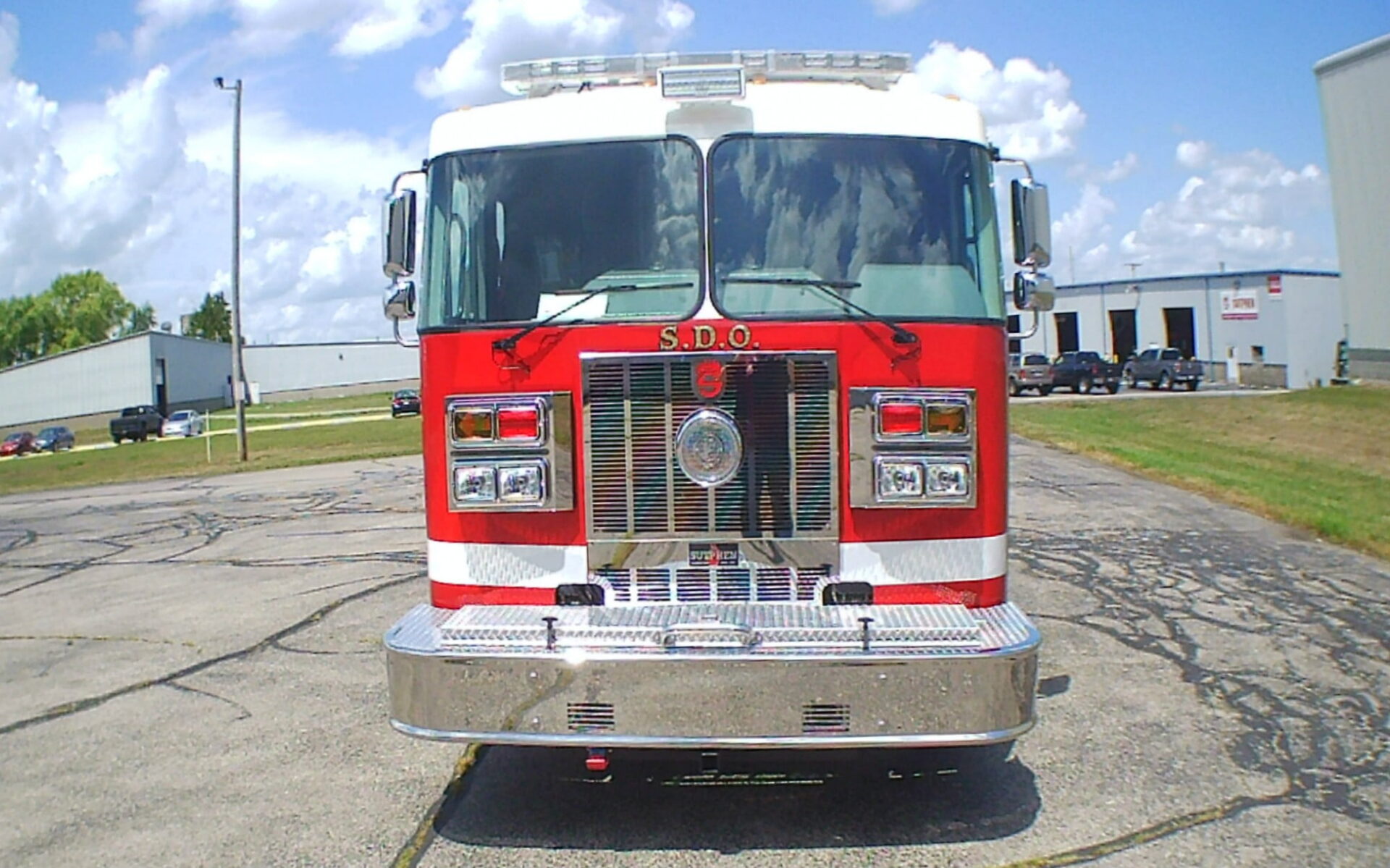

Bumper Extension
24” polished stainless-steel bumper
Siren
Federal q2b , grille mount
Camera System
FRC, Inview Trueview
Power
8kw smart generator
4 Bottle Compartments
Included
FRC Spectra LED
Brow light
Whelen Freedom IV
Lightbar
Whelen 600 LED
Red lights
Whelen L31 LED
Red beacons
Whelen Ion LED
Red lights
