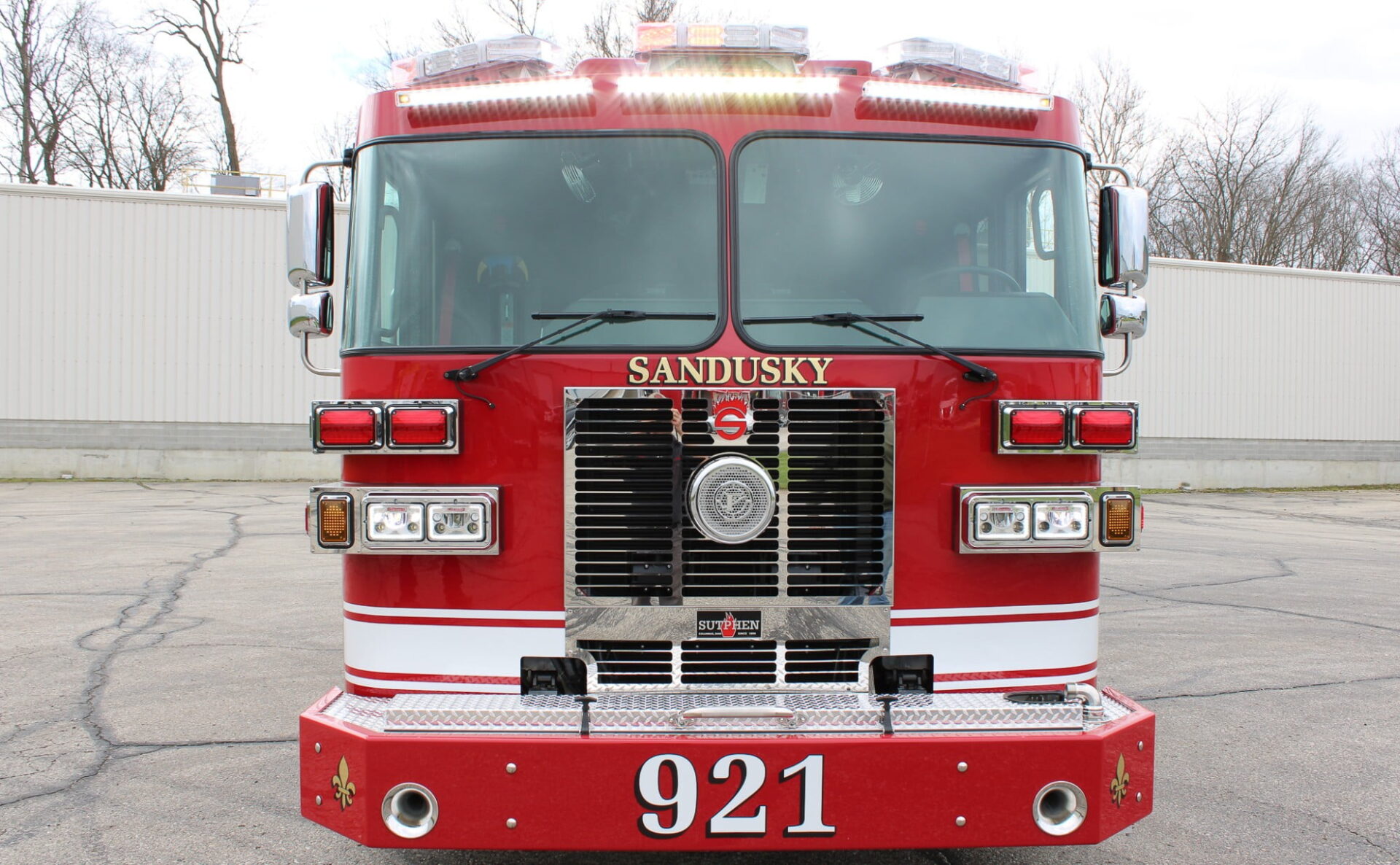

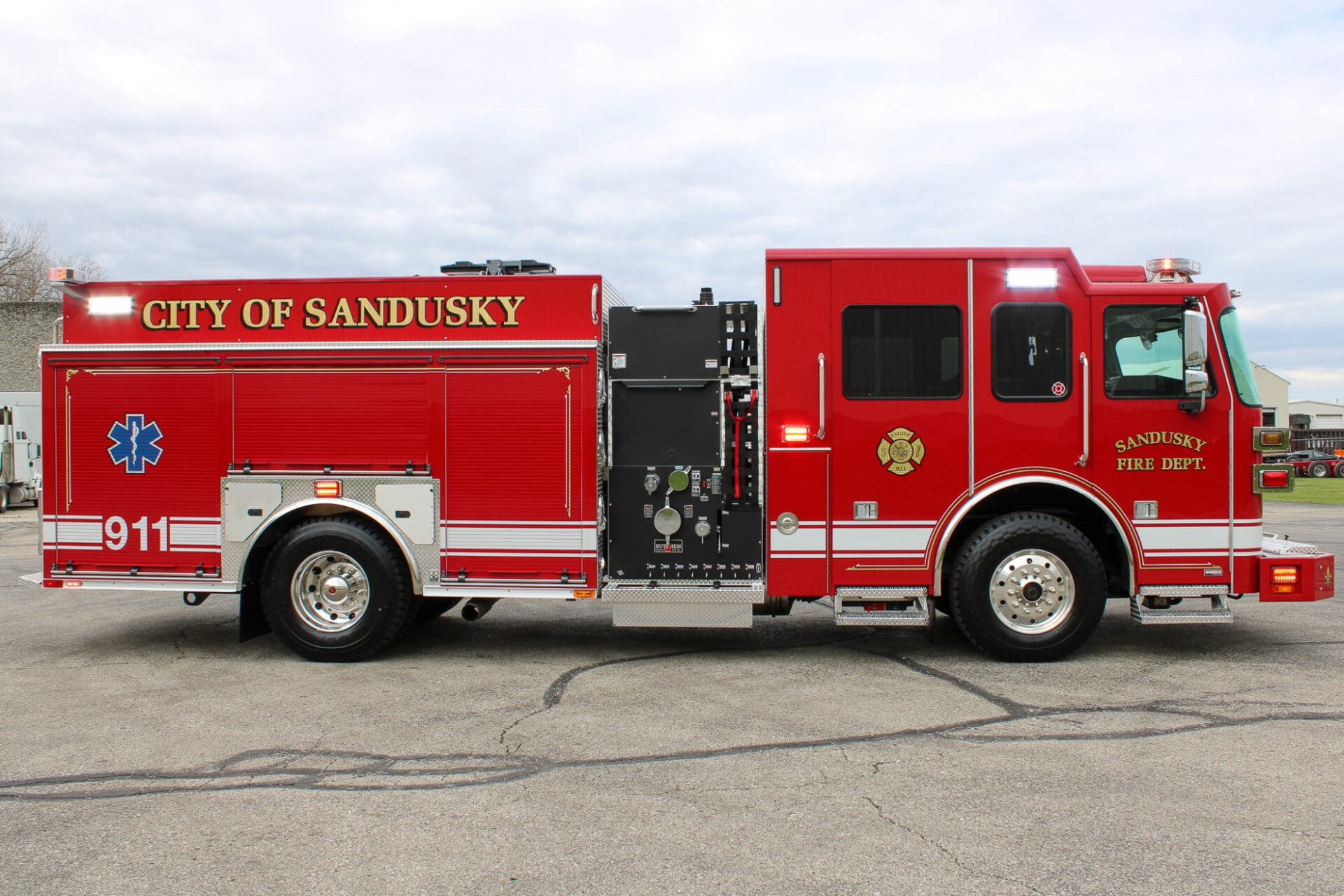

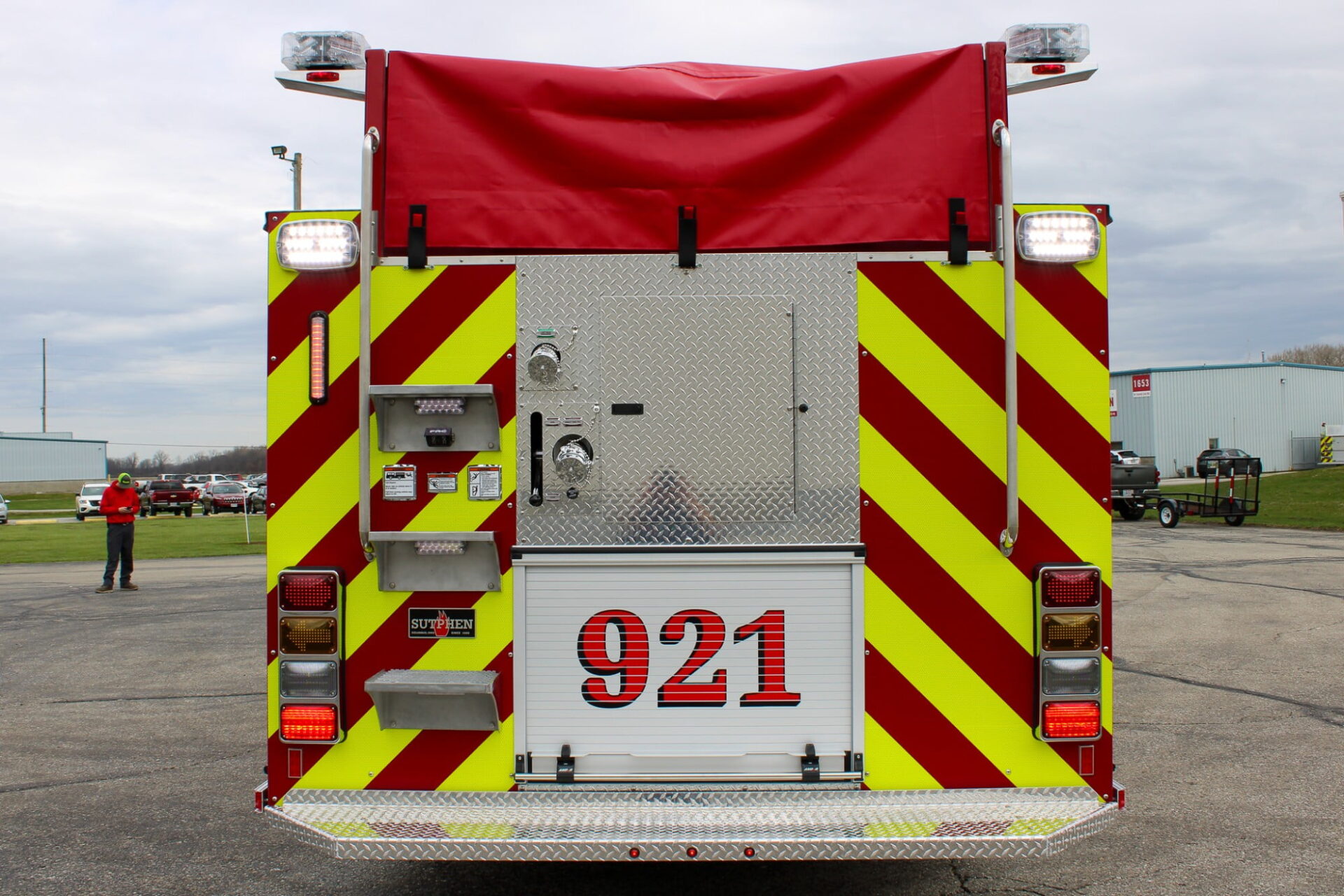

Custom Pumper – Sandusky Fire Department, OH

Location:
Sandusky, OH
Department:
Sandusky Fire Department

Specs

Cab
Four-door, five-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs.
Rear Axle and Suspension
27,000 lbs.
Engine
Cummins X 12, 500HP
Alternator
Delco-Remy 430 AMP
Transmission
Allison Gen 5, EVS4000
Water Pump
Qmax xs 1500 gpm, single stage pump
Discharge
(2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Crosslay
(1) 2 ½”
Speedlays
(2) 2” w/ Swivels & Poly Lift-Out Trays
Water Tank
750-gallon
Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment
Total Compartment Space
245 cu. ft.
Alco-Lite Ladder Package
PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
Body
G9 – Alum 40/51 Ladders Through Tank
Bumper Extension
18” formed steel channel,
Siren
Federal q2b , grille mount
Camera System
FRC, Inview Trueview, Single Camera
Intercom
SetCom
HI-VIZ 72” Brow
Light
Triple Air Bottle
Compartments (3)
Whelen M9 Scene
Lights
FRC Spectra LED
Scene
Light Tower
Command Light KL-415D 12V
