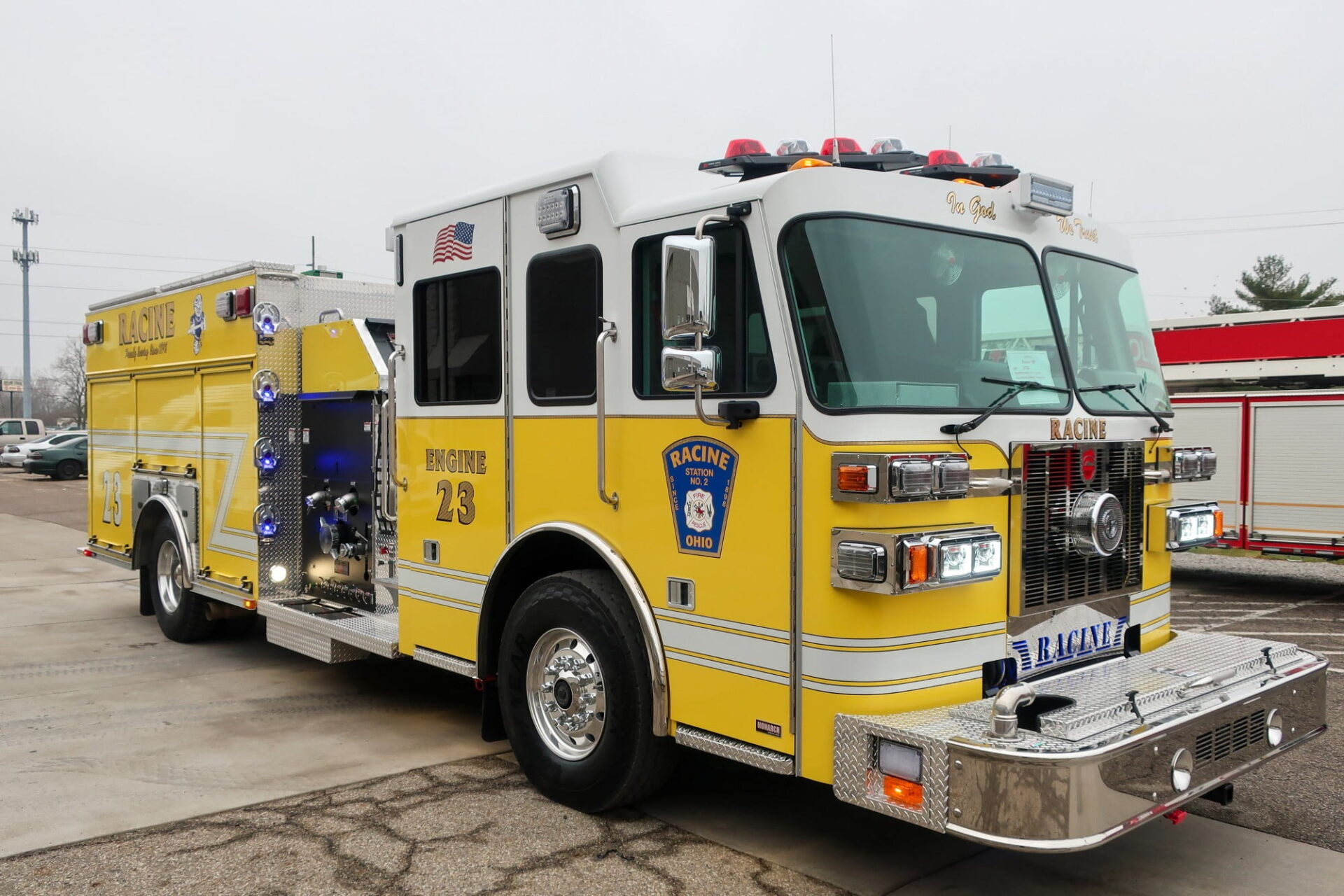

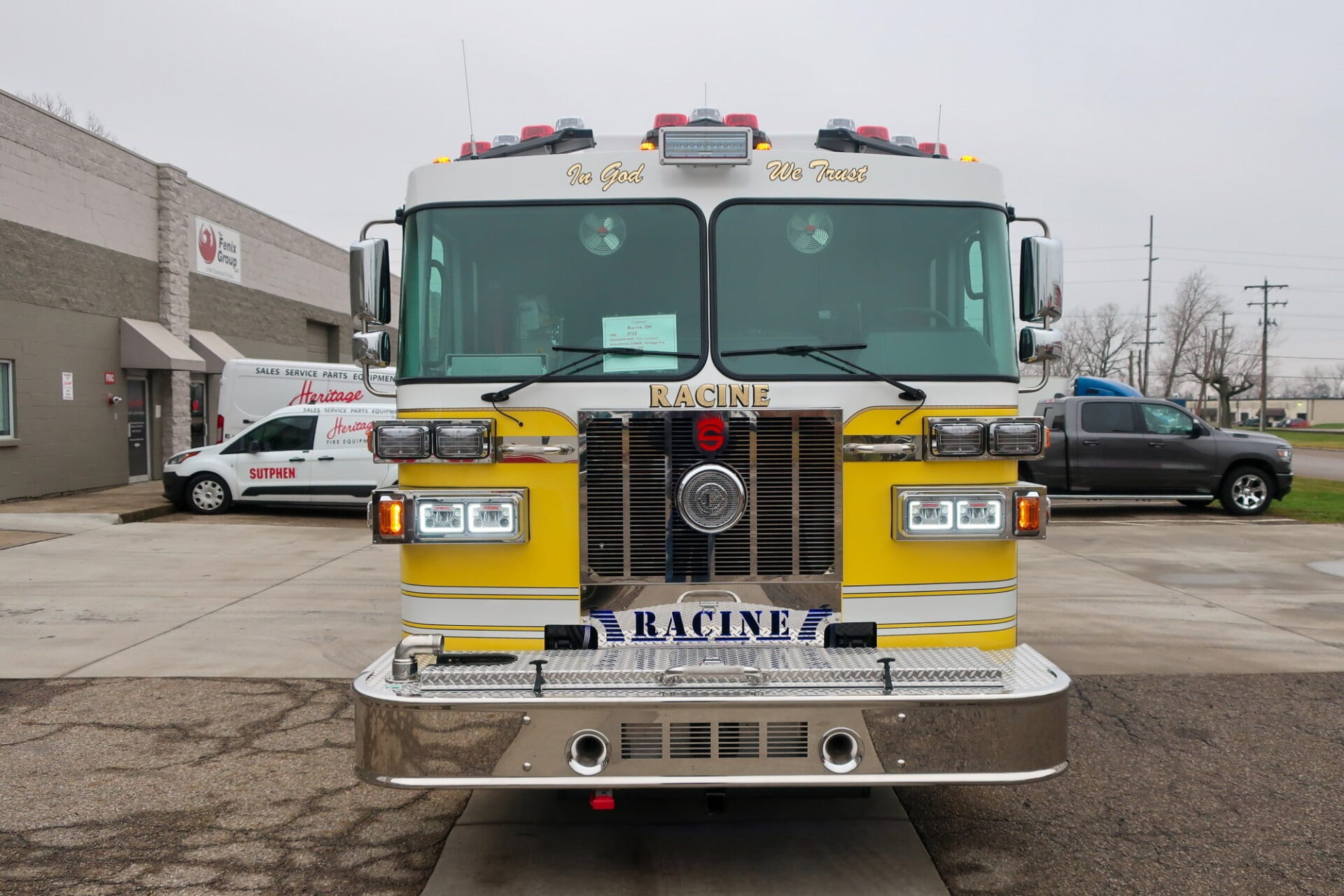

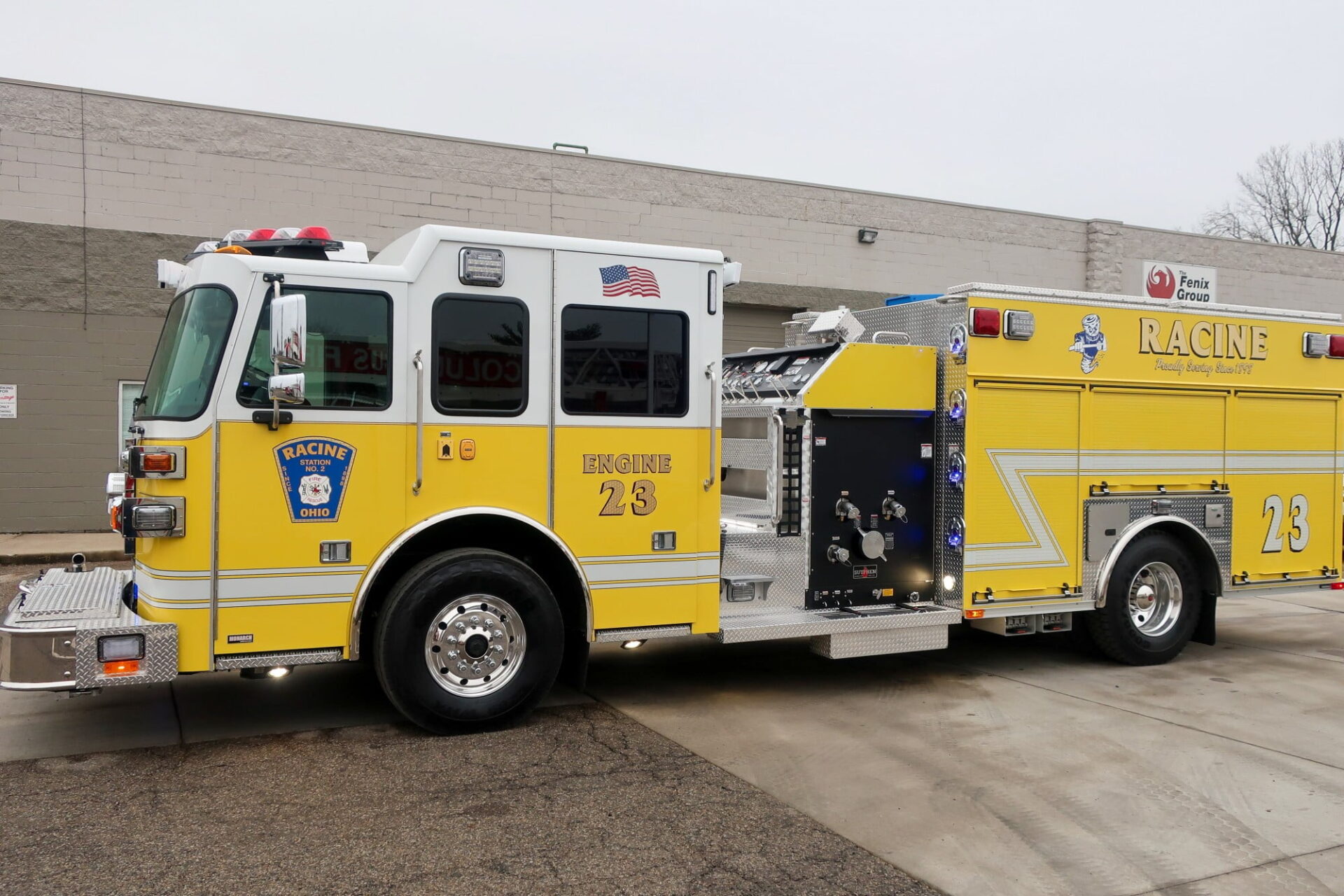

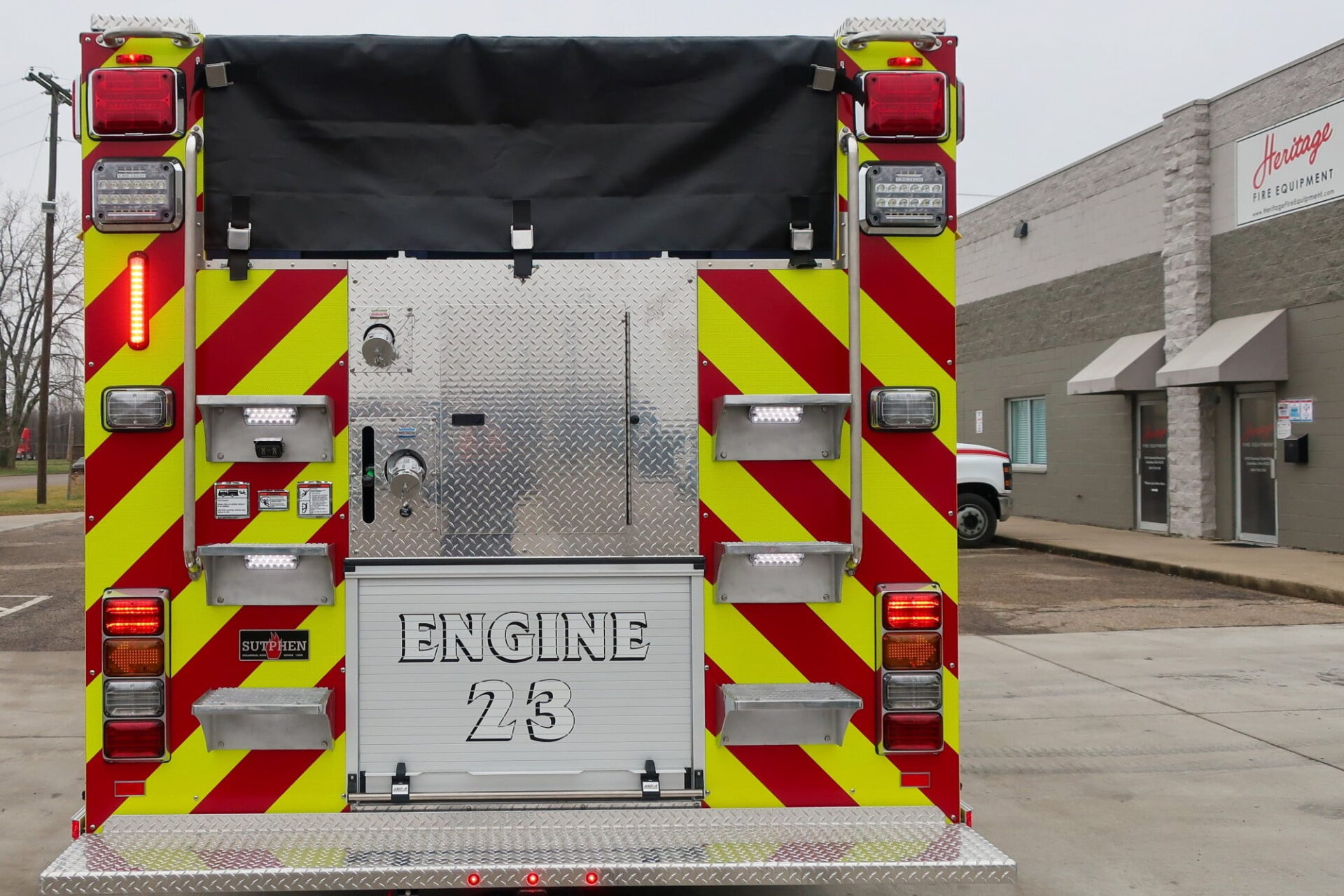

Custom Pumper – Racine Fire Department, OH

Specs

Cab
Four-door, six-person
10” Double Rails
Single axle (50k psi)
Front Axle and Suspension
19,000 lbs.
Suspension Rear Reyco
27,000 lbs.
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville 420 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax-1,500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
Speedlays
(2) 2” w/ 1 ½” Swivels
Water Tank
1000-gallon
Water Tank
25 gallon foam tank
Foam System
Hale Smartfoam 3.3
Doors
Amdor roll-up compartment
Total Compartment Space
294 cu. ft.
Ladder Compliment
Duo safety ladder package (24’ 2-section, 14’ roof and 10’ folding)
Body
G-9 – Alum 40/51 Ladders Through Tank
Bumper Extension
24” polished stainless-steel bumper
Siren
Federal q2b , grille mount
Camera System
FRC Inview Trueview Single Camera
FRC Spectra Brow
Light
Siren
Federal split vision vslr8 & vslr3 led light bars
FRC Spectra Telescopic
Lights
Siren
Federal ql64 red leds
Siren
Federal ql97 red leds
Firetech Guardian Elite
Led scene lights
