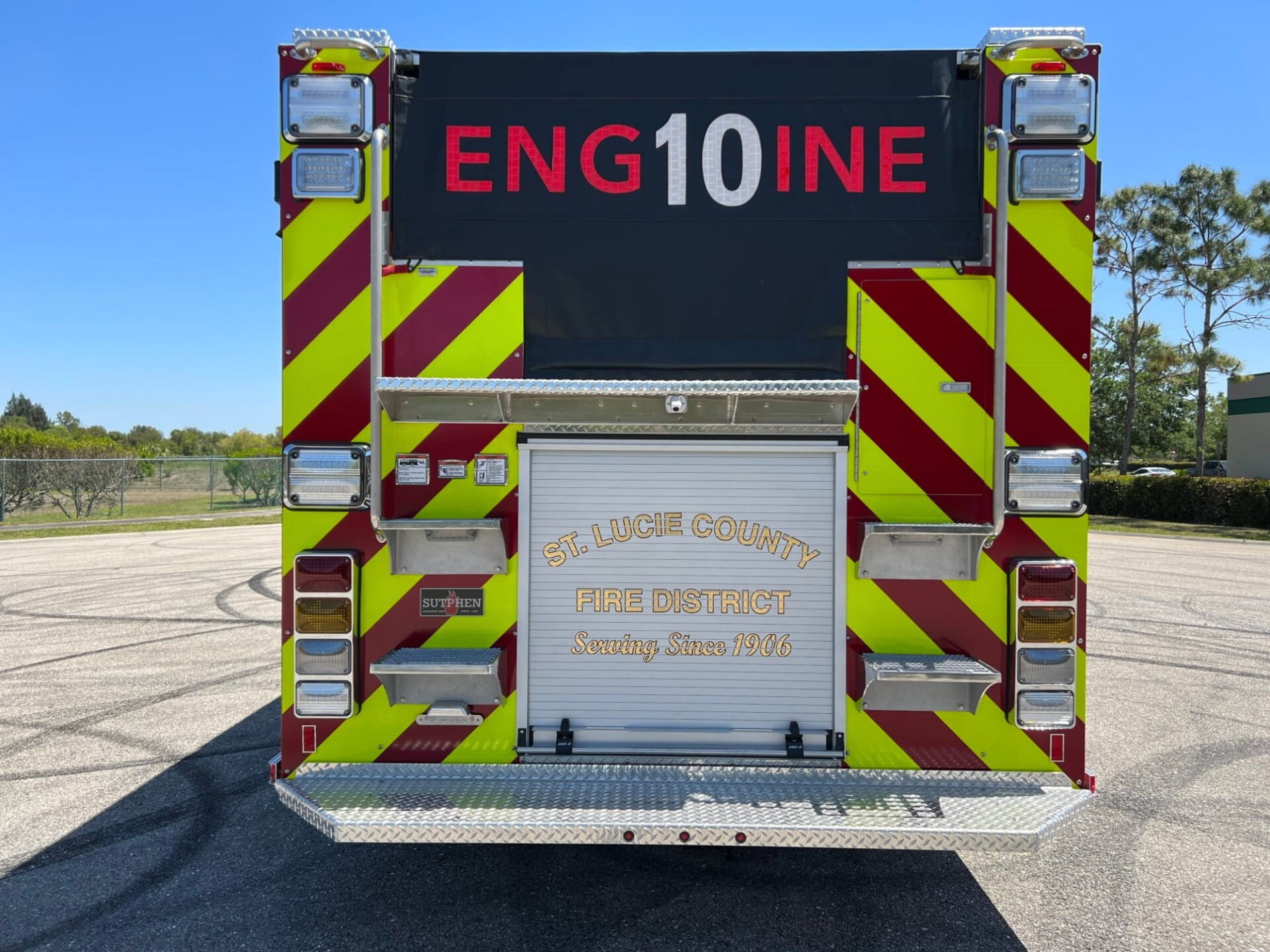

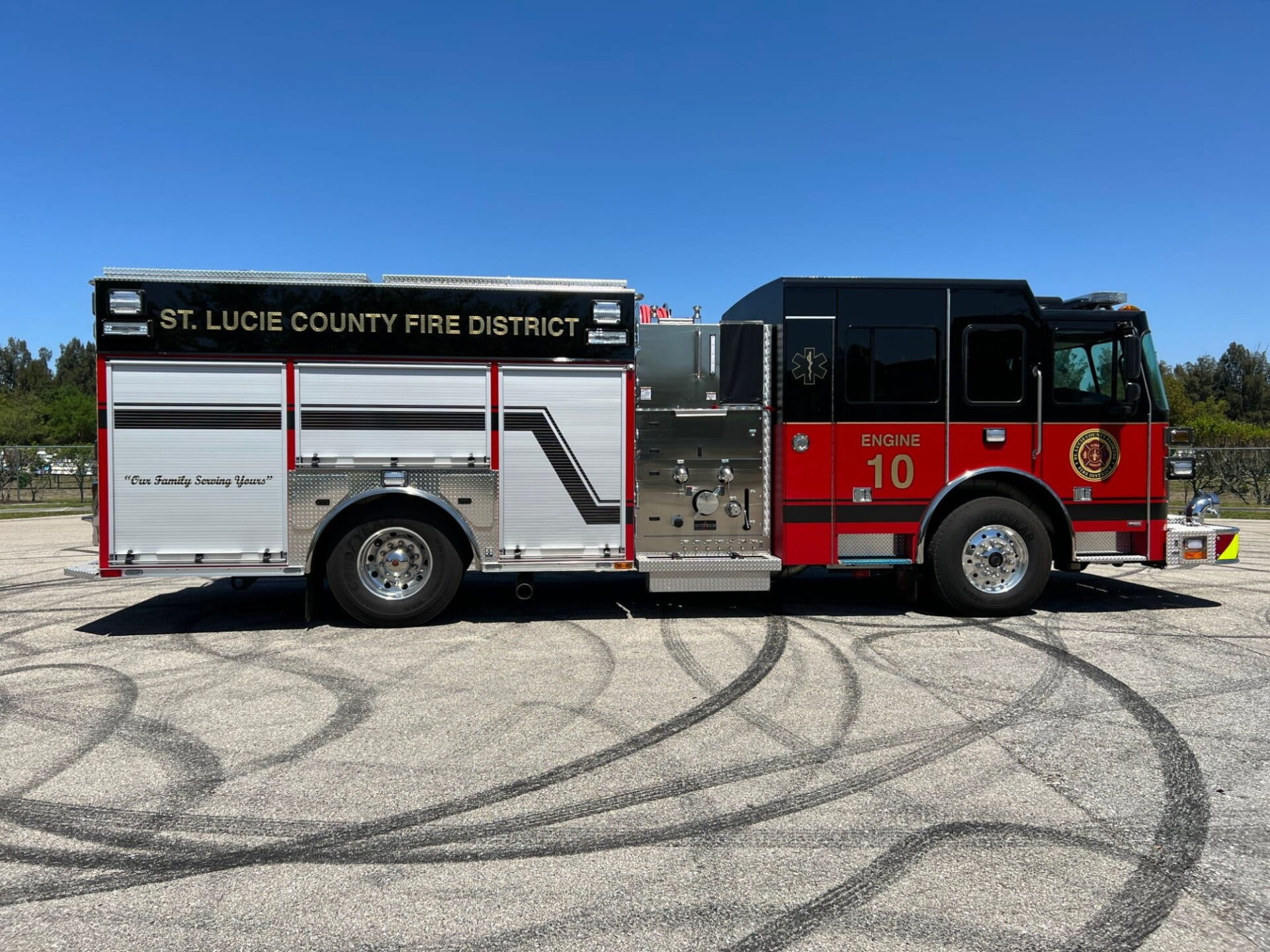

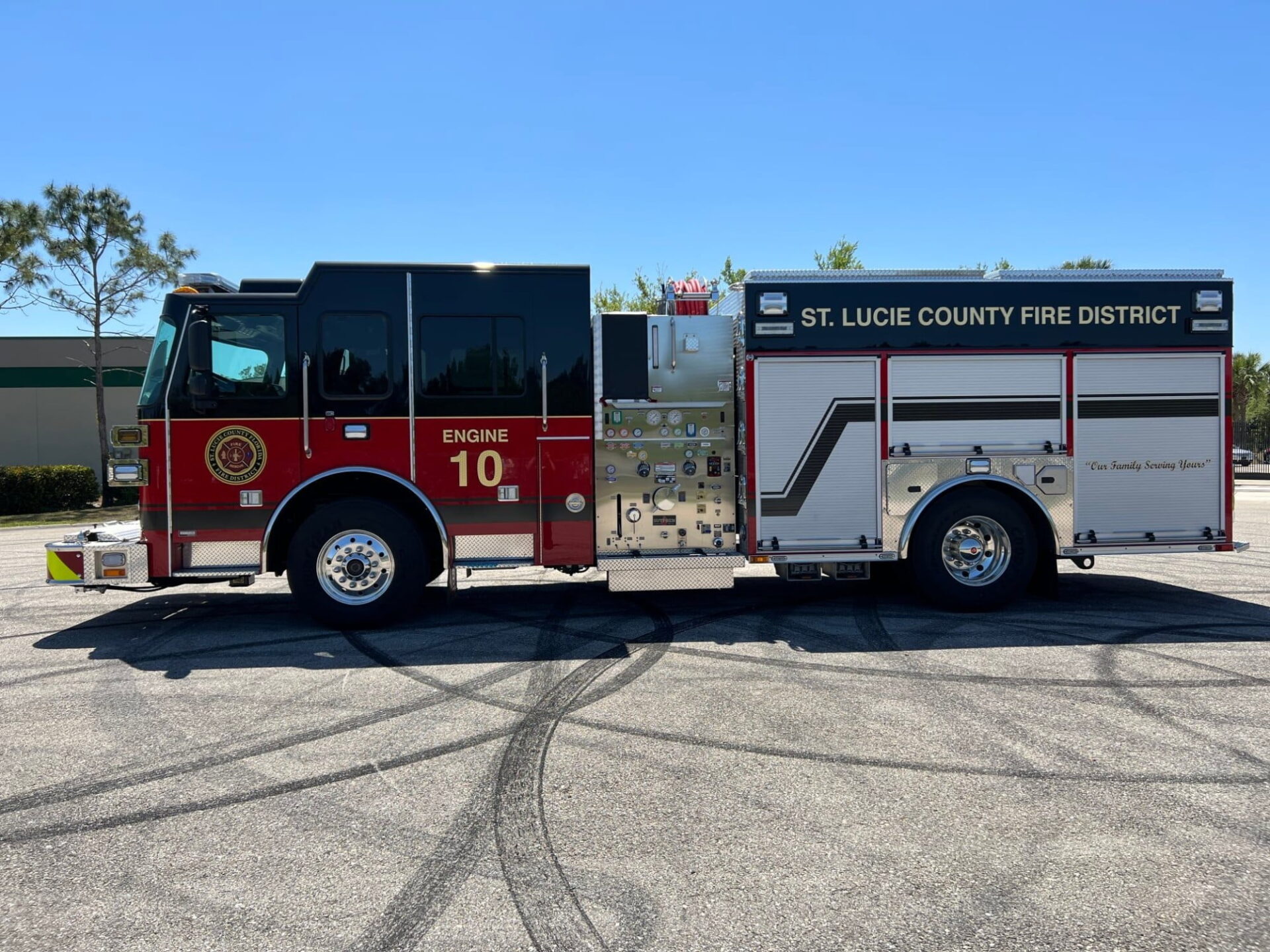

Custom Pumper – Port Saint Lucie, FL

Specs

Cab
Four-door, six-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
24,000 lbs
Engine
Cummins L 9, 400HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax – 1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (2) 2 ½” Right, (1) 2 ½” Front/Left Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Crosslays
(2) 2” Crosslays w/ 1 ½” Swivel
Water Tank
750-gallon
Water Tank
30-gallon foam tank
Foam System
Elkhart w/ Flush
Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment
Total Compartment Space
Over 294 cu ft.
Alco-Lite Pel-24 Ladders
(1) 24’ 2-section & (1) PRL-14 14’ Roof & (1) 10’ Roof
Body
G2 – Alum 40/51 Ladder Chute
Bumper Extension
24” stainless steel,
Siren
Federal q2b , grille mount
Whelen Freedom LED
Lightbar
FRC Spectra Brow
Light
FRC 900 LED
Scene light
Camera System
Brigade 360
Intercom System
Firecom (1 Wireless, 4 Wired), Single Radio
