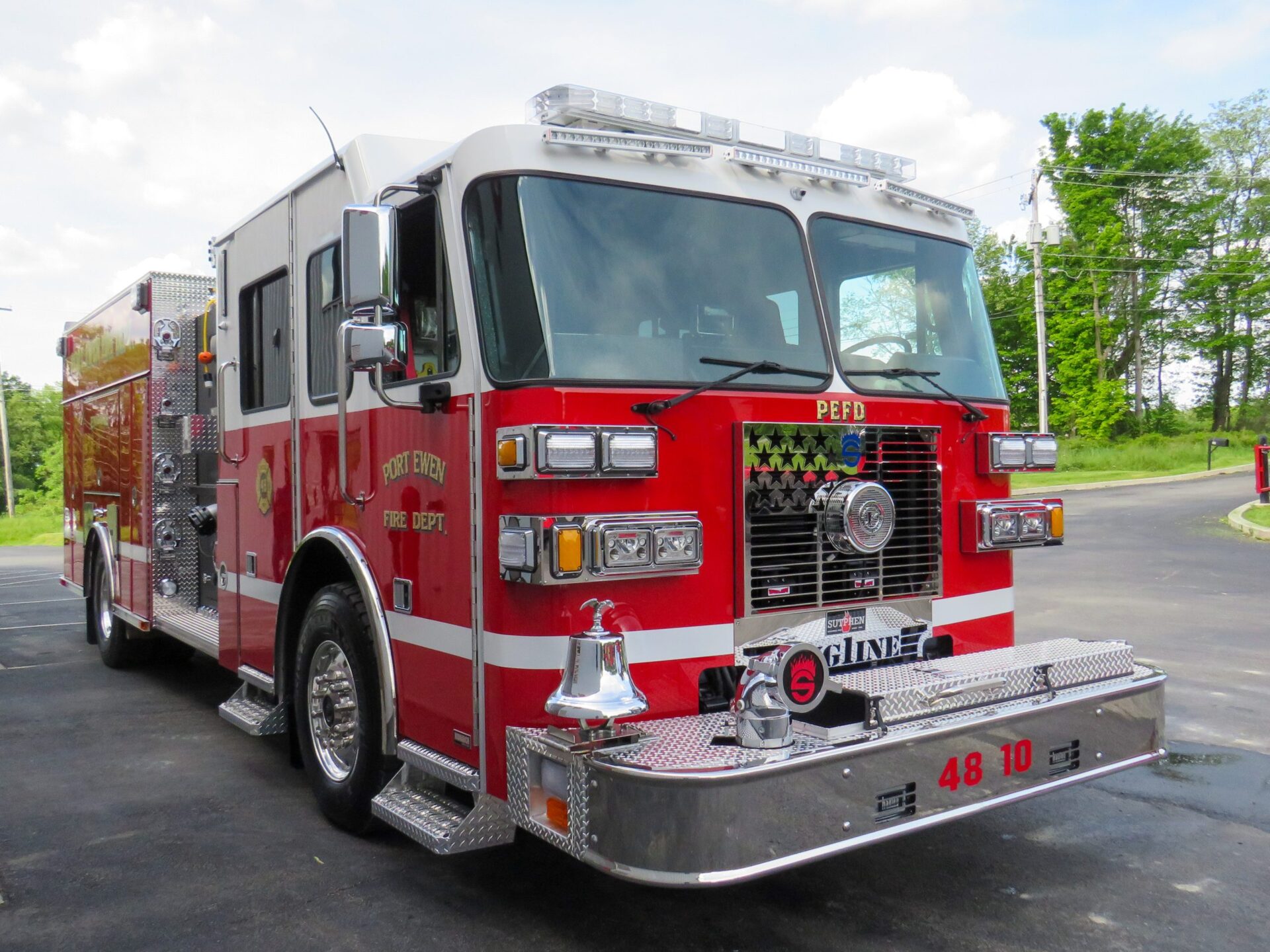

Custom Pumper – Port Ewen Fire District, NY

Truck Type:
Sutphen Heavy-Duty Custom Pumper
Dealer:
Sutphen
Location:
Port Ewen, NY
Department:
Port Ewen Fire District

Specs

Cab
Four-door, six-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
21,000 lbs
Rear Axle and Suspension
31,000 lbs
Engine
Cummins X 12, 500HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 5, EVS4000
Water Pump
Qmax-2000 gpm 6” suction, single stage pump
Discharges
(2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Left Rear, (1) 2 ½” Pipe to Right Rear, (1) 1 ½” to Front Bumper, (1) 3” Deck Gun
Crosslays
(1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslay w/ 1 ½” Swivel
Water Tank
1,000-gallon
Construction
3/16” extruded aluminum
Doors
Hinged compartment , painted
Total Compartment Space
371 cu ft.
Alco-Lite Ladder Package
PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
Body
PA-17 43/53 Chute & Double Hatch
Bumper Extension
24” polished stainless steel, bumper
Siren
Federal q2b , grille mount
Power
Hannay electric cord reel, 175’ (1)
Generator
Smart Power 10KW
Camera System
Brigade, Backeye 360 Camera System
FireTech 3-Piece 72”
Led brow light
Whelen Freedom IV
72” led light bar
FireTech Tele Light
(2)
Whelen Traffic Advisor
Led
