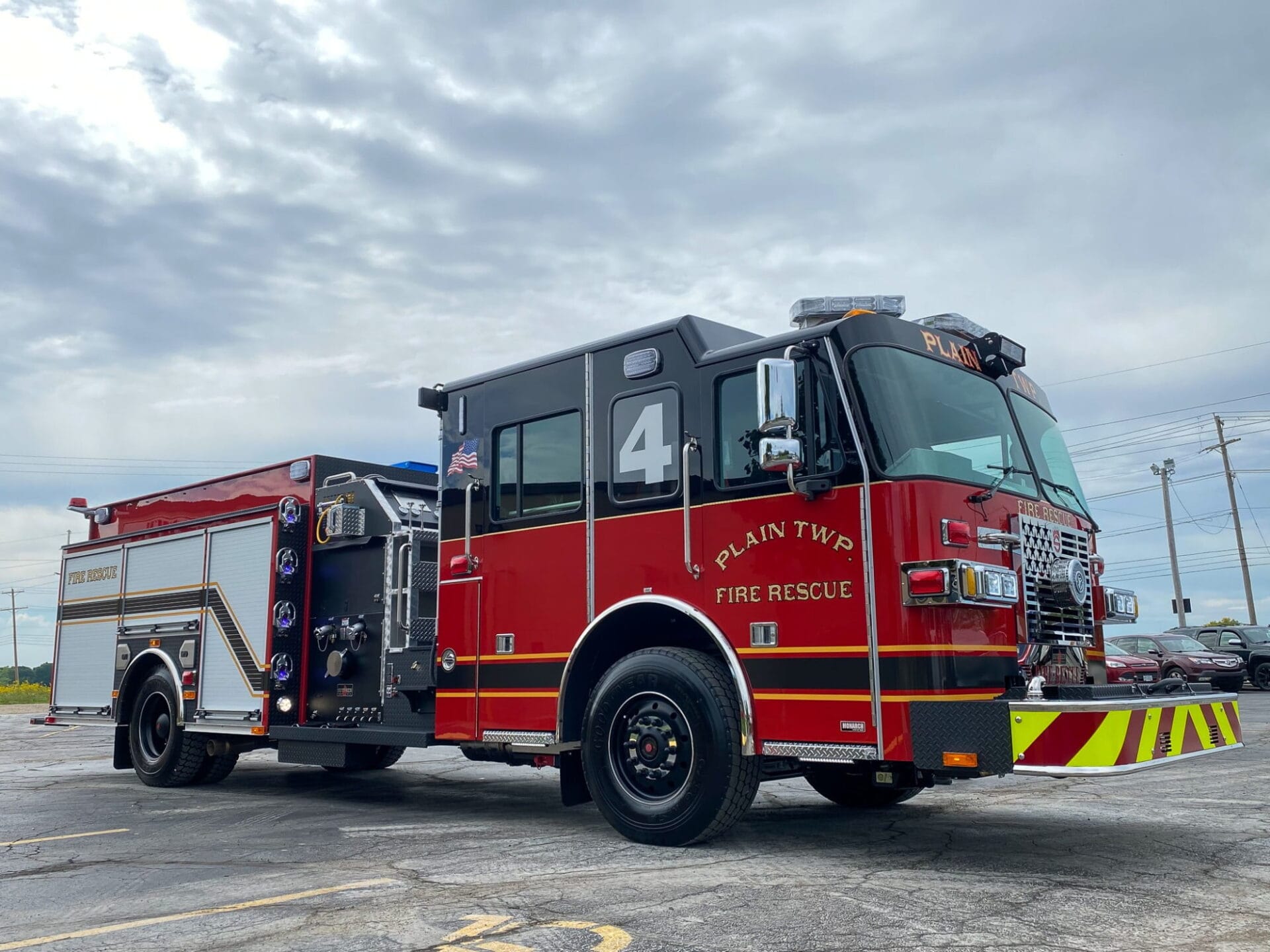

Custom Pumper – Plain Township Fire Rescue, OH

Specs

Cab
Four-door, five-person
10” Single, Double
Frame rails (50k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9, 450HP
Alternator
Leece Neville 320 AMP
Transmission
Allison Gen 5, EVS3000

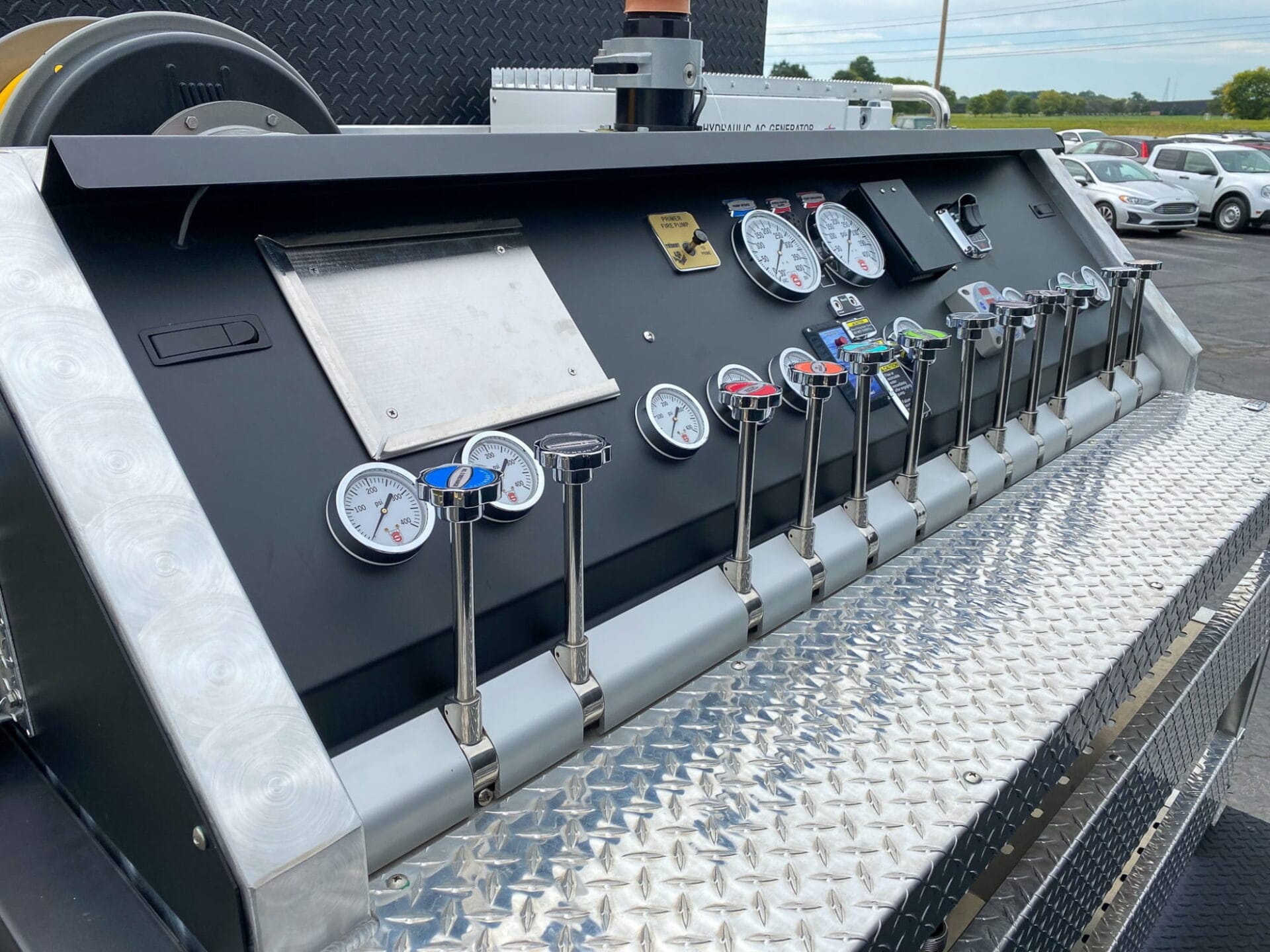

Water Pump
Qmax-1500 gpm single stage pump
Discharges
(1) 2 ½” Left, (1) 3” Right, (1) 3” Left, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Water Tank
1,000-gallon
Construction
3/16” extruded aluminum
Doors
Rom roll-up compartment , satin finish
Total Compartment Space
Over 230 cu. ft.
Alco-Lite Ladder Package
PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
Body
S2 – Alum 43/53 Ladder Chute
Bumper Extension
24” polished stainless steel
Siren
Federal q2b , grille mount
Camera System
Back-Up Camera
Power
Hannay electric cord reel, 150’ (1)
Generator
6KW Smart Power
(3) Whelen Freedom
Iv 23.25” led lightbars
Whelen PFH2 Brow
Light 12v
FRC Spectra 240V
Tele lights
Whelen M9 12V
Led scene light
Whelen M9V2 12V
Led scene light
