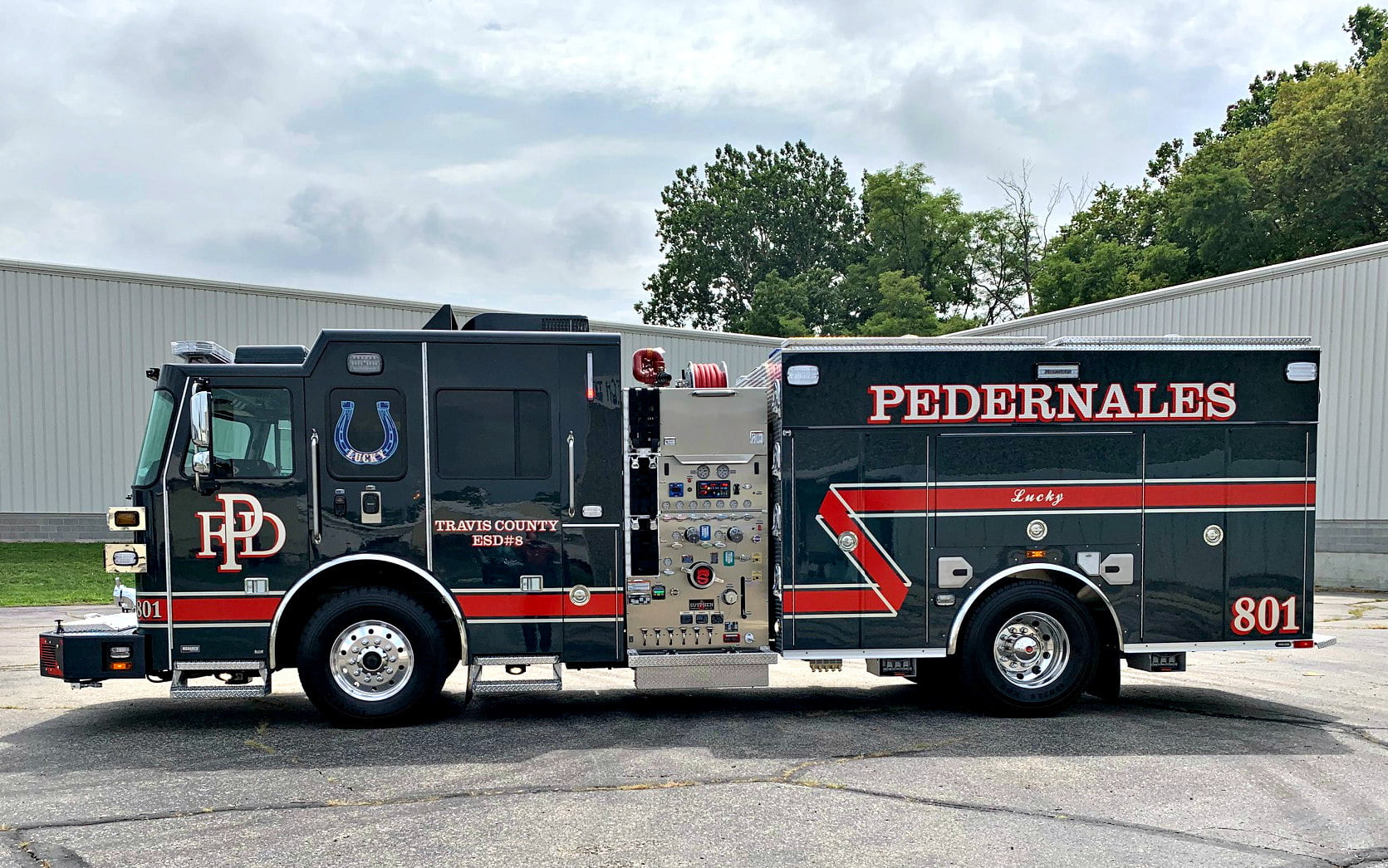

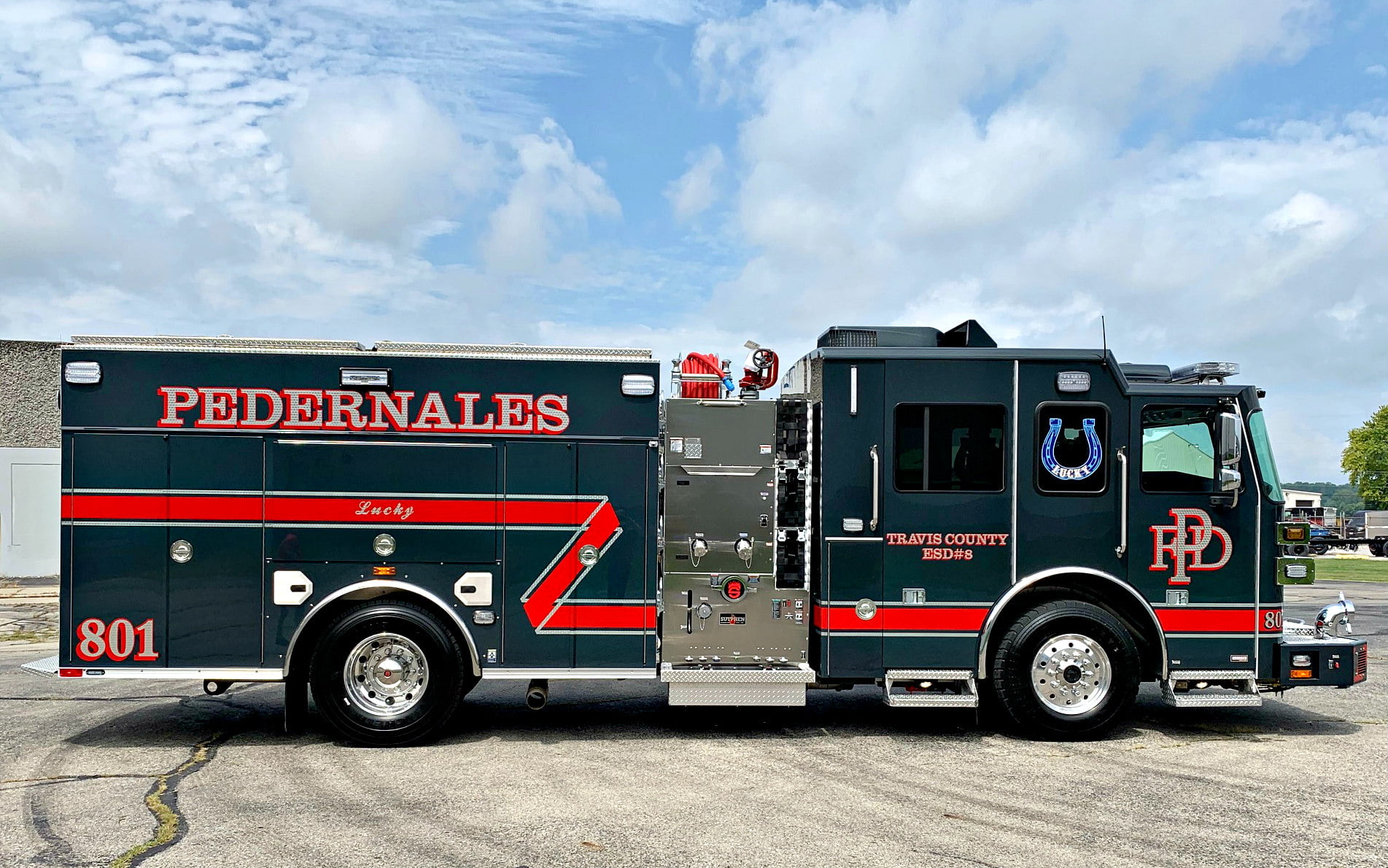

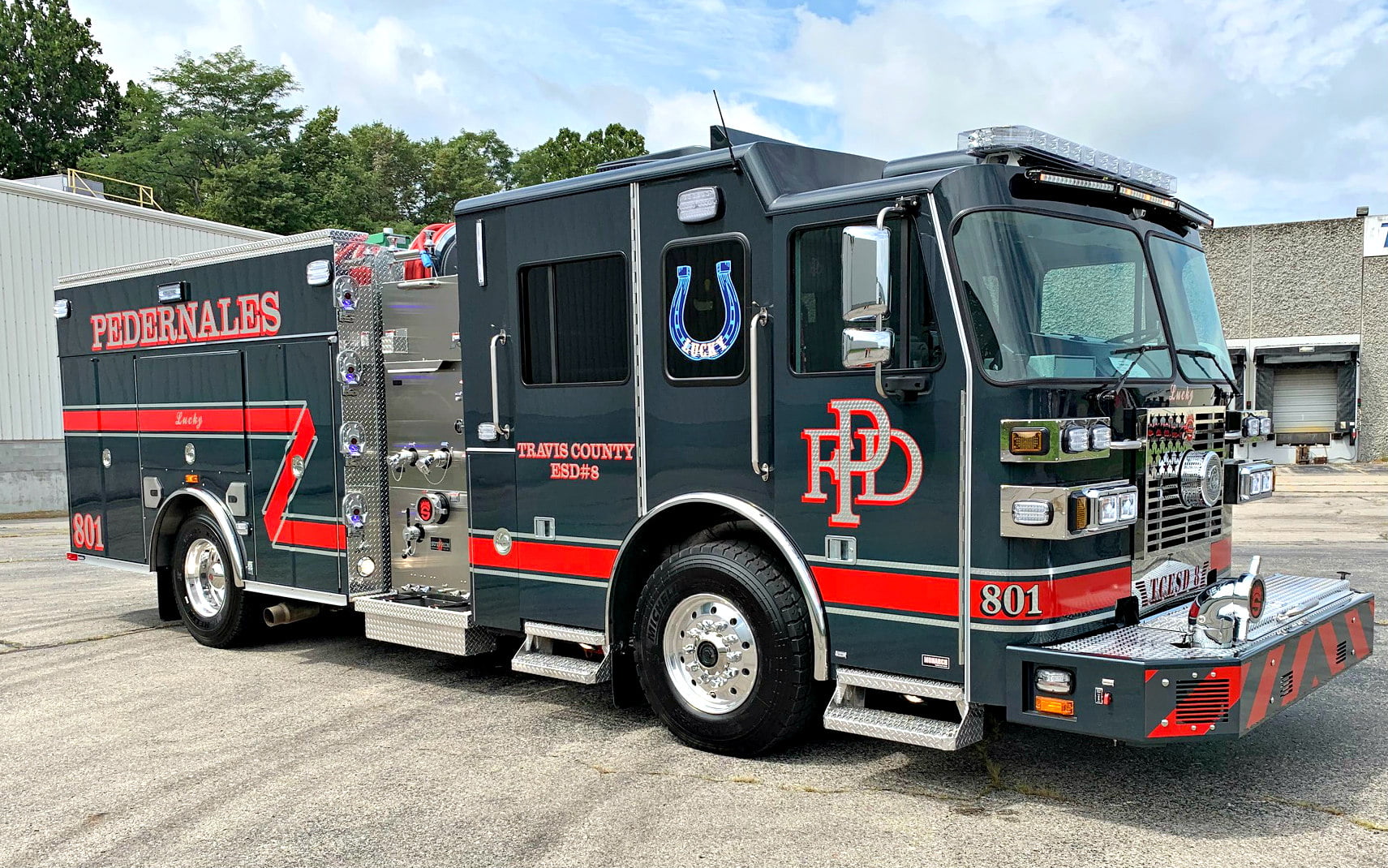

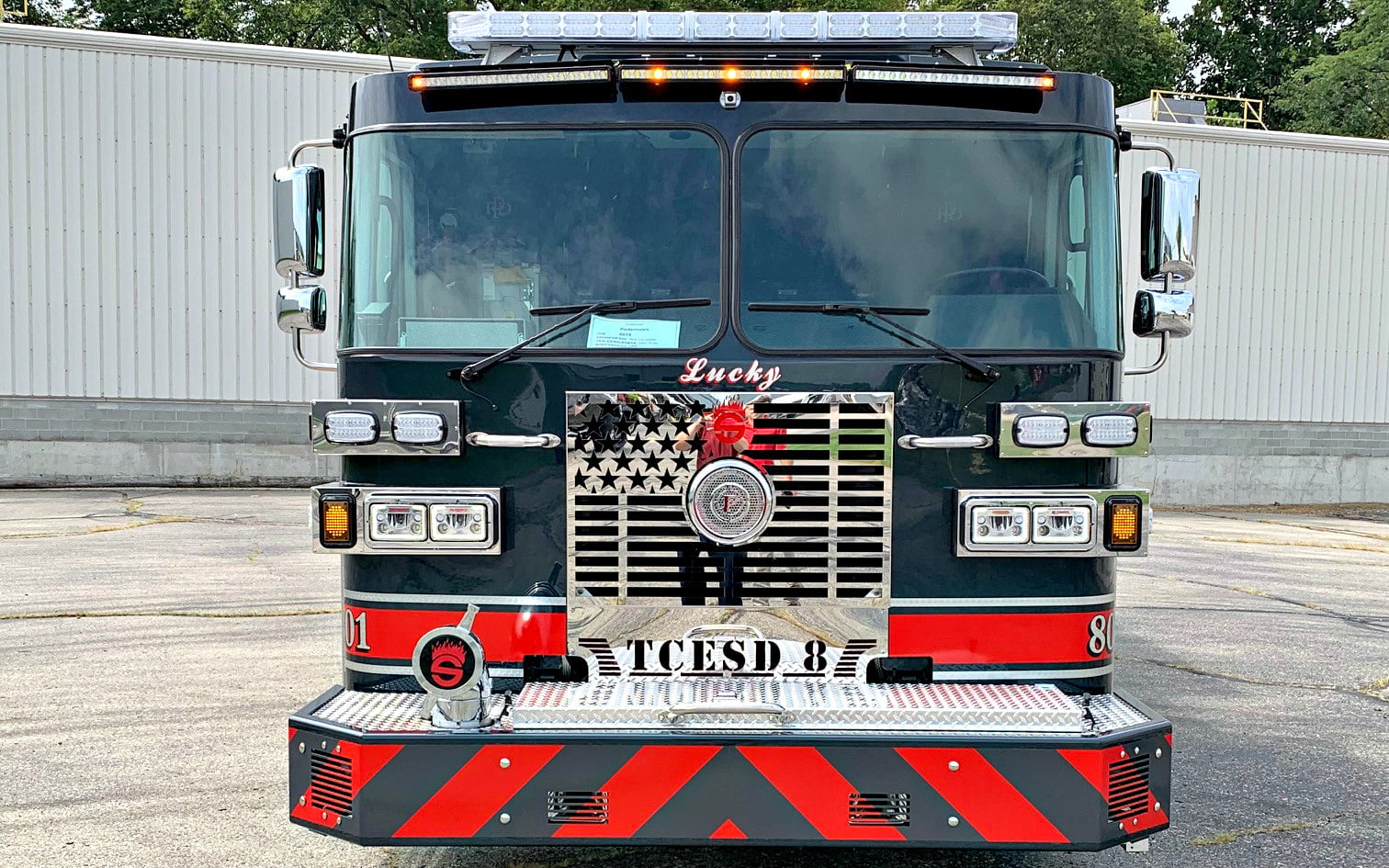

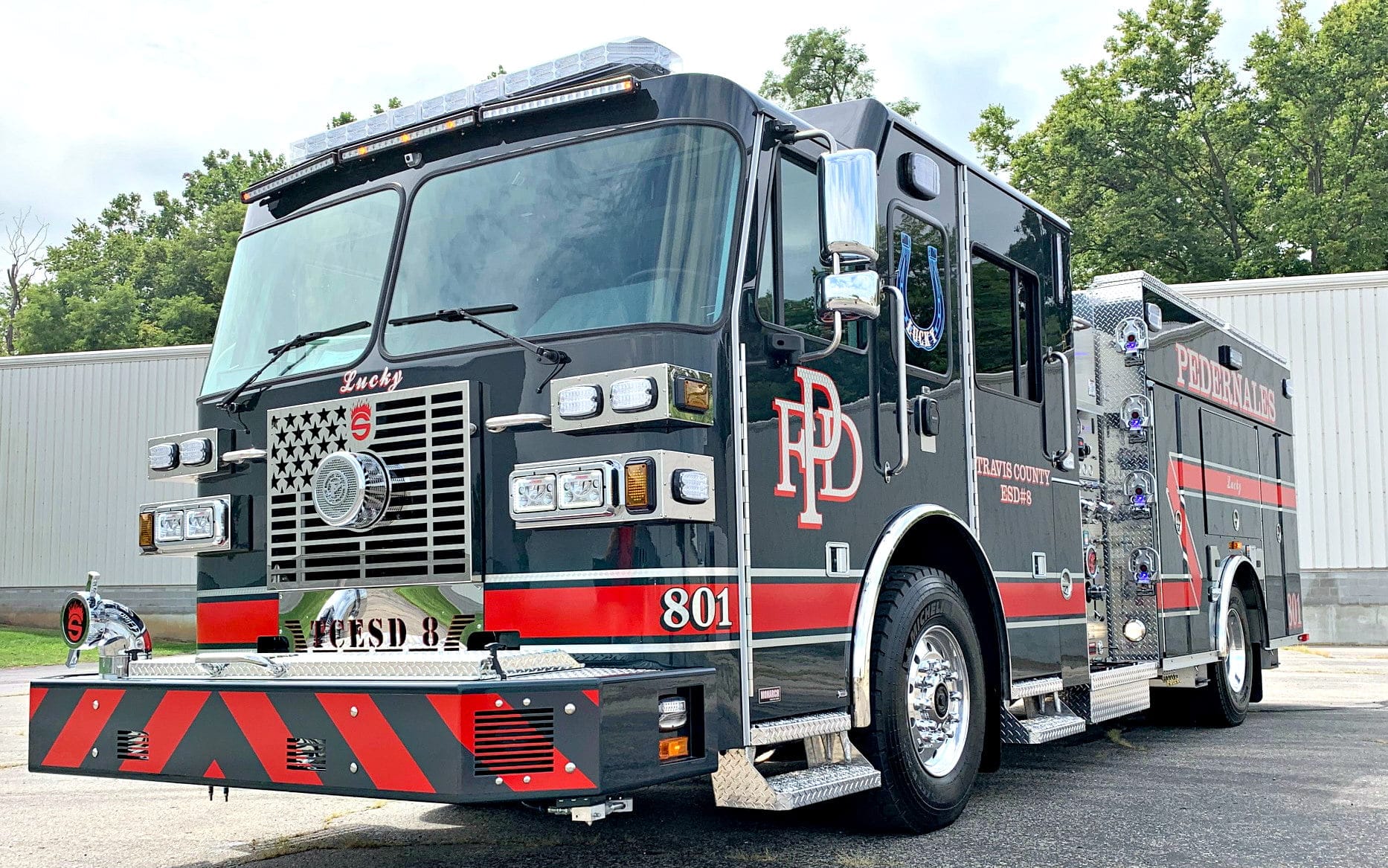

Custom Pumper – Pedernales Fire Department, TX

Truck Type:
Sutphen Heavy-Duty Custom Pumper
Dealer:
Sutphen
Location:
Briarcliff, TX
Department:
Pedernales Fire Department

Specs

Cab
Four-door, six-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
C.E. Niehoff, 415 AMP
Transmission
Allison Gen 5, EVS 3000
Water Pump
S101 1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Front Bumper Discharge, (1) 3” Deck Gun
Crosslay
(1) 2 ½”
Speedlay
(2) 2” w/ Swivels and Poly Lift-Out Trays
Monitor
Akron 3423 Apollo
Water Tank
1,000-gallon
Water Tank
30-gallon foam tank
Foam System, Foampro
2001, 2.6 gpm
Construction
3/16” extruded aluminum
Doors
Hinged compartment
Total Compartment Space
294 cu. ft.
Ladder Compliment
Alco-lite ladder package (pel-24 24’ 2-section & prl-14 14’ roof & 10’ folding)
Ladder Compliment
Ladder chute
Body
G9-Alum 40/51 Ladders Through Tank
Bumper Extension
24” formed steel channel
Siren
Federal q2b , grille mount
Camera System
Brigade, Backeye 360 Camera
Wireless Intercom, Setcom
Single radio, 6 positions
Firetech 3-Piece 72”
Led brow light
Whelen Freedom LED
Lightbar
Whelen M9 Scene
Lights
Whelen M6V Cornering
Lights
Whelen LED Traffic
Advisor
