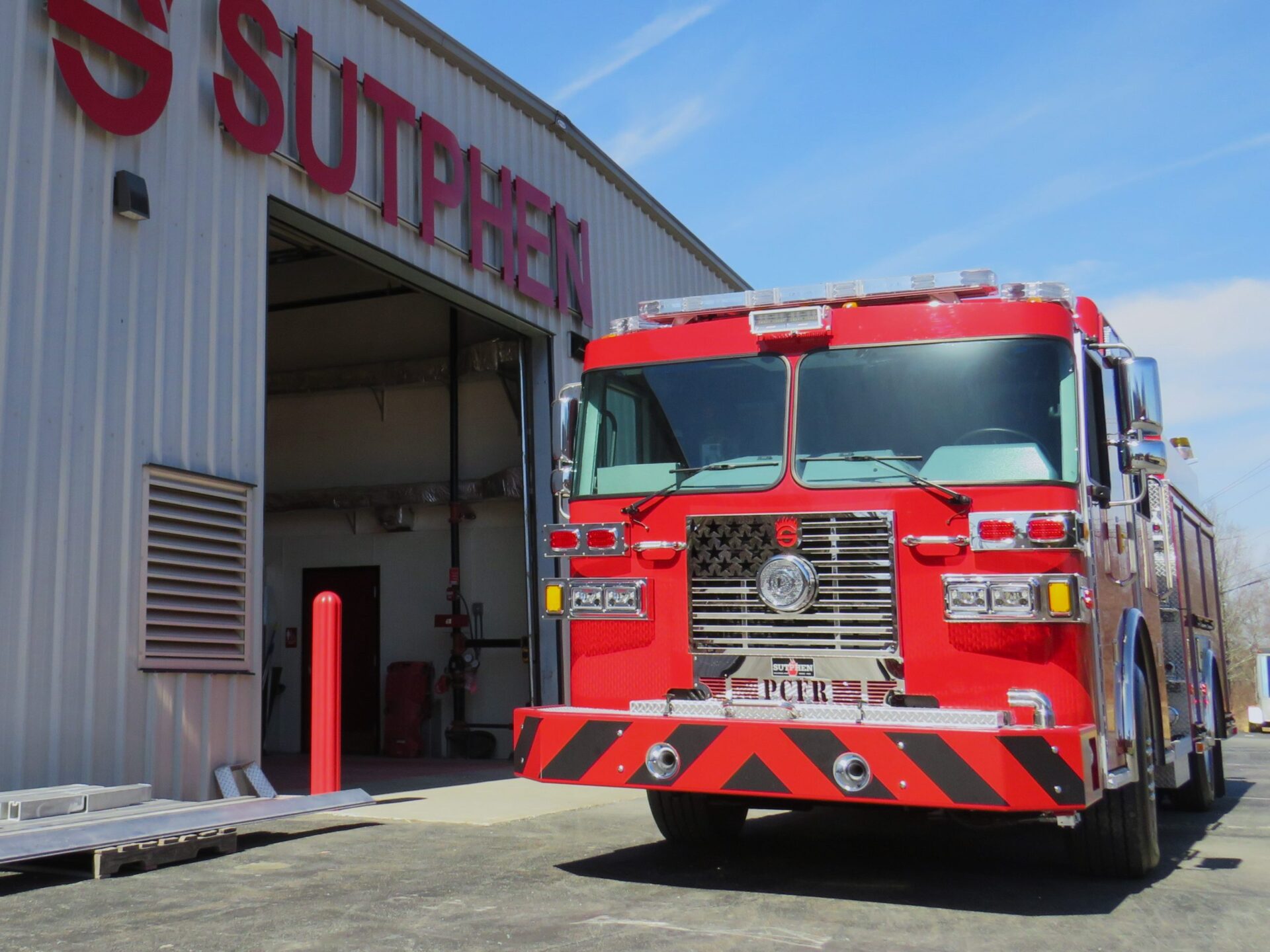

Custom Pumper – Peachtree City Fire Department, GA

Specs

Cab
Four-door, four-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
20,000 lbs w/ (4) 56” leafs
Rear Axle and Suspension
24,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax xs 1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” w 4” Outlet, Right, (1) 2 ½” Right, (1) Front/ Left of Main Hosebed, (1) Front/ Right of Main Hosebed, (1) 2 ½” to Front Bumper, (1) 3” Deck Gun
Speedlays
(2) 1 ½” w/ Liftout Tray
Water Tank
750-gallon
Construction
3/16” extruded aluminum
Doors
Rom roll-up compartment
Total Compartment Space
Over 250 cu ft.
Duo-Safety Ladder Package
900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
Body
PA-01 Res 31/53 Low Right (Elec Rack/ Brackets)
Bumper Extension
24” formed steel bumper
Siren
Federal q2b , grille mount
Camera System
Brigade, Two Cameras (Wired)
Whelen Freedom 8
Led lightbar
Whelen PFP2 12V
Led brow
Whelen Mini Edge
Led
Whelen PCPSM1C 12V
Led scene
