Custom Pumper – Parma Heights Fire Department, OH

Location:
Parma Heights, OH
Department:
Parma Heights Fire Department

Specs

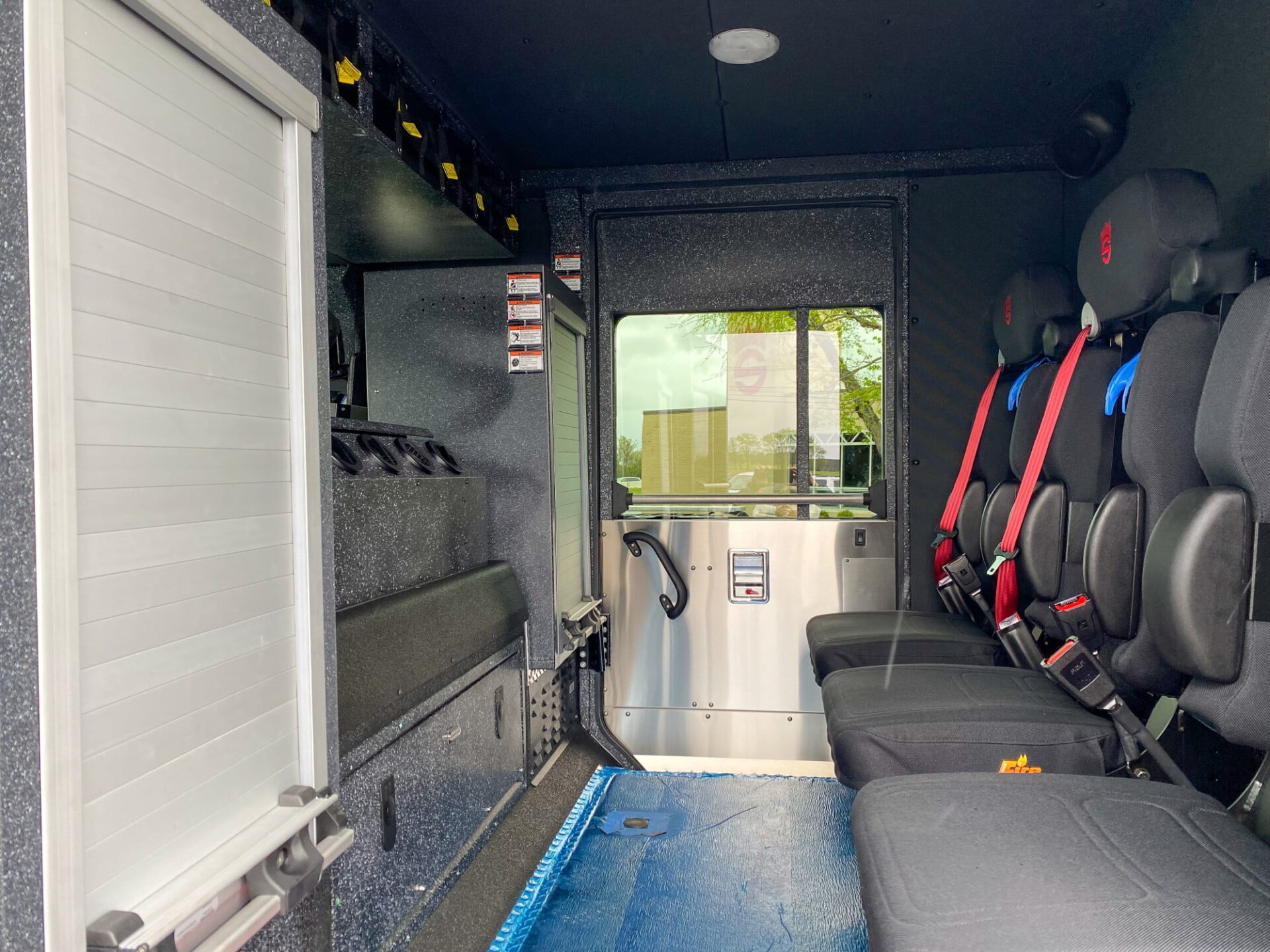

Cab
Four-door, five-person
10” Single Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs.
Rear Axle and Suspension
27,000 lbs.
Engine
Cummins L 9, 450HP
Alternator
Leece Neville 320 AMP
Transmission
Allison Gen 5, EVS3000

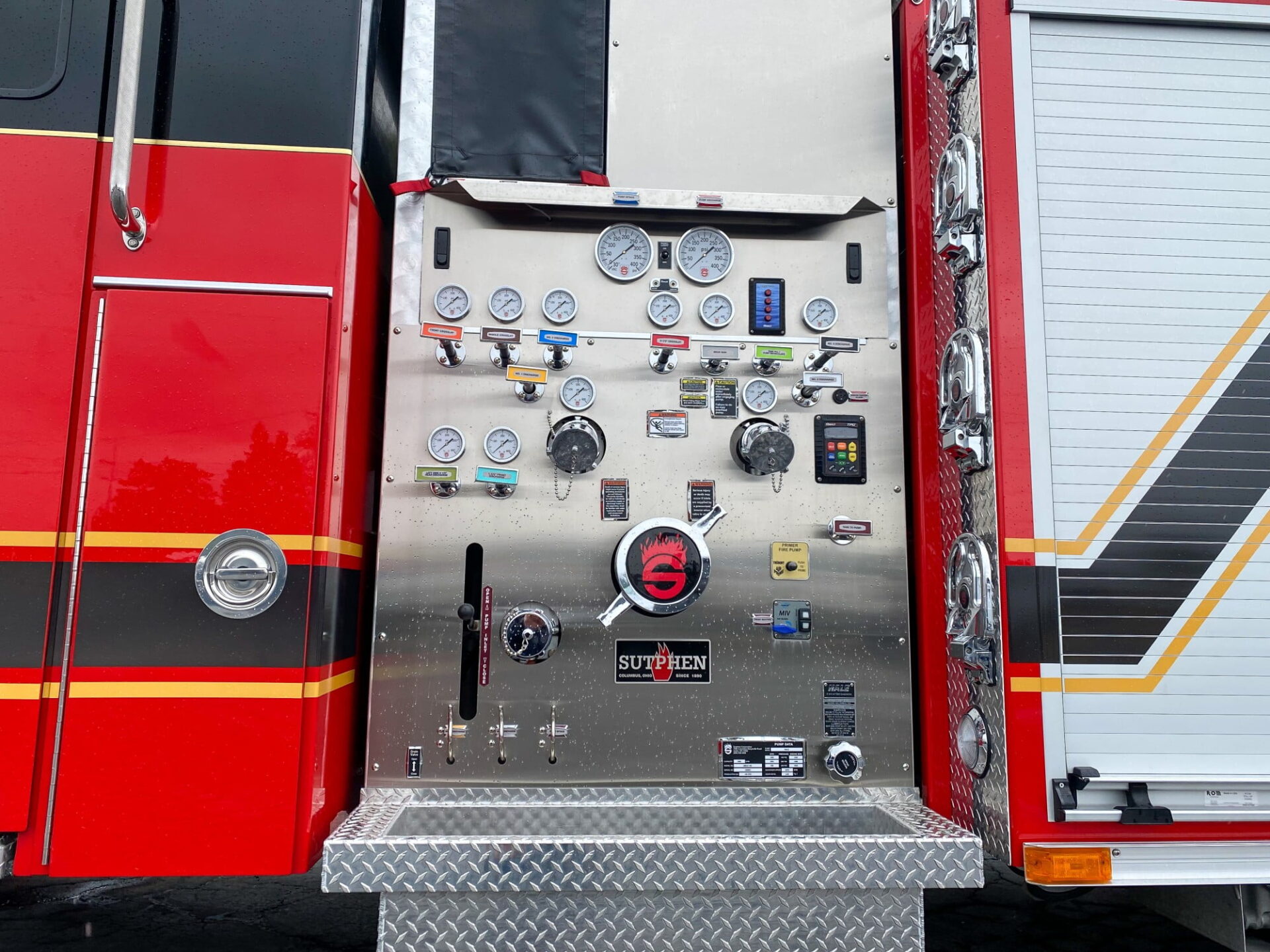

Water Pump
Qmax-1500 gpm, single stage pump
Discharge
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Crosslays
(2) 1 ½” & (1) 2 ½” w/ Swivels
Water Tank
750-gallon
Water Tank
30-gallon foam tank
Construction
3/16” extruded aluminum
Doors
Rom roll-up compartment
Total Compartment Space
Over 215 cu. ft.
Alco-Lite Ladder Package
PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
Body
S2M – Alum 43/53 Ladder Chute – Low Hosebed
Bumper Extension
24” polished stainless steel,
Siren
Federal q2b , grille mount
Camera System
FRC, Inview Trueview, Single Camera
Go-Light
Included
Whelen Freedom IV
72” led light bar
FRC Spectra 12V
Led brow light
FRC 900 12V
Scene lights
