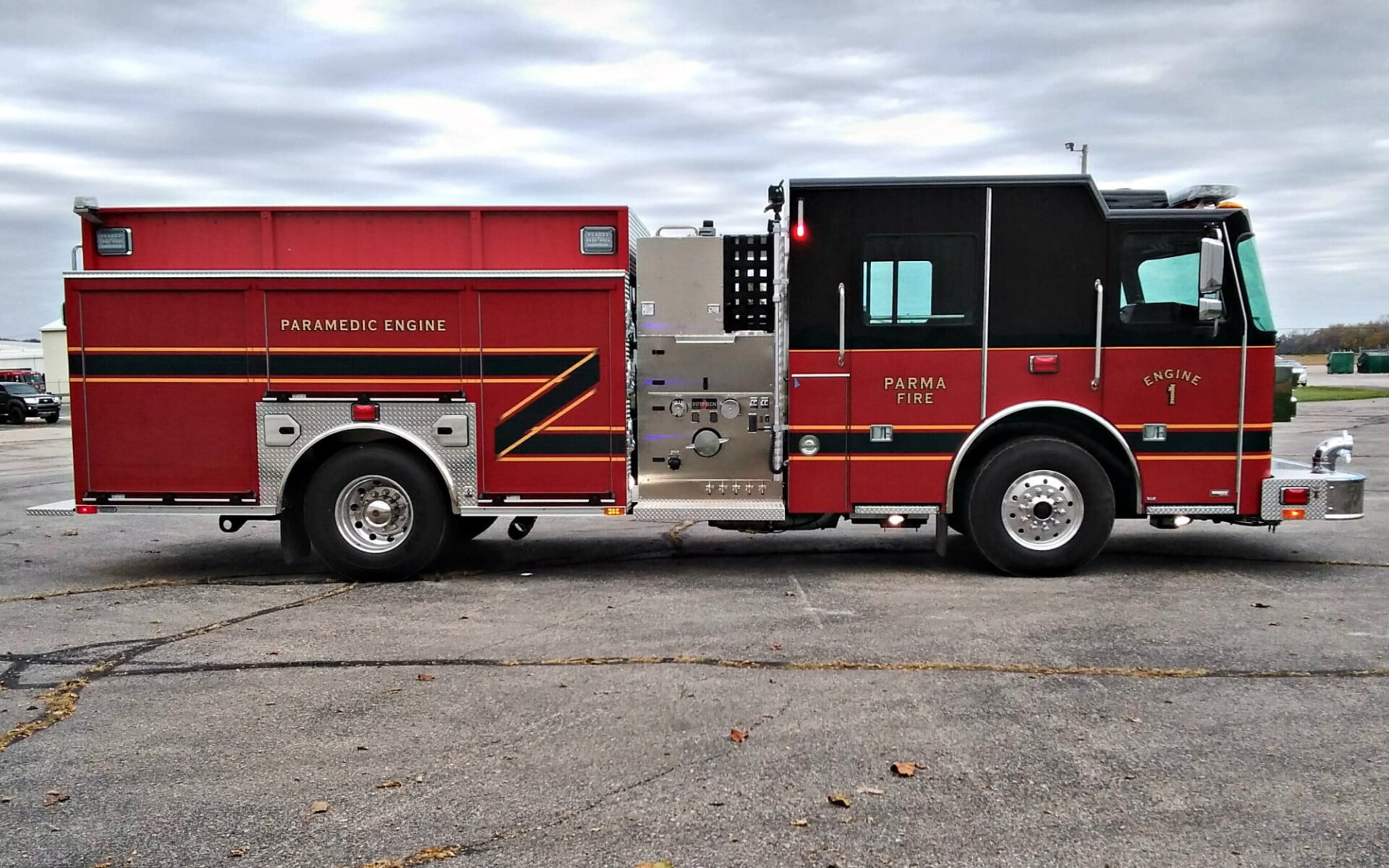

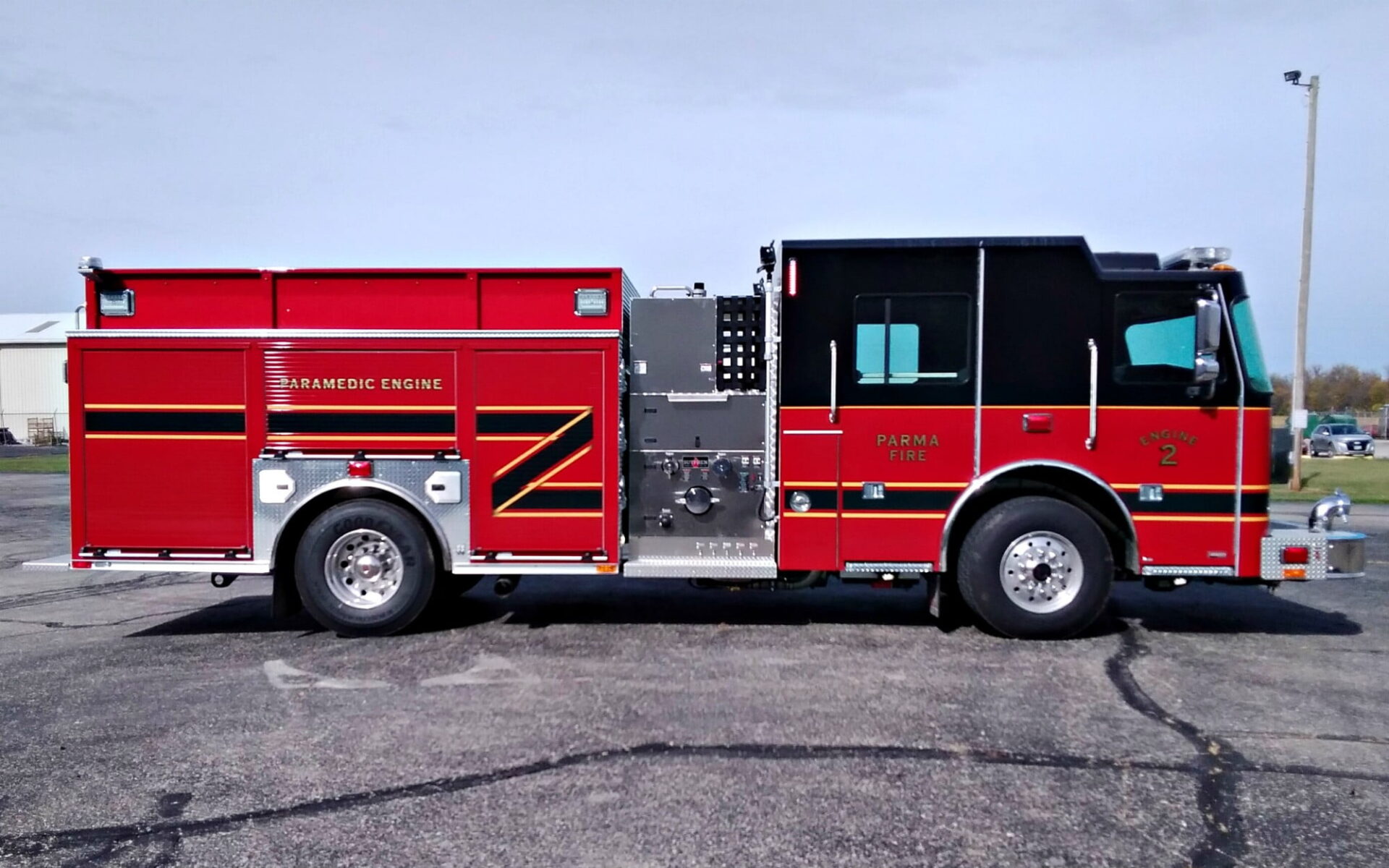

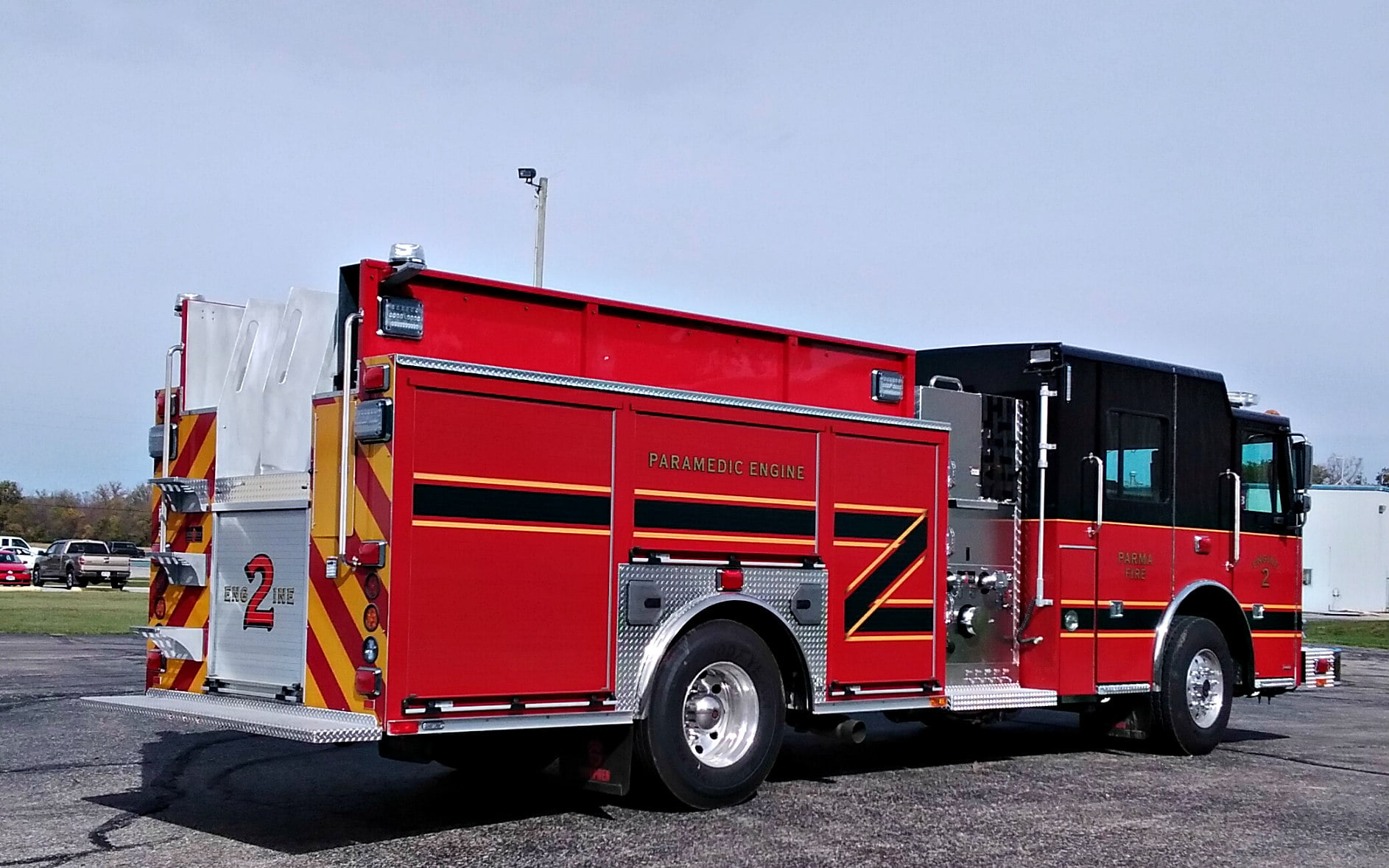

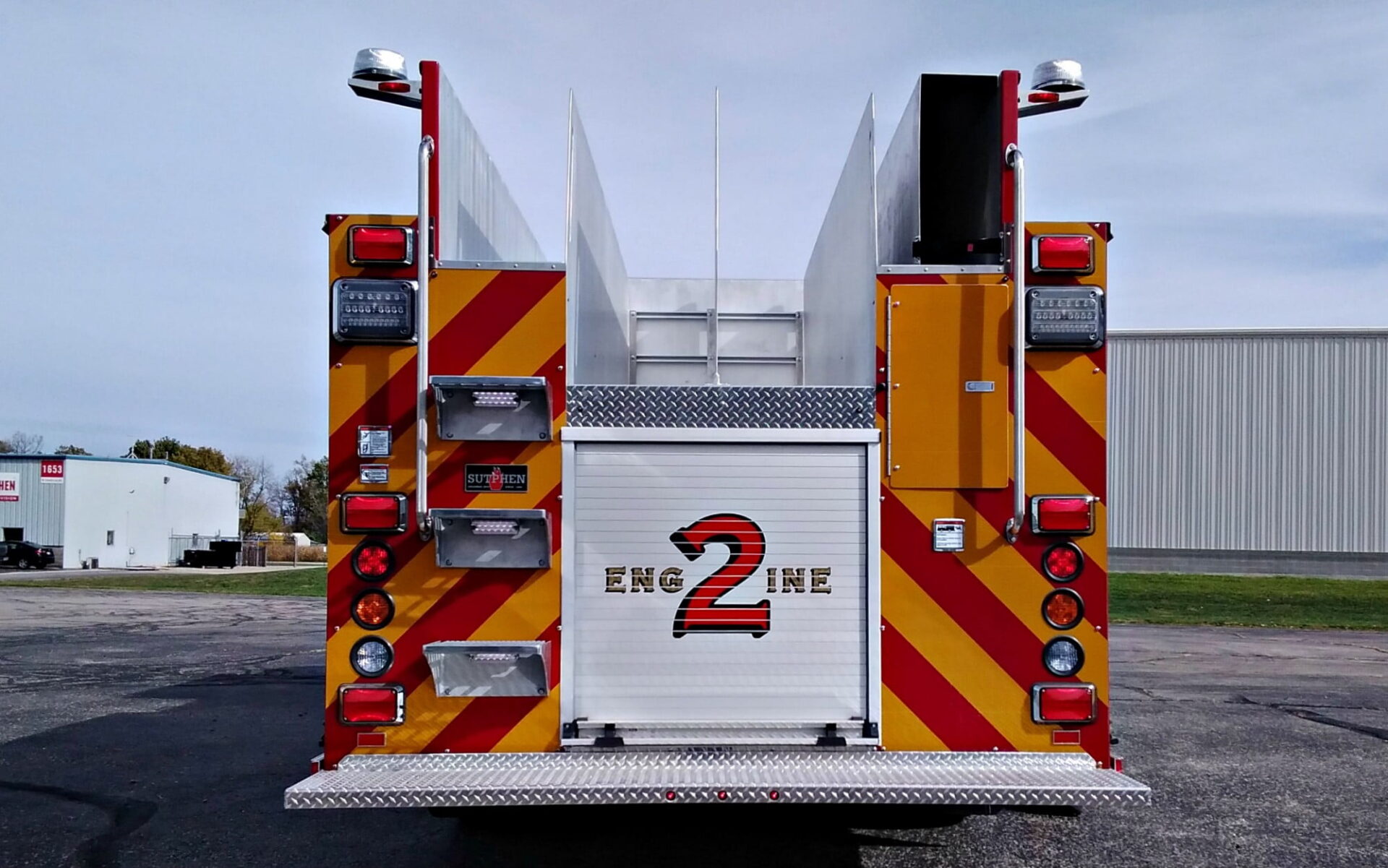

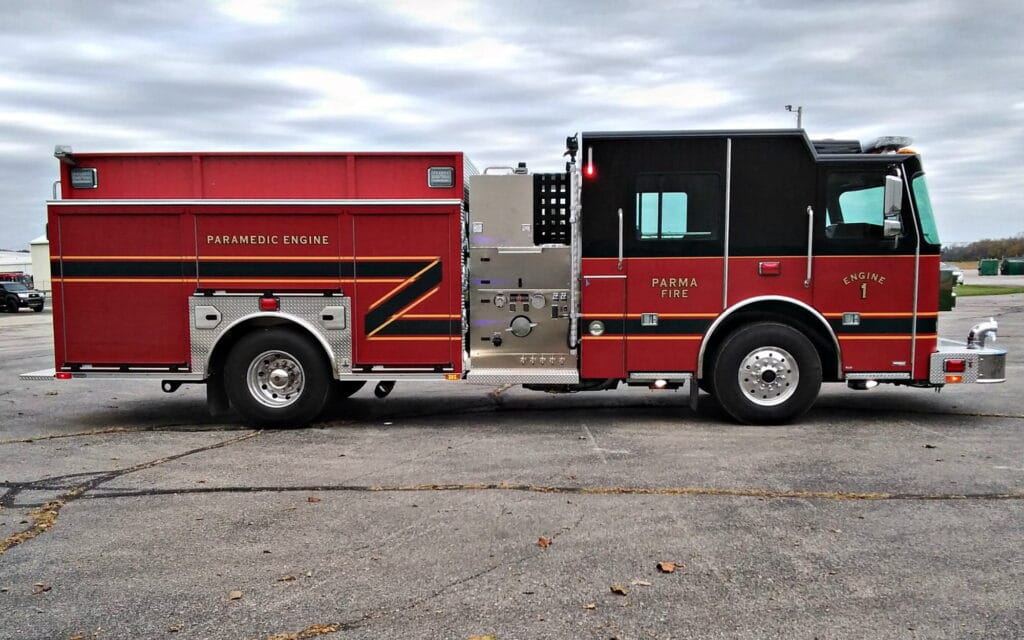

Custom Pumper – Parma Fire Department, OH

Location:
Parma, Ohio
Department:
Parma Fire Department

Specs

Cab
Four-door, four-person
10” Double Frame
Rails, domex (110k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
24,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS 3000
Water Pump
Qflo-1250 single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Crosslays
(2) 1 ½” & (1) 2 ½” w/ Swivels
Water Tank
500-gallon
Construction
3/16” extruded aluminum
Doors
Rom roll up compartment
Total Compartment Space
Over 220 cu. ft.
Ladder Compliment
Alco-lite ladder package (pel-24 24’ 2-section & prl-14 14’ roof & 10’ folding)
Ladder Compliment
Ladder chute w/ backboard storage
Body
G2-Alum 40/51 Ladder Chute
Bumper Extension
24” polished stainless steel
Siren
Federal q2b , grille mount
Air Bottle Storage
(4)
Ladder Compliment
Little giant ladder mounted
Whelen Freedom LED
Lightbar
Whelen PFH1 12V
Telescopic lights
Whelen 900 Scene
Lights
