Palm Beach County Fire Rescue

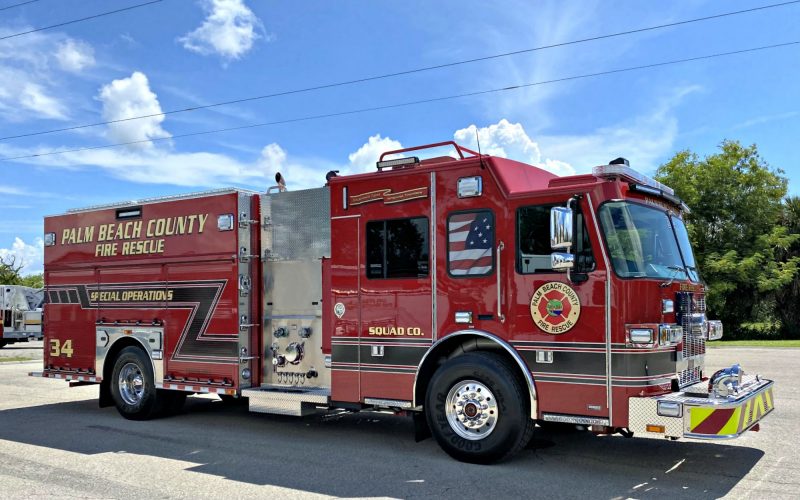

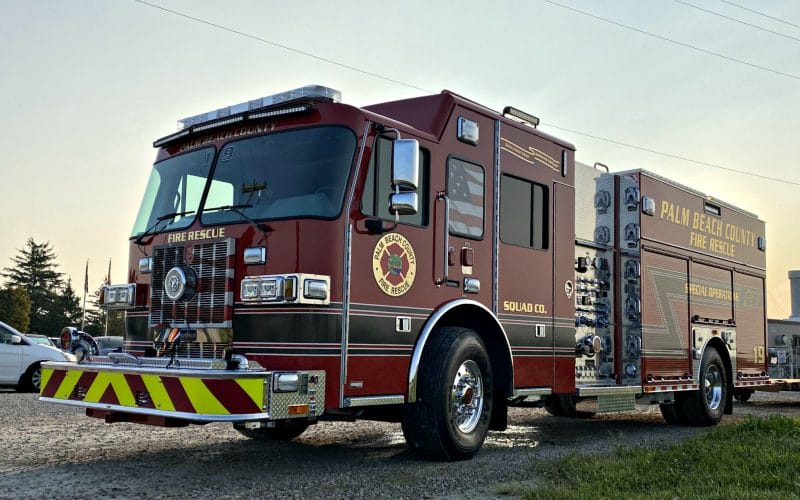

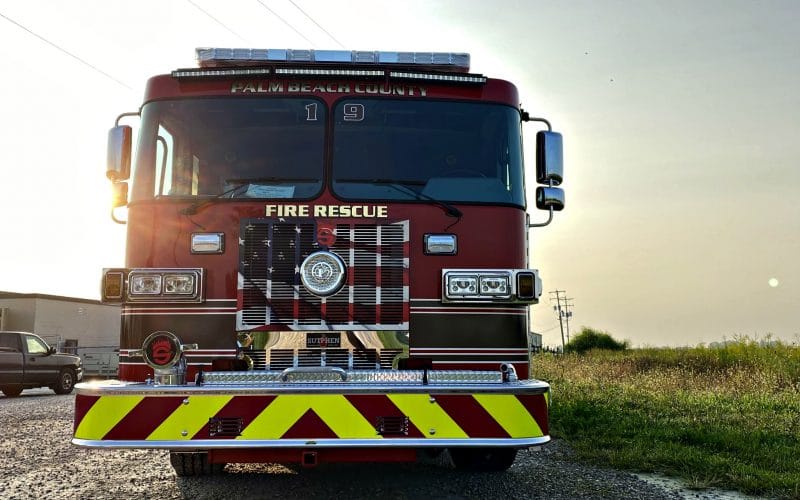

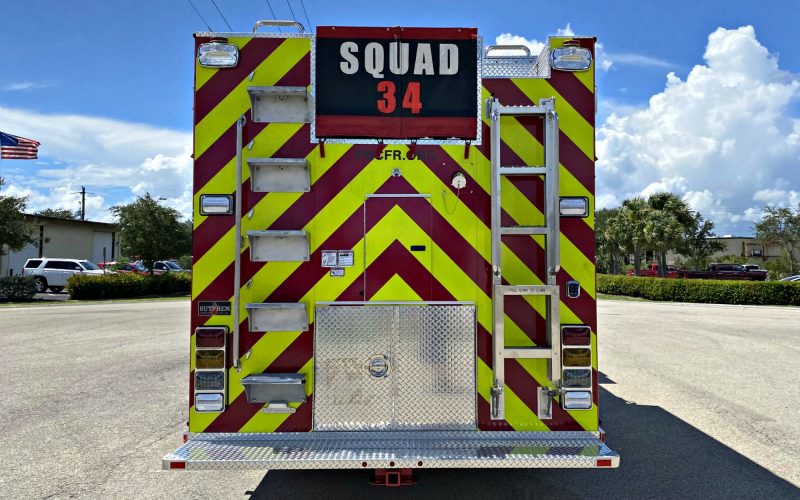

Custom Pumper – Palm Beach County Fire Rescue, FL

Specs

Cab
Four-door, five-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
18,000 lbs. w/ (3) 56” Leafs
Rear Axle and Suspension
24,000 lbs. Leaf
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville 420 AMP
Transmission
Allison Gen 5, EVS3000

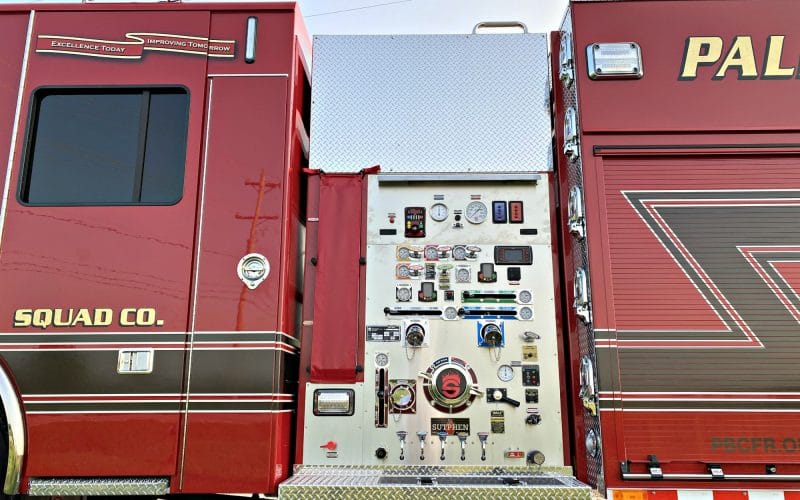

Water Pump
Qmax-1500 gpm, single stage pump
Discharge
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper w/ 2” Plumbing, (1) 3” Deck Gun
Speedlay
(2) 2” w/ 1 ½” Swivel
Water Tank
750-gallon
Water Tank
30-gallon foam tank
Foam System
Hale SmartFoam 5.0
Construction
3/16” extruded aluminum
Doors
Mixed amdor roll-up and hinged compartment

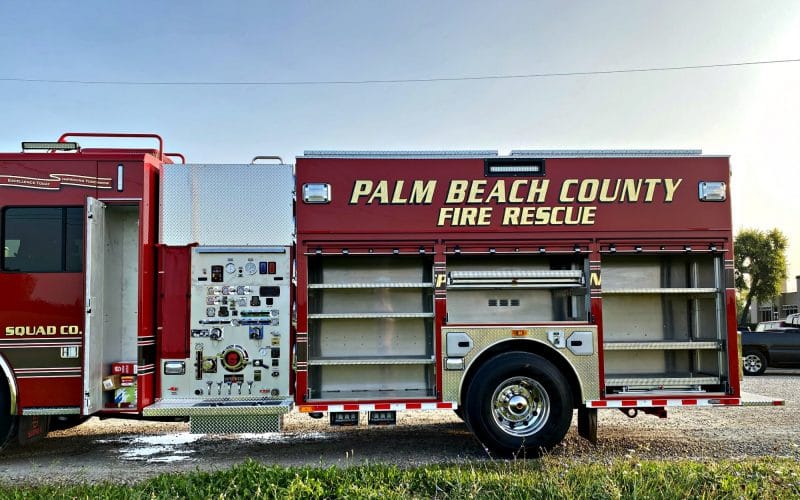

Total Compartment Space
240 cu. ft.
Alco-Lite Ladder Package
PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
Body
S4 – Alum 31/53 Electric Ladder Rack
Bumper Extension
24” polished stainless steel bumper
Siren
Federal q2b , grille mount
Hannay Booster Reel
Included
Whelen Arges Spotlight
Included
FireTech 3-Piece 72”
12v led brow light
Whelen L31 Red
Led beacon
Whelen PFH2 12V
Led teles
