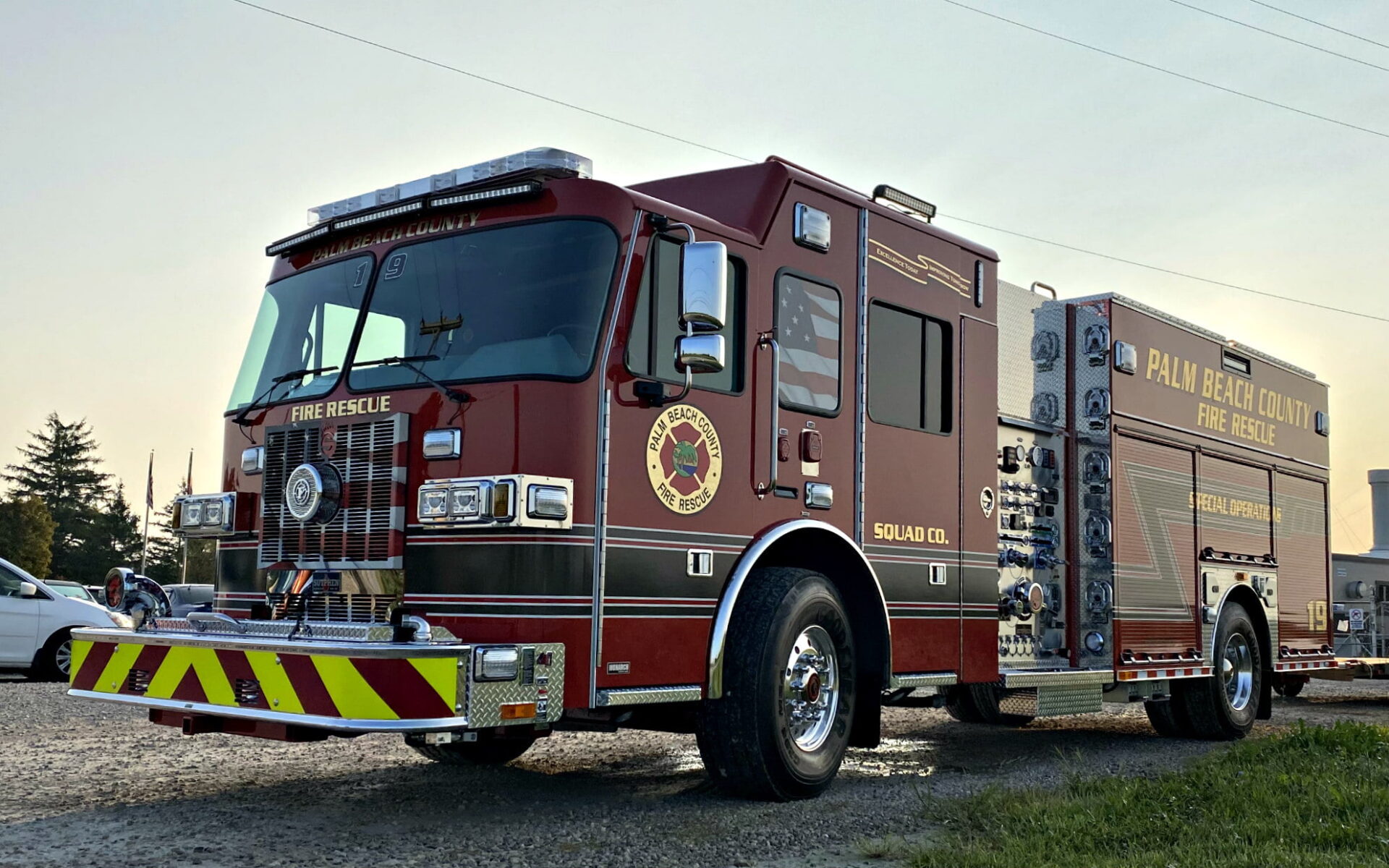

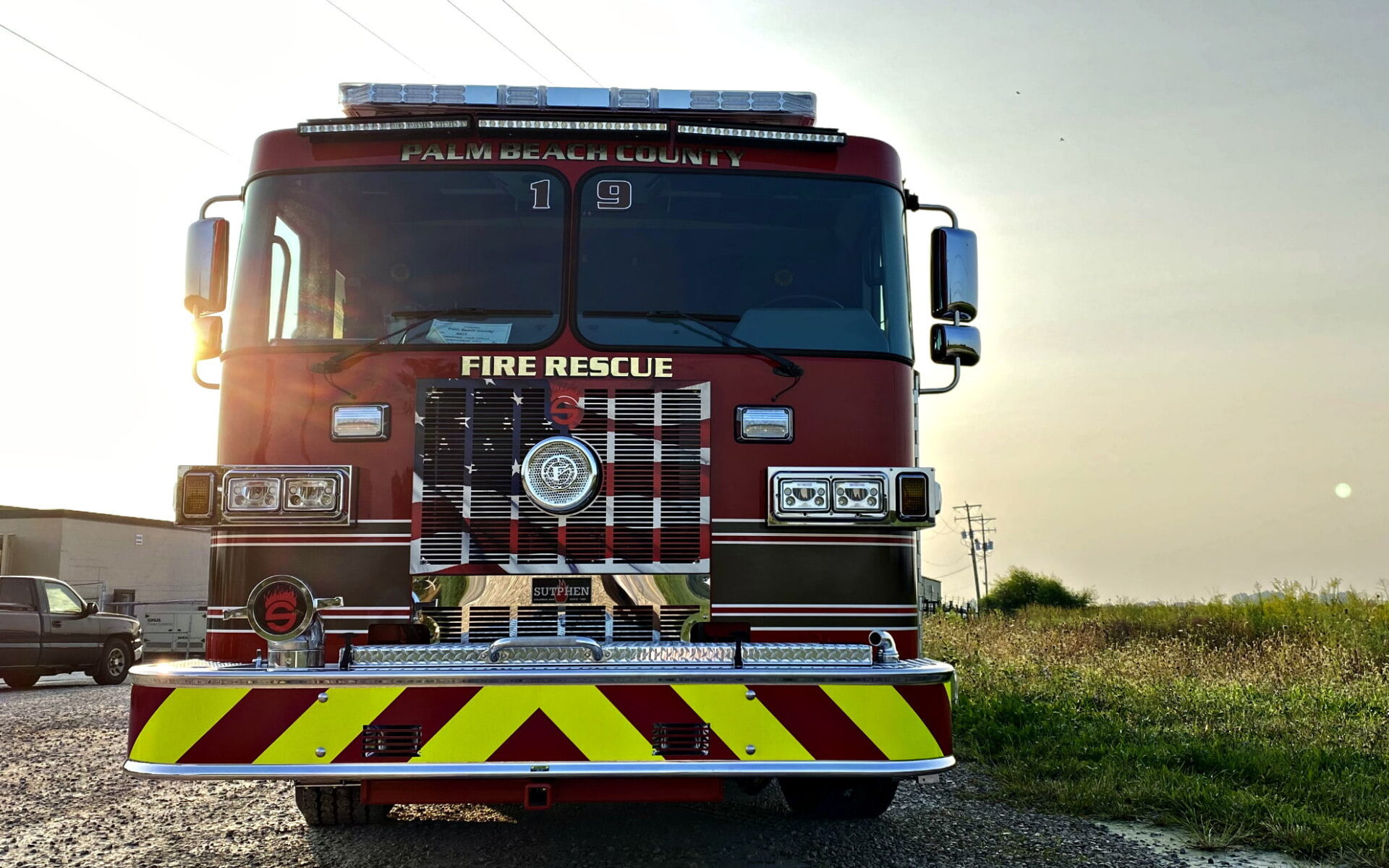

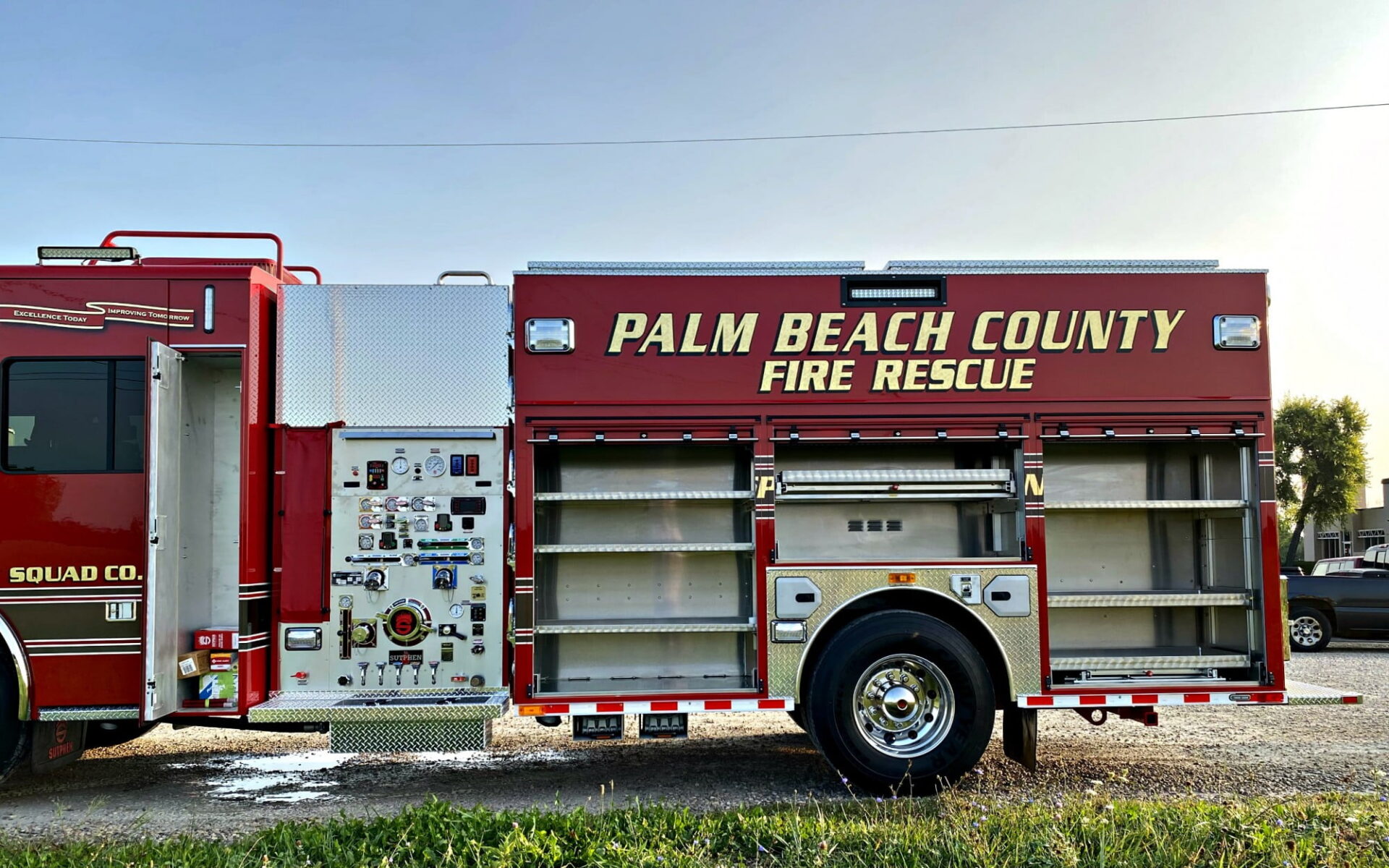

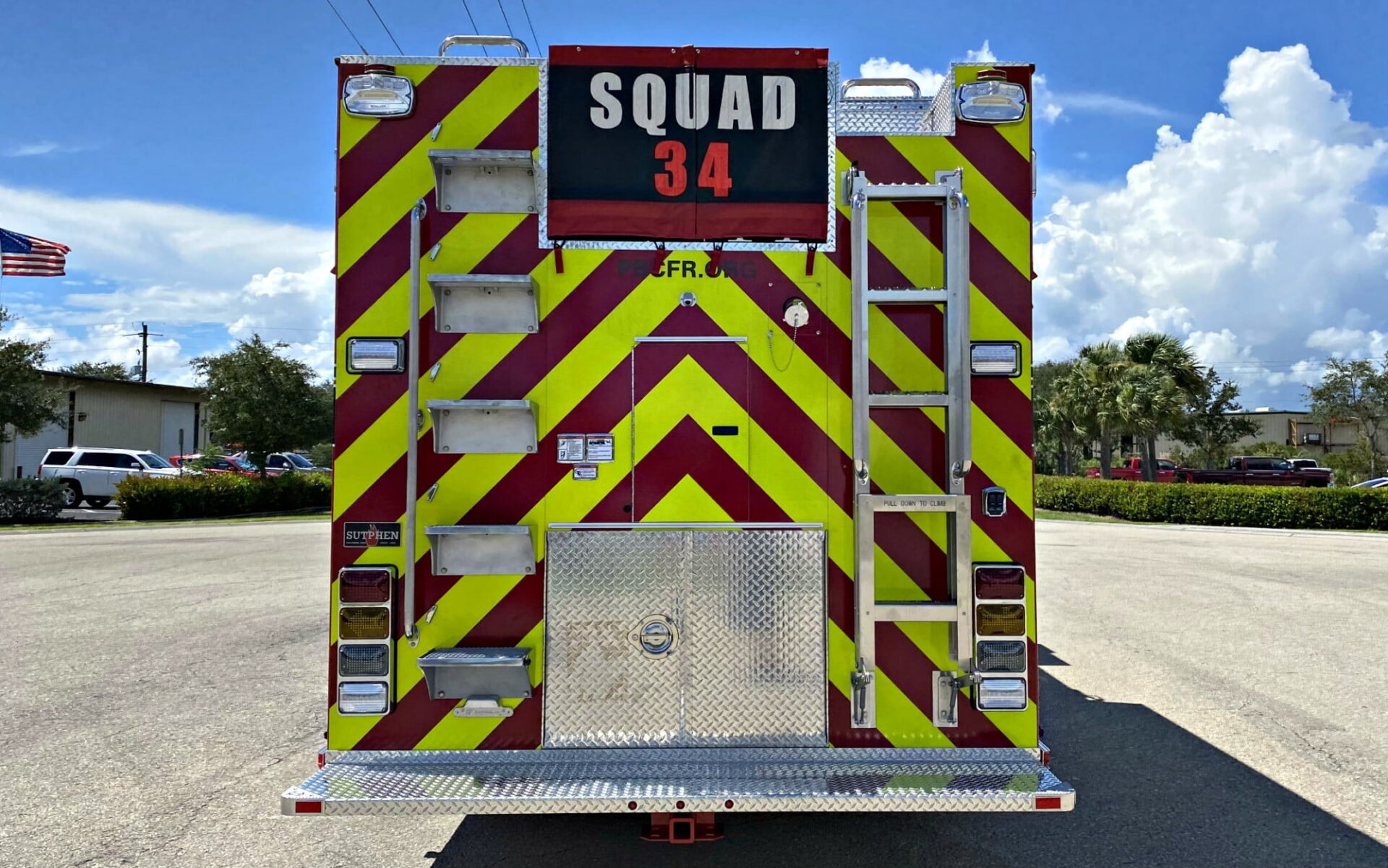

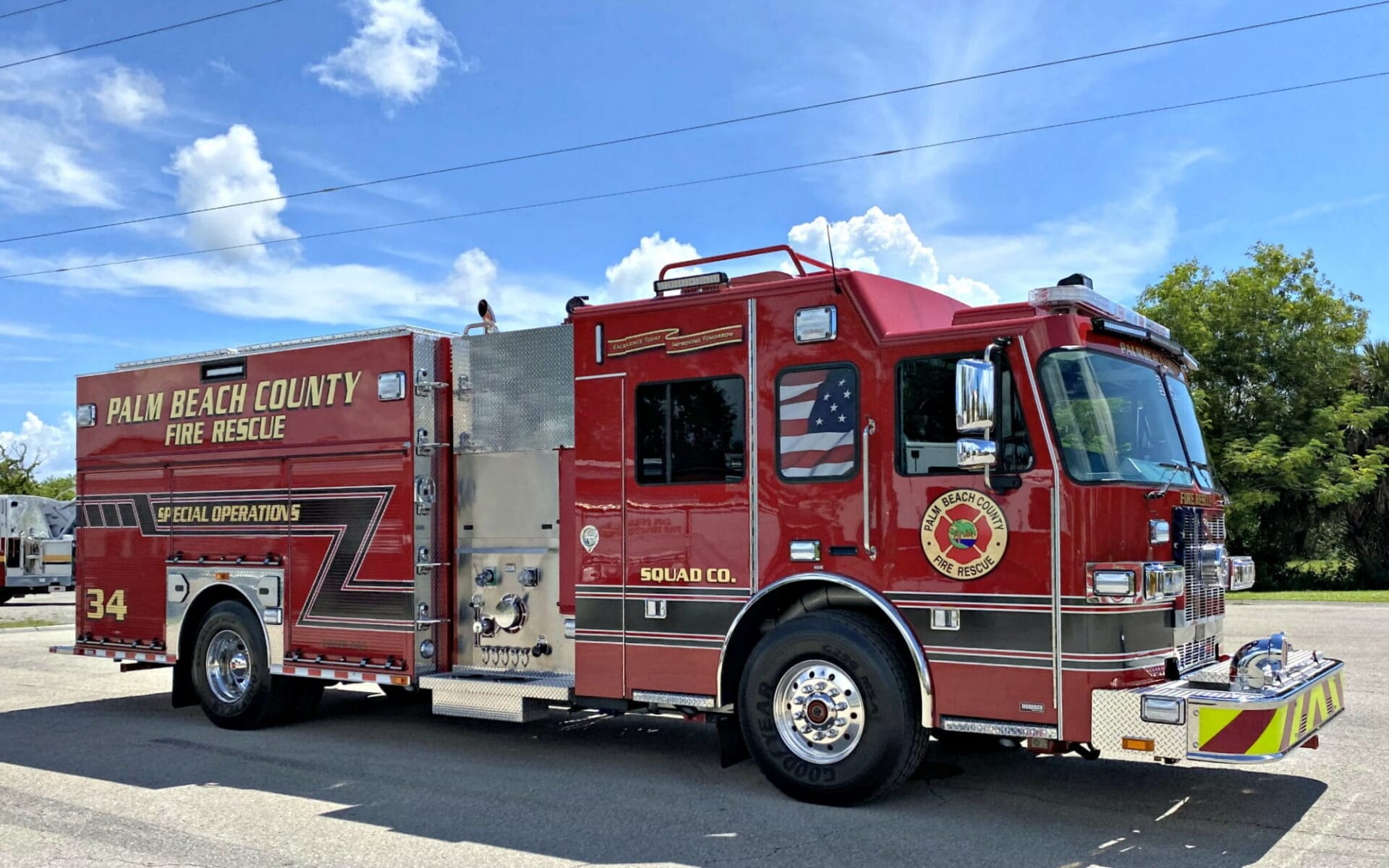

Custom Pumper – Palm Beach County Fire Rescue, FL

Specs

Cab
Four-door, six-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9, 450HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS3000

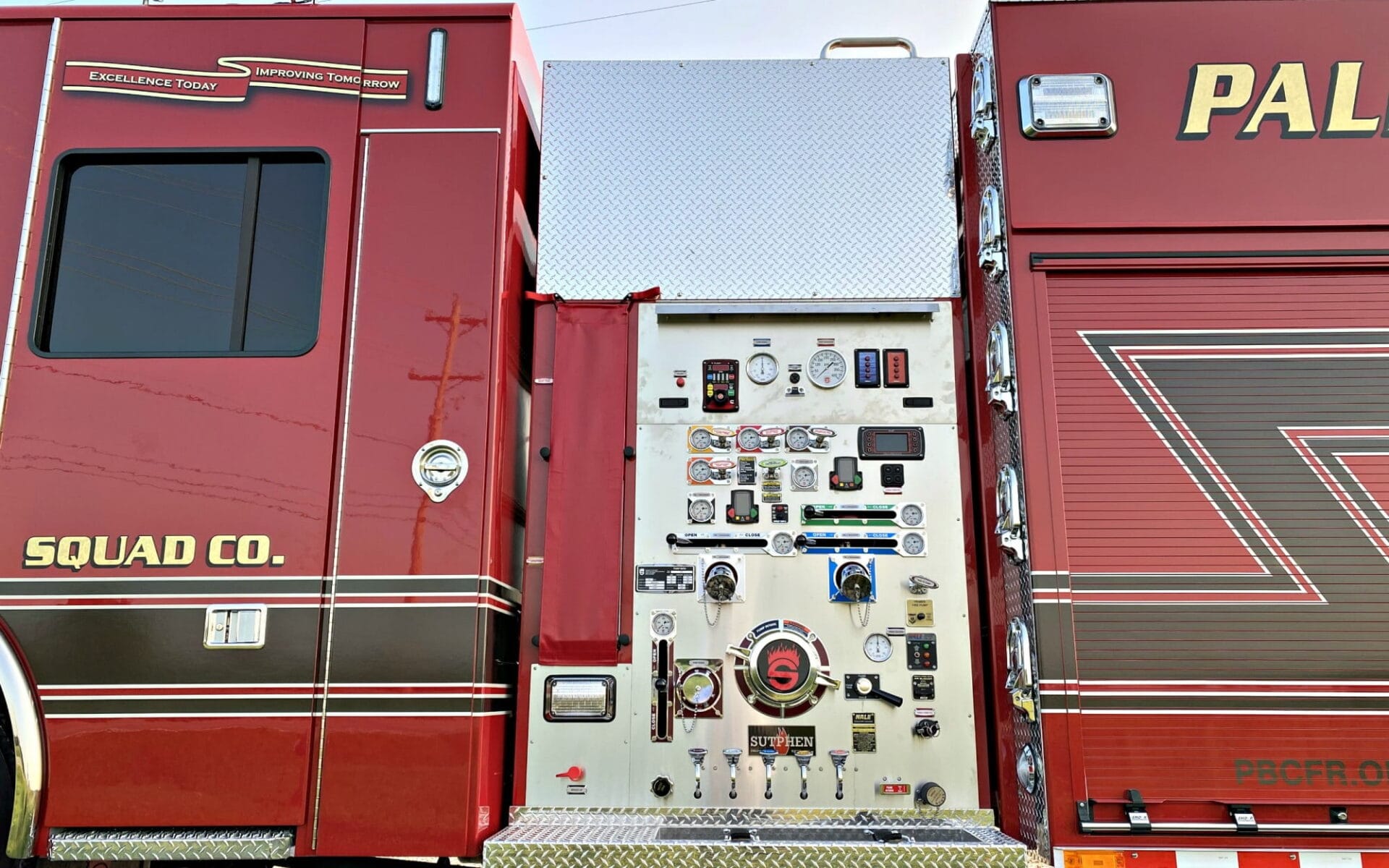

Water Pump
Qmax-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Speedlays
(2) 1 ½” w/ Lift-Out Trays
Water Tank
750-gallon
Water Tank
30-gallon foam tank
Water Tank
20-gallon foam tank
Foam System
Hale Smartfoam 5.0
Construction
3/16” extruded aluminum
Doors
Amdor compartment
Total Compartment Space
Over 495 cu. ft.
Ladder Compliment
Alco-lite ladder package (pel-24 24’ 2-section & prl-14 14’ roof & 10’ folding)
Body
Modified PA-16, 56/53, Ladder Under Hosebed & Double Hatch, Raise Sides 6”
Bumper Extension
24” polished stainless steel bumper
Siren
Federal q2b , grille mount
Camera System
Brigade 360 Camera
FireTech 3-Piece 72”
Brow
FireTech 21” LED
Scene lights
Whelen Freedom IV
12 led lightbar
Whelen M9V2
Included
